Hall Effect Current Sensors
-
HAH1DRW 400-S/SP5, Automotive Open Loop Current Sensor, +/-400Amp Measurement, Vref = 2.5V output
HAH1DRW 400-S/SP5, Automotive Open Loop Current Sensor, +/-400Amp Measurement, Vref = 2.5V output Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles  Specification LEM Part Number HAH1DRW 400-S/SP5 Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current +/-400 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6  Datasheet Product Datasheet
$59.00
$69.62 inclGST -

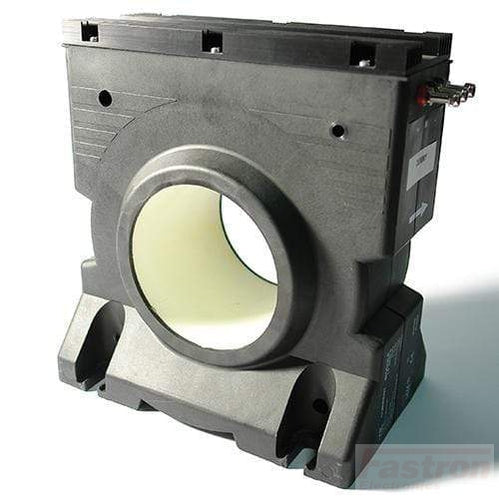

LT 10000-S, C/L Hall Effect current transducer, Ipn = 10000 Amp, Isn = 1000mA, +/-48..60VDC Supply
LEM LT 10000-S, C/L Hall Effect current transducer, Ipn = 10000 Amp, Isn = 1000mA, +/-48..60VDC Supply Features Bipolar and insulated current measurement up tp 6000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 10000-S Technology Closed Loop Hall Effect Aperture 200mm ROHS Yes Supply Voltage +/- 48 VDC to +/- 60 VDC Bipolar, Isolated Load Current (RMS + DC) 10000 Amp Measurement Range +/- 15000 Amp (with +/-60VDC Supply) Output 1000 mA Isolation 10 kV Bandwidth DC-100 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.5% Termination Style M5 threaded studs Unit Weight 17kg Factory Pack Quantity 1  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Â
$12,689.00
$14,973.02 inclGST -
LF 510-S/SP22, C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, 30.2mm Aperture, +/-15..24V Supply, Panel Mount, X = 0.5%
LEM LF 510-S/SP22, C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, 30.2mm Aperture, +/-15..24V Supply, Panel Mount, X = 0.5% Features Bipolar and insulated current measurement up tp 800 Amp Current output Bandwidth DC to 200kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 SP22 = +/-1200 Amp, Ratio = 1/3500, - 40 Deg C to + 70 Deg C Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LF 510-S/SP22 Technology Closed Loop Hall Effect Aperture ø30.2mm ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 500 Amp Measurement Range +/- 800 Amp Output 100 mA Isolation 3.8 kV Bandwidth DC-200 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.5% Termination Style Molex 6410 Unit Weight 240g Factory Pack Quantity 18  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Â
$489.00
$577.02 inclGST -

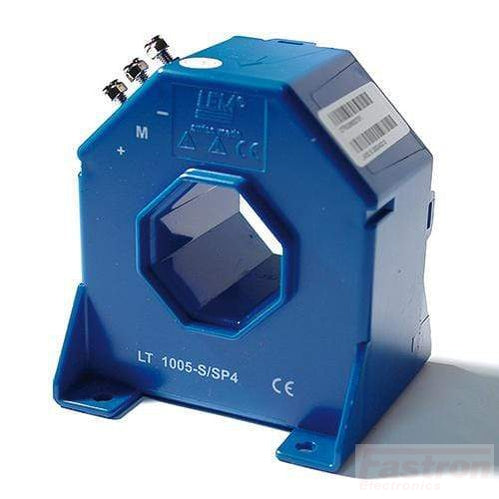

LT 1005-S/SP29, C/L Current Transducer,Ipn = 1000A, +/-15/24VDC, 200mA output, X = 0.4%
LEM LT 1005-S/SP29, C/L Current Transducer,Ipn = 1000A, +/-15/24VDC, 200mA output, X = 0.4% Features Bipolar and insulated current measurement up tp 2000 Amp Current output Bandwidth DC to 150kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 SP19 = Ip = +/-2400A, Vc = +/-15..24V, Vd = 12kV, Ta = -40 Deg C(-50 Deg C)..+85 Deg C Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 1005-S/SP29 Technology Closed Loop Hall Effect Aperture ø40.5mm ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 1000 Amp Measurement Range +/- 2400 Amp Output 200 mA Isolation 6 kV Bandwidth DC-150 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.4% Termination Style M4 theaded studs Unit Weight 850g Factory Pack Quantity 4  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Â
$1,130.00
$1,333.40 inclGST -
HLSR 120-P/SP10, O/L Hall Effect Current Sensor, 120 Amp, 5VDC Supply, PCB Mount
LEM HLSR 120-P/SP10, O/L Hall Effect Current Sensor, 120 Amp, 5VDC Supply, PCB Mount Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 120-P/SP10 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 120 Amp Measurement Range +/-300 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$31.45
$37.11 inclGST -

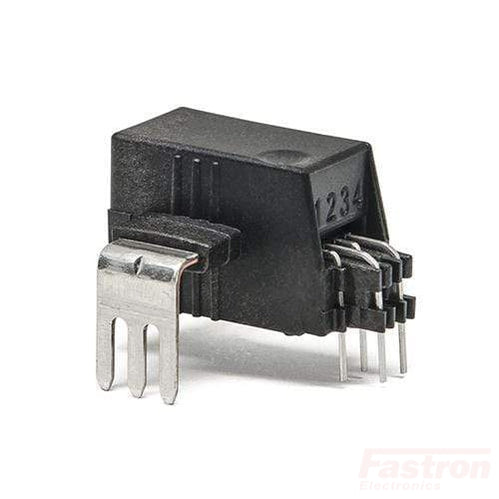

HLSR 100-P/SP10, O/L Hall Effect Current Sensor, 100 Amp, 5VDC Supply, PCB Mount
LEM HLSR 100-P/SP10, O/L Hall Effect Current Sensor, 100 Amp, 5VDC Supply, PCB Mount Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 100-P/SP10 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 100 Amp Measurement Range +/-250 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$31.45
$37.11 inclGST -
HLSR 80-P/SP10, O/L Hall Effect Current Sensor, 80 Amp, 5VDC Supply, PCB Mount
LEM HLSR 80-P/SP10, O/L Hall Effect Current Sensor, 80 Amp, 5VDC Supply, PCB Mount Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 80-P/SP10 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 80 Amp Measurement Range +/-200 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$31.45
$37.11 inclGST -
LT 4000-T/SP42, C/L Hall Effect Current Sensor, Ipn = 4400 Amp (+/-12000 Amp Measurement Range), Isn = 880mA, +/-60VDC Supply, 60mm Busbar, X = 0.2%, Busbar/Panel Mount
LEM LT 4000-T/SP42, C/L Hall Effect Current Sensor, Ipn = 4400 Amp (+/-12000 Amp Measurement Range), Isn = 880mA, +/-60VDC Supply, 60mm Busbar, X = 0.2%, Busbar/Panel Mount Features Bipolar and insulated current measurement up tp 6000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 4000-T/SP42 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/- 60 VDC Bipolar, Isolated Load Current (RMS + DC) 4400 Amp Measurement Range +/- 12000 Amp Output 880 mA Isolation 12 kV Bandwidth DC-100 kHz Mounting Style Busbar Mount Operating Temperature Range -10°C / 85°C Accuracy 0.2% Termination Style M5 threaded studs Unit Weight 12.1kg Factory Pack Quantity 1  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Â
$5,528.60
$6,523.75 inclGST -
CD 100-S/SP5, O/L Hall Effect Current Sensor, 2 x 1000 Amp, +/-5V Output
LEM CD 100-S/SP5, O/L Hall Effect Current Sensor, 2 x 1000 Amp, +/-5V Output Features Bandwidth DC to 5kHz Closed loop transducer using Hall effect (Compensated) Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Single or 3 Phase Inverter Propulsion and Breaking Chopper Propulsion Converter Auxiliary Converter Railway Security System Specification LEM Part Number CD100-S/SP5 Technology Closed Loop Hall Effect Aperture ø40mm ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 2 x1000 Amp Output +/-5 V Isolation 6 kV Bandwidth DC-5 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 80°C Accuracy 2.5% Unit Weight 1kg Factory Pack Quantity 10  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$9,500.00
$11,210.00 inclGST -
HAH1DRW 700-S, Automotive Open Loop Current Sensor, +/-700Amp Measurement, Vref = 2.5V output
HAH1DRW 700-S, Automotive Open Loop Current Sensor, +/-700Amp Measurement, Vref = 2.5V output, Not for New Design see HAH1DRW 700-S/SP5 for drop in replacement wit metal inserts Features Open Loop Transducer using Hall Effect Low Voltage Application Unipolar +5V Power Supply Primary Current Measuring Ranges up to +/-900Amp Output Voltage: Full ratio-metric (in sensitivity and offset) Dual Channel Sensor for Wider Measurement Range and Redundancy Advantages Good Accuracy for High and Low Current Range Good Linearity Low Thermal Offset Drift Low Thermal Sensitivity Drift Hermetic Package Automotive Applications Battery Pack Monitoring Hybrid Vehicles EV and Utility Vehicles  Specification LEM Part Number HAH1DRW 700-S Technology Multirange Open Loop Hall Effect ROHS Yes Supply Voltage 5 VDC Load Current +/-700 Amp Output 0.25 - 4.75V (2.5Vref) Isolation 2kV (AC, 50Hz, 1 min) Mounting Style Panel Mount/Cable Mount Termination Style Fuse Mounting Style Unit Weight 25g Factory Pack Qty 6  Datasheet Product Datasheet Equivalent HAH1DRW 700-S/SP5 (Drop in Replacement with metal inserts)
$59.00
$69.62 inclGST -
HAX 1500-S/SP18, O/L Current Transducer, 1500 Amp, +/-15V Supply, 64 x 21 Square Aperture, +/-4V Output, SP18 = Electrolube, UR5604 A+B Potting
LEM HAX 1500-S/SP18, O/L Current Transducer, 1500 Amp, +/-15V Supply, 64 x 21 Square Aperture, +/-4V Output, SP18 = Electrolube, UR5604 A+B Potting Features Bandwidth DC to 25kHz Open loop transducer using Hall effect Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Wide dynamic range, nominal 100 to 2500 A in one package. Up to 5500 A measurement range Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification LEM Part Number HAX 1500-S/SP18 Technology Open Loop Hall Effect Aperture 64 x 21mm Square ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 1500 Amp Measurement Range +/-4500 Amp Overload Rating +/-30000 At Output +/-4 V Isolation 4.4 kV Bandwidth DC-25 kHz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 85°C Accuracy 1% Termination Style Molex 5045-04A Unit Weight 450g Factory Pack Quantity 4  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition Â
$289.35
$341.43 inclGST -

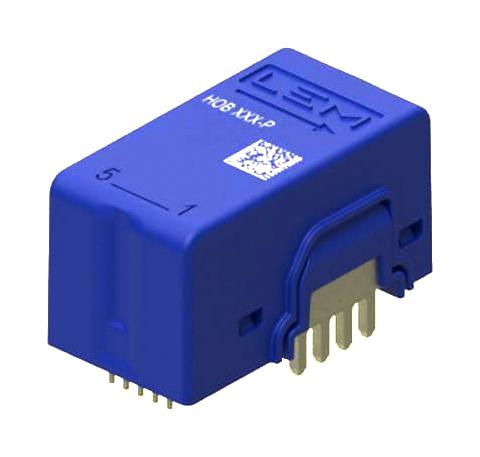

HOB 130-P Series Open Loop AC/DC Hall Effect Sensor, 130 Amp, PCB Mount for High Frequency
LEM HOB 130-P Series Open Loop AC/DC Hall Effect Sensor, 130 Amp, PCB Mount for High Frequency Features Open loop current transducer Voltage output 4.4kV Isolation Wide Frequency bandwidth 1Mhz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HOB 100-P Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 100 Amp Measurement Range +/-250 Amp Output 2.5 Vref Isolation 4.4 kV Bandwidth DC-1MHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 40g Factory Pack Quantity 25  Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$34.00
$40.12 inclGST
