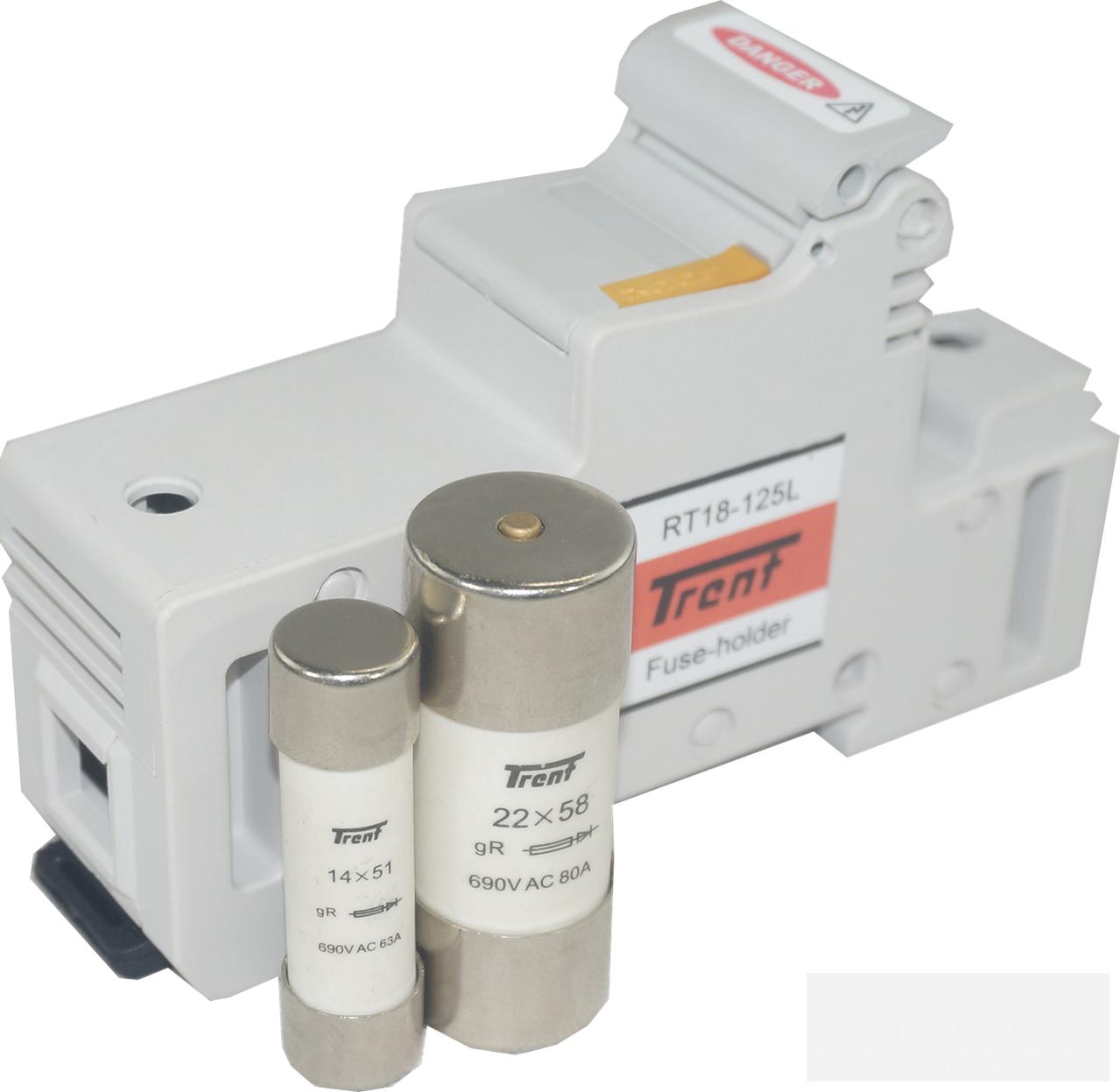

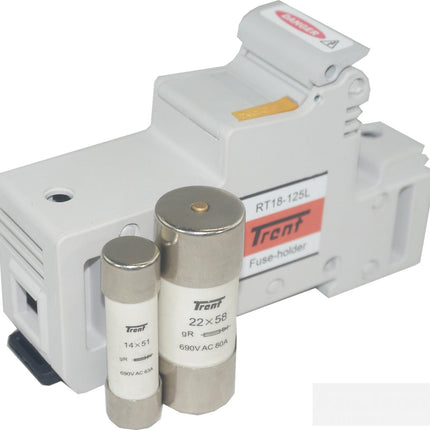

NBR-FR22GR69V125T + RT18-125L Series 125 Amp 690V Semiconductor I²t gR Fuse & DIn Rail Fuse Holder Cartridge Style

Trent Part Number	NBR-FR22GR69V125T + RT18-125L
Fuse Type	I²t gR Class
Nominal Voltage	690VAC @ 50Hz
I²t Rating (Pre-Arcing)	8100 A²/s
Nominal Current (RMS + DC)	125 Amp
Tested Breaking Capacity	200kA @ 690VAC

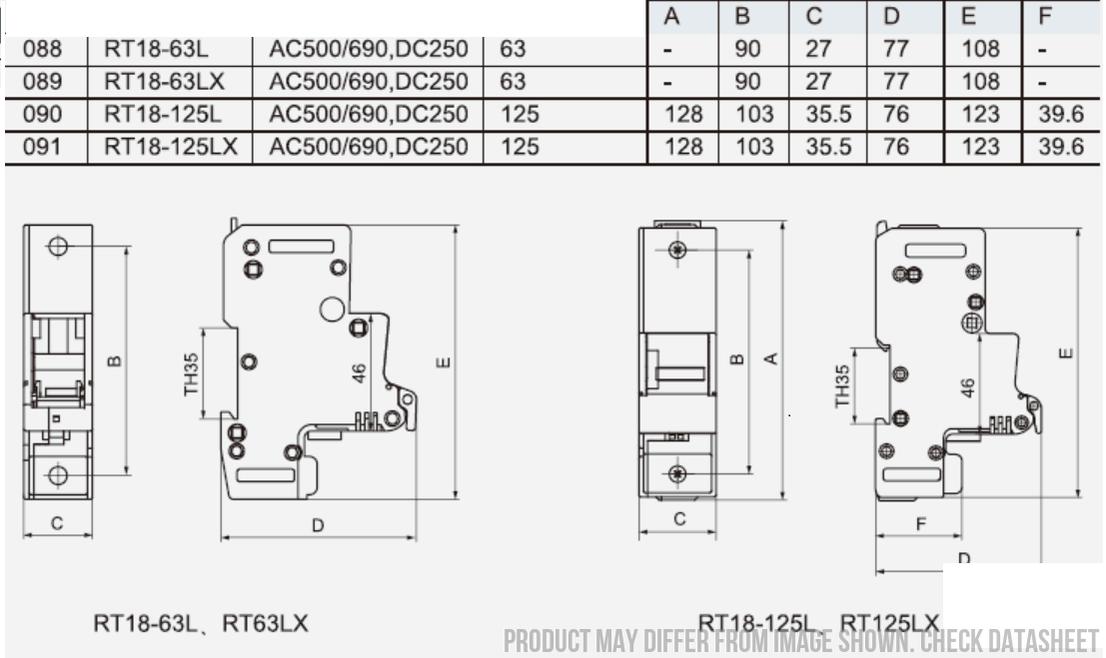

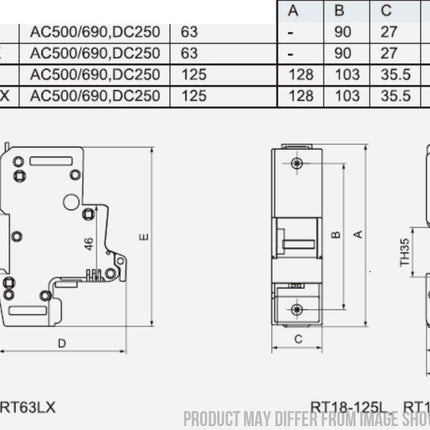

Dimensions	123 x 76 x 37.5mm

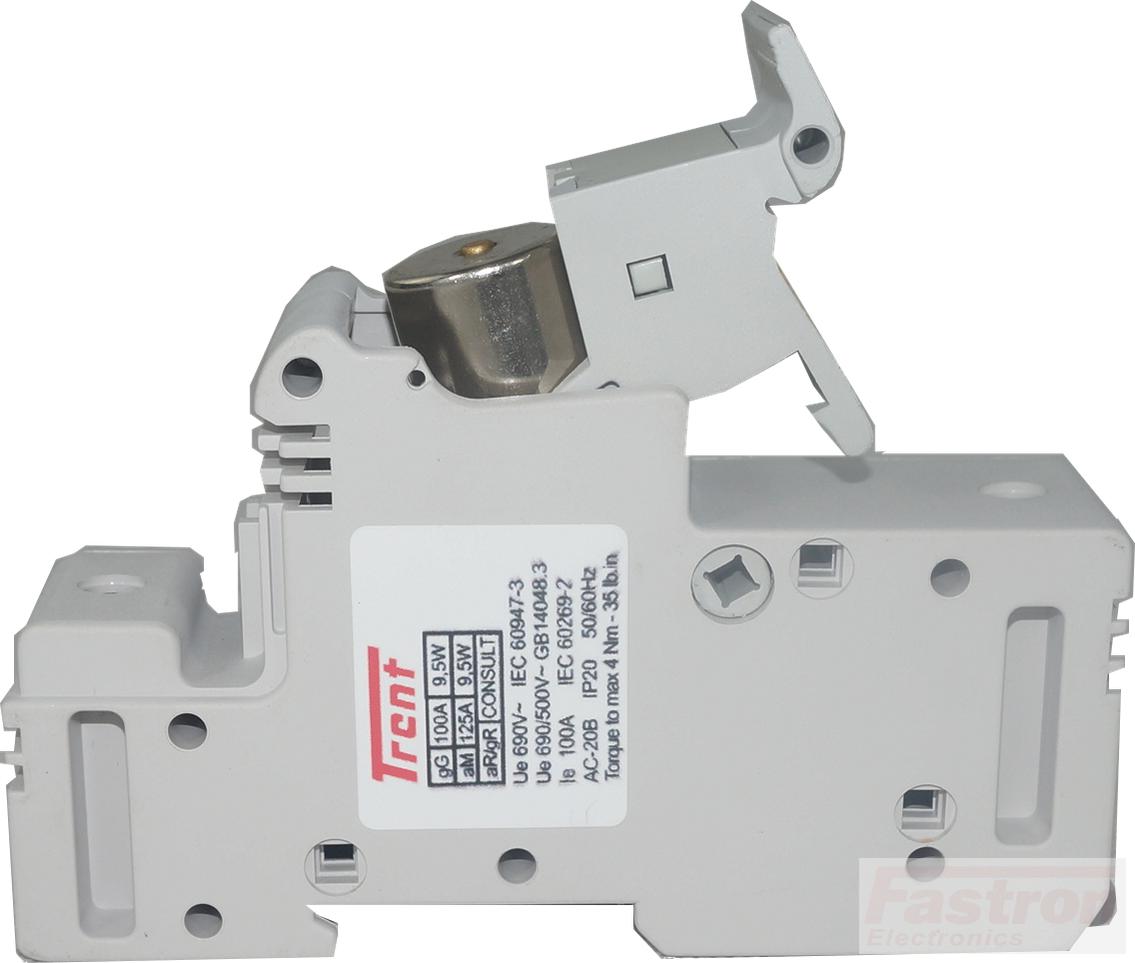

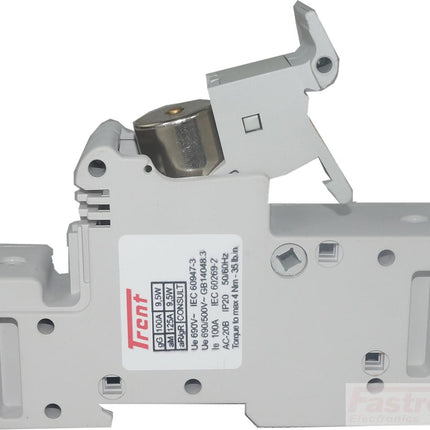

Fuse Holder	RT18-125L
Mounting Style	Din Rail Mount
Operating Temperature Range	-40°C / 125°C
Watt Loss	22.8W
DC Breaking Capacity	50kA
Unit Weight	60g
Factory Pack Qty	10



• RT18-125L
• Datasheet
