Westcode-IXYS-Littlefuse MCD95-16io1B, 95 Amp, 1600V, Thyristor Diode Module Features Thyristor for line frequency Direct Copper Bonded Al2O3-ceramic Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCD95-16io1B Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 116 Amp Package Size W:20mm L:93mm D:30mm TO-240AA Itsm 2.25 kA VF(to) 0.8V Tj(max) 125°C rF 2.4mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.22°C/W R th(c-h) 0.42°C/W Weight 85g Mounting Torque 3 Nm (3 Nm Terminals) Factory Pack Qty 12 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See TD120N16SOF Solder Contact or TD122N22KOF Infineon Alternative

Read more less

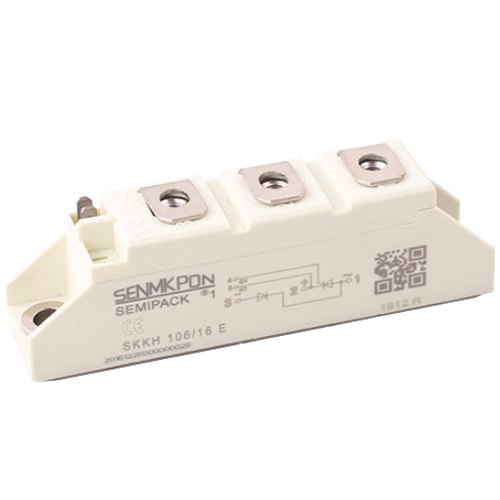

Semikron SKKH106/16E, 106 Amp, 1600V, Thyristor Diode Module Features Solder Contact Technology Electrically insulated base plate International standard package 3000V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Semikron Part Number SKKH106/16E Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 100 Deg C 150 Amp Package Size W:20mm L:94mm D:30mm Itsm 2.25 kA VF(to) 0.9V Tj(max) 130°C rF 2mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.15°C/W R th(c-h) 0.1°C/W Weight 95g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet

Read more less

Semikron SKKH41/12E, 41 Amp, 1200V, Thyristor Diode Module Features Solder Contact Technology Electrically insulated base plate International standard package 3000V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Semikron Part Number SKKH41/12E Vrrm 1200V Diode Configuration Thyristor Diode Module IF(av) @ 100 Deg C 150 Amp Package Size W:20mm L:94mm D:30mm Itsm 2.25 kA Tj(max) 125°C Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A Weight 95g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed Semikron Headquarters Germany   Datasheet Product Datasheet

Read more less

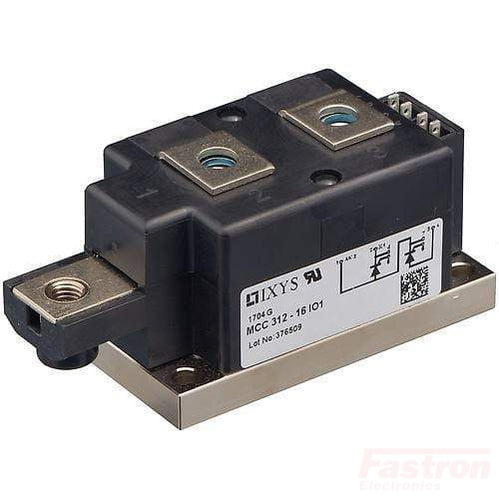

Westcode-IXYS-Littlefuse MCD312-16io1, Thyristor Diode Module, 330 Amp, 1600V Features Thyristor for line frequency Direct Copper Bonded Al2O3-ceramic Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCD312-16io1 Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 320 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.6 kA VF(to) 0.8V Tj(max) 140°C rF 0.68mΩ I(gt) @ 25 Deg C 150mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 680g Mounting Torque 7 Nm (13 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See TD330N16KOF Infineon Alternative

Read more less

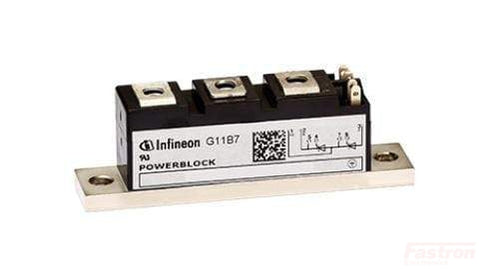

Infineon TD61N16KOF Thyristor Diode Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TD61N16KOF Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 60 Amp Package Size W:20mm L:92mm D:30mm TO-240AA Itsm 1.55 kA VF(to) 0.8V Tj(max) 130°C rF 3.4mΩ I(gt) @ 25 Deg C 120mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.52°C/W R th(c-h) 0.16°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCD95-16 for IXYS Solder Contact replacement or TD122N22KOF Infineon Solder Contact alternative

Read more less

Techsem MFC40-18-223F3, Thyristor Diode Module, 40 Amp, 1800V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 22mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MFC40-18-223F3 Vrrm 1800V Diode Configuration Thyristor Diode Module IF(av) @ 100 Deg C 40 Amp Package Size W:21mm L:93mm D:30mm Itsm 1.15 kA VF(to) 0.85V Tj(max) 150°C rF 5.57mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.65°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See VSKH91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part

Read more less

Techsem MFC26-18-223F3, Thyristor Diode Module, 26 Amp, 1800V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 22mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MFC26-18-223F3 Vrrm 1800V Diode Configuration Thyristor Diode Module IF(av) @ 100 Deg C 26 Amp Package Size W:21mm L:93mm D:30mm Itsm 0.65 kA VF(to) 0.85V Tj(max) 150°C rF 9.68mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.95°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See VSKH91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part

Read more less

Techsem MFC110-12-223F3, Thyristor Diode Module, 110 Amp, 1200V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 22mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MFC110-12-223F3 Vrrm 1200V Diode Configuration Thyristor Diode Module IF(av) @ 100 Deg C 110 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 150°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See VSKH91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part

Read more less

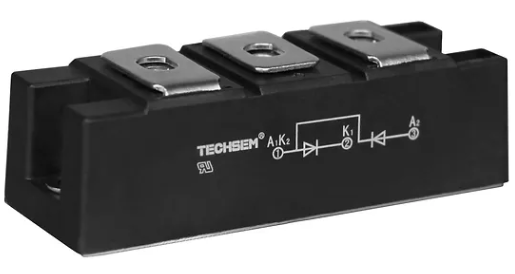

Techsem MFC182-12-216F3B, 182 Amp, 1200V, Thyristor Diode Module Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MFC182-12-216F3B Vrrm 1200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 7 kA VF(to) 0.85V Tj(max) 125°C rF 1.26mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.22°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet

Read more less

Techsem MFC250-12-413F3D, Thyristor Diode Module, 250 Amp, 1200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MFC250-12-413F3D Vrrm 1200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 250 Amp Package Size W:50mm L:115mm D:52mm Itsm 6.8 kA VF(to) 0.85V Tj(max) 125°C rF 0.8mΩ I(gt) @ 25 Deg C 180mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See MCD312-12io1 for Solder bonded alternative or TD330N12K , TD250N12KOF for pressure contact alternative

Read more less

Techsem MFC300-12-413F3D, Thyristor Diode Module, 300 Amp, 1200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MFC300-12-413F3D Vrrm 1200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 6.8 kA VF(to) 0.85V Tj(max) 125°C rF 0.8mΩ I(gt) @ 25 Deg C 180mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See MCD312-12io1 for Solder bonded alternative or TD330N12K , TD250N12KOF for pressure contact alternative
