Infineon TD122N22KOF Thyristor Diode Module Features Thyristor for line frequency Solder-Solder Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TD122N22KOF Vrrm 2200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 122 Amp Package Size W:34mm L:94mm D:30mm Itsm 3.3 kA VF(to) 1.0V Tj(max) 130°C rF 2.15mΩ I(gt) @ 25 Deg C 200mA Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.20°C/W R th(c-h) 0.06°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See MCD95-16 for IXYS Solder Contact replacement or TD120N16S Infineon Alternative

Read more less

Thyristor Diode Module, 95 Amp, 800V, 20mm package

Read more less

Thyristor Diode Module, 44 Amp, 1400V, 20mm package

Read more less

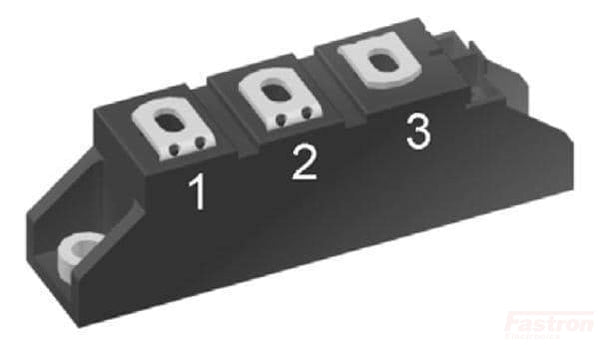

Westcode-IXYS-Littlefuse MCD26-08IO8B, Thyristor Diode Module, 26 Amp, 800V Features Thyristor for line frequency Direct Copper Bonded Al2O3-ceramic Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCD26-08IO8B Vrrm 800V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 27 Amp Package Size W:20mm L:93mm D:30mm TO-240AA Itsm 0.52 kA VF(to) 0.85V Tj(max) 125°C rF 11mΩ I(gt) @ 25 Deg C 100mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.88°C/W R th(c-h) 0.20°C/W Weight 81g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 12 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See MCD95-16io1B for IXYS alternative. See TD120N16SOF for Infineon Pressure Contact Alternative

Read more less

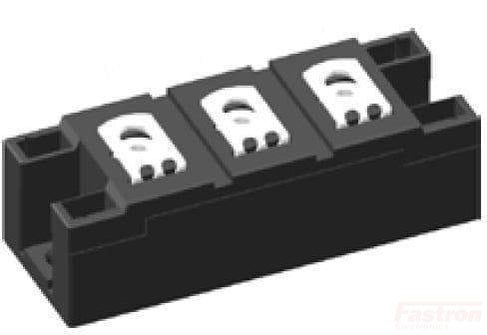

Westcode-IXYS-Littlefuse MCD162-16io1, Thyristor Diode Module, 160 Amp, 1600V Features Thyristor for line frequency Direct Copper Bonded Al2O3-ceramic Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCD162-16io1 Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 181 Amp Package Size W:34mm L:94mm D:30mm Itsm 6 kA VF(to) 0.88V Tj(max) 125°C rF 1.15mΩ I(gt) @ 25 Deg C 150mA Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.155°C/W R th(c-h) 0.07°C/W Weight 150g Mounting Torque 2.75 Nm (5.5 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See TD162N16KOF Infineon Alternative, or MFC182-16-216F3B

Read more less

Thyristor Diode Module, 56 Amp, 1400V, 22mm Package Name Brand replacement to VSKH56/14 , Obsolete.
