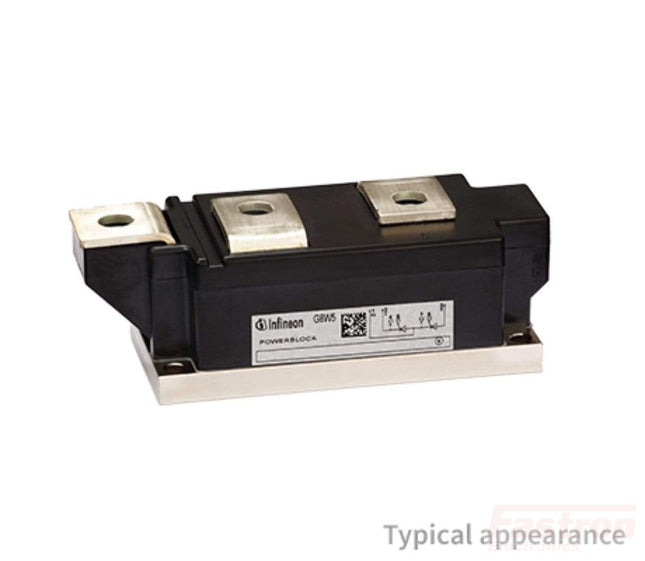

Infineon TD425N16KOF, Thyristor Diode Module, 425 Amp, 1600V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TD425N16KOF Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 425 Amp Package Size W:60mm L:144mm D:52mm Itsm 14.5 kA VF(to) 0.9V Tj(max) 125°C rF 0.3mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.078°C/W R th(c-h) 0.02°C/W Weight 1500g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MFC500-16-416F3 for Techsem Alternative

Read more less

Infineon TD162N16KOF, Thyristor Diode Module, 162 Amp, 1600V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 34mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TD162N16KOF Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 162 Amp Package Size W:34mm L:94mm D:30mm Itsm 5.2 kA VF(to) 0.85V Tj(max) 125°C rF 0.95mΩ I(gt) @ 25 Deg C 150mA Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.1°C/W R th(c-h) 0.03°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCD162-16io1 for IXYS Solder Bonded Alternative, or MFC182-16-216F3B

Read more less

Techsem MFC90-16-223F3, Thyristor Diode Module, 90 Amp, 1600V, 20mm package Features Pressure Contact Technology Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MFC90-16-223F3 Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 104 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 1.8 kA VF(to) 0.8V Tj(max) 125°C rF 3.01mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 100mA R th(j-c) 0.28°C/W R th(c-h) 0.15°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See MCC95-16io1B for IXYS replacement. See TT92N16KOF for Techsem Pressure Contact Alternative

Read more less

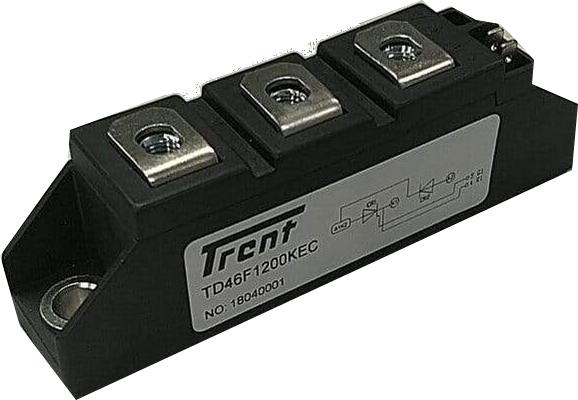

Fast Thyristor-Diode ModuleTD46F 46 Amp, 1200V, 22mm Package, Name Brand NBR Replacement to Infineon TD46F1200 Product Datasheet

Read more less

Vishay VSKH91/14 Thyristor Diode Module Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Vishay Part Number VSKH91/14 Vrrm 1400V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 95 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Itsm 2 kA VF(to) 0.97V Tj(max) 125°C rF 2.76mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.22°C/W R th(c-h) 0.1°C/W Weight 95g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India   Datasheet OLD Product Datasheet 2018 Product Datasheet Alternatives See MCD95-16 for IXYS Solder Contact See TD120N16SOF or TD122N22KOF Infineon Alternative

Read more less

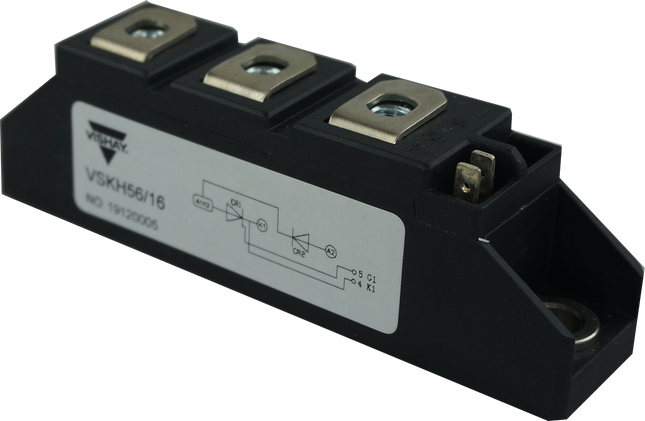

Vishay VSKH56/16, Thyristor Diode Module, 56 Amp, 1600V, 22mm Package Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Vishay Part Number VSKH56/16 Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 60 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Itsm 1.2 kA VF(to) 0.91V Tj(max) 125°C rF 4.27mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.22°C/W R th(c-h) 0.1°C/W Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India   Datasheet OLD Product Datasheet New Product Datasheet Alternatives See MCD95-16 for IXYS Solder Contact See TD120N16SOF or TD122N22KOF Infineon Alternative

Read more less

Vishay VSKH56/14, Thyristor Diode Module, 56 Amp, 1400V, 22mm Package Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Vishay Part Number VSKH56/14 Vrrm 1400V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 60 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Itsm 1.2 kA VF(to) 0.91V Tj(max) 125°C rF 4.27mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.22°C/W R th(c-h) 0.1°C/W Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India   Datasheet OLD Product Datasheet 2018 Product Datasheet Alternatives See MCD95-16 for IXYS Solder Contact See TD120N16SOF or TD122N22KOF Infineon Alternative

Read more less

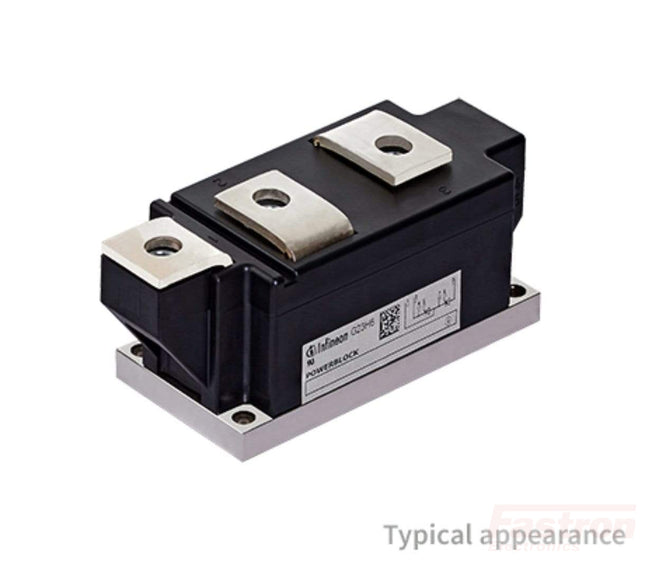

Infineon TD330N16KOF, Thyristor Diode Module, 330 Amp, 1200V (Replaces TD330N12KOF) Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TD330N16KOF Vrrm 1200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 330 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.8V Tj(max) 135°C rF 0.6mΩ I(gt) @ 25 Deg C 250mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.059°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCD312-16io1 for Solder bonded alternative

Read more less

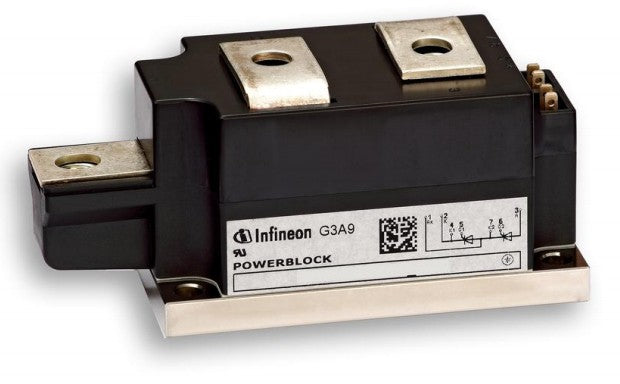

Infineon TD215N22KOF, Thyristor Diode Module, 215 Amp, 2200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TD215N22KOF Vrrm 2200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 215 Amp Package Size W:50mm L:115mm D:52mm Itsm 9.1 kA VF(to) 0.8V Tj(max) 125°C rF 0.7mΩ I(gt) @ 25 Deg C 200mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.065°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCD312-16io1 for Solder bonded alternative or TD330N12K , TD250N12KOF for pressure contact alternative

Read more less

Infineon TD162N12KOF, Thyristor Diode Module, 162 Amp, 1200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TD162N12KOF Vrrm 1200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 162 Amp Package Size W:34mm L:94mm D:30mm Itsm 5.2 kA VF(to) 0.85V Tj(max) 125°C rF 0.95mΩ I(gt) @ 25 Deg C 150mA Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.1°C/W R th(c-h) 0.03°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCD162-16io1 for IXYS Solder Bonded Alternative, or MFC182-16-216F3B
