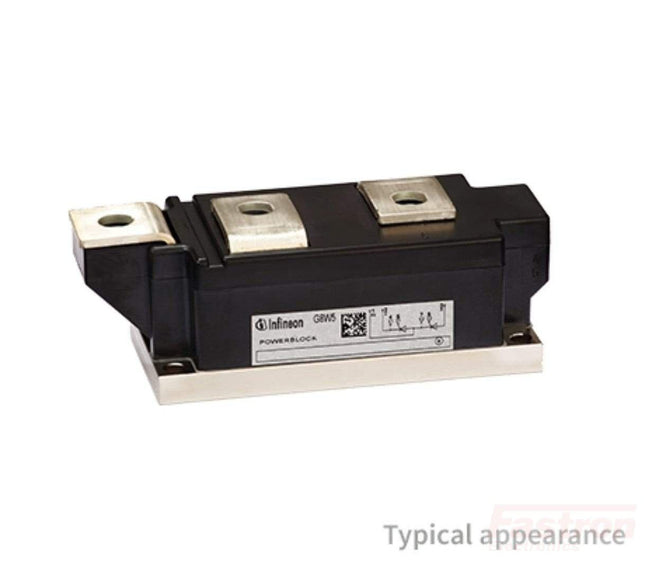

Thyristor (SCR) Modules
-
MFC300-16-413F3D, Thyristor Diode Module, 300 Amp, 1200V

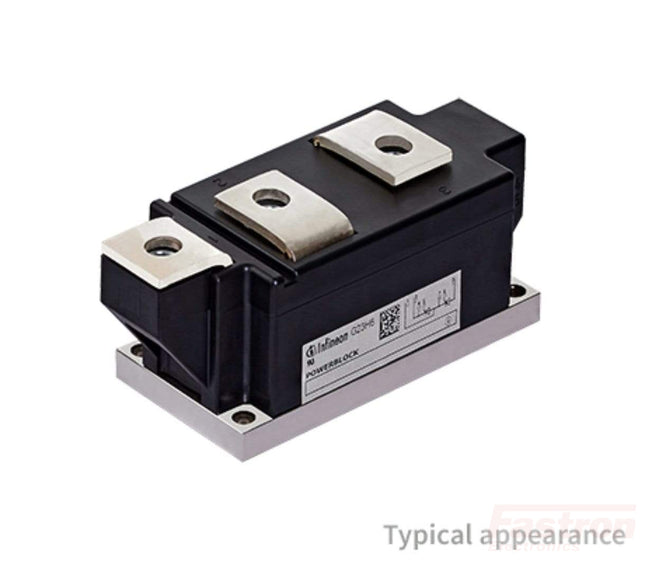

Techsem MFC300-16-413F3D, Thyristor Diode Module, 300 Amp, 1200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MFC300-16-413F3D Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 300 Amp Package Size W:50mm L:115mm D:52mm Itsm 6.8 kA VF(to) 0.85V Tj(max) 125°C rF 0.8mΩ I(gt) @ 25 Deg C 180mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MCD312-16io1 for Solder bonded alternative or TD330N12K , TD250N12KOF for pressure contact alternative
$255.00
$300.90 inclGST -
MFC250-16-413F3D, Thyristor Diode Module, 250 Amp, 1200V
Techsem MFC250-16-413F3D, Thyristor Diode Module, 250 Amp, 1200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MFC250-16-413F3D Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 250 Amp Package Size W:50mm L:115mm D:52mm Itsm 6.8 kA VF(to) 0.85V Tj(max) 125°C rF 0.8mΩ I(gt) @ 25 Deg C 180mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MCD312-16io1 for Solder bonded alternative or TD330N12K , TD250N12KOF for pressure contact alternative
$215.00
$253.70 inclGST -

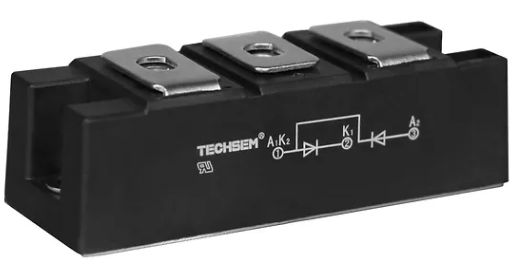

MFC182-16-216F3B, 182 Amp, 1600V, Thyristor Diode Module
Techsem MFC182-16-216F3B, 182 Amp, 1600V, Thyristor Diode Module Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MFC182-16-216F3B Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 7 kA VF(to) 0.85V Tj(max) 125°C rF 1.26mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.22°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet
$159.00
$187.62 inclGST -
MFC110-16-223F3, Thyristor Diode Module, 110 Amp, 1600V, 22mm Package
Techsem MFC110-16-223F3, Thyristor Diode Module, 110 Amp, 1600V, 22mm Package Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 22mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Techsem Part Number MFC110-16-223F3 Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 100 Deg C 110 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.6 kA VF(to) 0.8V Tj(max) 150°C rF 1.74mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.27°C/W R th(c-h) 0.20°C/W Weight 175g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Techsem Headquarters China Datasheet Product Datasheet Alternatives See VSKH91/14 for Solder Contact alternative of Contact Us for Possible Replacement for alternative part
$109.00
$128.62 inclGST -
SKKH280/22 E H4, Thyristor Diode Module, 250 Amp, 2200V
Semikron SKKH280/22 E H4, Thyristor Diode Module, 250 Amp, 2200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikron Part Number SKKH280/22 E H4 Vrrm 2200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 252 Amp Package Size W:50mm L:115mm D:52mm Itsm 8.5 kA VF(to) 0.85V Tj(max) 125°C rF 0.75mΩ I(gt) @ 25 Deg C 200mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.11°C/W R th(c-h) 0.13°C/W Weight 600g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Semikron Headquarters Germany Datasheet Product Datasheet Alternatives See MFC250-22 or TD215N22KOF
$265.00
$312.70 inclGST -
MFC160-12-216F3B, Thyristor Diode Module, 160 Amp, 1200V
Techsem MFC160-12-216F3B, Thyristor Diode Module, 160 Amp, 1200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MFC160-12-216F3B Vrrm 1200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 160 Amp Package Size W:34mm L:94mm D:30mm Itsm 5.2 kA VF(to) 0.8V Tj(max) 125°C rF 1.69mΩ I(gt) @ 25 Deg C 150mA Terminals M8 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.17°C/W R th(c-h) 0.08°C/W Weight 300g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MCD312-16io1 for Solder bonded alternative or TD330N12K , TD250N12KOF for pressure contact alternative
$165.00
$194.70 inclGST -
MFC250-22-413F3D, Thyristor Diode Module, 250 Amp, 2200V
Techsem MFC250-22-413F3D, Thyristor Diode Module, 250 Amp, 2200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MFC250-22-413F3D Vrrm 2200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 250 Amp Package Size W:50mm L:115mm D:52mm Itsm 6.8 kA VF(to) 0.85V Tj(max) 125°C rF 0.8mΩ I(gt) @ 25 Deg C 180mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.12°C/W R th(c-h) 0.04°C/W Weight 800g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 8 Certification UL Listed, ROHS Techsem Headquarters China Datasheet Product Datasheet Alternatives See MCD312-16io1 for Solder bonded alternative or TD330N12K , TD250N12KOF for pressure contact alternative
$255.00
$300.90 inclGST -
MT/D3-320-10-C1-N, Thyristor Diode Module, 320 Amp, 1000V
Proton Electrotex MT/D3-320-10-C1-N, Thyristor Diode Module, 320 Amp, 1000V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number MT/D3-320-10-C1-N Vrrm 1000V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 320 Amp Package Size W:50mm L:115mm D:52mm Itsm 8.5 kA VF(to) 0.75V Tj(max) 130°C rF 0.5mΩ I(gt) @ 25 Deg C 250mA Terminals M8 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.055°C/W R th(c-h) 0.02°C/W Weight 860g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 3 Certification UL Listed, ROHS Proton Headquarters Russian Federation Datasheet Product Datasheet Alternatives See MCD312-16io1 for Solder bonded alternative
$349.00
$411.82 inclGST -
TD520N22KOF, Thyristor Diode Module, 520 Amp, 2200V
Infineon TD520N22KOF, Thyristor Diode Module, 520 Amp, 2200V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TD520N22KOF Vrrm 2200V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 520 Amp Package Size W:60mm L:144mm D:52mm Itsm 14.5 kA VF(to) 0.85V Tj(max) 125°C rF 0.35mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.055°C/W R th(c-h) 0.02°C/W Weight 1500g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion
$578.50
$682.63 inclGST -

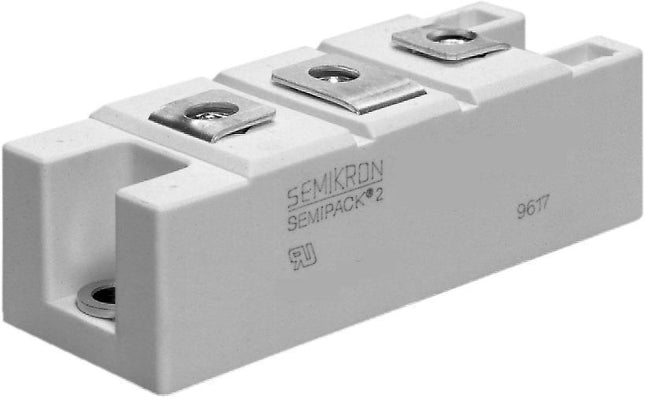

SKKH162/16E, 162 Amp, 1600V, Thyristor Diode Module
Semikron SKKH162/16E, 162 Amp, 1600V, Thyristor Diode Module Features Solder Contact Technology Electrically insulated base plate International standard package 3000V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Semikron Part Number SKKH162/16E Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 100 Deg C 150 Amp Package Size W:34mm L:94mm D:30mm Itsm 6 kA VF(to) 0.85V Tj(max) 135°C rF 1.2mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.09°C/W R th(c-h) 0.05°C/W Weight 165g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed Semikron Headquarters Germany Datasheet Product Datasheet
$92.50
$109.15 inclGST -
MCD44-08IO8B, Thyristor Diode Module, 44 Amp, 800V
Westcode-IXYS-Littlefuse MCD44-08IO8B, Thyristor Diode Module, 44 Amp, 800V Features Thyristor for line frequency Direct Copper Bonded Al2O3-ceramic Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Soft start AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCD44-08IO8B Vrrm 800V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 44 Amp Package Size W:20mm L:93mm D:30mm TO-240AA Itsm 1.15 kA VF(to) 0.85V Tj(max) 125°C rF 5.3mΩ I(gt) @ 25 Deg C 100mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.53°C/W R th(c-h) 0.20°C/W Weight 81g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 12 Certification UL Listed, ROHS IXYS Headquarters United States Datasheet Product Datasheet Alternatives See MCD95-16io1B for IXYS alternative. See TD120N16SOF for Infineon Pressure Contact Alternative
$33.72
$39.79 inclGST -

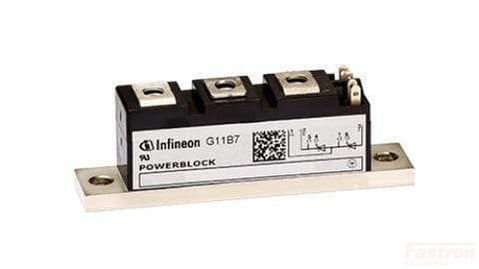

TD104N12KOF, Thyristor Diode Module, 104 Amp, 1200V, 20mm package
Infineon TD104N12KOF, Thyristor Diode Module, 104 Amp, 1200V, 20mm package Features Pressure Contact Technology Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Infineon Part Number TD104N12KOF Vrrm 1200V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 104 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 2.05 kA VF(to) 0.85V Tj(max) 125°C rF 2.15mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 120mA R th(j-c) 0.37°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives See MCC95-16io1B for IXYS replacement. See TT92N16KOF for Infineon Pressure Contact Alternative
$187.00
$220.66 inclGST
