3 Phase Half Wave Rectifier Bridge 120 Amp, 1600V, with Isolated Base

Read more less

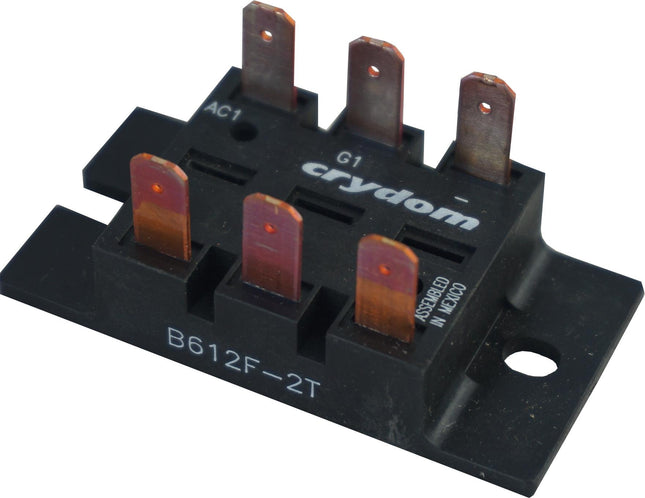

Crydom B612F-2T, Single Phase Half Controlled Rectifier Bridge, 42.5 Amp, 240VAC Line Features For AC or DC Variable Voltage Output Up to 15KW Electrically insulated base plate Industrial standard package 2500V Isolation UL Recognized E72445 Applications Power Supplies Rectifier for drives applications Rectifiers for UPS Battery Chargers Spec Crydom Part Number B612F-2T AC Line voltage 240V Device Configuration Single Phase Half Controlled Rectifier Bridge, DC Output @ 85 Deg C 42.5 Amp Package Size W:31.7mm L:63.5mm D:19.7mm Itsm 250 A VF 1.65V Tj(max) 125°C rF Not Published Terminals Faston (6.3mm) Hole Centres 48.2mm (M5) Gate Terminals Faston (6.3mm) R th(j-c) 0.9°C/W R th(c-h) Not Published Weight 42.5g Isolation 2.5kV Factory Pack Qty 20 Certification UL Listed Crydom Headquarters United States   Datasheet Product Datasheet Alternatives See B614F-2T or PSD51/18 for higher rated equivalent App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

3 Phase Half Wave Rectifier Bridge 175 Amp, 1600V, with Isolated Base

Read more less

Powersem PSD162/16 Three Phase Diode Rectifier Bridge, Replaces Semikron SKD160, and IXYS VUO160-16 N07 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD162/16 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 175 Amp Package Size W:94mm L:54mm D:30mm Itsm 1800 A VF(to) 0.8V Tj(max) 150°C rF 3mΩ Terminals M6 (5Nm) Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.65°C/W R th(c-h) 0.18°C/W Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD192T/16 for higher rated equivalent

Read more less

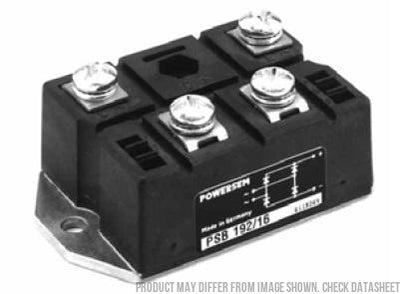

Powersem PSB192T/16, Single Phase Diode Rectifier Bridge, 192Amp, 1600V SKB160/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSB192T/16 AC Line voltage 533V Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 100 Deg C 175 Amp Package Size W:94mm L:54mm D:30mm Itsm 2800 A VF(to) 0.8V Tj(max) 150°C rF 2.2mΩ Terminals M6 (5Nm) Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.45°C/W R th(c-h) 0.15°C/W Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet

Read more less

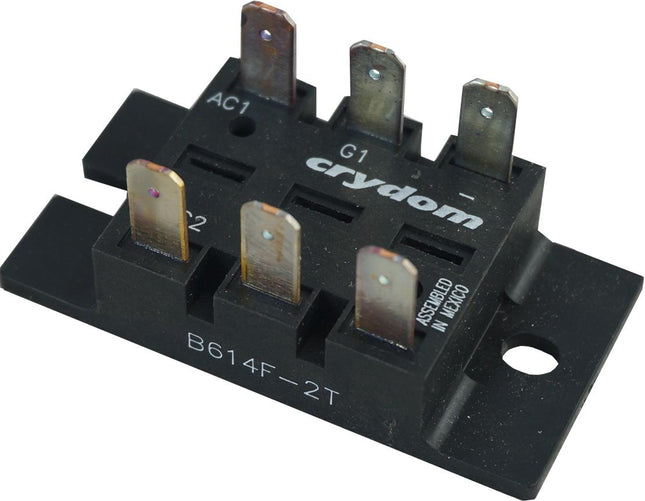

Crydom B614F-2T, Single Phase Half Controlled Rectifier Bridge, 42.5 Amp, 480VAC Line Features For AC or DC Variable Voltage Output Up to 15KW Electrically insulated base plate Industrial standard package 2500V Isolation UL Recognized E72445 Applications Power Supplies Rectifier for drives applications Rectifiers for UPS Battery Chargers Spec Crydom Part Number B612F-2T AC Line voltage 480V Device Configuration Single Phase Half Controlled Rectifier Bridge, DC Output @ 85 Deg C 42.5 Amp Package Size W:31.7mm L:63.5mm D:19.7mm Itsm 250 A VF 1.65V Tj(max) 125°C rF Not Published Terminals Faston (6.3mm) Hole Centres 48.2mm (M5) Gate Terminals Faston (6.3mm) R th(j-c) 0.9°C/W R th(c-h) Not Published Weight 42.5g Isolation 2.5kV Factory Pack Qty 20 Certification UL Listed Crydom Headquarters United States   Datasheet Product Datasheet Alternatives See PSD51/18 for higher rated equivalent App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Infineon DDB6U134N16RR 3 Phase Diode Rectifier Bridge, 134 Amp, 1600V, 42 x 94mm Package Features Package with DCB ceramic base plate Isolation voltage 3600 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Infineon Part Number DDB6U134N16RR AC Line voltage 533V Device Configuration Three Phase Rectifier Bridge DC Output @ 100 Deg C 134 Amp Package Size W:45mm L:107.5mm D:20.5mm Itsm 650 A VF(to) 0.75V Tj(max) 150°C rF Not Published Terminals Press Fit Hole Centres 93mm (M5) Gate Terminals N/A R th(j-c) 0.7°C/W R th(c-h) 0.25°C/W Weight 185g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Infineon Headquarters Germany Datasheet Product Datasheet

Read more less

Semikron SKD160/18, 3 Phase Diode Rectifier Bridge, 205Amp, 1600V, Replaces Powersem PSD162T/16, and IXYS VUO160-16 N07 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKD160/18 AC Line voltage 1800V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 160 Amp Package Size W:94mm L:54mm D:30mm Itsm 1800 A VF(to) 0.8V Tj(max) 150°C Terminals M6 (5Nm) Hole Centres 80mm (M6) Gate Terminals N/A Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD192T/16 for higher rated equivalent

Read more less

Powersem PSCH85/16 Single Phase Half Controlled Rectifier Bridge with Freewheeling Diode Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSCH85/16 AC Line voltage 533V Device Configuration Single Phase Half Controlled Bridge w/ Freewheeling DC Output @ 85 Deg C 82 Amp Package Size W:67mm L:50mm D:30mm Itsm 1150 A VF(to) 0.85V Tj(max) 125°C rF 11mΩ Terminals M5 (1.5Nm) Hole Centres 50mm (M5) Gate Terminals M3 (5Nm) R th(j-c) 0.65°C/W R th(c-h) 0.15°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSCH125/16 for higher rated equivalent

Read more less

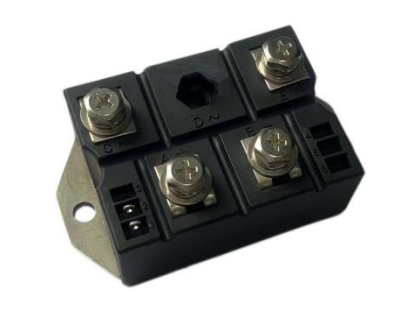

IRI-PSCH55/16, Single Phase Half Controlled Bridge w/ Freewheeling, 55 Amp, 1600V Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Insel Rectifier India Part Number IRI-PSCH55/16 AC Line voltage 533V Device Configuration Single Phase Half Controlled Bridge w/ Freewheeling DC Output @ 85 Deg C 46 Amp Package Size W:67mm L:50mm D:30mm Itsm 520 A VF(to) 0.85V Tj(max) 125°C rF 11mΩ Terminals M5 (1.5Nm) Hole Centres 50mm (M5) Gate Terminals M3 (5Nm) R th(j-c) 1.2°C/W R th(c-h) 0.11°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 Insel Rectifier India Headquarters India   Datasheet Product Datasheet Alternatives See IRI-PSCH85/16 for higher rated equivalent

Read more less

IRI-PSCH85/16, Single Phase Half Controlled Bridge w/ Freewheeling, 85 Amp, 1600V Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification IRI Insel Rectifier India Part Number IRI-PSCH85/16 AC Line voltage 533V Device Configuration Single Phase Half Controlled Bridge w/ Freewheeling DC Output @ 85 Deg C 82 Amp Package Size W:67mm L:50mm D:30mm Itsm 1150 A VF(to) 0.85V Tj(max) 125°C rF 11mΩ Terminals M5 (1.5Nm) Hole Centres 50mm (M5) Gate Terminals M3 (5Nm) R th(j-c) 0.65°C/W R th(c-h) 0.15°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 IRI Insel Rectifier India Headquarters India   Datasheet Product Datasheet Alternatives See PSCH125/16 for higher rated equivalent
