Crydom M50100THC1600, 3 Phase Bridge, Half Wave, Common Cathode, 600VAC Input Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Low forward voltage drop UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Spec Crydom Part Number M50100THC1600 AC Line voltage 240V Device Configuration Three Phase Half Wave Rectifier Bridge DC Output @ 100 Deg C 100 Amp Package Size W:57.5mm L:44mm D:34.6mm Itsm 600 A VF(to) 1.7V Tj(max) 125°C rF N/A Terminals M5 (1.5Nm) Hole Centres 41.2mm (M5) Gate Terminals N/A R th(j-c) 0.3°C/W R th(c-h) N/A Weight 106g Isolation 2.5kV Factory Pack Qty 10 Certification UL Listed Crydom Headquarters USA   Datasheet Product Datasheet Alternatives PSD162/16 PSD192T/16

Read more less

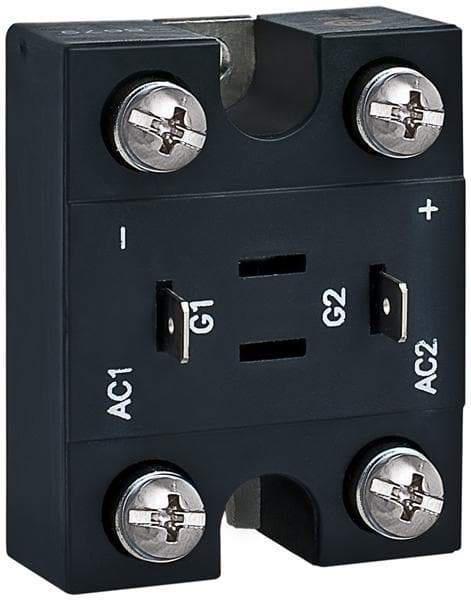

Crydom M5010012F, Bridge, Single Phase, Half Controlled, 240VAC input, 100 Amp, with Freewheeling Diode Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Low forward voltage drop UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Spec Crydom Part Number M5010012F AC Line voltage 240V Device Configuration Single Phase Half Controlled Rectifier Bridge DC Output @ 100 Deg C 100 Amp Package Size W:57.5mm L:44mm D:34.6mm Itsm 600 A VF(to) 1.7V Tj(max) 125°C rF N/A Terminals M5 (1.5Nm) Hole Centres 41.2mm (M5) Gate Terminals N/A R th(j-c) 0.36°C/W R th(c-h) N/A Weight 106g Isolation 2.5kV Factory Pack Qty 10 Certification UL Listed Crydom Headquarters USA Datasheet Product Datasheet Alternatives M5010012F

Read more less

Advanced Energy Thyro-PX-3PX-500-1000-H-F-DC, Controller Rectifier 1000 Amp DC Output @ 50 Deg C, With Current and Power Control Feedback Features 230VAC-500VAC +10/-20% Line to Line Input Voltage, Current or Power Control Smallest footprint on the market Built in Fuses 3 Phase, Phase Angle & Burst Controller with SWITCH operation mode SWITCH between Phase(VAR) or Burst(TAKT) control modes (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control Removable Cover USB Configuration/Bias Setting Potentiometer Adjustments Synchronisation Function for Multiple TAKT Sync Applications Arc Furnaces Silicon Carbide Elements DC Feedback Control from Transformer Secondary Chlorination, Electroplating Primary Control of Transformer Loads in Phase or Burst Fire mode Start on Short Circuit Load  AC Soft Starter (VAR Mode Combined with PLC) Power Regulation Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Incorporated Features Current Control/Feedback Programmable Relay Alarm Output Load Monitoring Analogue Output Power Control Feedback Communication Options Anybus Module   Specification Advanced Energy Part Number Thyro-PX 3PX 500-1000 HF DC Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC Control Accuracy 0.5% at rated voltage Rated Operating Temperature 50°C Temperature Derating Inom @ 50 Deg C, 1.1 x Inom @ 40 Deg C SCR Configuration Three Phase Bridge B6U Control Modes Phase(VAR), Burst(TAKT), Quick TAKT(QTM), Hybrid(VT on request), MOSI, VSC Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT Load Current 1000 Amp DC @ 50 Deg C (+10% @ 40 Deg C Max) Control Range 0-100% Relays / Dry Contacts 3 Relay Outputs, 3 Dry Contacts Digital I/O 6 Digital Inputs Options (Optional) Conformal Coating for Gas or High Humidity Environments Mounting Style Panel Mount Supply Voltage Range 230VAC-500VAC +10/-20% Soft Start Via PLC input Termination Style Screw Unit Weight 110kg Factory Pack Qty 1   Technical Docs Brochure User Manual 2 Leg Control Application Blog Thyro A Series Quick Installation Guide Thyro Touch Software and Touch Display User Guide Setting Up Comms on Thyro A Series Controllers Anybus Device Ethernet IP Setup Guide

Read more less

Advanced Energy Controller Rectifier Thyro-PX-3PX-500-1250-H-F-DC, Controller Rectifier 1250 Amp DC Output @ 45 Deg C, With Current and Power Control Feedback Features 230VAC-500VAC +10/-20% Line to Line Input Voltage, Current or Power Control Smallest footprint on the market Built in Fuses 3 Phase, Phase Angle & Burst Controller with SWITCH operation mode SWITCH between Phase(VAR) or Burst(TAKT) control modes (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control Removable Cover USB Configuration/Bias Setting Potentiometer Adjustments Synchronisation Function for Multiple TAKT Sync Applications Arc Furnaces Silicon Carbide Elements DC Feedback Control from Transformer Secondary Chlorination, Electroplating Primary Control of Transformer Loads in Phase or Burst Fire mode Start on Short Circuit Load  AC Soft Starter (VAR Mode Combined with PLC) Power Regulation Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Incorporated Features Current Control/Feedback Programmable Relay Alarm Output Load Monitoring Analogue Output Power Control Feedback Communication Options Anybus Module   Specification Advanced Energy Part Number Thyro-PX-3PX-500-1250-H-F-DC Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC Control Accuracy 0.5% at rated voltage Rated Operating Temperature 50°C Temperature Derating Inom @ 50 Deg C, 1.1 x Inom @ 40 Deg C SCR Configuration Three Phase Bridge B6U Control Modes Phase(VAR), Burst(TAKT), Quick TAKT(QTM), Hybrid(VT on request), MOSI, VSC Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT Load Current 1250 Amp DC @ 50 Deg C (+10% @ 40 Deg C Max) Control Range 0-100% Relays / Dry Contacts 3 Relay Outputs, 3 Dry Contacts Digital I/O 6 Digital Inputs Options (Optional) Conformal Coating for Gas or High Humidity Environments Mounting Style Panel Mount Supply Voltage Range 230VAC-500VAC +10/-20% Soft Start Via PLC input Termination Style Screw Unit Weight 110kg Factory Pack Qty 1   Technical Docs Brochure User Manual 2 Leg Control Application Blog Thyro A Series Quick Installation Guide Thyro Touch Software and Touch Display User Guide Setting Up Comms on Thyro A Series Controllers Anybus Device Ethernet IP Setup Guide

Read more less

Advanced Energy Controller Rectifier Thyro-PX-3PX-500-1800-H-F-DC, Controller Rectifier 1800 Amp DC Output @ 50 Deg C, With Current and Power Control Feedback Features 230VAC-500VAC +10/-20% Line to Line Input Voltage, Current or Power Control Smallest footprint on the market Built in Fuses 3 Phase, Phase Angle & Burst Controller with SWITCH operation mode SWITCH between Phase(VAR) or Burst(TAKT) control modes (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control Removable Cover USB Configuration/Bias Setting Potentiometer Adjustments Synchronisation Function for Multiple TAKT Sync Applications Arc Furnaces Silicon Carbide Elements DC Feedback Control from Transformer Secondary Chlorination, Electroplating Primary Control of Transformer Loads in Phase or Burst Fire mode Start on Short Circuit Load  AC Soft Starter (VAR Mode Combined with PLC) Power Regulation Applications Electric Boilers Brewery Heating Industrial Light Dimming Suitable for extreme environments such as mining Incorporated Features Current Control/Feedback Programmable Relay Alarm Output Load Monitoring Analogue Output Power Control Feedback Communication Options Anybus Module   Specification Advanced Energy Part Number Thyro-PX-3PX-500-1800-H-F-DC Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC Control Accuracy 0.5% at rated voltage Rated Operating Temperature 50°C Temperature Derating 1 x Inom @ 50 Deg C, 1.1 x Inom @ 40 Deg C SCR Configuration Three Phase Bridge B6U Control Modes Phase(VAR), Burst(TAKT), QUick TAKT(QTM), Hybrid(VT on request), MOSI, VSC Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT Load Current 1800 Amp DC @ 50 Deg C (+10% @ 40 Deg C Max) Control Range 0-100% Relays / Dry Contacts 3 Relay Outputs, 3 Dry Contacts Digital I/O 6 Digital Inputs Options (Optional) Conformal Coating for Gas or High Humidity Environments Mounting Style Panel Mount Supply Voltage Range 230VAC-500VAC +10/-20% Soft Start Via PLC input Termination Style Screw Unit Weight 110kg Factory Pack Qty 1   Technical Docs Brochure User Manual 2 Leg Control Application Blog Thyro A Series Quick Installation Guide Thyro Touch Software and Touch Display User Guide Setting Up Comms on Thyro A Series Controllers Anybus Device Ethernet IP Setup Guide

Read more less
