Powersem PSD192T/18, 3 Phase Diode rectifier Bridge, 192Amp, 1800V Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD192T/18 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 248 Amp Package Size W:94mm L:54mm D:30mm Itsm 2800 A VF(to) 0.8V Tj(max) 150°C rF 2.2mΩ Terminals M6 (5Nm) Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.45°C/W R th(c-h) 0.15°C/W Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet

Read more less

Powersem PSCH85/14 Single Phase Half Controlled Rectifier Bridge with Freewheeling Diode Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSCH85/14 AC Line voltage 467V Device Configuration Single Phase Half Controlled Bridge w/ Freewheeling DC Output @ 85 Deg C 82 Amp Package Size W:67mm L:50mm D:30mm Itsm 1150 A VF(to) 0.85V Tj(max) 125°C rF 11mΩ Terminals M5 (1.5Nm) Hole Centres 50mm (M5) Gate Terminals M3 (5Nm) R th(j-c) 0.65°C/W R th(c-h) 0.15°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSCH125/16 for higher rated equivalent

Read more less

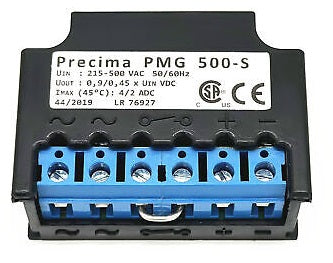

PMG500-S, Single Phase Diode Rectifier Bridge, Switchable, 2 Amp 450VDC Output, 500VAC, Uin max 500VAC rms Features Low forward voltage drop CE Certified  Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Part Number PMG500-S AC Line voltage 500VAC Device Configuration Single Phase Diode Rectifier Bridge DC Output @ 85 Deg C 2 Amp DC Package Size Itsm 20 Amp VF(to) 0.85V Tj(max) 150°C rF 11mΩ Terminals M5 (5Nm) Switching Terminals screw Weight 70g Factory Pack Qty 10   Datasheet Datasheet

Read more less

Powersem PSD192/08 Three Phase Diode Rectifier Bridge, Replaces Semikron SKD160/08 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSD192/08 AC Line voltage 267V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 248 Amp Package Size W:94mm L:54mm D:30mm Itsm 2800 A VF(to) 0.8V Tj(max) 150°C rF 2.2mΩ Terminals M6 (5Nm) Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.45°C/W R th(c-h) 0.15°C/W Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany Datasheet Product Datasheet

Read more less

Semikron SKD210/18, 3 Phase Diode Rectifier Bridge, 207Amp, 1600V, Replaces Powersem PSD162T/16, and IXYS VUO160-16 N07 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Semikron Part Number SKD210/18 AC Line voltage 600V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 85 Deg C 205 Amp Package Size W:94mm L:54mm D:30mm Itsm 2000 A VF(to) 0.85V Tj(max) 150°C Terminals M6 (5Nm) Hole Centres 80mm (M6) Gate Terminals N/A Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Semikron Headquarters Germany   Datasheet Product Datasheet Alternatives See PSD192T/16 for higher rated equivalent

Read more less

Techsem MDQ150-16-221H5, Single Phase Diode Rectifier Bridge, 145 Amp, 1600V, 42 x 94mm Package Features Package with DCB ceramic base plate Isolation voltage 3600 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Techsem Part Number MDQ150-16-221H5 AC Line voltage 533V Device Configuration Single Phase Rectifier Bridge DC Output @ 100 Deg C 145 Amp Package Size W:94mm L:42mm D:30mm Itsm 1800 A VF(to) 0.75V Tj(max) 150°C rF 1.9mΩ Terminals M5 (4Nm) Hole Centres 68mm (M5) Gate Terminals N/A R th(j-c) 0.148°C/W R th(c-h) 0.10°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Techsem Headquarters China   Datasheet Product Datasheet Alternatives See PSD192T/16 for alternative

Read more less

Powersem PSCH55/16 Single Phase Half Controlled Rectifier Bridge with Freewheeling Diode Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSCH55/16 AC Line voltage 533V Device Configuration Single Phase Half Controlled Bridge w/ Freewheeling DC Output @ 85 Deg C 46 Amp Package Size W:67mm L:50mm D:30mm Itsm 520 A VF(to) 0.85V Tj(max) 125°C rF 11mΩ Terminals M5 (1.5Nm) Hole Centres 50mm (M5) Gate Terminals M3 (5Nm) R th(j-c) 1.2°C/W R th(c-h) 0.11°C/W Weight 220g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives See PSCH85/14 for higher rated equivalent

Read more less

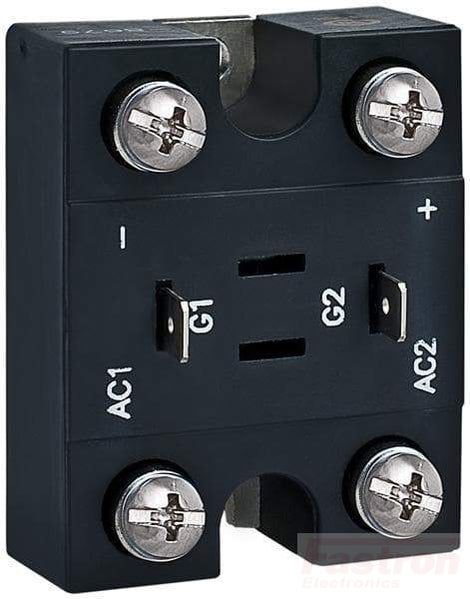

Crydom M505012F, Bridge, single phase, half controlled, 240VAC input, 50 Amp, with freewheeling diode Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Low forward voltage drop UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Spec Crydom Part Number M505012F AC Line voltage 240V Device Configuration Single Phase Half Controlled Rectifier Bridge DC Output @ 100 Deg C 100 Amp Package Size W:57.5mm L:44mm D:34.6mm Itsm 600 A VF(to) 1.7V Tj(max) 125°C rF N/A Terminals M5 (1.5Nm) Hole Centres 41.2mm (M5) Gate Terminals N/A R th(j-c) 0.7°C/W R th(c-h) N/A Weight 106g Isolation 2.5kV Factory Pack Qty 10 Certification UL Listed Crydom Headquarters USA   Datasheet Product Datasheet Alternatives M5010012F

Read more less

Sanrex DF150AA160 Three Phase Diode Rectifier Bridge Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control DC Power Supply Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Sanrex Part Number DF150AA160 AC Line voltage 533V Device Configuration Three Phase Diode Rectifier Bridge DC Output @ 94 Deg C 150 Amp Package Size W:50mm L:110mm D:29mm Itsm 1200 A VFM 1.35V Tj(max) 150°C rF Not Published Terminals M5 (1.5Nm) Hole Centres 93mm (M5) Gate Terminals N/A R th(j-c) 0.14°C/W R th(c-h) Not Published Weight 360g Isolation 2.5kV Factory Pack Qty 5 Certification N/A Sanrex Headquarters Japan Datasheet Product Datasheet

Read more less

Powersem PSDH175/16 Single Phase Half Controlled Rectifier Bridge with Freewheeling Diode, Replaces Semikron SKDH100/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Powersem Part Number PSDH175/16 AC Line voltage 533V Device Configuration Three Phase Half Controlled Bridge w/ Freewheeling DC Output @ 85 Deg C 167 Amp Package Size W:94mm L:54mm D:30mm Itsm 1350 A VF(to) 0.85V Tj(max) 125°C rF 3.5mΩ Terminals M6 (5Nm) Hole Centres 80mm (M5) Gate Terminals M6 (5Nm) R th(j-c) 0.46°C/W R th(c-h) 0.11°C/W Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Powersem Headquarters Germany   Datasheet Product Datasheet Alternatives

Read more less

IRI-PSDH175/16, 3 Phase Half Controlled Bridge, 175 Amp, 1600V, Replaces Semikron SKDH100/16 Features Package with DCB ceramic base plate Isolation voltage 3000 V∼ Planar glass passivated chips Low forward voltage drop Leads suitable for PC board soldering UL registered, E 148688 Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control Motor control Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Insel Rectifier India Part Number IRI-PSDH175/16 AC Line voltage 533V Device Configuration Three Phase Half Controlled Bridge w/ Freewheeling DC Output @ 85 Deg C 167 Amp Package Size W:94mm L:54mm D:30mm Itsm 1350 A VF(to) 0.85V Tj(max) 125°C rF 3.5mΩ Terminals M6 (5Nm) Hole Centres 80mm (M5) Gate Terminals M6 (5Nm) R th(j-c) 0.46°C/W R th(c-h) 0.11°C/W Weight 270g Isolation 3kV Factory Pack Qty 10 Certification UL Listed Insel Rectifier India Headquarters India   Datasheet Product Datasheet

Read more less
