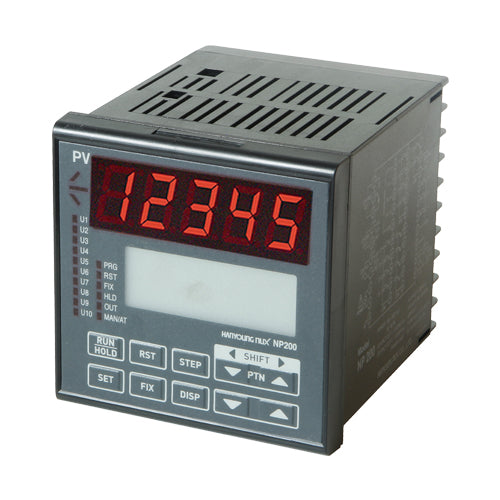

NP200-03, Program/Step Controller, 96x96mm, 100-240VAC, Multirange Input, RS485/RS422 Comms, Universal Relay/SSR/4-20mA Outputs, 4 Digital Inputs (Event Input), 10 Alarms Multirange Dual Output and Input, User Selectable 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number NP200-03 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4), or 4-20mA, or SSR (12VDC, 30mA 600 Ohm) Control Output 2 (Cool) N/A Input Multirange (refer to datasheet) Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 4 Digital Inputs (External Setting Input) Comms RS485/RS422 Mounting Style 96 x 96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet NP200 Series Datasheet NP200 Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

Fastron FCP-L-V-1-G-2, PID Pattern Controller, 96x96mm, 100-240VAC, 4-20mA output, 1 Alarm, 8 steps (segments), 4 patterns (programs), Interlinkable 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 4 x 8-step patterns  is a standard feature CE Approved Each unit needs just 60 mm depth panel space EC Compliant (Details) Specification Fastron Part Number FCP-L-V-1-G-2 Control Output 12VDC SSR , 4 Program 8 steps, Interlinkable. Input Multirange (refer to datasheet) Option 1 1 Alarm Option 2 N/A Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet FC-P Datasheet

Read more less

Fastron FCP-S-R-1-G-2, PID Pattern Controller, 48x48mm, 100-240VAC, Relay output, 1 Alarm, 8 steps (segments), 4 patterns (programs), Interlinkable 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 4 x 8-step patterns, is a standard feature CE Approved Each unit needs just 60 mm depth panel space EC Compliant (Details) Specification Fastron Part Number FCP-S-R-1-G-2 Control Output Relay, 4 Program 8 steps, Interlinkable. Input Multirange (refer to datasheet) Option 1 1 Alarm Option 2 N/A Mounting Style 48 x 48mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet FC-P Datasheet

Read more less

Fastron FCP-L-1A-1-G-2, PID Pattern Controller, 96x96mm, 100-240VAC, 4-20mA output, 8 steps (segments), 4 patterns (programs), 1 Alarm, Interlinkable  4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 4 x 8-step patterns  is a standard feature CE Approved Each unit needs just 60 mm depth panel space EC Compliant (Details) Specification Fastron Part Number FCP-L-1A-1-G-2 Control Output 4-20mA, 4 Program 8 steps, Interlinkable. Input Multirange (refer to datasheet) Option 1 1 Alarm Option 2 N/A Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet FC-P Datasheet

Read more less

Fastron FCP-S-1A-1-G-2, PID Pattern Controller, 48x48mm, 100-240VAC, 4-20mA output, 1 Alarm, 8 steps (segments), 4 patterns (programs), Interlinkable 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 4 x 8-step patterns, is a standard feature CE Approved Each unit needs just 60 mm depth panel space EC Compliant (Details) Specification Fastron Part Number FCP-S-1A-1-G-2 Control Output 4-20mA, 4 Program 8 steps, Interlinkable. Input Multirange (refer to datasheet) Option 1 1 Alarm Option 2 N/A Mounting Style 48 x 48mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet FC-P Datasheet

Read more less

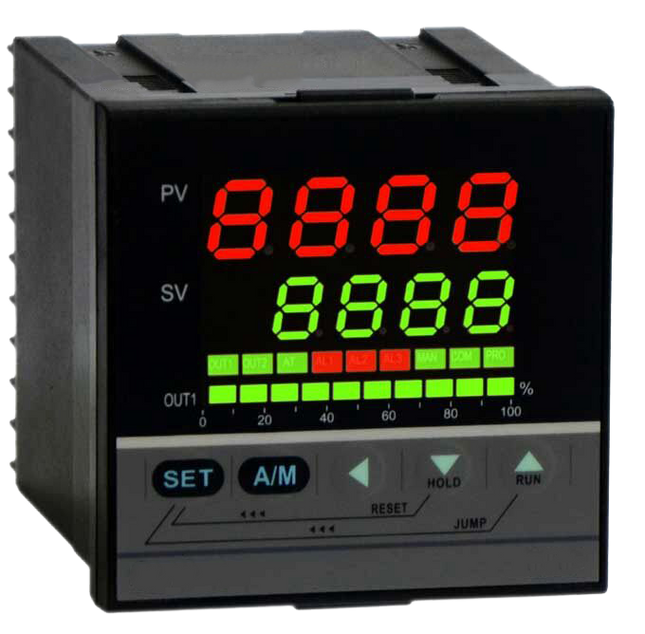

Fastron FCP-L-R-1-G-2, PID Pattern Controller, 96x96mm, 100-240VAC, Relay output 1 Alarm, 8 steps (segments), 4 patterns (programs), Interlinkable  4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 4 x 8-step patterns  is a standard feature CE Approved Each unit needs just 60 mm depth panel space EC Compliant (Details) Specification Fastron Part Number FCP-L-R-1-G-2 Control Output Relay, 4 Program 8 steps, Interlinkable. Input Multirange (refer to datasheet) Option 1 1 Alarm Option 2 N/A Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet FC-P Datasheet

Read more less

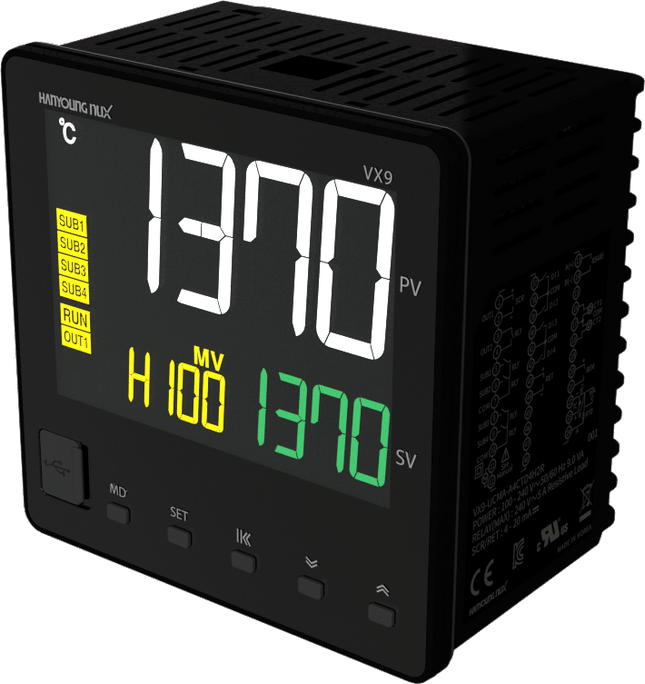

VX9-USNA-A2D2, Temp Controller, 96x96mm, 100-240VAC, Multirange Input, SSR Output, 2 Alarms, 2 x SV Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX9-USNA-A2D2 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Control Output 2 (Cool) N/A Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 2 x SV (2 Setpoints/Event Input) Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

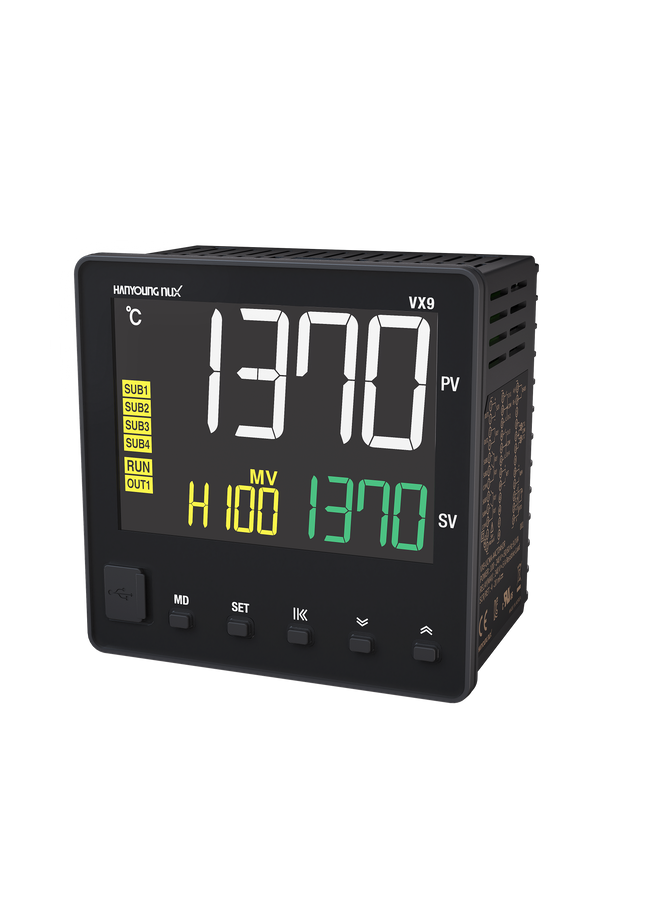

VX9-UCNA-A2D2, Temp Controller, 96x96mm, 100-240VAC, Multirange Input, 4-20mA Output, 2 Alarms, 2 x SV Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX9-UCNA-A2D2 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Control Output 2 (Cool) N/A Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 2 x SV (2 Setpoints/Event Input) Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

VX9-UMMA-A2, Temp Controller, 96x96mm, 100-240VAC, Relay Output, Relay Cooling 2 Alarms Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX9-UMMA-A2 Control Output 1 (Heat) Relay Output Control Output 2 (Cool) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm 2 x Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm, 1 x Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 N/A Mounting Style 96 x 96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

TX4L-U-D-D-2-96-N-N-N-N-N-N, Temp Controller, 96x96mm, 100-240VAC, Mutirange Input, 4-20mA Output, 2 Alarms Mutirange Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 70 mm depth panel space EC Compliant Specification Fastron Part Number TX4L-U-D-D-2-96-N-N-N-N-N-N Control Output 1 (Heat) 4-20mA Control Output 2 (Cool) 4-20mA Input Multirange (refer to datasheet) TC/RTD, 0-50mA/0-50mV Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 N/A Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet TX4L Series Instruction Manual

Read more less

TX4L-U-D-N-2-96-A-N-N-N-W-N, Temp Controller, 96x96mm, 100-240VAC, Mutirange Input, 4-20mA Output, 2 Alarms, 4 x SV Input, Retransmisison Output Mutirange Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 70 mm depth panel space EC Compliant Specification Fastron Part Number TX4L-U-D-N-2-96-A-N-N-N-W-N Control Output 1 (Heat) 4-20mA Control Output 2 (Cool) N/A Input Multirange (refer to datasheet) TC/RTD, 0-50mA/0-50mV Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 4-20mA PV Retransmission, 4 x SV (Setpoint) Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet TX4L Series Instruction Manual

Read more less

TX4L-U-E-N-1-96-A-N-N-N-N-N, Temp Controller, 96x96mm, 100-240VAC, Mutirange Input, 0-10V Output, 2 Alarms, PV/SV Retransmisison Output Mutirange Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 70 mm depth panel space EC Compliant Specification Fastron Part Number TX4L-U-E-N-1-96-A-N-N-N-N-N Control Output 1 (Heat) 0-10V Control Output 2 (Cool) N/A Input Multirange (refer to datasheet) TC/RTD, 0-50mA/0-50mV Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 4-20mA PV Retransmission Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet TX4L Series Instruction Manual

Read more less
