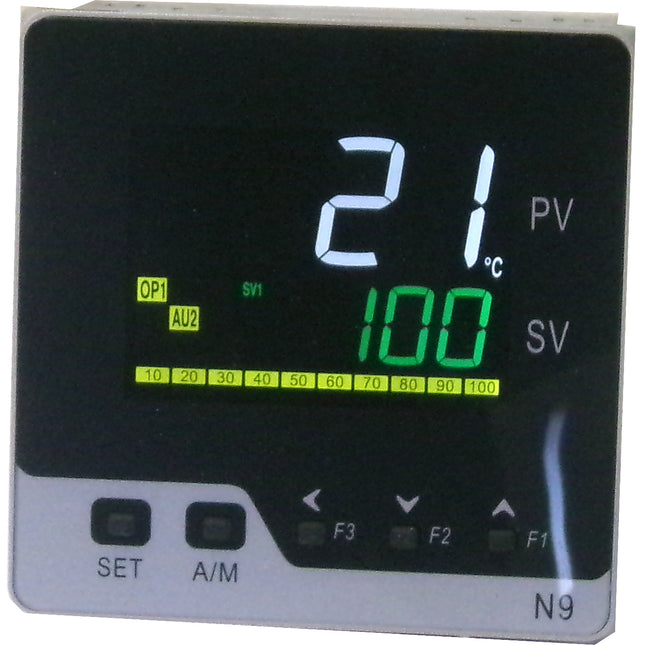

TX4L-U-R-D-2-96-F-N-N-N-N-N, Temp Controller, 96x96mm, 100-240VAC, Mutirange Input, Relay Output, 4-20mA Cooling, 2 Alarms, PV/SV Retransmisison Output Mutirange Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 70 mm depth panel space EC Compliant Specification Fastron Part Number TX4L-U-R-D-2-96-F-N-N-N-N-N Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Control Output 2 (Cool) 4-20mA Input Multirange (refer to datasheet) TC/RTD, 0-50mA/0-50mV Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 4-20mA PV Retransmission Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet TX4L Series Instruction Manual

Read more less

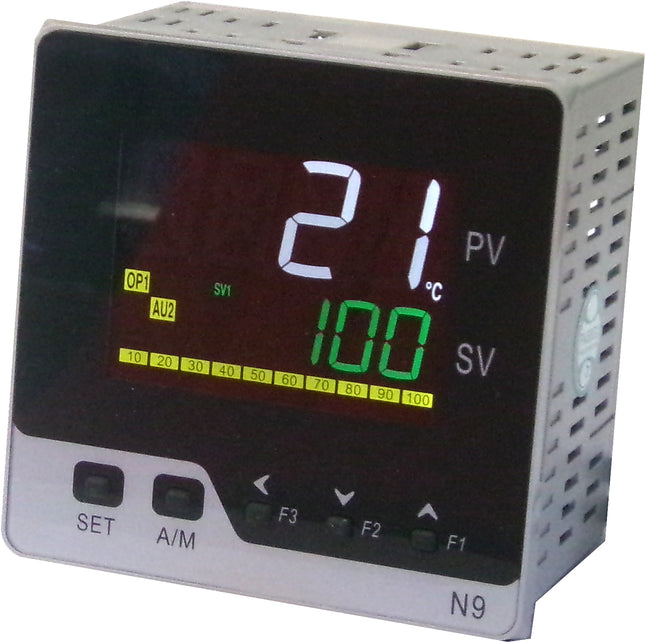

TX4L-U-R-N-2-96-A-N-N-N-N-N, Temp Controller, 96x96mm, 100-240VAC, Mutirange Input, Relay Output, 2 Alarms, PV/SV Retransmisison Output Mutirange Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 70 mm depth panel space EC Compliant Specification Fastron Part Number TX4L-U-R-N-2-96-A-N-N-N-N-N Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Control Output 2 (Cool) N/A Input Multirange (refer to datasheet) TC/RTD, 0-50mA/0-50mV Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 4-20mA PV Retransmission Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet TX4L Series Instruction Manual

Read more less

VX9-USNA-A2T, Temp Controller, 96x96mm, 100-240VAC, Mutirange Input, SSR Output, 2 Alarms, Retransmission Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX9-USNA-A2T Control Output 1 (Heat) SSR 12-15VDC @30mA Control Output 2 (Cool) N/A Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 4-20mA (PV/SV/MV) Retransmission Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

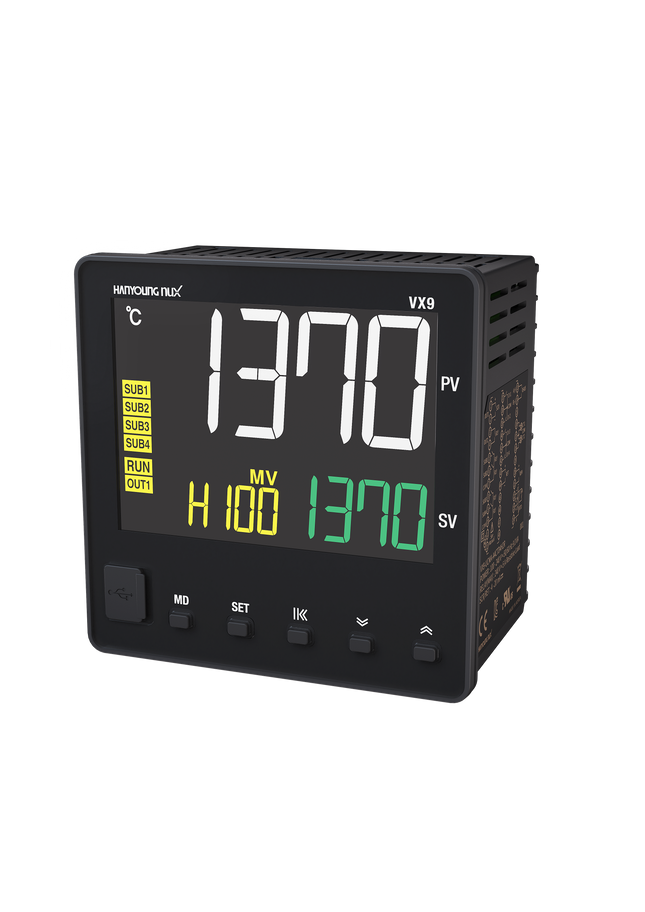

VX9-UMNA-A4D2, Temp Controller, 96x96mm, 100-240VAC, Multirange Input, Relay Output, 3 Alarms, 2 x SV Inputs Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX9-UMNA-A4D2 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Control Output 2 (Cool) N/A Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 3rd & $th Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

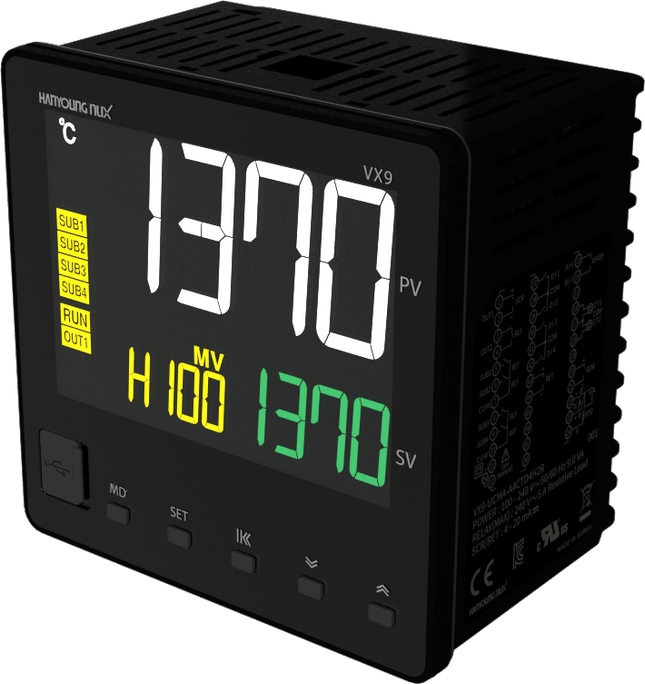

VX9-UMNA-A2T, Temp Controller, 96x96mm, 100-240VAC, Multirange Input, Relay Output, 2 Alarms, Retransmission Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX9-UMNA-A2T Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Control Output 2 (Cool) N/A Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 4-20mA (PV/SV/MV) Retransmission Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

VX9-UCMA-A2, Temp Controller, 96x96mm, 100-240VAC, 4-20mA Output, Relay Cooling 2 Alarms Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX9-UCMA-A2 Control Output 1 (Heat) 4-20mA Control Output 2 (Cool) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 N/A Option 2 N/A Mounting Style 96 x 96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

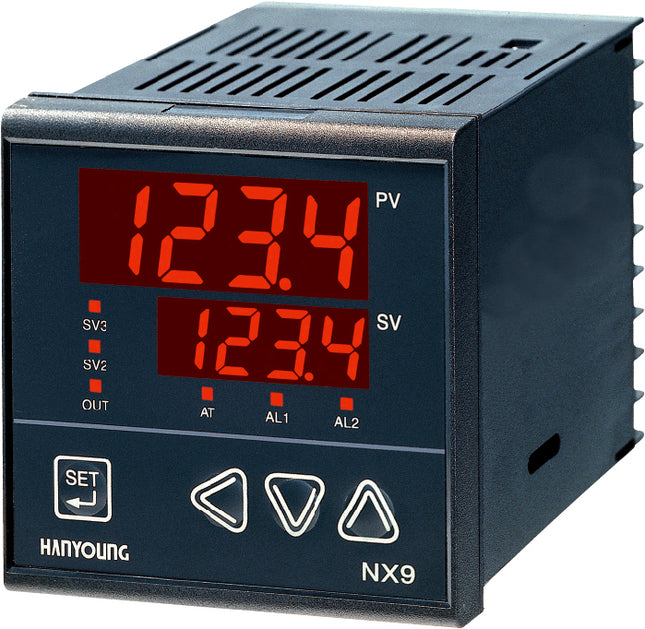

NX9-10, Temp Controller, 96x96mm, 100-240VAC, Multirange Input, SV2,SV3, Multirange Relay/SSR/4-20mA Heating and Cooling Outputs, Setup for Relay Heating, SSR Cooling, 2 Alarms Multirange Dual Output and Input, User Selectable Multirange Output (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number NX9-10 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4), or 4-20mA, or SSR (12VDC, 30mA 600 Ohm) Control Output 2 (Cool) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4), or 4-20mA, or SSR (12VDC, 30mA 600 Ohm) Input Multirange (refer to datasheet) Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 SV2, SV3 Setpoints Mounting Style 96 x 96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet NX Series Brochure NX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

Fastron FC5-L-W-2-G-4 PID Controller, 24VDC with 2 Alarms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, 96x96mm, Dual Relay and SSR Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FFC5-L-W-2-G-4 Control Output Relay and SSR (Dual Ouptut) Input Multirange Type K, J, E,S,T,R, Pt100, Cu50/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 2 Alarms Mounting Style 96x96mm Panel Mount Supply Voltage 24VDC+/-15% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron FC5-L-W-1-G-2-C PID Controller, 100-240VAC with 1 Alarm, RS485 Comms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, 96x96mm, Dual Relay and SSR Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-L-W-2-G-2-C Control Output Relay and SSR (Dual Ouptut) Input Multirange Type K, J, E,S,T,R, Pt100, Cu50/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 1 Alarm, RS485 Comms Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

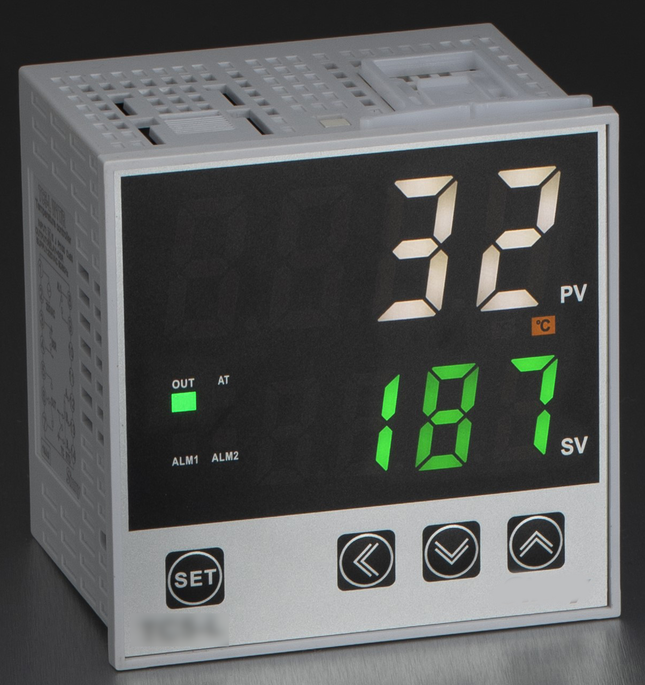

Fastron FC5-L-W-2-G-2 PID Controller, 100-240VAC with 2 Alarms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and  PT100/Cu20 RTD Input, 96x96mm, Dual Relay and SSR Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number FC5-L-W-2-G-2 Control Output Relay and SSR (Dual Ouptut) Input Multirange Type K, J, E,S,T,R, Pt100, Cu50/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 2 Alarms Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron FC5-L-1A-2-G-4 PID Controller, 24VDC with 2 x Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x96mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Fastron Part Number FC5-L-1A-2-G-4 Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 x Relay Alarms standard (Excludes 96x96mm with SSR/Relay output) Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less

Fastron FC5-L-1A-2-G-2 PID Controller, 100-240VAC with 2 Relay Alarms, E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x96mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Fastron Part Number FC5-L-1A-2-G-2 Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 Relay Alarms standard (Excludes 96x96mm with SSR/Relay output) Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet & User Manual Datasheet User Manual FC5 Communication Protocol

Read more less
