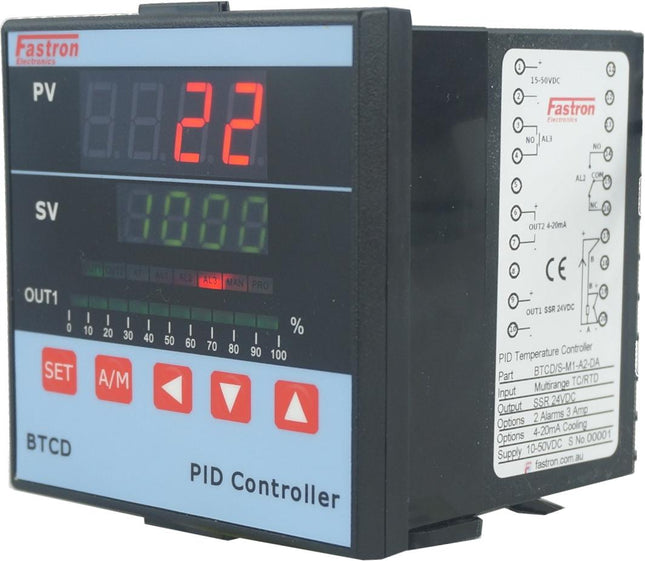

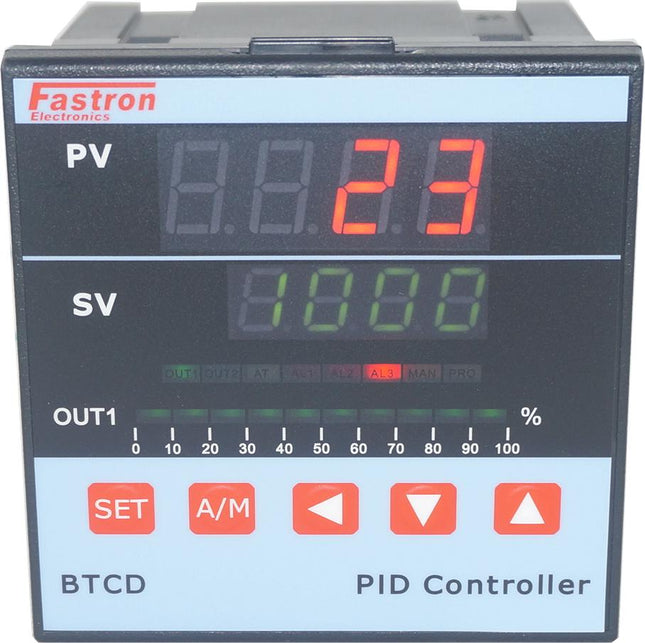

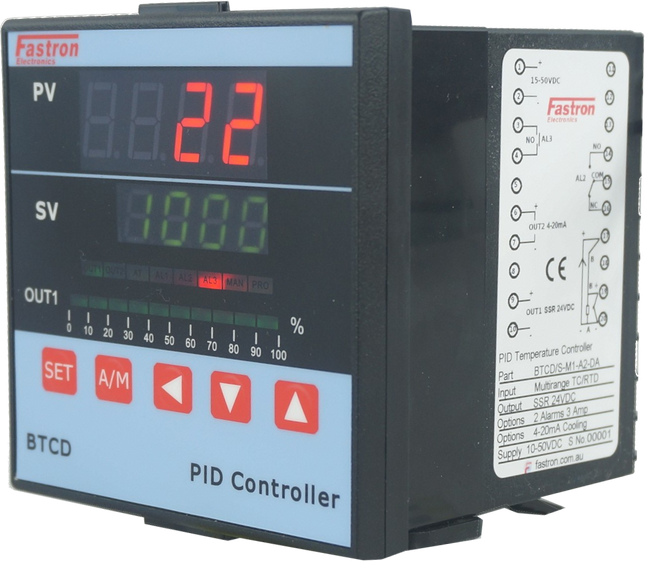

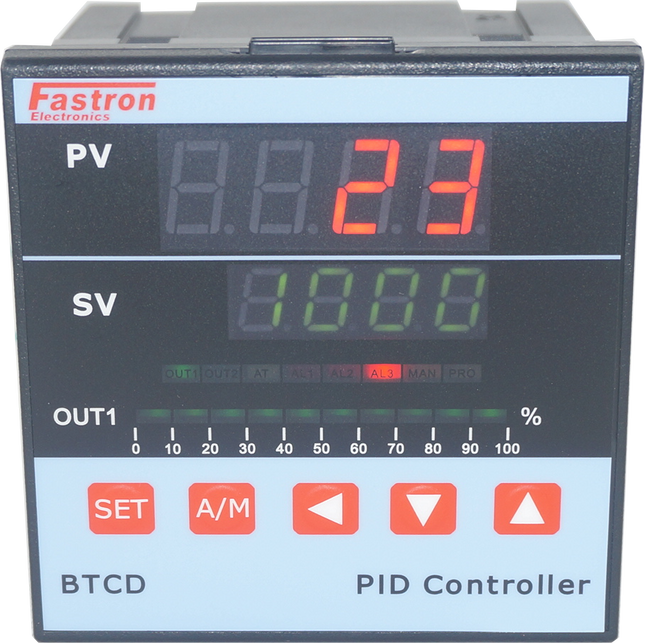

Fastron Electronics BTCD/A-M-A2-DA, PID Controller 96x96mm, 85-265VAC, 4-20mA output 2 Alarms, 4-20mA Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DA Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A2-DA-TA, PID Controller 96x96mm, 85-265VAC, 4-20mA output 4-20mA Cooling Output, 2 Alarms, Retransmission, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DA-TA Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling, 4-20mA Retransmission Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A2-DR, PID Controller 96x96mm, 85-265VAC, 4-20mA output 2 Alarms, Relay Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DR Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 Relay Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A3-EI, PID Controller 96x96mm, 85-265VAC, 4-20mA output 3 Alarms, Event input (2xSV ), Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A3-EI Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd and 3rd Alarm Option 2 Event Input (2 x SV) Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/R-M-A2-DA, PID Controller 96x96mm, 85-265VAC, Relay Output 2 Alarms, 4-20mA Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/R-M-A2-DA Control Output Relay 3 Amp (Resitive) Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/R-M-A3-EI, PID Controller 96x96mm, 85-265VAC, Relay Output 3 Alarms, Event input (2xSV ), Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/R-M-A3-EI Control Output Relay 3 Amp (Resistive) Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd and 3rd Alarm Option 2 Event Input (2 x SV) Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A2-C5, PID Controller 96x96mm, 85-265VAC, 4-20mA output 2 Alarms, RS485 Modbius Comms, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/S-M1-A2-DA Control Output SSR 24VDC @ 30mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 15-50VDC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/S-M-A2-DA, PID Controller 96x96mm, 85-265VAC, SSR output 2 Alarms, 4-20mA Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/S-M-A2-DA Control Output SSR 24VDC @ 30mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M1-A2-TA-EI, PID Controller 96x96mm, 15-50VDC, 4-20mA output, 2 Alarms, Retransmission, Event Input (2 x SV), Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M1-A2-TA-EI Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 Event Input (2 x SV), 4-20mA Retransmission Mounting Style 96 x 96mm Panel Mount Load Voltage Range 15-50VDC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M1-A2-EI, PID Controller 96x96mm, 15-50VDC, 4-20mA output, 2 Alarms, Retransmission, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M1-A2-EI Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 Event Input (2 x SV), 4-20mA Retransmission Mounting Style 96 x 96mm Panel Mount Load Voltage Range 15-50VDC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A3-TA, PID Controller 96x96mm, 85-265VAC, 3 Alarms, Retransmission, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DA-TA Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 3rd Alarm Option 2 4-20mA Retransmission Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

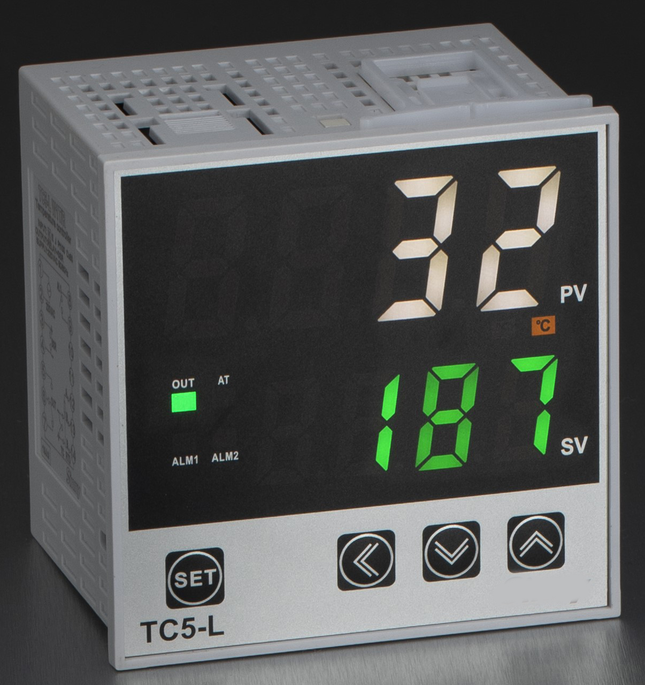

Fastron TC5-L-1U-2-G-2 PID Controller, 100-240VAC with 2 3 Amp Relay Alarms, K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x96mm,0-10V Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Specification Fastron Part Number TC5-L-1U-2-G-2 Control Output 0-10V Input Multirange Type K, J, E,S,T,R, Pt100, Cu50/Linear Current 4(0)-20mA/Linear Voltage 0-10(5)V Option 1 2 3 Amp Relay Alarms standard (Excludes 96x96mm with SSR/Relay output) Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet TC5 Datasheet and User Manual

Read more less
