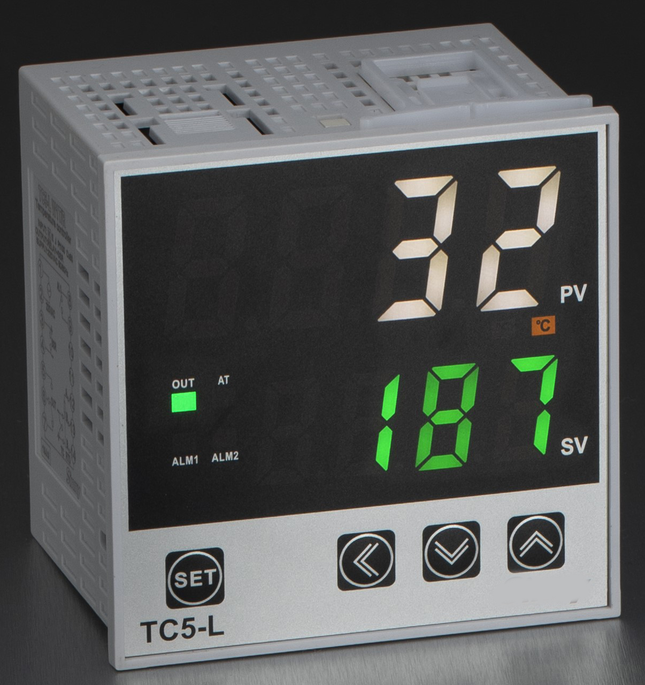

Fastron TC5-L-1U-2-T/R-2 PID Controller, 100-240VAC with 2 3 Amp Relay Alarms, K,E,J Thermocouple, Pt100 or Cu20, Optional Linear Current/Voltage, 96x96mm,0-10V Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Now available will full Multirange input (K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x48mm,4-20mA Output) Specification Fastron Part Number TC5-L-1U-2-T/R-2 Control Output 0-10V Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 3 Amp Relay Alarms standard (Excludes 96x96mm with SSR/Relay output) Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet TC5 Datasheet and User Manual

Read more less

Fastron TC5-L-1A-2-T/R-2 PID Controller, 100-240VAC with 2 3 Amp Relay Alarms, K,E,J Thermocouple, Pt100 or Cu20, Optional Linear Current/Voltage, 96x96mm,4-20mA Output 4-digit displays (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated -0-10V, Relay, 12VDC (SSR) and 4 to 20 mA DC outputs available Each unit needs just 75 mm depth panel space Now available will full Multirange input (K,E,J,N,T,S,R,B Thermocouple, Linear Current/Voltage and PT100/Cu20 RTD Input, 96x48mm,4-20mA Output) Fastron Part Number TC5-L-1A-2-T/R-2 Control Output 4-20mA Input Multirange Type,K,E,J, Pt100, Cu50/(Optional)Linear Current 4(0)-20mA/(Optional)Linear Voltage 0-10(5)V Option 1 2 3 Amp Relay Alarms standard (Excludes 96x96mm with SSR/Relay output) Mounting Style 96x96mm Panel Mount Supply Voltage 100 - 240VAC +/-10% Termination Style Screw Sampling Time 100ms Weight 150-270g Factory Pack Qty 10   Datasheet TC5 Datasheet and User Manual

Read more less

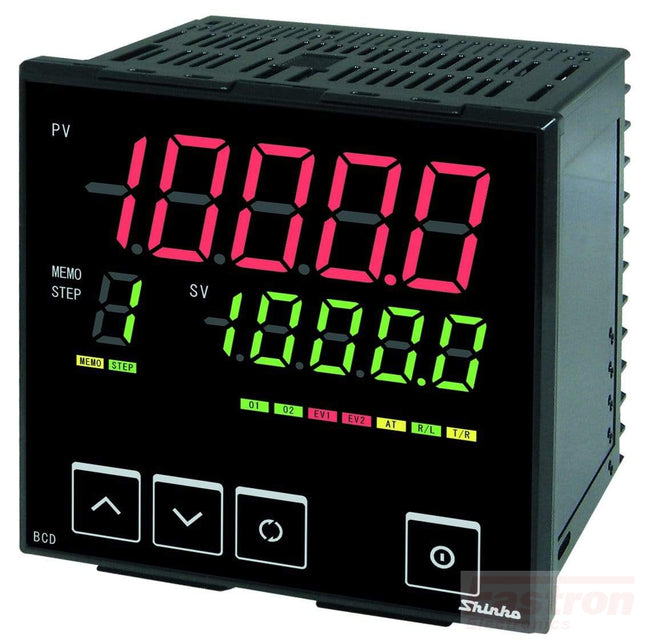

Shinko BCD2R1006 Series Digital Indicating Controllers • Program control, converter function are standard features • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) • Drip-proof / Dust-proof IP66 (front panel only) • 9-step pattern (for SV and time) is a standard feature • UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) • Each unit needs just 60 mm depth panel space • EC Compliant (Details) Specification Shinko Part Number BCD2R1006 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange (refer to datasheet) Option 1 None Option 2 RS485 Mounting Style 96 x 96mm Panel Mount Load Voltage Range 24VAC/DC Termination Style Screw Weight 170g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet BC Series Brochure BC Series User Manual BC Series RS485 Comms Manual Shinko Product Guide Fine Tuning Adjustments

Read more less

Shinko BCD2S1000 Series Digital Indicating Controllers • Program control, converter function are standard features • 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) • Drip-proof / Dust-proof IP66 (front panel only) • 9-step pattern (for SV and time) is a standard feature • UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) • Each unit needs just 60 mm depth panel space • EC Compliant (Details) Specification Shinko Part Number BCD2S1000 Control Output SSR 12VDC +/-15%, 40mA (short circuit protected) Input Multirange (refer to datasheet) Option 1 2nd Alarm, 4-20mA Cooling Output Option 2 None Mounting Style 96 x 96mm Panel Mount Load Voltage Range 24VAC/DC Termination Style Screw Weight 170g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet BC Series Brochure BC Series User Manual BC Series RS485 Comms Manual Shinko Product Guide Fine Tuning Adjustments

Read more less
