Trent FSK600D25T-K, Solid State Contactor SSR, Single Phase 4-32VDC Control, 25A, 24-600VAC Load, Din Rail Mount, with Internal Transient Overvoltage Suppressor Features Ratings from 25A to 75 Amp @ 24-280VAC or 24-660 VAC Contactor Style for retrofit SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Trent Part Number FSK600D25T-K Switching Type Zero Crossing ROHS Yes  Control Voltage 4 - 32VDC Load Current (single unit) 25 Amp (rms) @ 40 Deg C Ambient Load Current (multiple units) 22 Amp (rms) @ 40 Deg C Ambient (10mm spacing) Surge Capability 800 Amp (peak) Special Feature Contactor Style Terminals Mounting Style DIN Rail Mount Load Voltage Range 24 - 660VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 195g Factory Pack Qty 20   Datasheet Product Datasheet Alternatives SSR Style CKRD4830 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom CWD2425, Solid State Relay, Single Phase 4-32VDC Control, 25A, 24-280VAC Load. High surge w/LED Indicator Ratings from 25A to 125 Amp @ 24-280VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CSA/VDE Approved, CE Compliant to EN60950-1 Improved SEMS screw and washer Redesigned housing with anti-rotation barriers AC & DC control types Direct bond copper substrate EMC compliant to Level 3 Direct power lead frame Epoxy free design Spec Crydom Part Number CWD2425 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4-32VDC Load Current 25 Amp (rms) Surge Capability (16.6ms) 600 Amp (peak) Special Feature LED Status Indicator, High Surge Mounting Style Panel Mount Load Voltage Range 24-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent CWD2450P for stocked equivalent App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Sensata (BEI Sensors) HMT25D-SS-7X5-A1-CW-SM18-S, Absolute Multiturn Encoder Heavy Duty 0.375" Diameter, Shaft Seal, 7 Counts/Turn, 5 Turns The HMT25 is one of the flagships of the BEI Sensors product line. It was designed from the ground up for the industrial marketplace. Special Models of the HMT25 Absolute Encoder are available with one or more of the following certifications. Consult factory for details. Specification Sensata (BEI) part number HMT25D-SS-7X5-A1-CW-SM18-S Housing Square Flange Shaft Seal Config Shaft Seal Count Per Turn 7 No. of Channels N/A Complements 4-20mA Encoder Type Absolute Multiturn Voltage Output Termination Location Side Output Termination 10 pin Unit Weight Factory Pack Qty 1 Datasheet Product Datasheet Selection Guide Selection Guide

Read more less

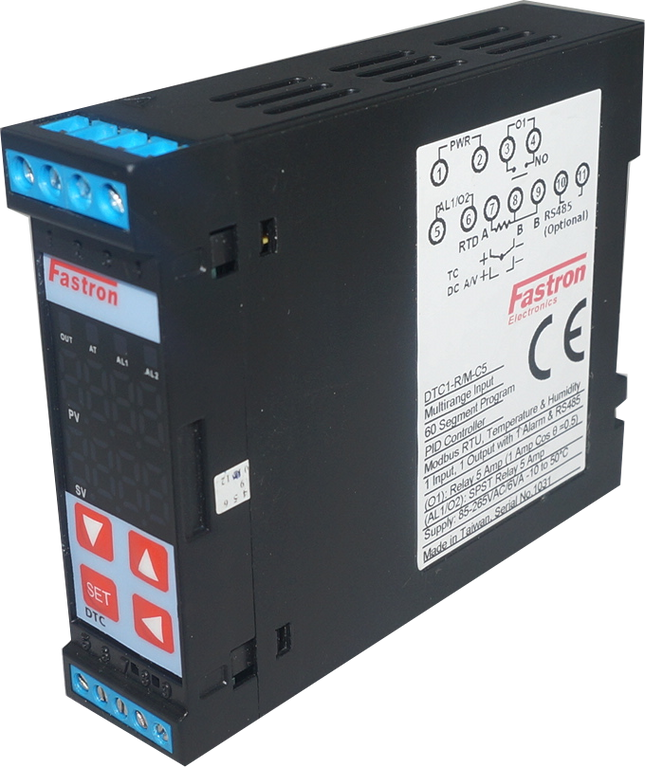

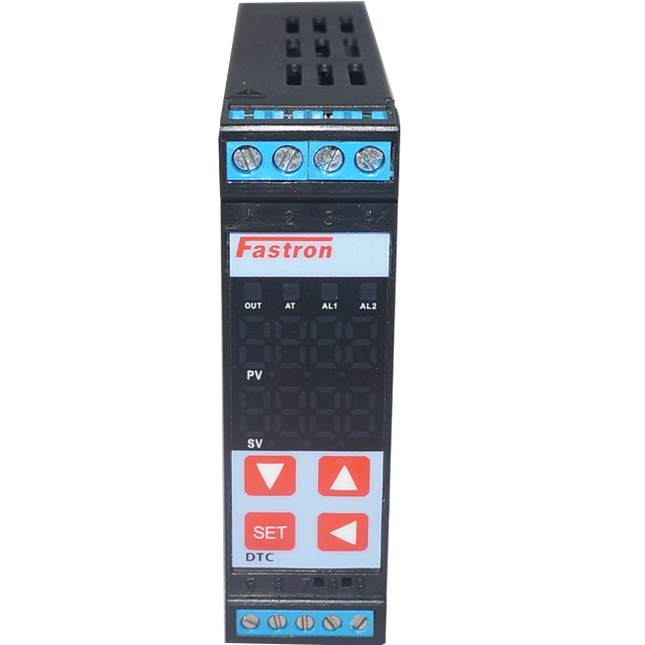

Fastron DTC1-A/M-PROG, DIN Rail Mount Temperature/Humidity Program Controller, Multirange Input, 85-265VAC, 4-20mA output Optional converter function 2 Input 1 Output, and 1 Input Two Output Versions available Optional 60 Segment Multi Pattern Program Control feature 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response) CE Approved Each unit needs just 22.5mm width Din Rail space EC Compliant (Details) Various specials available for unique applications. Specification Fastron Part Number DTC1-A/M-PROG Control Output 4-20mA Input Multirange K/J/R/S/B/E/T/Linear Voltage Current(Optional)/N/W1/W2/Pt100 Alarm Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC Options 60 Step Program Control Mounting Style 22.5 x 75mm Din Rail Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 230g Factory Pack Qty 1 CE Yes ?? Selection Chart PWM Control Wiring Datasheet DTC1 Brochure DTC1User Manual DTC1 User Manual Comms versions Alarm Table DTC1 (Program Control Version) User Manual

Read more less

Fastron FCP-M-1A-1-G-2, PID Pattern Controller, 72x72mm, 100-240VAC, 4-20mA output, 1 Alarm, 8 steps (segments), 4 patterns (programs), Interlinkable 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 4 x 8-step patterns  is a standard feature CE Approved Each unit needs just 60 mm depth panel space EC Compliant (Details) Specification Fastron Part Number FCP-M-1A-1-G-2 Control Output 4-20mA, 4 Program 8 steps, Interlinkable. Input Multirange (refer to datasheet) Option 1 1 Alarm Option 2 N/A Mounting Style 72 x 72mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 250g Factory Pack Qty 1 UL NO CE Yes Datasheet FC-P Datasheet

Read more less

 Trent FRS4-B50/150/R 3P+N, 4 Pole, Un = 120VAC, Uc = 150VAC, Type 2 (Class II) Surge Protection Device In 20kA, Imax 50kA, Pluggable, With Remote Contacts Specifications   Trent part number FRS4-B50/150/R 3P+N Nominal Voltage (Un) 120VAC Maximum Operating Voltage (Uc) 150VAC Voltage Protection Level (Up) <1.25kV No of Poles 4 Category IEC / EN / VDE Class II / Type 2 Location of use Sub Distribution Boards  Protection modes L-L, L-PE, High Energy MOV Additional Remote Contacts YES (1 x CO) Protective element MOV Surge discharge rating Imax up to 40kA(8/20us) L-PE/L-L 350VAC / 20kA(8/20us) L-PE/L-L Internal protection and safety Thermal disconnector in each MOV Standards IEC/EN 61643-11   Datasheet Product Datasheet

Read more less

LEM FRS 1500-SBIH, O/L Coreless Current Transducer, 1500 Amp, +12V...24VDC Supply, 111.4 x 18.7 Square Aperture, 4-20mA Bipolar Output, Traction Version Features Bandwidth DC to 1000kHz Open loop transducer using Coreless Hall effect Technology Compact and versatile Panel mounting-Horizontal or Vertical Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses Low power consumption Applications Wind Turbines Electrolyser AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification LEM Part Number FRS 1500-SBIH Technology Open Loop Coreless Hall Effect Aperture 111.4 x 18.7mm Square ROHS Yes Supply Voltage +12...24VDC, Isolated Load Current (RMS + DC) 1500 Amp Measurement Range +/-4500 Amp Overload Rating N/A Output 4-20mA Bipolar Isolation 18.5 kV Bandwidth DC-1000 kHz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 85°C Accuracy 1% Termination Style Molex 5045-04A Unit Weight 1500g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Rishabh RISH CON-CV-AVG-06-50-I-02-H, AC Voltage Transducer, 50Hz, 230VAC Full Scale, 4-20mA Output, 60-300VAC/DC Supply, LED Indicator Average RMS 4-20mA output Dual output version available 250mS response time PC 94 UL V0 Each unit needs just 22.5 x 100.9 mm depth DIN Rail cabinet space Specification Rishabh Part Number RISH CON-CV-AVG-06-50-I-02-H Measurement Output 4-20mA (Average RMS) Input 230VAC 50/60Hz Overlaod (Continuous) 120% Overload (1 second) 150% Operating Temperature -40 - 70°C Supply Voltage 60 - 300VAC Accuracy 0.2% Response Time 300mS Termination Style Screw Mounting Style DIN Rail Mount Safety IP40/IP20 EN60529 Protection Class II EN61010 Weight 400g Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Crydom DRD48D06, Dual Solid State Relay, 4-32VDC control, 2 x 6 Amp 48-600VAC Output, Slimline, Din Rail Mount, LED status Indicator Features Ratings from 3 Amp, 6 Amp, 12 Amp 1-100VDC, 1-60VDC, 24-280VAC, 48-600VAC DIN Rail Mount SCR output for reliable AC switching, or Mosfet for DC Switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DRD48D06 Switching Type DC ROHS Yes (Details) Control Voltage 4-32VDC Load Current 2 x 6 Amp (rms) Surge Capability (10ms) 285 Amp (rms) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 48-600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 50g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent Similar part ks32-60-24z2-f41f-1z-c2-4  App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

LEM DK 300 B420, Split Core Hall Effect DC Current Transducer, Multirange 150, 225, 300A DC, 4-20mA unipolar output, 20-50VDC supply Compact and versatile Split Core DC current sensor, selectable 150, 225, 300 Amp DC. Choice of output types: 4-20 mA, 0-5 V or 0-10 V Features Split Core DC Unipolar Measurement 0-10V Voltage output Busbar or panel mounting Isolated plastic case recognised according to UL94-V0 Advantages Large aperture for busbar/cable up to 21.7mm sqr High isolation between primary and secondary circuits Easy installation DIN Rail Kit available Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification LEM Part Number DK 300 B420 Technology DC Current Transformer with Process Output ROHS Yes Supply Voltage 20-20VDC Nominal Current (RMS + DC) 150,225,300 Amp Selectable Response Time < 100ms Output 4-20mA Analogue Isolation 3kV (AC, 50Hz, 1 min) Bandwidth DC Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Accuracy 2% Termination Style 2 x UNC8 Cylindric Head Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Fastron FCP-M-V-1-G-2, PID Pattern Controller, 72x72mm, 100-240VAC, SSR output, 1 Alarm, 8 steps (segments), 4 patterns (programs), Interlinkable 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 4 x 8-step patterns  is a standard feature CE Approved Each unit needs just 60 mm depth panel space EC Compliant (Details) Specification Fastron Part Number FCP-M-V-1-G-2 Control Output 12VDC SSR, 4 Program 8 steps, Interlinkable. Input Multirange (refer to datasheet) Option 1 1 Alarm Option 2 N/A Mounting Style 72 x 72mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 250g Factory Pack Qty 1 UL NO CE Yes Datasheet FC-P Datasheet

Read more less

Crydom GN350DSZ, SSR 3 Phase 4-32VDC Control, 50A, 48-530VAC Load, LED Status Indicator, IP20 Cover Features Ratings from 25A to 50 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number GN350DSZ Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 50 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator + IP20 Cover Mounting Style Panel Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10   Datasheet Product Datasheet Equivalent Contact Us App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies
