Fastron FCR-400-60R, Three Phase Proportional Phase Control Module, 4-20mA,0-10V,500K POT Input, 400VAC, 60 Amp Per Phase, Also referred to as 3 Phase Voltage Regulator 4-20mA,0-10V, or 500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number FCR-400-60R Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,500K POT Proportional Input Load Current 60 Amp (rms) @ 40 Deg C Surge Capability 597Amp (peak) Special Feature 3 Phase Proportional Controller + SSR/3 Phase Voltage Regulator Mounting Style Panel Mount Load Voltage Range 180-400VAC +10% Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions 105 x 80 x 55mm Unit Weight 400g Factory Pack Qty 20 Datasheet FCR-400-60R

Read more less

Fastron FCR-400-120R-5V, Three Phase Proportional Phase Control Module, 4-20mA,0-5V Control input 400VAC, 120 Amp Per Phase, Voltage Regulator 4-20mA, or 0-5V Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number FCR-400-120R-5 Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA, 0-5V Proportional Inputs Load Current 120 Amp (rms) @ 40 Deg C Surge Capability 1100Amp (peak) Special Feature 3 Phase Proportional Controller + SSR/3 Phase Voltage Regulator Mounting Style Panel Mount Load Voltage Range 180-400VAC +10% Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions 105 x 80 x 55mm Unit Weight 400g Factory Pack Qty 20   Datasheet FCR-400-120R

Read more less

Fastron FCR-400-120R, Three Phase Proportional Phase Control Module, 4-20mA,0-10V,500K POT Input, 400VAC, 120 Amp Per Phase, Also referred to as 3 Phase Voltage Regulator 4-20mA,0-10V, or 500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number FCR-400-120R Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,500K POT Proportional Input Load Current 120 Amp (rms) @ 40 Deg C Surge Capability 1100Amp (peak) Special Feature 3 Phase Proportional Controller + SSR/3 Phase Voltage Regulator Mounting Style Panel Mount Load Voltage Range 180-400VAC +10% Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions 105 x 80 x 55mm Unit Weight 400g Factory Pack Qty 20 Datasheet FCR-400-120R

Read more less

Trent ROT-FGM6DC-320, Extended Rotary Handle for 3 POLE DC MCCB FGM6DC-320 Frame Size Rotary Extended Handle for Miniature Circuit Breakers is used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Rotary handle mounts directly on DC MCCB with screws (included) without removal of midcover Clear ON/OFF/TRIP SuDirect access to push to trip button with rotary handle mounted Datasheet Product Datasheet

Read more less

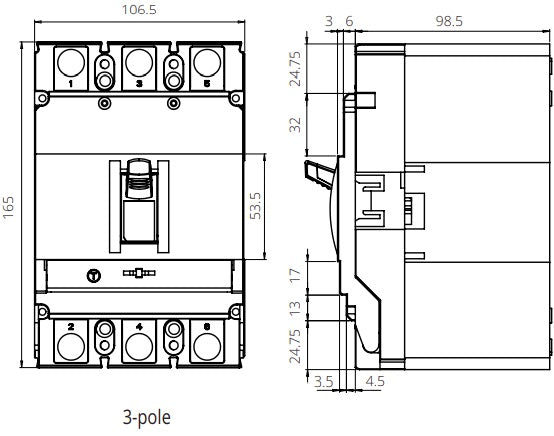

Trent FGM6S-3P-250H 200A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type 50kA 200 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 50kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6S-3P-250H 200A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 250 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 50kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 1.5kg Enclosure Material UL94 Factory Pack Qty 1 Datasheet Product Datasheet

Read more less

Trent FGM6DC-3PL-320 250A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type 25kA 250 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 25kA Short Circuit Rating @1500VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PL-320 250A Functions DC MCCB Nominal Voltage 1500VDC Nominal Current Range 250 Amps Trip Delay Time < 50ms Rated Impulse Voltage 12kV Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 25kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 3.3kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent FGM6DC-3PL-400 400A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type 25kA 400 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : 3 Pole Disconnect 25kA Short Circuit Rating @1500VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PL-400 400A Functions 3 Pole DC MCCB Nominal Voltage 1500VDC Nominal Current Range 400 Amps Trip Delay Time < 50ms Rated Impulse Voltage 12kV Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 25kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 8.5kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent FGV2-M20, Motor Protection Switch, 3 Phase, 690VAC, 13 - 28 Amp Setting Range, Thermal and Magnetic Release Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and Short circuit. Used in industry, small machines, agricultural machines, compressors etc. Features : Magnetic and Thermal releases < 50mS Trip Delay Time 3 Pole Disconnect Short Circuit Breaking Capacity up to 4kA Voltage resettable version available Customised versions available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGV2-M20 Functions 3 Phase Motor Protection Switch Nominal Voltage 230/400VAC @ 50/60Hz Nominal Current Range 13 - 18 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Rated Operations 100,000 Ops Insulation Voltage 690V Overload Protection Thermal and Magnetic Release Breaking Capacity 230V(6kA) 415V(4kA) 500V(2.5kA) 690V(2kA) Approvals CSA, EAC Standards IEC/EN 60947-2/4-1/5-1, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 230g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent FGV2-M08, Motor Protection Switch, 3 Phase, 690VAC, 2.3 - 4 Amp Setting Range, Thermal and Magnetic Release Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and Short circuit. Used in industry, small machines agricultural machines, compressors etc. Features : Magnetic and Thermal releases < 50mS Trip Delay Time 3 Pole Disconnect Short Circuit Breaking Capacity up to 4kA Voltage resettable version available Customised versions available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGV2-M08 Functions 3 Phase Motor Protection Switch Nominal Voltage 230/400VAC @ 50/60Hz Nominal Current Range 2.3 - 4 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Rated Operations 100,000 Ops Insulation Voltage 690V Overload Protection Thermal and Magnetic Release Breaking Capacity 230V(6kA) 415V(4kA) 500V(2.5kA) 690V(2kA) Approvals CSA, EAC Standards IEC/EN 60947-2/4-1/5-1, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 230g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent FGV2-M10, Motor Protection Switch, 3 Phase, 690VAC, 4 - 6.3 Amp Setting Range, Thermal and Magnetic Release Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and Short circuit. Used in industry, small machines agricultural machines, compressors etc. Features : Magnetic and Thermal releases < 50mS Trip Delay Time 3 Pole Disconnect Short Circuit Breaking Capacity up to 4kA Voltage resettable version available Customised versions available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGV2-M10 Functions 3 Phase Motor Protection Switch Nominal Voltage 230/400VAC @ 50/60Hz Nominal Current Range 4 - 6.3 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Rated Operations 100,000 Ops Insulation Voltage 690V Overload Protection Thermal and Magnetic Release Breaking Capacity 230V(6kA) 415V(4kA) 500V(2.5kA) 690V(2kA) Approvals CSA, EAC Standards IEC/EN 60947-2/4-1/5-1, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 230g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Alternatives

Read more less

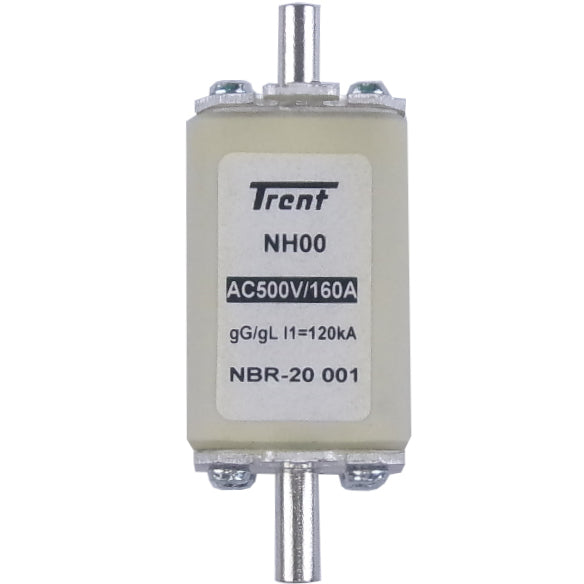

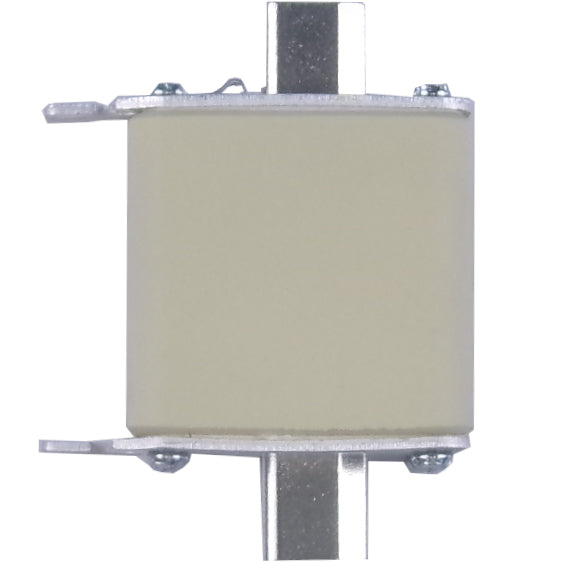

Trent NBR-20 001 13-160A-500V-120kA-NH00, Semiconductor Type gG/gL Fuse, 160 Amp, 120kA, 500VAC, NH00, 78 x 46 x 29.5mm Square Body Size NH00 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 001 13-160A-500V-120kA-NH00 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 160 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 78 x 46 x 29.5mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-20 003 13-200A-500V-120kA-NH1, Semiconductor Type gG/gL Fuse, 200 Amp, 120kA, 500VAC, NH1, 150 x 46 x 29.5mm Features Square Body Size NH1 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 003 13-200A-500V-120kA-NH1 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 150 x 75 x 65mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet
