TRENT TGD-1PL C 1-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 10Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 1-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 1 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-2PL C 1-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 1 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-2PL C 1-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 1 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-1PL C 63-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 63 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 63-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 63 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-1PL C 50-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 50 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 50-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 50 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-1PL C 16-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 16 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 16-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 16 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-1PL C 10-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 10 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 10-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 10 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-2PL C 63-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 50 Amp, 10kA, 500VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 2 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB, RCM (Pending) Specification TRENT Part Number TGD-2PL C 63-10kA Functions 2 Pole MCB - C Curve Nominal Voltage 500VDC @ 50/60Hz Nominal Current Range 63 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-2PL C 40-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 40 Amp, 10kA, 500VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 2 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB, RCM (Pending) Specification TRENT Part Number TGD-2PL C 40-10kA Functions 2 Pole MCB - C Curve Nominal Voltage 500VDC @ 50/60Hz Nominal Current Range 40 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

TRENT TGD-2PL C 10-10kA, 2 Pole Miniature Bidirectional DC Circuit Breaker C Curve 10 Amp, 10kA, 500VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 2 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB, RCM (Pending) Specification TRENT Part Number TGD-2PL C 20-10kA Functions 2 Pole MCB - C Curve Nominal Voltage 500VDC @ 50/60Hz Nominal Current Range 20 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

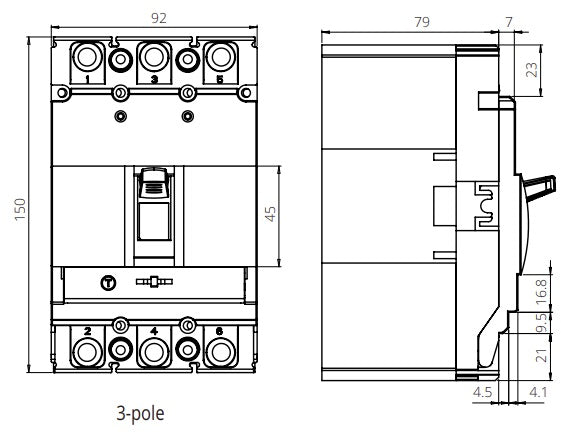

Trent FGM6S-3P-160H 160A, 3 Pole Moulded Case Circuit Breaker (MCCB) Thermal, Adjustable Type 50kA 160 Amp, 400/690VAC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 50kA Short Circuit Rating @400VAC Suitable for Main Incoming Breaker Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGM6S-3P-160H 160A Functions MCCB Nominal Voltage 400/690VAC @ 50/60Hz Nominal Current Range 160 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 8kV Operating Temperature -25 to 50 Deg C Mechanical Operations 20,000 Ops Insulation Voltage 800V Short Circuit Current 50kA Approvals KEMA EUR, CE Standards IEC/EN 60898-1,IEC/EN 60947-3, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 1.2kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent CHA-HT 5WAYS IP65, 5 Module Compact Distribution Boards, ABS/PC, Panel Mounted IP65, 3 x PE and 3 x N Conductor Terminals Features IP65 Protection Class RAL 7035 Double Insulation IEC 60670-1, IEC 60670-24 Installation Temperature -20 to 60 Deg C CE and ROHS Compliant 3 x PE and 3 x N Conductor Terminals Datasheet Product Datasheet

Read more less

Trent H31/180M-F & FCR-400-60R, Three Phase Proportional Phase Control Module with Heatsink, 4-20mA,0-10V,500K POT Input, 400VAC, 60 Amp Per Phase @ 50 Deg C 4-20mA,0-10V, or 500K POT Proportional Phase Control Input Ratings from 25A to 80 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number H31/150M-F & FCR-400-60R Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,500K POT Proportional Input Load Current 60 Amp (rms) @ 50 Deg C Surge Capability 500 Amp (peak) 10mS Special Feature 3 Phase Proportional Controller + SSR/3 Phase Voltage Regulator Mounting Style Panel Mount Load Voltage Range 180-400VAC +10% Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions L:220 x W:125 x D:180mm Unit Weight 4.3kg Factory Pack Qty 20   Datasheet FCR-400-60R Product Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here
