Trent OEM Pricing Collection

F22-271B, 22mm Momentary Pushbutton Switch Metal with BLUE Ring Illumination, 1xNO 1xNC, 3Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops Description Pushbutton switch available in version Standard, Illuminated, with Point Illumination, 1xNO 1xNC, Lettering, varnished in different colours Assembly by mounting with nut Pin connections, Pins with Soldering Aid or Clip for Pins Characteristics Housing and actuator material types: zinc die-cast with nickel plating or stainless steel Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp 24VDC Illumination Supply Voltage Zinc die-cast for housing and actuator For indoor use, no Illumination, 1xNO 1xNC, no lettering Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data) Tamper Proof suitable for public spaces Specification Fastron Electronics Part Number F22-271B Switch Size 20 x 22mm Nominal Voltage 250VAC/DC Rated Power 750W Switch Type Momentary 1xNO 1xNC Illumination voltage 24VDC @ 10mA Illumination type BLUE RING Nominal Current (AC/DC) 3 Amp @240VAC/24VDC Contact Resistance ON/OFF <100m Ohm Dimensions ø22 x 14.6mm Operating Temperature Range -20°C / 85°C Termination Faston/Solder Pins IP Protection Rating (IP 67 with Oring) IP 64 (IP40 switching circuit) Unit Weight 40g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

TRENT TGD-1PL C 20-10kA, 1 Pole Miniature Bidirectional DC Circuit Breaker C Curve 20 Amp, 10kA, 250VDC Miniature DC Circuit Breakers are used for over current (overload and short circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time 1 Pole Disconnect 10kA Short Circuit Rating Suitable for Isolation Customised versions available Type B, C, D Curve available Bidirectional  Standards : IEC/EN 60898 IEC/EN/AS60898-1 IP20 (IP40 Installed) IEC 61008 CE,CB,RCM (Pending) Specification TRENT Part Number TGD-1PL C 20-10kA Functions 1 Pole MCB - C Curve Nominal Voltage 250VDC @ 50/60Hz Nominal Current Range 20 Amps RMS Trip Delay Time < 50ms Rated Impulse Voltage 6kV Operating Temperature -25 to 40 Deg C Mechanical Operations 10,000 Ops Insulation Voltage 690V Breaking Capacity 10kA Approvals CE,CB, RCM (Pending) Standards IEC/EN/AS60898-1, IP20 (IP40 Installed) IEC 61008 ; Weight 350g Enclosure Material UL94 Factory Pack Qty 1 TRENT Headquarters Australia   Datasheet Product Datasheet

Read more less

Trent FGV2-M20, Motor Protection Switch, 3 Phase, 690VAC, 13 - 28 Amp Setting Range, Thermal and Magnetic Release Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and Short circuit. Used in industry, small machines, agricultural machines, compressors etc. Features : Magnetic and Thermal releases < 50mS Trip Delay Time 3 Pole Disconnect Short Circuit Breaking Capacity up to 4kA Voltage resettable version available Customised versions available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGV2-M20 Functions 3 Phase Motor Protection Switch Nominal Voltage 230/400VAC @ 50/60Hz Nominal Current Range 13 - 18 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Rated Operations 100,000 Ops Insulation Voltage 690V Overload Protection Thermal and Magnetic Release Breaking Capacity 230V(6kA) 415V(4kA) 500V(2.5kA) 690V(2kA) Approvals CSA, EAC Standards IEC/EN 60947-2/4-1/5-1, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 230g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent FGV2-M08, Motor Protection Switch, 3 Phase, 690VAC, 2.3 - 4 Amp Setting Range, Thermal and Magnetic Release Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and Short circuit. Used in industry, small machines agricultural machines, compressors etc. Features : Magnetic and Thermal releases < 50mS Trip Delay Time 3 Pole Disconnect Short Circuit Breaking Capacity up to 4kA Voltage resettable version available Customised versions available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGV2-M08 Functions 3 Phase Motor Protection Switch Nominal Voltage 230/400VAC @ 50/60Hz Nominal Current Range 2.3 - 4 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Rated Operations 100,000 Ops Insulation Voltage 690V Overload Protection Thermal and Magnetic Release Breaking Capacity 230V(6kA) 415V(4kA) 500V(2.5kA) 690V(2kA) Approvals CSA, EAC Standards IEC/EN 60947-2/4-1/5-1, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 230g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent FGV2-M10, Motor Protection Switch, 3 Phase, 690VAC, 4 - 6.3 Amp Setting Range, Thermal and Magnetic Release Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and Short circuit. Used in industry, small machines agricultural machines, compressors etc. Features : Magnetic and Thermal releases < 50mS Trip Delay Time 3 Pole Disconnect Short Circuit Breaking Capacity up to 4kA Voltage resettable version available Customised versions available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Trent Part Number FGV2-M10 Functions 3 Phase Motor Protection Switch Nominal Voltage 230/400VAC @ 50/60Hz Nominal Current Range 4 - 6.3 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Rated Operations 100,000 Ops Insulation Voltage 690V Overload Protection Thermal and Magnetic Release Breaking Capacity 230V(6kA) 415V(4kA) 500V(2.5kA) 690V(2kA) Approvals CSA, EAC Standards IEC/EN 60947-2/4-1/5-1, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 230g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Alternatives

Read more less

Trent NBR-20 001 13-160A-500V-120kA-NH00, Semiconductor Type gG/gL Fuse, 160 Amp, 120kA, 500VAC, NH00, 78 x 46 x 29.5mm Square Body Size NH00 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 001 13-160A-500V-120kA-NH00 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 160 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 78 x 46 x 29.5mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-20 003 13-200A-500V-120kA-NH1, Semiconductor Type gG/gL Fuse, 200 Amp, 120kA, 500VAC, NH1, 150 x 46 x 29.5mm Features Square Body Size NH1 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 003 13-200A-500V-120kA-NH1 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 150 x 75 x 65mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

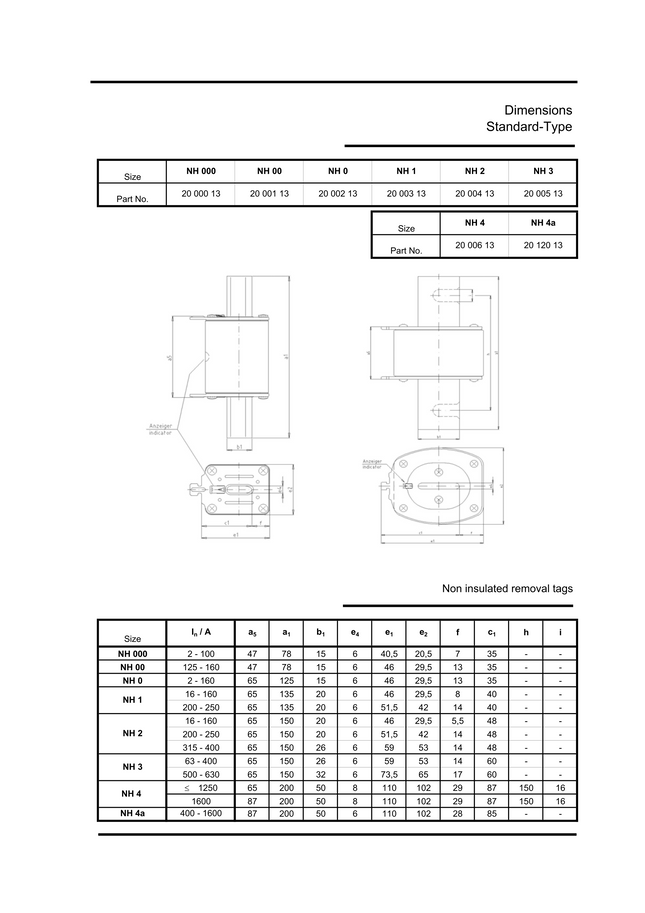

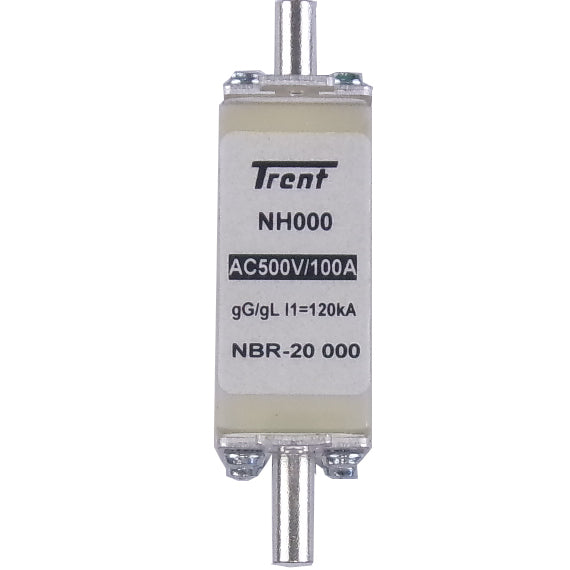

Trent NBR-20 000 13-100A-500V-120kA-NH000, Semiconductor Type gG/gL Fuse, 100 Amp, 120kA, 500VAC, NH000, 78 x 46 x 20.5mm Features Square Body Size NH000 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 000 13-100A-500V-120kA-NH000 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 150 x 75 x 65mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

TRBM-22D-G-240, 22mm Pushbutton Momentary GREEN 240VAC, Metal, IEC60947-5-1 Pushbutton Switches will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) 1 Pole Momentary Rated for 6 Amp @ 230VAC, or 0.3 Amp @ 230VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRBM-22D-G-240 Functions Momentary Colour Black Body, Green Button Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 230VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

Trent FGM6DC-3PL-320 250A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type 20kA 250 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 20kA Short Circuit Rating @1500VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PL-320 250A Functions DC MCCB Nominal Voltage 1500VDC Nominal Current Range 250 Amps Trip Delay Time < 50ms Rated Impulse Voltage 12kV Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 20kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 3.3kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet CE Declaration

Read more less

TA800E-LY240, Green LED Bead Replacements for 240VAC TRIB, TRI Series Indicators LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TA800E-LG240 Functions LED Indicator Bulb Replacement Nominal Voltage 240VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Green LED Approvals CE Weight Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRIB-22D-B-24, 22mm LED Pushbutton & Indicator BLUE 24AC/DC, Plastic, IEC60947-5-1 Pushbutton Indicator Switches are a combinations of LED indicator Series and Momentary Pushbutton Switches. LED Will activate while the contacts are connected. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation by the user. Features : 240VAC or 24AC/DC (400VAC Special Orders) 1 Pole Momentary LED Illumination Rated for 6 Amp @ 240VAC, or 0.3 Amp @ 240VDC Ø 22.5mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRIB-22D-B-24 Functions Momentary Nominal Voltage 24AC/DC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Blue LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Nominal Current Range AC 6 Amp @240VAC Nominal Current Range DC 0.3 Amp @ 240VDC Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP40, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less
