Trent ROT-FGM6-800, Extended Rotary Handle for 3 POLE MCCB FGM6-800 Frame Size Rotary Extended Handle for Miniature Circuit Breakers is used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Rotary handle mounts directly on MCCB with screws (included) without removal of midcover Clear ON/OFF/TRIP SuDirect access to push to trip button with rotary handle mounted Datasheet Product Datasheet

Read more less

Trent DSTO-C14-5F-R-N-N-H, Distribution Unit with IEC Inlet C14 to 5 x F/C13 Outlet, 240VAC @ 10 Amp with Rocker Switch, Rear Mounted with plastic hooks,  MOQ = 10pcs (If not in stock) Features 1 x C14 in 5 x F/C13 out, Ganged Distribution Outlet C14 Socket acc to IEC 60320-1 70 °C pin Temperature Rocker Switch Protected Suitable for use in equipment according to IEC/UL 60950 OTHER SIZES CAN BE MADE TO ORDER Characteristics UL 60320-1, CSA C22.2 no. 60320-1 (for hot conditions) pin-temperature 70 °C, 10A, Protection Class I Types for enhanced glow wire test requirements acc. IEC 60695-2- 12 and -13 for the use in unattended household equipment acc. IEC 60335-1   Specification Trent Part Number DSTO-C14-5F-R-N-N-H Rated Voltage 250V Rated Current 10A No of Outlets 5 Operating Temperature -25°C to 120°C Filter Type N/A Overload Protection YES Line Switch Rocker Switch - 10 Amp (red Illumination) Mounting Rear Mounted with Plastic Hooks Material Powder Coated Metal black Termination Style 1 x C14 Inlet, 5 x F/C13 Outlet Weight 2000g Factory Pack Qty 1 Protection Class From front side IP30 acc. to IEC 60529 Isolation 2kV (L-N, L/N-E) VDE/CE/ROHS YES   Datasheet Product Datasheet

Read more less

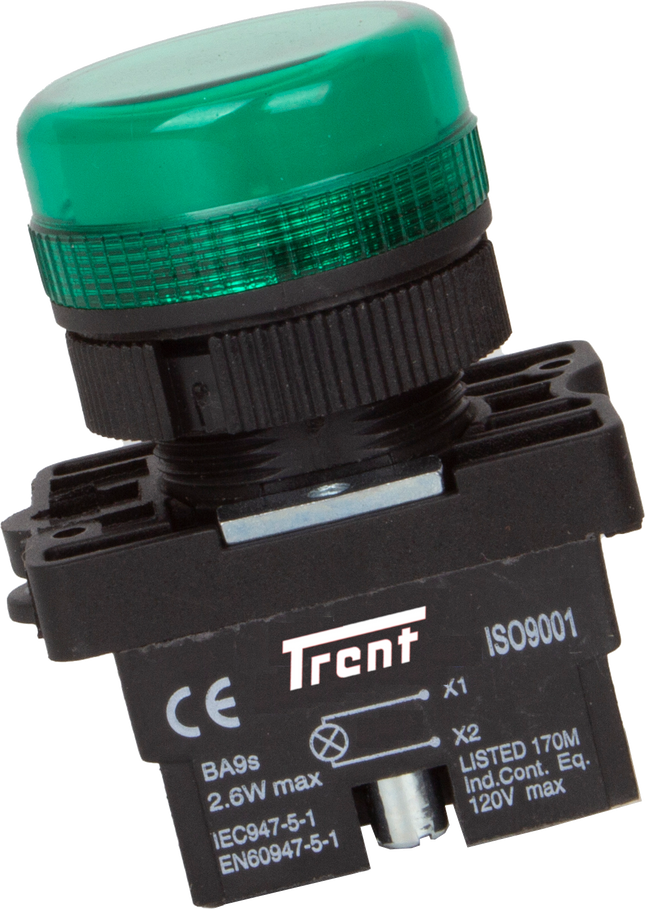

TRI-22-G24, 22mm LED Indicator GREEN 24VAC/DC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 24VAC/DC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP65 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-G24 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Green LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TTRI-22-R24, 22mm LED Indicator RED 24VAC/DC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 24VAC/DC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-R24 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Red LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

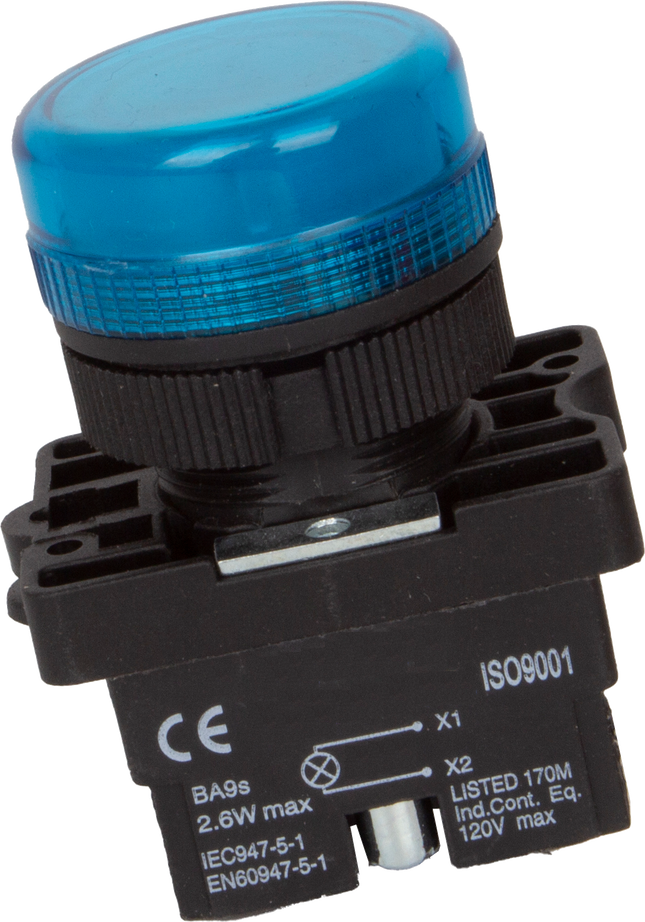

TRI-22-B24, 22mm LED Indicator BLUE 24VAC/DC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 24VAC/DC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP65 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-B24 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Blue LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TTRI-22-R240, 22mm LED Indicator RED 240VAC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-R240 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Red LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRI-22-B240, 22mm LED Indicator BLUE 240VAC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP65 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-B240 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Blue LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

TRI-22-W24, 22mm LED Indicator WHITE 24VAC/DC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 24VAC/DC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP65 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-W24 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type White/Clear LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

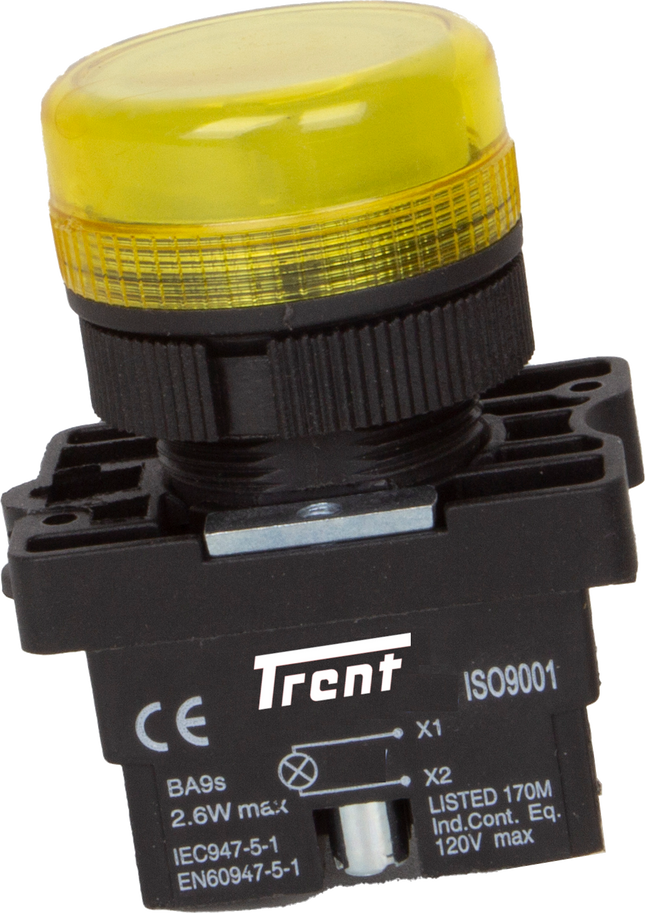

TRI-22-Y24, 22mm LED Indicator AMBER 24VAC/DC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 24VAC/DC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP65 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-Y24 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Amber LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet
