TRI-22-W240, 22mm LED Indicator WHITE 240VAC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP65 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-W240 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type White/Clear LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

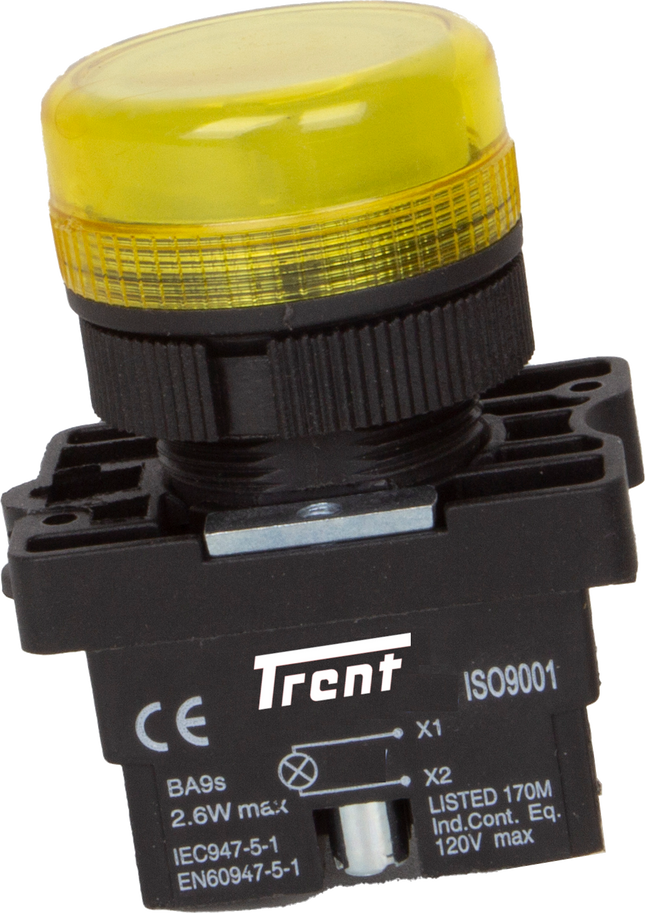

TRI-22-Y240, 22mm LED Indicator AMBER 240VAC, Plastic, IP65, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 240VAC or 24VAC/DC (400VAC Special Orders) LED Illumination Ø 22.5mm Cutout Long Life Replacement Beads Available Standards : IP65 IEC60947-5-1 CE Specification TRENT Part Number TRI-22-Y240 Functions LED Indicator Only Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Amber LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia Datasheet Product Datasheet

Read more less

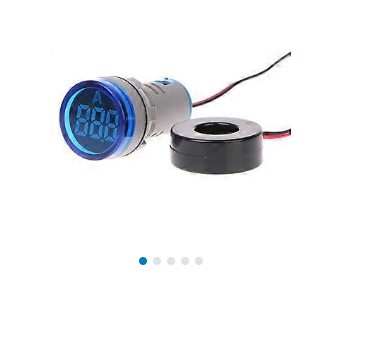

TRA-22D-B-230, 22mm LED Ammeter BLUE 0-100Amp 240VAC, Plastic, IP40, IEC60947-5-1 LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 240VAC Supply 0-100Amp Measurement via included solid core CT LED Illumination Ø 22.5mm Cutout Long Life LED Replacement Beads Available RED, GREEN, AMBER, BLUE, or Clear\White Colour Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRA-22D-B-230 Functions LED Ammeter Measurement Range 0-100Amp AC (via included solid core CT) Nominal Voltage 230VAC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type Blue LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

Trent 100NBF, 690V, 100 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 100NBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 3060 A²/s Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 100kA @ 250VAC Dimensions 82 x 47.3mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 27W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

TRB-BG33, 2 x NO, 3 Position Key Switch BLACK Latched, 3 Amp @ 240VACVAC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BG33-IP65 Functions 2 Pole, 3 Position Toggle Switch Switch Type Latching 2 x NO Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less

TRB-BD33-IP65, 1 x NO, 3 Position Toggle Switch BLACK, 3 Amp @ 240VACVAC, Plastic/Metal, IEC60947-5-1 Toggle Switches are used to Toggle between 2 or 3 Digital or Analogue Input Signals or to simply turn off control signals. Widely used for Rugged Industrial Applications Including Critical Machinery requiring safe and reliable repetitive operation by the user. Features : 600V Insulation Rating 240VAC @ 3 Amp 22mm Cutout Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TRB-BD33-IP65 Functions Latching 1 x NO (Right ON Postion 1), Centre = OFF, 1 x NO (Left ON Postion 2) Switch Type Latching 2 x NO Nominal Voltage 240VAC @ 50/60Hz Rated Impulse Voltage 6kV Nominal Current Range AC 3 Amp @240VAC Rated Insulation Voltage 600VAC Humidity 35-85% Approvals CE Standards IEC60947-5-1, IP20 (IP40 Installed) Weight 65g Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less
