Trent 125BF Series 690V, 125 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 125BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 7900 A²/s I²t Rating (IP > 30IN) 8800 A²/s Nominal Current (RMS + DC) 125 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 25W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 150BF Series 690V, 150 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/150 Q097166, Bussmann 150FM ETI BS38UQ/83/160A/690V 004750628 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 150BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 12600 A²/s I²t Rating (IP > 30IN) 14500 A²/s Nominal Current (RMS + DC) 150 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 35.5W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 225BF Series 690V, 225 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URR 36/250 V097170, Bussmann 225FM ETI BS38UQ/83/250A/690V 004750636 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 225BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 62000 A²/s I²t Rating (IP > 30IN) 70000 A²/s Nominal Current (RMS + DC) 225 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 34W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 175BF, aR Semiconductor Fuse 690VAC 175Amp I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/180 R097167, Bussmann 175FM ETI BS38UQ/83/180A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 175BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating 20000 A²/s Nominal Current (RMS + DC) 175 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 33.1W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 200BF Series 690V, 200 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/200 T097169, Bussmann 200FM ETI BS38UQ/83/200A/690V 004750633 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 200BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 40000 A²/s I²t Rating (IP > 30IN) 46000 A²/s Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 33.1W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 250BF Series 690V, 250 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/250 W097171, Bussmann 250FM ETI BS38UQ/83/250A/690V 004750636 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 250BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 97000 A²/s I²t Rating (IP > 30IN) N/A Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 34.5W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

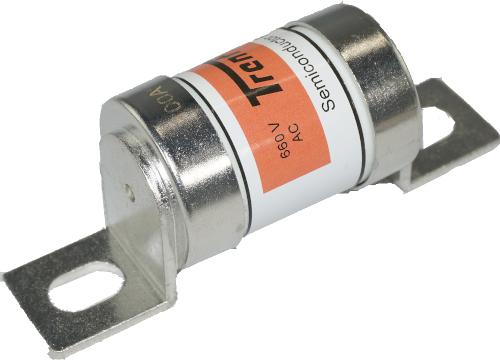

Trent 275BF Series 660V, 275 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/275 B097176, Bussmann 315FM ETI BS38UQ/83/315A/690V 004750640 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 275BF Fuse Type I²t aR Class Nominal Voltage 660VAC @ 50Hz I²t Rating 125000 A²/s Nominal Current (RMS + DC) 300 Amp Tested Breaking Capacity 200kA @ 660VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 43W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 300BF Series 660V, 300 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/355 B097176, Bussmann 315FM ETI BS38UQ/83/315A/690V 004750640 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 300BF Fuse Type I²t aR Class Nominal Voltage 660VAC @ 50Hz I²t Rating (IP < 30IN) 151000 A²/s I²t Rating (IP > 30IN) 175000 A²/s Nominal Current (RMS + DC) 300 Amp Tested Breaking Capacity 200kA @ 660VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 43W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

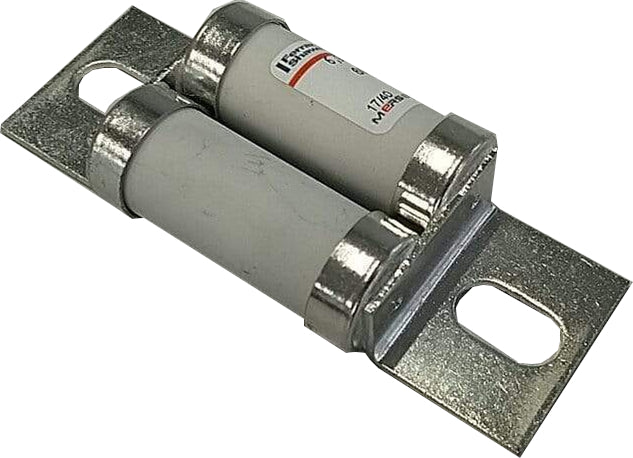

6.9 URT 217/150, 150Amp, 690V Semiconductor Protection Fuse, aR Datasheet Product Datasheet

Read more less

Trent 350BF Series 690V, 350 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/355 C097177, Bussmann 350FM ETI BS38UQ/83/350A/690V 004750642 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 350BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 190000 A²/s I²t Rating (IP > 30IN) 215000 A²/s Nominal Current (RMS + DC) 350 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 48.5W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 375BF Series 690V, 375 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 375BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 210000 A²/s I²t Rating (IP > 30IN) 225000 A²/s Nominal Current (RMS + DC) 375 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 50W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 400BF Series 690V, 400 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Mersen 6.9 URGL 36/400 D097178 British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 400BF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 265000 A²/s I²t Rating (IP > 30IN) 305000 A²/s Nominal Current (RMS + DC) 400 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 50W Termination Style M6 Unit Weight 220g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less
