Trent 450NBBF Semiconductor I²t Fuse, 250VAC, 450 Amp, aR BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 450NBBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 80000 A²/s Nominal Current (RMS + DC) 450 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 82 x 37.3 x 70.4mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 54W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

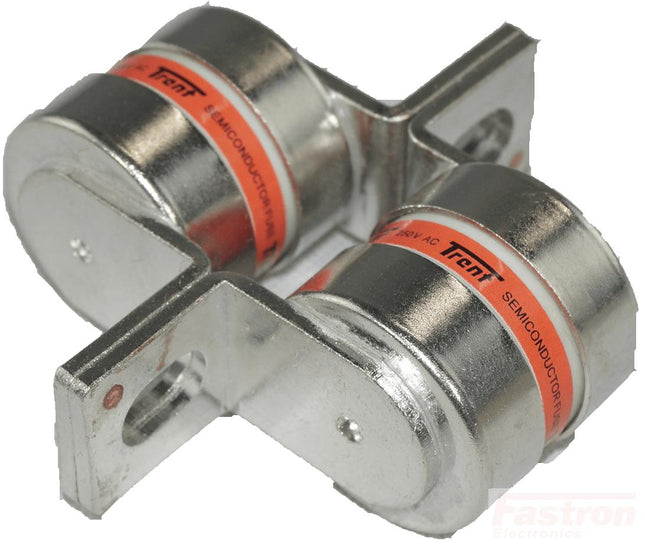

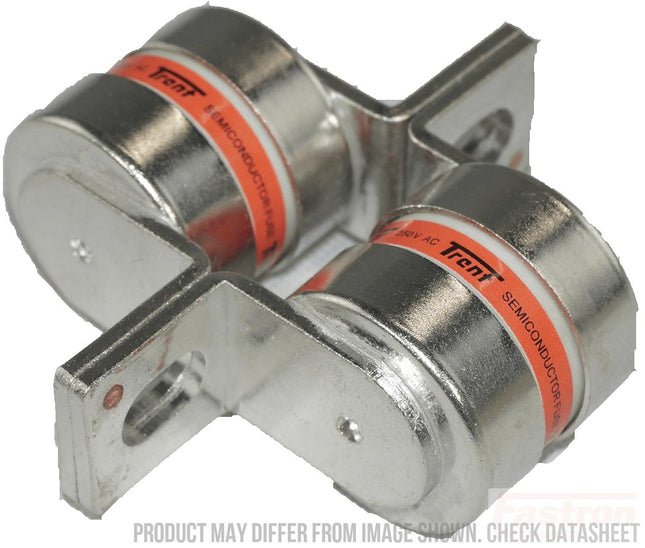

Trent 400NBBF Series 690V, 400 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1050 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 250 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 400NBBF Fuse Type I²t AR Class Nominal Voltage 250VAC @ 50Hz I²t Rating 65600 A²/s Nominal Current (RMS + DC) 400 Amp Tested Breaking Capacity 200kA @ 250VAC Dimensions 82 x 37.3 x 70.4mm Hole Centers 65.5 - 48.2mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 54W Termination Style M6 Unit Weight 170g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 275BBF Series 690V, 275 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 275BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating 43000 A²/s Nominal Current (RMS + DC) 275 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 62W Termination Style M6 Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 225BBF Series 690V, 225 Amp aR Semiconductor I²t Fuse BS88 Style 200kA Breaking Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 225BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating Nominal Current (RMS + DC) 225 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 62W Termination Style M6 Unit Weight 400g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 200BBF Series 690V, 200 Amp aR Semiconductor I²t Fuse BS88 Style 200kA Breaking Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 200BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating Nominal Current (RMS + DC) 200 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 62W Termination Style M6 Unit Weight 400g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 375BBF Series 690V, 375 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 375BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 124000 A²/s Nominal Current (RMS + DC) 375 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 62W Termination Style M6 Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 350BBF Series 690V, 350 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 350BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 110000 A²/s Nominal Current (RMS + DC) 350 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 62W Termination Style M6 Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 650BBF Series 690V, 650 Amp Semiconductor I²t Fuse BS88 Style, aR Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 650BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 540000 A²/s Nominal Current (RMS + DC) 650 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 85.2W Termination Style M6 Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 400BBF Series 690V, 400 Amp aR Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 400BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 147000 A²/s Nominal Current (RMS + DC) 400 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 62.3W Termination Style M6 Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 300BBF, Series 690V, 300 Amp aR Semiconductor I²t Fuse BS88 Style 200kA Breaking Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 300BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 75000 A²/s Nominal Current (RMS + DC) 400 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 59W Termination Style M6 Unit Weight 400g Factory Pack Qty 10   Datasheet Product Datasheet Cross Reference Chart

Read more less

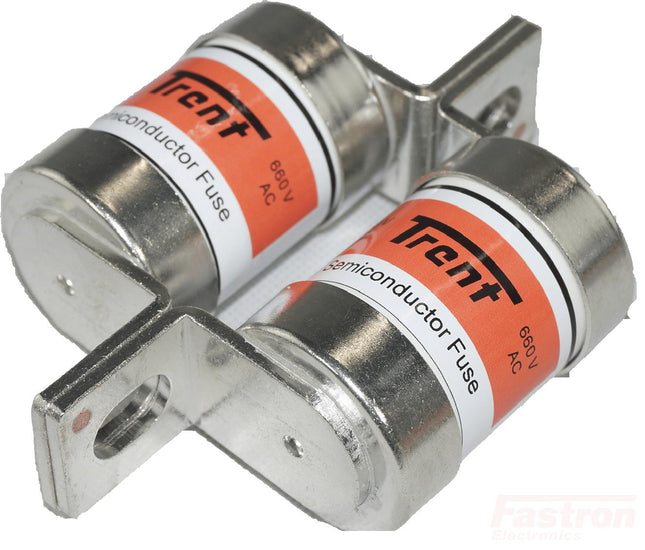

Trent 700BBF Series 690V Semiconductor I²t Fuse BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 700BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 50IN) 600000 A²/s Nominal Current (RMS + DC) 700 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 69W Termination Style M6 Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Trent 450BBF Series 690V, 450 Amp Semiconductor I²t Fuse, aR BS88 Style Features British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 450BBF Fuse Type I²t aR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 210000 A²/s Nominal Current (RMS + DC) 450 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 79.4 x 24 x 110mm Hole Centers 75.2 x 93.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 63.8W Termination Style M6 Unit Weight 400g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less
