Semikron SKT1200/18E Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Semikron Part Number SKT1200/18E Vrrm 1800V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 1200 Amp Package Size ø74x 26mm Itsm 30 kA VF(to) 0.95V Tj(max) 125°C rF 0.18mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.054°C/W R th(c-h) (double sided cooled) 0.0224°C/W Weight 480g Clamping Force 22 - 25kN Factory Pack Qty 12 Certification ROHS Semikron Headquarters Germany Datasheet Product Datasheet Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N1114LC160, Thyristor(SCR) PUK 756 Amp, 1600V, 58/26, T720N16TOF, Thyristor(SCR) PUK 720 Amp, 1600V, 58/26, See B1115LC180 or B1230LC160 for drop in replacement Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode Part Number N1114LC160 Vrrm 1600V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 84 Deg C 756 Amp Package Size ø58 x 26mm Itsm 12.7 kA VF(to) 1V Tj(max) 125°C rF 0.349mΩ Gate Terminals Faston R th(j-k) (double sided cooled 180°sin) 0.018°C/W R th(c-h) (double sided cooled) Weight 340g Clamping Force 10 - 20kN Factory Pack Qty 6 Certification ROHS Westcode Headquarters UK Datasheet Product Datasheet Alternatives T720N16TOF Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N3175HE180, Thyristor(SCR) PUK 2150 Amp, 1800V, 101/35 Features Very low forward voltage drop Very low leakage current International standard package 101/35 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode IXYS Part Number N3175HE180 Vrrm 1800V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 2150 Amp Package Size ø101 x 35mm Itsm 44 kA VF(to) 0.90V Tj(max) 125°C rF 0.106mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.0125°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 900g Clamping Force 30 - 65kN Factory Pack Qty 12 Certification ROHS IXYS Headquarters Germany Datasheet Product Datasheet Alternatives t2180n18tof-vt Heatsink Heatsink Profiles

Read more less

Infineon T2180N18TOF VT Rectifier Thyristor (SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 100/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number T2180N18TOF VT Vrrm 1800V Diode Configuration Thyristor (SCR) Capsule (PUK) IF(av) @ 85 Deg C 2180 Amp Package Size ø100 x 26mm Itsm 44 kA VF(to) 0.90V Tj(max) 125°C rF 0.106mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.0125°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 900g Clamping Force 30 - 65kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives n3175he180 Heatsink Heatsink Profiles

Read more less

Infineon T930N36TOF Thyristor(SCR) Capsule, 930Amp, 3600V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number T930N36TOF Vrrm 3600V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 930 Amp Package Size ø74 x 26mm Itsm 19.5 kA VF(to) 1.0V Tj(max) 125°C rF 0.43mΩ Gate Terminals Fastron R th(j-c) (double sided cooled 180°sin) 0.0215°C/W R th(c-h) (double sided cooled) 0.0035°C/W Weight 540g Clamping Force 20 - 45kN Factory Pack Qty 6 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives N1159NC400 DCR1260F42 Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N1159NC400, Thyristor(SCR) PUK, 1159Amp, 4200V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode-IXYS-Littlefuse Part Number N1159NC400 Vrrm 4000V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 1159 Amp Package Size ø74 x 26mm Itsm 14.5 kA VF(to) 1.1V Tj(max) 125°C rF 0.574mΩ Gate Terminals Faston R th(j-c) (double sided cooled 180°sin) 0.022°C/W R th(c-h) (double sided cooled) 0.044°C/W Weight 510g Clamping Force 19 - 26kN Factory Pack Qty 6 Certification ROHS Westcode-IXYS-Littlefuse Headquarters UK Datasheet Product Datasheet Alternatives DCR1260F42 Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

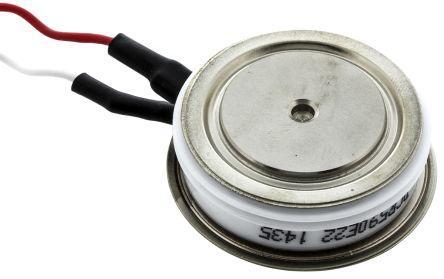

Dynex DCR3910Y22 Thyristor(SCR) Capsule 3910 Amp @ Tc = 60°C, 2200V 111/35 Features Very low forward voltage drop Very low leakage current International standard package 111/35 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex Part Number DCR3910Y22 Vrrm 2200V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 3910Amp Package Size ø111 x 35mm Itsm 54 kA VF(to) 0.779V(L)-0.915V(H) Tj(max) 125°C rF 0.1584(L) - 0.095(H)mΩ Gate Terminals With 400mm Gate Leads R th(j-c) (double sided cooled 180°sin) 0.002°C/W R th(c-h) (double sided cooled) 0.004°C/W Weight 1.7kg Clamping Force 48 - 59kN Factory Pack Qty 6 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Dynex 2022 Shorform Catalogue Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse W0944WC150, Diode Capsule(PUK) 716 Amp, 1500V, 41/14 Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers DC Blocking Diode UPS - Uninterruptible Power Supplies Field Supply for DC Motors Water Cooled Rectifiers Large Generators Specification Westcode-IXYS-Littlefuse Part Number W0944WC150 Vrrm 1500V Diode Configuration Diode Capsule (PUK) IF(av) @ 100 Deg C 716 Amp Package Size ø41 x 14mm Itsm 9 kA VF(to) 0.79V Tj(max) 180°C rF 0.342mΩ Gate Terminals N/A R th(jk) (double sided cooled 180°sin) 0.09°C/W R th(c-h) (double sided cooled) N/A Weight 140g Clamping Force 3.3 - 5.5kN Factory Pack Qty 12 Certification ROHS IXYS - Westcode Headquarters USA - UK Datasheet Product Datasheet Alternatives D770N20T D770N16T Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse W0797WC120, Diode Capsule(PUK) 614 Amp, 1200V, 41/14 Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers DC Blocking Diode UPS - Uninterruptible Power Supplies Field Supply for DC Motors Water Cooled Rectifiers Large Generators Specification Westcode-IXYS-Littlefuse Part Number W0797WC120 Vrrm 1200V Diode Configuration Diode Capsule (PUK) IF(av) @ 100 Deg C 614 Amp Package Size ø41 x 14mm Itsm 7.5 kA VF(to) 0.8V Tj(max) 180°C rF 0.548mΩ Gate Terminals N/A R th(jk) (double sided cooled 180°sin) 0.09°C/W R th(c-h) (double sided cooled) N/A Weight 110g Clamping Force 3.3 - 5.5kN Factory Pack Qty 12 Certification ROHS IXYS - Westcode Headquarters USA - UK Datasheet Product Datasheet Alternatives D770N20T D770N16T Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N2500VC120, Thyristor(SCR) PUK, 1684 Amp, 1600V, 101/34 Features Very low forward voltage drop Very low leakage current International standard package 101/34 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode Part Number N2500VC120 Vrrm 1200V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 84 Deg C 1684 Amp Package Size ø101 x 34mm Itsm 37 kA VF(to) 0.88V Tj(max) 125°C rF 0.124mΩ Gate Terminals Faston R th(j-k) (double sided cooled 180°sin) 0.017°C/W R th(c-h) (double sided cooled) Weight 1kg Clamping Force 27 - 34kN Factory Pack Qty 6 Certification ROHS Westcode Headquarters UK Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Dynex DCR3710V14, Thyristor(SCR) Capsule 3710 Amp @ Tc = 60°C, 1400V 111/26 Features Very low forward voltage drop Very low leakage current International standard package 111/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex Part Number DCR3710V14 Vrrm 1400V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 2930 Amp Package Size ø111 x 26mm Itsm 60 kA VF(to) 0.83V Tj(max) 125°C rF 0.92mΩ Gate Terminals Faston R th(j-c) (double sided cooled 180°sin) 0.01°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 1.5kg Clamping Force 50 - 62kN Factory Pack Qty 6 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Alternatives N4085ZC120 Dynex 2022 Shorform Catalogue Heatsink Heatsink Profiles

Read more less

Dynex DCR2930Y42-1808 Thyristor(SCR) Capsule 2930 Amp @ Tc = 60°C, 4200V 111/35 Features Replaces DCR1476PY3535-1053 Used on HST3 WINDER,GEMFACTOR CONVERTER Very low forward voltage drop Very low leakage current International standard package 111/35 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex Part Number DCR2930Y42-1808 Vrrm 4200V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 2930 Amp Package Size ø111 x 35mm Itsm 40.6 kA VF(to) 0.82(L)-0.98(H)V 1808 Matched Tj(max) 125°C rF 0.292(L) - 0.198(H)mΩ Gate Terminals With 400mm Gate Leads R th(j-c) (double sided cooled 180°sin) 0.002°C/W R th(c-h) (double sided cooled) 0.004°C/W Weight 1.7kg Clamping Force 48 - 59kN Factory Pack Qty 6 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Dynex 2022 Shorform Catalogue Heatsink Heatsink Profiles
