Westcode 9K16FWC Fast SCR 1600V, 530 Amp @ 85 Deg C, Tq = 80uS, 41/14mm Package Alternative Part# N0734YC160CAG (J4N)

Read more less

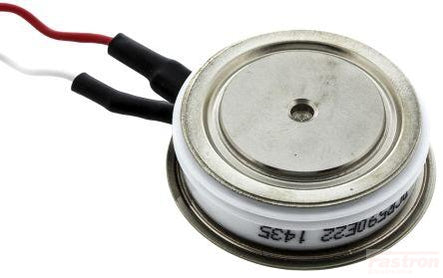

Dynex DCR960G18, Thyristor(SCR) PUK, 960Amp, 1800V, 58/26 Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex Part Number DCR960G18 Vrrm 1800V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 960 Amp Package Size ø58 x 26mm Itsm 14 kA VF(to) 0.91V Tj(max) 125°C rF 0.36mΩ Gate Terminals 400mm Gate Leads with 6.3 x 0.8mm Spade Lugs R th(j-c) (double sided cooled 180°sin) 0.035°C/W R th(c-h) (double sided cooled) 0.008°C/W Weight 600g Clamping Force 12 - 18kN Factory Pack Qty 12 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Dynex 2022 Shorform Catalogue Alternatives N1114LC160 T718N16TOF T720N16TOF T880N18TOF Heatsink Heatsink Profiles

Read more less

Semikron SKT760/18E, Thyristor(SCR) PUK, 696 Amp, 1800V, 58/26 Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Semikron Part Number SKT760/18E Vrrm 1800V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 696 Amp Package Size ø58 x 26mm Itsm 15 kA VF(to) 0.92V Tj(max) 125°C rF 0.3mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.04°C/W R th(c-h) (double sided cooled) 0.014°C/W Weight 240g Clamping Force 10 - 13kN Factory Pack Qty 12 Certification ROHS Semikron Headquarters Germany Datasheet Product Datasheet Heatsink Heatsink Profiles

Read more less

Infineon T880N18TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T880N18TOF Vrrm 1800V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 880 Amp Package Size ø58 x 14mm Itsm 17.5 kA VF(to) .85V Tj(max) 125°C rF 0.27mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.032°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 300g Clamping Force 10.5 - 21kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Dynex DCR1260F42 Thyristor(SCR) Capsule, 1260Amp, 4200V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex Part Number DCR1260F42 Vrrm 4200V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 1260 Amp Package Size ø74 x 26mm Itsm 16.8 kA VF(to) 0.91V Tj(max) 125°C rF 0.611mΩ Gate Terminals With 400mm Gate Leads R th(j-c) (double sided cooled 180°sin) 0.0184°C/W R th(c-h) (double sided cooled) 0.004°C/W Weight 600g Clamping Force 20 - 25kN Factory Pack Qty 6 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Alternatives N1159NC400 Contact Us for Possible Replacement Dynex 2022 Shorform Catalogue Heatsink Heatsink Profiles

Read more less

Infineon T940N16TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T940N16TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 959 Amp Package Size ø58 x 14mm Itsm 17.5 kA VF(to) .85V Tj(max) 125°C rF 0.27mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.028°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 170g Clamping Force 10.5 - 21kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Infineon T880N16TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T880N16TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 880 Amp Package Size ø58 x 14mm Itsm 17.5 kA VF(to) .85V Tj(max) 125°C rF 0.27mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.032°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 300g Clamping Force 10.5 - 21kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Infineon T879N16TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 58/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T879N16TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 879 Amp Package Size ø58 x 14mm Itsm 17.5 kA VF(to) 0.85V Tj(max) 125°C rF 0.27mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.032°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 160g Clamping Force 10.5 - 21kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives , Obsolete. See T880N16TOF for replacement Heatsink Heatsink Profiles

Read more less

Infineon T828N04TOF Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 48/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Infineon Part Number T828N04TOF Vrrm 1600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 828 Amp Package Size ø48 x 14mm Itsm 13.5 kA VF(to) 1V Tj(max) 125°C rF 0.23mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.045°C/W R th(c-h) (double sided cooled) 0.01°C/W Weight 110g Clamping Force 5.5 - 8kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives T1410N04TOF T880N16TOF Heatsink Heatsink Profiles
