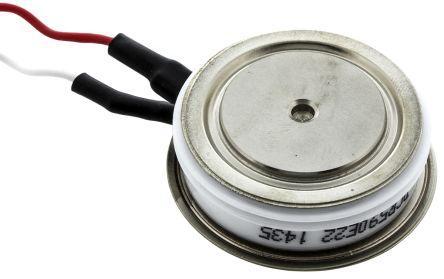

Dynex DCR3060V24, Thyristor(SCR) 2320 Amp, 2400V 111/26, w/ 400mm Hard Soldered Gate Leads Features Very low forward voltage drop Very low leakage current International standard package 111/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex IXYS Part Number DCR3060V24 Vrrm 2400V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 2320 Amp Package Size ø111 x 26mm Itsm 45 kA VF(to) 0.9V Tj(max) 125°C rF 0.137mΩ Gate Terminals Hard wired Gate leads R th(j-c) (double sided cooled 180°sin) 0.01°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 1.2kg Clamping Force 50 - 62kN Factory Pack Qty 12 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Alternatives N3533ZC220 Dynex 2022 Shorform Catalogue Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N3533ZC220, Thyristor(SCR) 2320 Amp, 2200V 111/35, w/ 400mm Hard Soldered Gate Leads Features Very low forward voltage drop Very low leakage current International standard package 111/38 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode IXYS Part Number N3533ZC220 Vrrm 2200V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 2320 Amp Package Size ø111 x 38mm Itsm 50 kA VF(to) 0.93V Tj(max) 125°C rF 0.11mΩ Gate Terminals Hard wired Gate leads R th(j-c) (double sided cooled 180°sin) 0.0125°C/W R th(c-h) (double sided cooled) 0.003°C/W Weight 1.2kg Clamping Force 27 - 47kN Factory Pack Qty 12 Certification ROHS IXYS Headquarters USA Datasheet Product Datasheet Alternatives DCR3060V24 DCR3650Y28 Heatsink Heatsink Profiles

Read more less

Reliance NL-410403-78AZ, Thyristor(SCR) PUK, 550 Amp, 1800V, 41/14 Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package (14.5mm unclamped Thickness) Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Drop In Replacement for NL-410403-78AZ (Reliance) Specification Reliance Part Number Reliance Vrrm 1800V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 550 Amp Package Size ø41 x 14mm Itsm 9 kA VF(to) 0.925V Tj(max) 125°C rF 0.45mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.047°C/W R th(c-h) (double sided cooled) 0.012°C/W Weight 140g Clamping Force 5.2-8 kN Factory Pack Qty 12 Certification ROHS Semikron Headquarters Germany Alternatives SKKT551/18E Heatsink Heatsink Profiles

Read more less

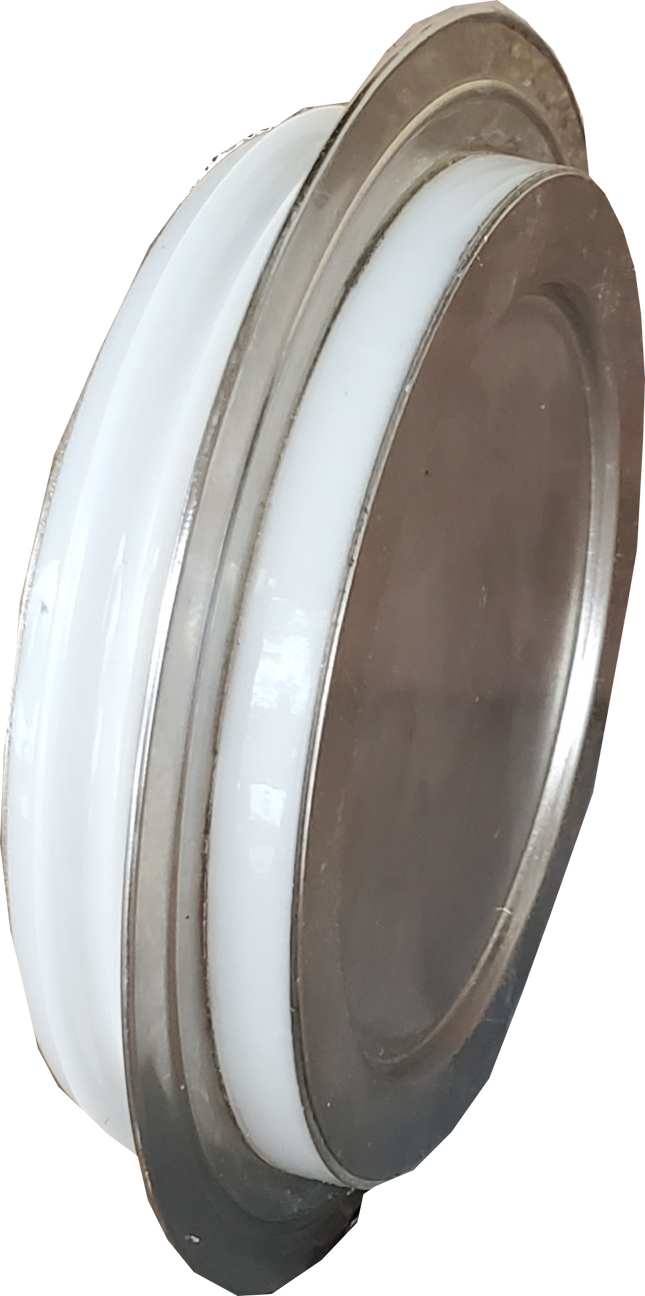

MS Power MSKP964C_A26, Thyristor(SCR) PUK 964 Amp, 2600V, 80/16 Features Very low forward voltage drop Very low leakage current International standard package 80/16 unique and hard to find Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Field Supply for DC Motors Water Cooled Rectifiers Phase Controllers Power Factor Correction Specification MS Power Part Number MSKP964C_A26 Vrrm 2600V Diode Configuration Diode Capsule (PUK) IF(av) @ 68 Deg C 964 Amp Package Size ø80 x 16.5mm Itsm 16.5 kA VF(to) 1.05V Tj(max) 125°C rF 0.5mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.027°C/W R th(c-h) (double sided cooled) 0.0031°C/W Weight 520g Clamping Force 22 - 24kN Factory Pack Qty 12 MS Power Headquarters China Datasheet Product Datasheet Heatsink Note this item requires a special clamp. Heatsink Profiles

Read more less

Dynex DCR1710F18, Thyristor(SCR) PUK, 1710Amp, 1800V, 74/26, OBSOLETE REPLACED BY DCR1800F18 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Dynex Part Number DCR1710F18 Vrrm 1800V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 1710Amp Package Size ø74 x 26mm Itsm 25 kA VF(to) 0.88V Tj(max) 125°C rF 0.20mΩ Gate Terminals With 400mm Gate Leads R th(j-c) (double sided cooled 180°sin) 0.02°C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 600g Clamping Force 18 - 26kN Factory Pack Qty 6 Certification ROHS Dynex Headquarters UK Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement DCR1800F18 Dynex 2022 Shorform Catalogue Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N0646LC360, Thyristor(SCR) PUK 456 Amp, 3600V, 58/26 Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Westcode-IXYS Part Number N0646LC360 Vrrm 3600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 546 Amp Package Size ø58 x 26mm Itsm 5.7 kA VF(to) 1.21V Tj(max) 125°C rF 1.36mΩ Gate Terminals AMP 60598-1/4.75 TAB R th(j-c) (double sided cooled 180°sin) 0.032°C/W R th(c-h) (double sided cooled) 0.064°C/W Weight 160g Clamping Force 10 - 20kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Heatsink Heatsink Profiles

Read more less

Fastron Replacement 9K16FWC Fast SCR 1600V, 530 Amp @ 85 Deg C, Tq = 80uS, 41/14mm Package

Read more less

Miller 148091 9H25 0936 Thyristor(SCR) Capsule Features Very low forward voltage drop Very low leakage current International standard package 41/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Controlled Rectifiers AC Switch Battery Chargers Phase Controllers Water Cooled AC switches Power Factor Correction Specification Miller Part Number 148091 9H25 0936 Vrrm 600V SCR Configuration Thyristor(SCR) Capsule PUK IF(av) @ 85 Deg C 694 Amp Package Size ø41 x 14mm Itsm 7.8 kA VF(to) .8V Tj(max) 125°C rF 0.44mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.051°C/W R th(c-h) (double sided cooled) 0.015°C/W Weight 70g Clamping Force 4 - 8kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Alternatives , Obsolete, Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N2543ZC300, Thyristor(SCR) Capsule 1811 Amp, 3000V, 111/38 Capsule Features Very low forward voltage drop Very low leakage current International standard package 111/38 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode Part Number N2543ZC300 Vrrm 3000V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 84 Deg C 1811 Amp Package Size ø111 x 38mm Itsm 32 kA VF(to) 0.78V Tj(max) 125°C rF 0.274mΩ Gate Terminals Faston R th(j-k) (double sided cooled 180°sin) 0.011°C/W R th(c-h) (double sided cooled) Weight 1.7kg Clamping Force 27 - 47kN Factory Pack Qty 6 Certification ROHS Westcode Headquarters UK Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Westcode-IXYS-Littlefuse N1718NC200, Thyristor(SCR) Capsule, 1718Amp, 2000V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Westcode-IXYS Part Number N1718NC200 Vrrm 2000V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 60 Deg C 1718 Amp Package Size ø74 x 26mm Itsm 27.2 kA VF(to) 0.979V Tj(max) 125°C rF 0.169mΩ Gate Terminals Faston R th(j-c) (double sided cooled 180°sin) 0.024°C/W R th(c-h) (double sided cooled) 0.048°C/W Weight 510g Clamping Force 19 - 26kN Factory Pack Qty 6 Certification ROHS IXYS Headquarters USA Datasheet Product Datasheet Alternatives T1190N16TOF VT SKT1200/18E Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less
