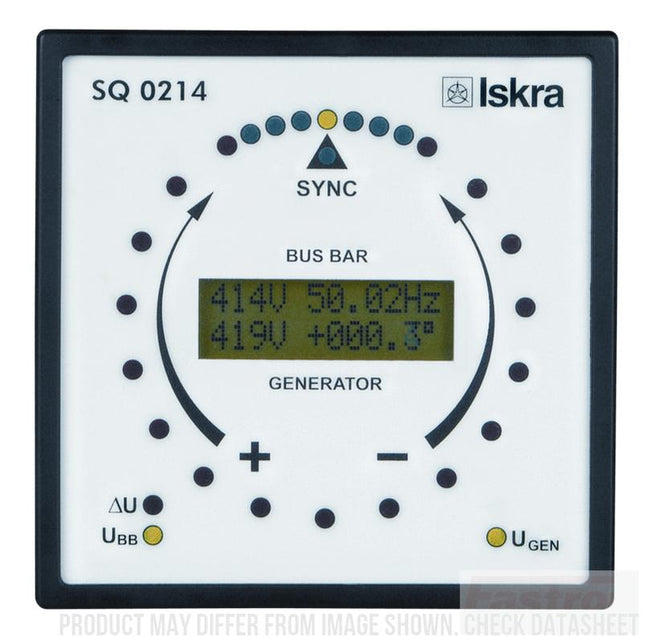

Iskra Doo SQ0214 L230V RC S6SS Synchroscope (Synchronoscope) Measurement of phase difference between bus bar and generator Five instruments in one (SQ 0x14) Circular display of ∆ phase difference Magnifield display of phase difference ∆ = ±20 Microprocessor processing Simple synchronization conditions setting Output relay for synchronisation (pulse or continuous) ''Dead busbar or generator'' functionality Power supply from bus bar or generator Standard 96x96 mm or 144x144 mm din housing LCD with backlight for voltage, frequency and/or ∆ monitoring (SQ 0x14 only) High immunity to EMC disturbances Special functions set with three jumpers inside the instruments Status output Green led for indication of both voltages Ship version (Bureau veritas certificate - SQ 02x4)   Specification Iskra Doo Part Number SQ0214 L230V RC S6SS Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 230VAC ± 20 % Line to Line (UL-N = 400 VMAX) @ 40-70Hz Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA Status Output Open-Collector 24 Vdc + 20% @30mA Switch On Delay Time Range 0,1 ... 1 s +/-10% Phase Difference Setting Range 2 ... 20 °el ± 3 °el Voltage Difference Setting Range 1 ... 10 % +/-2.5% Dead Busbar Noise Rejection Range 10%, 20%, 30% or 40% Power Consumption < 4VA Short Term Overload 2 x Un for 3 seconds LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el Synchronisation Accuracy +/- 10% Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Enclosure Version Ship Version Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet User Manual Application Notes & Software Downloads The following parameters can be set via internal jumper see User Manual for more details. Dead Busbar Generator Function Over and Under Frequency Synchronising Adjustable Lenght of a Sync Pulse The following parameters Can be set via MIPack Comms Module & SQset Setting Software Relay - 300mS/Continuous/Programmable Dead Busbar - Active DB/Active DB + DG & % Threshold MIPack User Manual Download SQSet Settign Software

Read more less

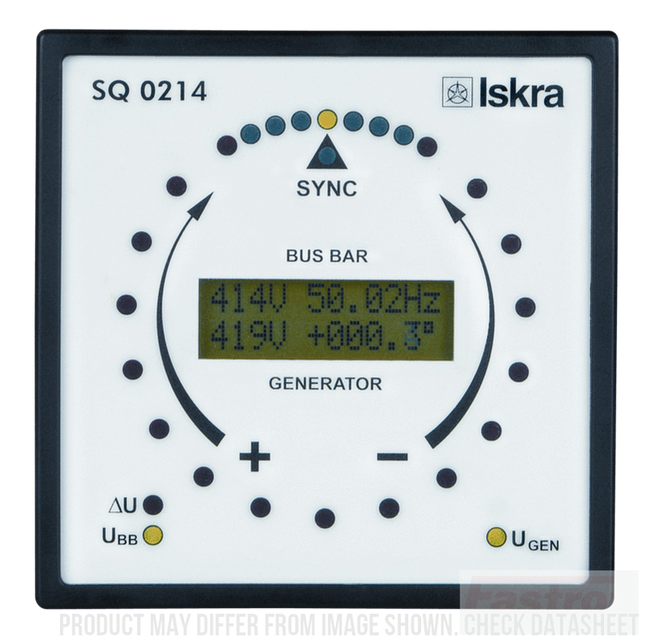

Iskra Doo 110VAC SQ0214 L 110V RC S2SS Synchroscope (Synchronoscope) Measurement of phase difference between bus bar and generator Five instruments in one (SQ 0x14) Circular display of ∆ phase difference Magnifield display of phase difference ∆ = ±20 Microprocessor processing Simple synchronization conditions setting Output relay for synchronisation (pulse or continuous) ''Dead busbar or generator'' functionality Power supply from bus bar or generator Standard 96x96 mm or 144x144 mm din housing LCD with backlight for voltage, frequency and/or ∆ monitoring (SQ 0x14 only) High immunity to EMC disturbances Special functions set with three jumpers inside the instruments Status output Green led for indication of both voltages Ship version (Bureau veritas certificate - SQ 02x4)   Specification Iskra Doo Part Number SQ0214 L 110V RC S2SS Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 100VAC ± 20 % Line to Line (UL-N = 400 VMAX) @ 40-70Hz Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA Status Output Open-Collector 24 Vdc + 20% @30mA Switch On Delay Time Range 0,1 ... 1 s +/-10% Phase Difference Setting Range 2 ... 20 °el ± 3 °el Voltage Difference Setting Range 1 ... 10 % +/-2.5% Dead Busbar Noise Rejection Range 10%, 20%, 30% or 40% Power Consumption < 4VA Short Term Overload 2 x Un for 3 seconds LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el Synchronisation Accuracy +/- 10% Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Enclosure Version Ship Version Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet User Manual Application Notes & Software Downloads The following parameters can be set via internal jumper see User Manual for more details. Dead Busbar Generator Function Over and Under Frequency Synchronising Adjustable Lenght of a Sync Pulse The following parameters Can be set via MIPack Comms Module & SQset Setting Software Relay - 300mS/Continuous/Programmable Dead Busbar - Active DB/Active DB + DG & % Threshold   MIPack User Manual Download SQSet Settign Software

Read more less

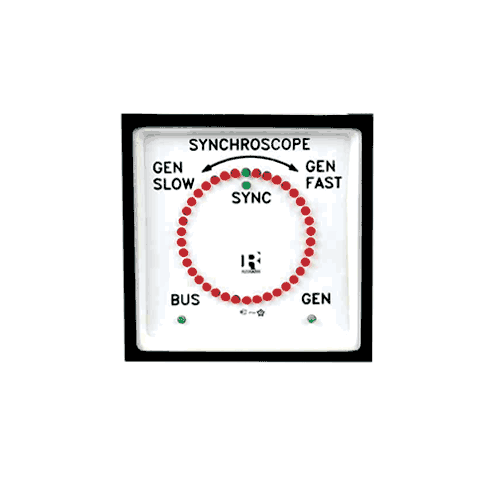

SQ96 415-480VAC, Genset Synchroscope (Synchronoscope), 415-480VAC, for Generators Measurement of phase difference between bus bar and generator Standard 96x96 mm DIN housing LED Indicators with backlight High immunity to EMC disturbances   Specification Rishabh Part Number SQ96 415-480VAC Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 415-480VAC ± 20 % Line to Line Digital Output N/A Status Output N/A Switch On Delay Time Range N/A Phase Difference Setting Range N/A Voltage Difference Setting Range N/A Dead Busbar Noise Rejection Range N/A Power Consumption < 6VA Short Term Overload N/A LCD Display Accuracy N/A Synchronisation Accuracy N/A Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet

Read more less

SQ96 380-440VAC, Genset Synchroscope (Synchronoscope), 380-440VAC, for Generators Measurement of phase difference between bus bar and generator Standard 96x96 mm DIN housing LED Indicators with backlight High immunity to EMC disturbances   Specification Rishabh Part Number SQ96 380-440VAC Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 380-440VAC ± 20 % Line to Line Digital Output N/A Status Output N/A Switch On Delay Time Range N/A Phase Difference Setting Range N/A Voltage Difference Setting Range N/A Dead Busbar Noise Rejection Range N/A Power Consumption < 6VA Short Term Overload N/A LCD Display Accuracy N/A Synchronisation Accuracy N/A Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet

Read more less

SQ96 120-127VAC, Genset Synchroscope (Synchronoscope), 120-127VAC, for Generators Measurement of phase difference between bus bar and generator Standard 96x96 mm DIN housing LED Indicators with backlight High immunity to EMC disturbances   Specification Rishabh Part Number SQ96 120-127VAC Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 120-127VAC ± 20 % Line to Line Digital Output N/A Status Output N/A Switch On Delay Time Range N/A Phase Difference Setting Range N/A Voltage Difference Setting Range N/A Dead Busbar Noise Rejection Range N/A Power Consumption < 6VA Short Term Overload N/A LCD Display Accuracy N/A Synchronisation Accuracy N/A Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet

Read more less

SQ96 100-110VAC, Genset Synchroscope (Synchronoscope), 100-110VAC, for Generators Measurement of phase difference between bus bar and generator Standard 96x96 mm DIN housing LED Indicators with backlight High immunity to EMC disturbances   Specification Rishabh Part Number SQ96 100-110VAC Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 100-110VAC ± 20 % Line to Line Digital Output N/A Status Output N/A Switch On Delay Time Range N/A Phase Difference Setting Range N/A Voltage Difference Setting Range N/A Dead Busbar Noise Rejection Range N/A Power Consumption < 6VA Short Term Overload N/A LCD Display Accuracy N/A Synchronisation Accuracy N/A Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet

Read more less

Iskra Doo SQ0214 L 110V RC S6SS, Synchroscope (Synchronoscope) Measurement of phase difference between bus bar and generator Five instruments in one (SQ 0x14) Circular display of ∆ phase difference Magnifield display of phase difference ∆ = ±20 Microprocessor processing Simple synchronization conditions setting Output relay for synchronisation (pulse or continuous) ''Dead busbar or generator'' functionality Power supply from bus bar or generator Standard 96x96 mm or 144x144 mm din housing LCD with backlight for voltage, frequency and/or ∆ monitoring (SQ 0x14 only) High immunity to EMC disturbances Special functions set with three jumpers inside the instruments Status output Green led for indication of both voltages Ship version (Bureau veritas certificate - SQ 02x4)   Specification Iskra Doo Part Number SQ0214 L 110V RC S6SS Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 110VAC ± 20 % Line to Line (UL-N = 400 VMAX) @ 40-70Hz Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA Status Output Open-Collector 24 Vdc + 20% @30mA Switch On Delay Time Range 0,1 ... 1 s +/-10% Phase Difference Setting Range 2 ... 20 °el ± 3 °el Voltage Difference Setting Range 1 ... 10 % +/-2.5% Dead Busbar Noise Rejection Range 10%, 20%, 30% or 40% Power Consumption < 4VA Short Term Overload 2 x Un for 3 seconds LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el Synchronisation Accuracy +/- 10% Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Enclosure Version Ship Version Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet User Manual Application Notes & Software Downloads The following parameters can be set via internal jumper see User Manual for more details. Dead Busbar Generator Function Over and Under Frequency Synchronising Adjustable Length of a Sync Pulse The following parameters Can be set via MIPack Comms Module & SQset Setting Software Relay - 300mS/Continuous/Programmable Dead Busbar - Active DB/Active DB + DG & % Threshold   MIPack User Manual Download SQSet Settign Software

Read more less

Iskra Doo 110VAC SQ0214 L 110V RC S2SA Synchroscope (Synchronoscope) Measurement of phase difference between bus bar and generator Five instruments in one (SQ 0x14) Circular display of ∆ phase difference Magnifield display of phase difference ∆ = ±20 Microprocessor processing Simple synchronization conditions setting Output relay for synchronisation (pulse or continuous) ''Dead busbar or generator'' functionality Power supply from bus bar or generator Standard 96x96 mm or 144x144 mm din housing LCD with backlight for voltage, frequency and/or ∆ monitoring (SQ 0x14 only) High immunity to EMC disturbances Special functions set with three jumpers inside the instruments Status output Green led for indication of both voltages Ship version (Bureau veritas certificate - SQ 02x4)   Specification Iskra Doo Part Number SQ0214 L 110V 10 SNSA Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 100VAC ± 20 % Line to Line (UL-N = 400 VMAX) @ 40-70Hz Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA Status Output Open-Collector 24 Vdc + 20% @30mA Switch On Delay Time Range 0,1 ... 1 s +/-10% Phase Difference Setting Range -2 ... 20 °el ± 3 °el Voltage Difference Setting Range 1 ... 10 % +/-2.5% Dead Busbar Noise Rejection Range 10%, 20%, 30% or 40% Power Consumption < 4VA Short Term Overload 2 x Un for 3 seconds LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el Synchronisation Accuracy +/- 10% Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Enclosure Version Standard Version Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet User Manual Application Notes & Software Downloads The following parameters can be set via internal jumper see User Manual for more details. Dead Busbar Generator Function Over and Under Frequency Synchronising Adjustable Lenght of a Sync Pulse The following parameters Can be set via MIPack Comms Module & SQset Setting Software Relay - 300mS/Continuous/Programmable Dead Busbar - Active DB/Active DB + DG & % Threshold   MIPack User Manual Download SQSet Settign Software

Read more less
