Iskra Doo SQ0214 L 440V RC S6SS Synchroscope (Synchronoscope) Measurement of phase difference between bus bar and generator Five instruments in one (SQ 0x14) Circular display of ∆ phase difference Magnifield display of phase difference ∆ = ±20 Microprocessor processing Simple synchronization conditions setting Output relay for synchronisation (pulse or continuous) ''Dead busbar or generator'' functionality Power supply from bus bar or generator Standard 96x96 mm or 144x144 mm din housing LCD with backlight for voltage, frequency and/or ∆ monitoring (SQ 0x14 only) High immunity to EMC disturbances Special functions set with three jumpers inside the instruments Status output Green led for indication of both voltages Ship version (Bureau veritas certificate - SQ 02x4)   Specification Iskra Doo Part Number SQ0214 L 440V RC S6SS Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 440VAC ± 20 % Line to Line (UL-N = 400 VMAX) @ 40-70Hz Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA Status Output Open-Collector 24 Vdc + 20% @30mA Switch On Delay Time Range 0,1 ... 1 s +/-10% Phase Difference Setting Range 2 ... 20 °el ± 3 °el Voltage Difference Setting Range 1 ... 10 % +/-2.5% Dead Busbar Noise Rejection Range 10%, 20%, 30% or 40% Power Consumption < 4VA Short Term Overload 2 x Un for 3 seconds LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el Synchronisation Accuracy +/- 10% Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Enclosure Version Ship Version Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet User Manual Application Notes & Software Downloads The following parameters can be set via internal jumper see User Manual for more details. Dead Busbar Generator Function Over and Under Frequency Synchronising Adjustable Lenght of a Sync Pulse The following parameters Can be set via MIPack Comms Module & SQset Setting Software Relay - 300mS/Continuous/Programmable Dead Busbar - Active DB/Active DB + DG & % Threshold   MIPack User Manual Download SQSet Settign Software

Read more less

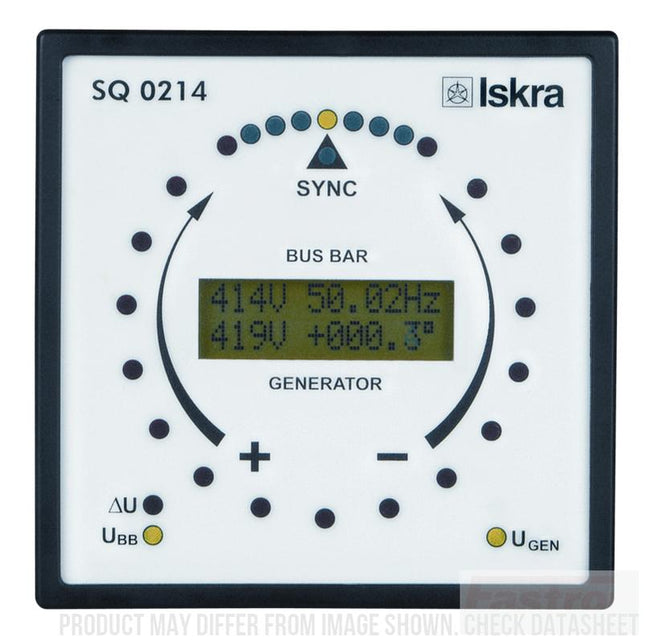

Iskra Doo SQ0214 L440V RC S1SS Synchroscope (Synchronoscope) Measurement of phase difference between bus bar and generator Five instruments in one (SQ 0x14) Circular display of ∆ phase difference Magnifield display of phase difference ∆ = ±20 Microprocessor processing Simple synchronization conditions setting Output relay for synchronisation (pulse or continuous) ''Dead busbar or generator'' functionality Power supply from bus bar or generator Standard 96x96 mm or 144x144 mm din housing LCD with backlight for voltage, frequency and/or ∆ monitoring (SQ 0x14 only) High immunity to EMC disturbances Special functions set with three jumpers inside the instruments Status output Green led for indication of both voltages Ship version (Bureau veritas certificate - SQ 02x4)   Specification Iskra Doo Part Number SQ0214 L440V RC S1SS Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 440VAC ± 20 % Line to Line (UL-N = 400 VMAX) @ 40-70Hz Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA Status Output Open-Collector 24 Vdc + 20% @30mA Switch On Delay Time Range 0,1 ... 1 s +/-10% Phase Difference Setting Range 2 ... 20 °el ± 3 °el Voltage Difference Setting Range 1 ... 10 % +/-2.5% Dead Busbar Noise Rejection Range 10%, 20%, 30% or 40% Power Consumption < 4VA Short Term Overload 2 x Un for 3 seconds LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el Synchronisation Accuracy +/- 10% Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Enclosure Version Ship Version Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet User Manual Application Notes & Software Downloads The following parameters can be set via internal jumper see User Manual for more details. Dead Busbar Generator Function Over and Under Frequency Synchronising Adjustable Lenght of a Sync Pulse The following parameters Can be set via MIPack Comms Module & SQset Setting Software Relay - 300mS/Continuous/Programmable Dead Busbar - Active DB/Active DB + DG & % Threshold   MIPack User Manual Download SQSet Settign Software

Read more less

MIPACK Iskra Meter Programmer Used with SQ0214, MC Series Meters, and Multifunction Transducers Uses Iskra MiQuen Software
