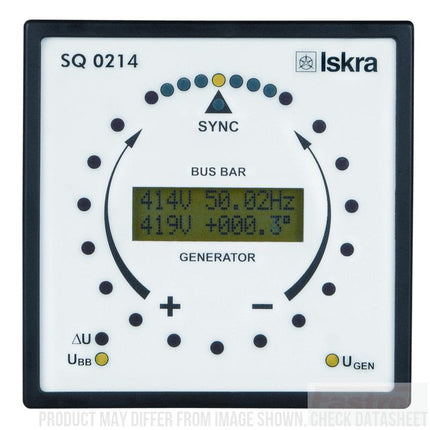

SQ0214 L 100V RC S6SS, Synchroscope (Synchronoscope)

SQ0214 L 100V RC S6SS, Synchroscope (Synchronoscope)

Product form
Free pickup in our shop(s)

2 pcs in stock

$845.00 $929.50 inclGST Excl. VAT

        SKU: FE-SQ0214 L 100V RC S 6 S S

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

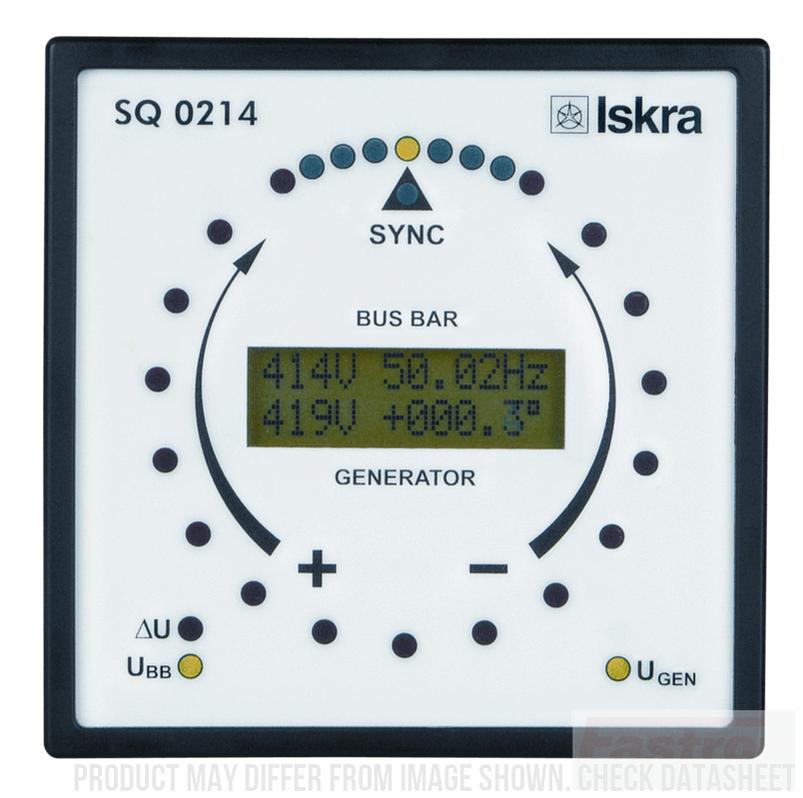

        Iskra Doo SQ0214 L 100V RC S6SS, Synchroscope (Synchronoscope)

        • Measurement of phase difference between bus bar and generator
        • Five instruments in one (SQ 0x14)
        • Circular display of ∆ phase difference
        • Magnifield display of phase difference ∆ = ±20
        • Microprocessor processing
        • Simple synchronization conditions setting
        • Output relay for synchronisation (pulse or continuous)
        • ''Dead busbar or generator'' functionality
        • Power supply from bus bar or generator
        • Standard 96x96 mm or 144x144 mm din housing
        • LCD with backlight for voltage, frequency and/or ∆ monitoring (SQ 0x14 only)
        • High immunity to EMC disturbances
        • Special functions set with three jumpers inside the instruments Status output
        • Green led for indication of both voltages
        • Ship version (Bureau veritas certificate - SQ 02x4)



          Specification
          Iskra Doo Part Number SQ0214 L 100V RC S6SS
          Function Phase Difference (∆ϕ) Measurement
          Nominal Voltage (Un) 100VAC ± 20 % Line to Line (UL-N = 400 VMAX) @ 40-70Hz
          Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA
          Status Output Open-Collector 24 Vdc + 20% @30mA
          Switch On Delay Time Range 0,1 ... 1 s +/-10%
          Phase Difference Setting Range 2 ... 20 °el ± 3 °el
          Voltage Difference Setting Range 1 ... 10 % +/-2.5%
          Dead Busbar Noise Rejection Range 10%, 20%, 30% or 40%
          Power Consumption < 4VA
          Short Term Overload 2 x Un for 3 seconds
          LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el
          Synchronisation Accuracy +/- 10%
          Termination Style Screw
          Weight 530g
          Certification CE
          Factory Pack Qty 1
          Enclosure Version Ship Version
          Material of housing PC/ABS Unflammable, according to UL 94 V-0
          Enclosure protection IP52 for case, IP20 for terminals with protective cover
          Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2
          Operating Temperature -20...55 °C
          Datasheet
          Application Notes & Software Downloads

          The following parameters can be set via internal jumper see User Manual for more details.

          • Dead Busbar Generator Function
          • Over and Under Frequency Synchronising
          • Adjustable Length of a Sync Pulse

          The following parameters Can be set via MIPack Comms Module & SQset Setting Software

          • Relay - 300mS/Continuous/Programmable
          • Dead Busbar - Active DB/Active DB + DG & % Threshold
