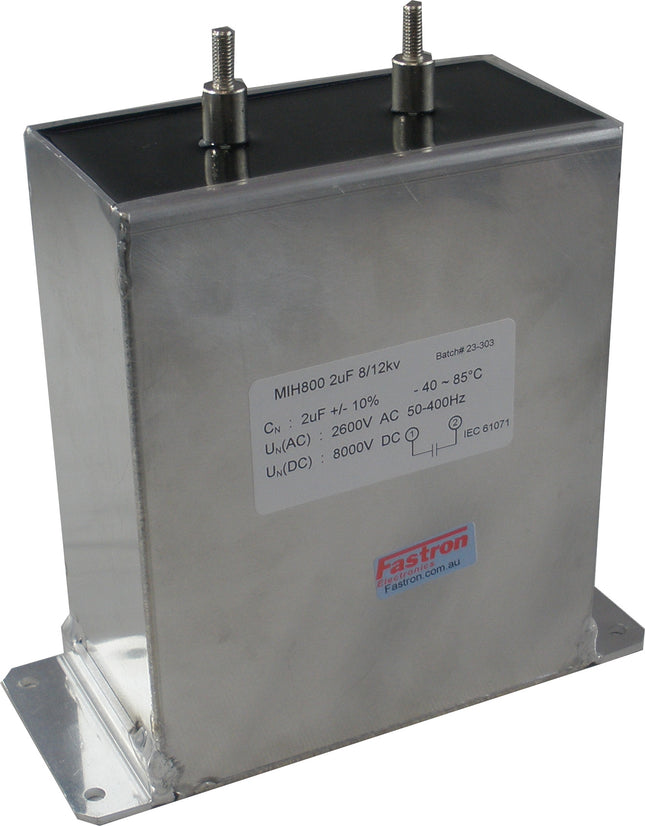

PPM 800-2.0 r (K) Snubber Capacitor 195 x 80 x 210mm 8kVDC, 2.6kVAC 2uF, Railway Grade, Replacement for ABB MIH800-2 Characteristics and utility Railway grade 2.5 kVDC, 800VAC rms, 12.5uF Resin end sealing Screw terminals Suitable for hazardous environments Flat Base Standards IEC 60831-1/2 EN 60831-1/2   Specification LeClanche Part Number PPM 800-2.0 r (K) (ABB MIH800-2) Technology Dielectric of Metallized Polypropylene Dimensions 80 x 145 x 180mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 8kVDC Voltage (AC) 2.6kVAC rms Capacitance 2uF Tolerance On Capacitance +/- 10% Current Ieff (max) 20 Amp Current I cr (max) 1000 Amp ESR < 25mΩ ESL < 170nH Estimated Operational Life 100 x 10²6 Discharges Mounting Flat Base Climate Category -25/+70°C Termination Style M6 x 15mm (56mm thread spacing) Unit Weight 2.7kg Factory Pack Quantity 1   Datasheet Product Datasheet Equivalents AKMJ-S 2μF2600VAC

Read more less

PPM 160-110.0 cv5 (K) Snubber Capacitor ø121 x 176mm 1.6kV 110uF, Railway Grade, Replaces MKV-E1X-19-100 Characteristics and utility Railway grade 1.6 kVDC rms, 730VAC, 110uF Resin end sealing Srew terminals Suitable for hazardous environments Stud Mount Standards IEC 60831-1/2 EN 60831-1/2 Specification LeClanche Part Number PPM 160-110.0 cv5 (K) (MKV-E1X-19-100) Technology Dielectric of Metallized Polypropylene Dimensions ø121 x 176mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 1.6kVDC Voltage (AC) 730kVAC rms Capacitance 110uF Tolerance On Capacitance +/- 10% Current Ieff (max) Current I cr (max) ESR ESL Estimated Operational Life 100,000 Hours Mounting M12 Stud Climate Category -25/+70°C Termination Style M10 x 24mm (35mm thread spacing) Unit Weight 3.1kg Factory Pack Quantity 1 Datasheet Product Datasheet

Read more less

PPM 120-60.0 cv5 (J) Snubber Capacitor Ø85 x 260mm 1.2kVAC 60uF Characteristics and utility Railway grade 1.2 kVDC, 550VAC rms 60uF Resin end sealing Srew terminals Suitable for hazardous environments Stud Mount Standards IEC 60831-1/2 EN 60831-1/2 Specification LeClanche Part Number PPM 120-60.0 cv5 (J) Technology Dielectric of Metallized Polypropylene Dimensions Ø85 x 260mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 1.2kVDC Voltage (AC) 550VAC rms Capacitance 60uF Tolerance On Capacitance +/- 10% Current Ieff (max) 70 Amp Current I cr (max) 1800 Amp ESR < 2mΩ ESL < 45nH Estimated Operational Life 100,000 Hours Mounting M12 Stud Climate Category -25/+70°C Termination Style M10 x 24mm (35mm thread spacing) Unit Weight 3.1kg Factory Pack Quantity 1 Datasheet Product Datasheet

Read more less

OBIC 127-47.0 cv5 (K) Snubber Capacitor Ø99.5 x 176mm 900VAC 47uF, Railway Grade Characteristics and utility Railway grade 1.96 kVDC, 900VAC rms 47uF Resin end sealing Srew terminals Suitable for hazardous environments Stud Mount Standards IEC 60831-1/2 EN 60831-1/2 Specification LeClanche Part Number OBIC 127-47.0 cv5 (K) Technology Dielectric of Metallized Polypropylene Dimensions Ø85 x 260mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 1.96kVDC Voltage (AC) 900VAC rms Capacitance 47uF Tolerance On Capacitance +/- 10% Current Ieff (max) 80 Amp Surge Current Is 9.6 kA ESR < 2mΩ ESL < 45nH Estimated Operational Life 200,000 Hours Mounting M12 Stud Climate Category -25/+85°C Termination Style M10 x 24mm (35mm thread spacing) Unit Weight 3.1kg Factory Pack Quantity 1 Datasheet Product Datasheet

Read more less

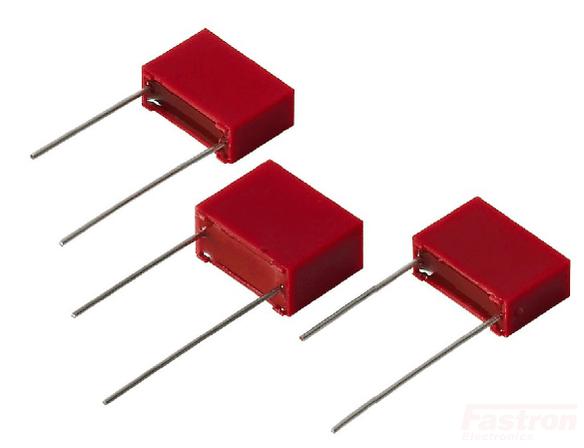

KPS120-010G K Snubber Capacitor 18 x 27.5 x 31.5mm 1200VDC, 100nF, PCB Mount Characteristics and utility Railway grade 1250VDC, 660VAC rms 1uF Resin end sealing Srew terminals Suitable for hazardous environments Stud Mount Standards IEC 60831-1/2 EN 60831-1/2 Specification LeClanche Part Number KPS120-010G K Technology Dielectric of Metallized Polypropylene Dimensions 18 x 27.5 x 31.5mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 1200VDC Voltage (AC) 450VAC rms Capacitance 100nF Tolerance On Capacitance +/- 10% Current Ieff (max) 4.93 Amp Repetitive Peak Current Icr (max) 137 Surge Voltage (Us) 540VAC @ 70 Deg C ESR N/A ESL N/A Mounting PCB Climate Category -200 -> 125 Deg C Termination Style Axial Lead Unit Weight 500g Factory Pack Quantity 100 Datasheet Product Datasheet

Read more less

BHS 200-4.0 Snubber Capacitor 100x100x135mm 2kVDC 4uF, Railway Grade Characteristics and utility Railway grade 2 kVDC, 800VAC rms, 200uF Resin end sealing Srew terminals Suitable for hazardous environments Flat Base Standards IEC 60831-1/2 EN 60831-1/2 Specification LeClanche Part Number BHS 200-4.0 Technology Dielectric of Metallized Polypropylene Dimensions 100 x 100 x 135mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 2kVDC Voltage (AC) 800VAC rms Qmax (VAR) 4.2 kVar Tolerance On Capacitance +/- 10% Current Ieff (max) 5.3 Amp Capacitance 4uF ESR N/A ESL N/A Estimated Operational Life N/A Mounting Panel Mount Climate Category 25/060/56 Termination Style N/A Unit Weight 2.6kg Factory Pack Quantity 1 Datasheet Product Datasheet

Read more less

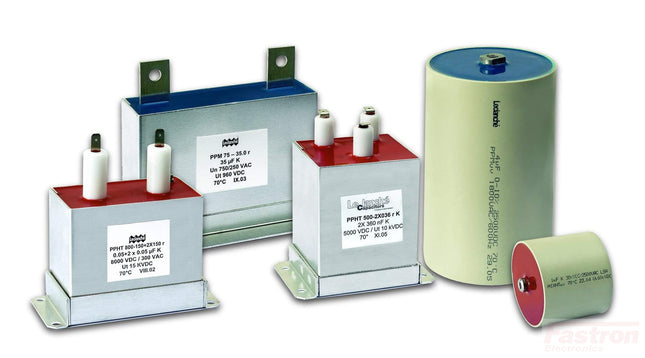

BHS 200-2.0 Snubber Capacitor 100x180x250mm 2kVDC 200uF, Railway Grade Characteristics and utility Railway grade 2 kVDC, 800VAC rms, 200uF Resin end sealing Srew terminals Suitable for hazardous environments Flat Base Standards IEC 60831-1/2 EN 60831-1/2 Specification LeClanche Part Number BHS 200-2.0 Technology Dielectric of Metallized Polypropylene Dimensions 100 x 250 x 180mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 2kVDC Voltage (AC) 800VAC rms Qmax (VAR) 4.2 kVar Tolerance On Capacitance +/- 10% Current Ieff (max) 5.3 Amp Cuapacitance 20uF ESR N/A ESL N/A Estimated Operational Life N/A Mounting Panel Mount Climate Category 25/060/56 Termination Style N/A Unit Weight 8.6kg Factory Pack Quantity 1 Datasheet Product Datasheet
