Iskra Doo KNK3053 12.5KVAR 525V 50HZ, Power Factor Correction Capacitor, 3 Phase, 90 x 210mm Dry Type, 3 x 48.1uF Characteristics and utility 12.5kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Dry type Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Polyurethane self-extinguishing resin V0, developed under standard UL 94 by RTR Energía Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KNK3053 12.5 KVAR 525V 50HZ Technology Dry Type, Low Loss, Self Healing Dimensions 90 x 210mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 12.5 Kvar Capacitance 3 x 48.1uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 13.7 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Feed Through Terminal Unit Weight 1.4kg Factory Pack Quantity 25   Datasheet Iskra PCF Catalogue Capacitor Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog Voltage Derating Tables Hot Spot Testing 25kvar Specification Sheet 40kvar Specification Sheet

Read more less

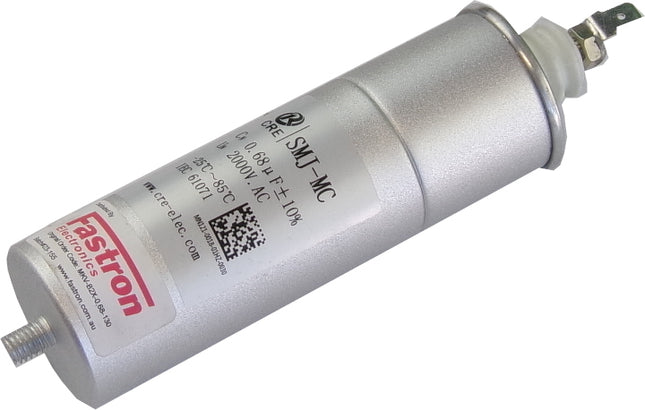

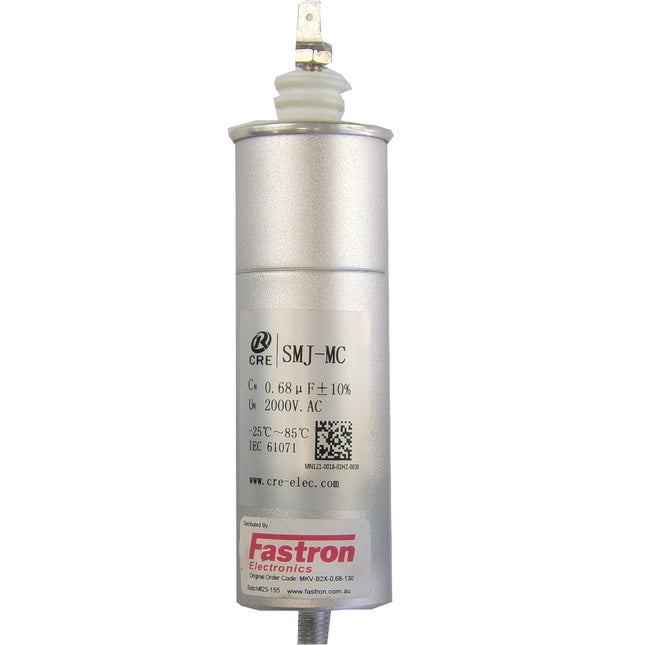

SMJ-MC 2000VAC-0.68uF, Snubber Capacitor ø40 x 120mm 2kVAC 0.68uF, Railway Grade, Drop in Replacement for PAM 200-068 cv4D (K), and MKV-B2X-0,68-130  Characteristics and utility Railway grade 2kVAC rms 0.68uF Resin end sealing Fastron terminal Suitable for hazardous environments Stud Mount Standards IEC 60831-1/2 EN 60831-1/2   Specification CRE Part Number SMJ-MC 2000VAC-0.68uF Technology Dielectric of Metallized Polypropylene Dimensions ø40 x 120mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) N/A Voltage (AC) 2kVAC rms Capacitance 0.68uF Tolerance On Capacitance +/- 10% Current Ieff (max) 18 Amp Repetitive Peak Current Icr (max) N/A Surge Voltage (Us) N/A Peak Voltage Ucr N/A ESL < 45nH Mounting M12 Stud Climate Category -25/+70°C Termination Style 6.3 x 0.8mm Faston Unit Weight 190g Factory Pack Quantity 1   Datasheet Product Datasheet

Read more less

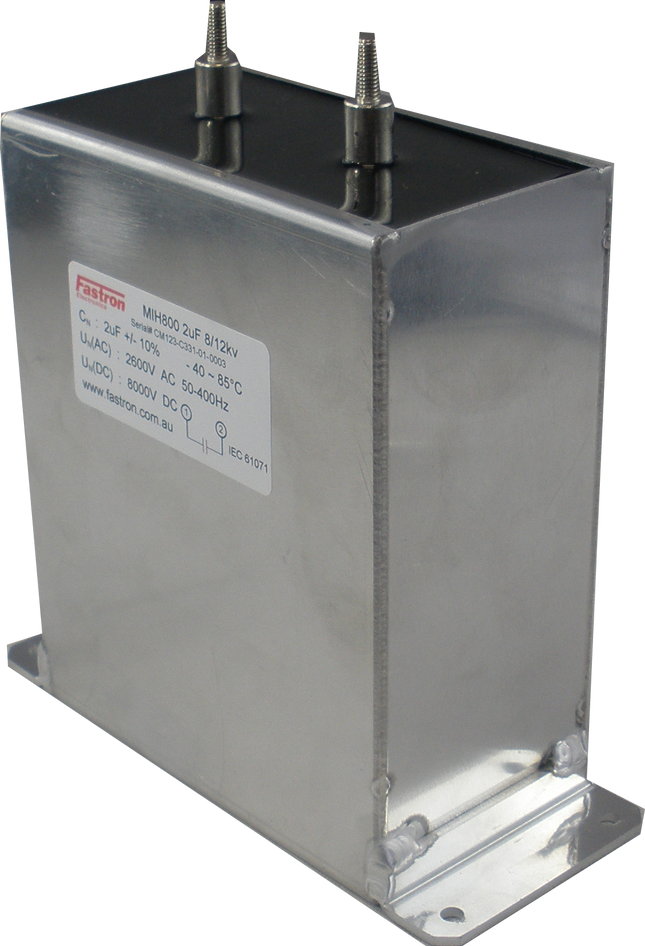

MIH800 2uF 8/12kv, Snubber/Filter Capacitor 195 x 80 x 210mm 8kVDC, 2.6kVAC 2uF, Railway Grade, Replaces, LeClanche PPM 800-2.0 r (K) Characteristics and utility Railway grade 8 kVDC, 2600VAC rms, 2uF Resin end sealing Screw terminals Suitable for hazardous environments Flat Base Standards IEC 60831-1/2 EN 60831-1/2 Specification Fastron Part Number MIH800 2uF 8/12kv Technology Dielectric of Metallized Polypropylene Dimensions 80 x 145 x 180mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 8kVDC Voltage (AC) 2.6kVAC rms Capacitance 2uF Tolerance On Capacitance +/- 10% Current Ieff (max) 20 Amp Current I cr (max) 1000 Amp ESR < 25mΩ ESL < 170nH Estimated Operational Life 100 x 10²6 Discharges Mounting Flat Base Climate Category -25/+70°C Termination Style M6 x 15mm (56mm thread spacing) Unit Weight 13kg Factory Pack Quantity 1 Datasheet Product Datasheet

Read more less

Iskra Doo MKP Snubber Capacitor 100nF, 310V 20% Tolerance FF 100nF 310Vac 20% X1 P15 MKP IKSRA#KNB1550 24290-06

Read more less

HTR50-400OHM, 400 Ohm 50W Wire Wound Resistor Made in Australia High quality long lasting Comes with Mounting Hardware Datasheet Product Datasheet Other Available Ratings TYPE DESIGNATION VOLTAGE RATING 250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARD RESISTANCE RANGE LENGTH OUTSIDE DIAMETER APPROX O.D. WHEN COATED INCL. BAND INSIDE DIAMETER HOLE CENTRES FOR MOUNTING FEET MIN MAX R O U N D F O R M E R S HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 O V A L HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less

HTR150-5OHM, 5 Ohm 250W Wire Wound Resistor Made in Australia High quality long lasting Comes with Mounting Hardware Datasheet Product Datasheet Other Available Ratings TYPE DESIGNATION VOLTAGE RATING 250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARD RESISTANCE RANGE LENGTH OUTSIDE DIAMETER APPROX O.D. WHEN COATED INCL. BAND INSIDE DIAMETER HOLE CENTRES FOR MOUNTING FEET MIN MAX R O U N D F O R M E R S HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 O V A L HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less

PAM 85-033 cv2, Snubber Capacitor ø35 x 58mm 850VAC 0.33uF, Railway Grade Characteristics and utility Railway grade 1450VDC, 850VAC rms 0.33uF Resin end sealing Srew terminals Suitable for hazardous environments Stud Mount Standards IEC 60831-1/2 EN 60831-1/2   Specification LeClanche Part Number PAM 85-033 cv2 Technology Dielectric of Metallized Polypropylene Dimensions ø35 x 58mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 1450VDC Voltage (AC) 850VAC rms Capacitance 0.33uF Tolerance On Capacitance +/- 10% Current Ieff (max) 9.2 Amp Repetitive Peak Current Icr (max) N/A Surge Voltage (Us) 3000V (60s) ESR 14.8 ESL N/A Mounting M12 Stud Climate Category 40/085/56 Termination Style 6.3 x 0.8mm Faston Unit Weight 500g Factory Pack Quantity 1   Datasheet Product Datasheet
