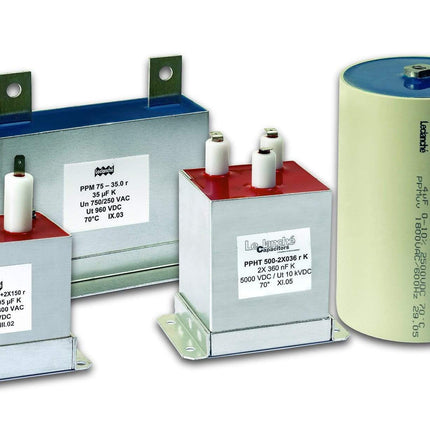

BHS 200-2.0 Snubber Capacitor 100x180x250mm 2kVDC 200uF, Railway Grade
Rated 3.5/5 based on 11 customer reviews

BHS 200-2.0 Snubber Capacitor 100x180x250mm 2kVDC 200uF, Railway Grade

  • Order within

Free Shipping for $300 Spend

Available: Backorder 6-8 Weeks
$1,970.00
$2,167.00inclGST

Free Shipping for $300 Spend

Wishlist Compare

BHS 200-2.0 Snubber Capacitor 100x180x250mm 2kVDC 200uF, Railway Grade

Characteristics and utility

  • Railway grade
  • 2 kVDC, 800VAC rms, 200uF
  • Resin end sealing
  • Srew terminals
  • Suitable for hazardous environments
  • Flat Base

    Standards

    • IEC 60831-1/2
    • EN 60831-1/2



    BHS 200-2.0 Snubber Capacitor 100x180x250mm 2kVDC 200uF, Railway Grade

    Characteristics and utility

    • Railway grade
    • 2 kVDC, 800VAC rms, 200uF
    • Resin end sealing
    • Srew terminals
    • Suitable for hazardous environments
    • Flat Base

      Standards

      • IEC 60831-1/2
      • EN 60831-1/2



      LeClanche Part Number

      BHS 200-2.0
      Technology Dielectric of Metallized Polypropylene
      Dimensions 100 x 250 x 180mm
      Standards IEC 60831-1/2, EN 60831-1/2
      Voltage (DC) 2kVDC
      Voltage (AC) 800VAC rms
      Qmax (VAR) 4.2 kVar
      Tolerance On Capacitance +/- 10%
      Current Ieff (max)  5.3 Amp
      Cuapacitance 20uF
      ESR N/A
      ESL N/A
      Estimated Operational Life N/A
      Mounting Panel Mount
      Climate Category 25/060/56
      Termination Style N/A
      Unit Weight 8.6kg

      Factory Pack Quantity

      1
