Fastron Electronics F41F-1Z-C4-4 240VAC Socket, Slimline SOCKET ONLY with Spring Terminals, for 220/240VAC Coil F41F Series Slim Relays Features 6 Amp @ 220/240VAC DIN Rail Mount Changeover Contact Ultra slim package UL Listed CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C4-4 240VAC Socket Switching Type 250VAC or 30VDC Load Control Input 220/240VAC Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Relay Type Fastron F41F Series Termination Style Spring Unit Weight 50g Factory Pack Qty 100   Datasheet Datasheet Suitable Parts F41F-60ZS

Read more less

Fastron Electronics F41F-1Z-C2-4, Slimline SOCKET ONLY with Screw Terminals, for F41-60FZS for 220/240VAC Control Features 6 Amp @ 1-36 VDC DIN Rail Mount Changeover Contact Ultra slim package UL Listed CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C2-4 Switching Type 250VAC or 30VDC Load Control Input 220/240VAC Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Relay Type Fastron F41F Series Termination Style Screw Unit Weight 50g Factory Pack Qty 100   Datasheet Datasheet Suitable Parts F41F-60ZS

Read more less

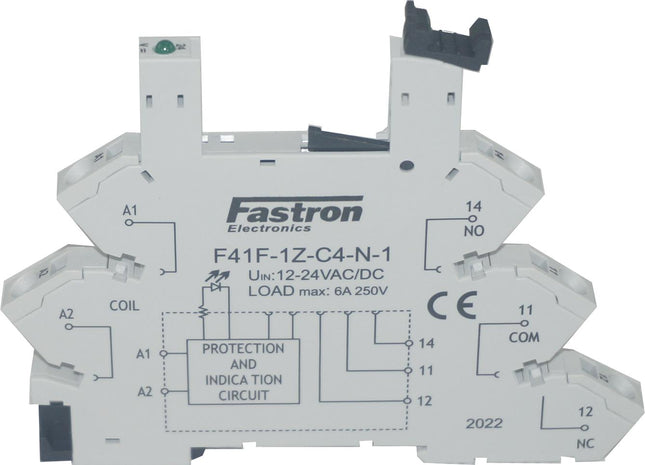

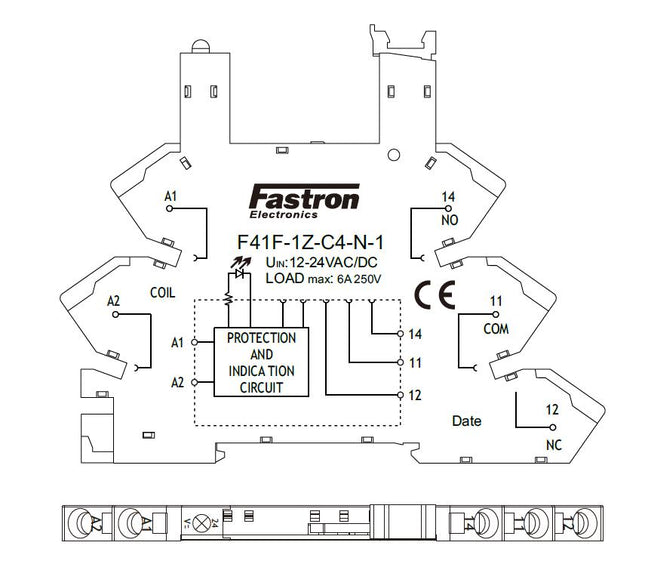

Fastron Electronics F41F-1Z-C4-1 24VAC/DC SOCKET ONLY slimline with Spring Terminals for F41F Series Slim Relays Features 6 Amp @ 1-36 VDC DIN Rail Mount Changeover Contact Ultra slim package UL Listed CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C4 Socket Switching Type 250VAC or 30VDC Load Control Input 1-36V AC/DC Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Relay Type Fastron F41F Series Termination Style Spring Unit Weight 50g Factory Pack Qty 100   Datasheet Datasheet Suitable Parts F41F-12-24Z

Read more less

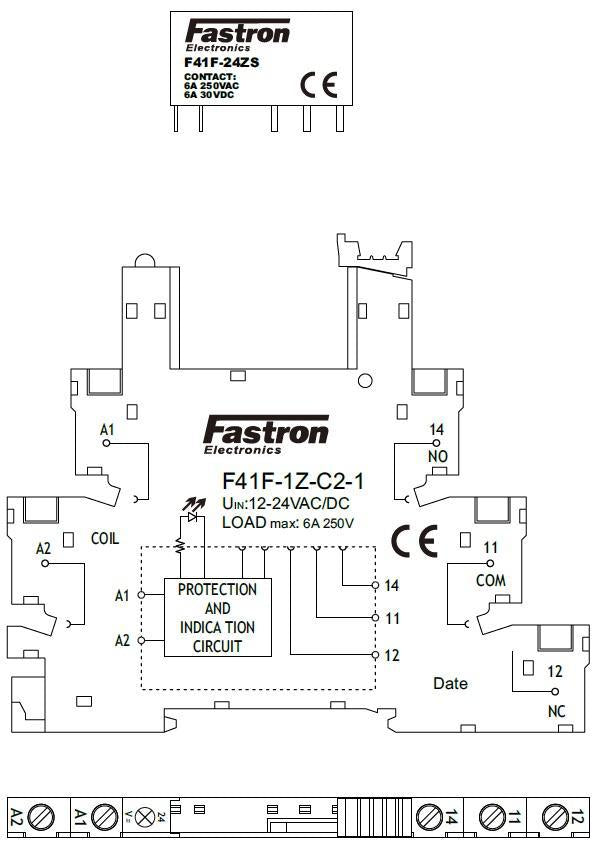

Fastron Electronics F41F-1Z-C2-1, Slimline SOCKET ONLY with Screw Terminals, for F41F Series Slim Relays Features Input Rated for 1-36 VDC DIN Rail Mount Changeover Contact Ultra slim package UL Listed CE Compliant to IEC 60664 IP67 Specification Fastron Part Number F41F-1Z-C2-1 12-24VAC/DC Socket Switching Type 250VAC or 30VDC Load Control Input 1-36V AC/DC Current @ Rated Voltage 6 Amp Contact Arrangement 1 C/O (Single Pole Changeover) Approvals UL, CE Dimensions 76.6 x 94.7 x 6.2 Ingress Protection IP20 Relay Type Fastron F41F Series Termination Style Screw Unit Weight 50g Factory Pack Qty 100   Datasheet Datasheet Suitable Parts F41F-12-24Z

Read more less

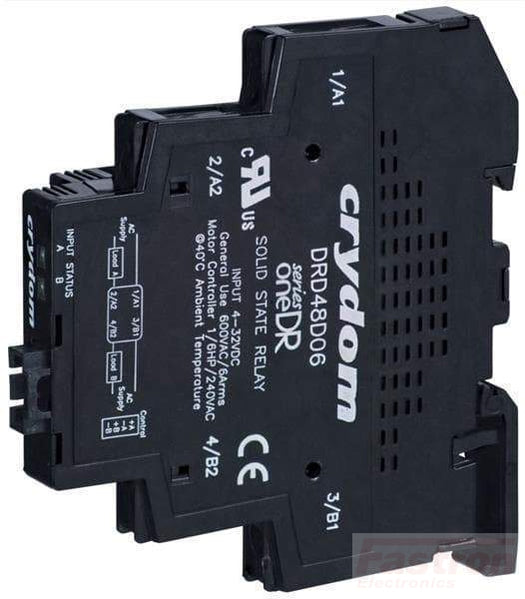

Crydom DR48D06, Solid State Relay, 4-32VDC control, 6 Amp 48-600V AC Output, Slimline, Din Rail Mount, LED status Indicator Features Ratings from 6A to 12 Amp @ 48 - 600VAC DIN Rail Mount SCR output for reliable AC switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DR48D06 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4-32VDC Load Current 6 Amp (rms) Surge Capability (10ms) 410 Amp (peak) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 48 - 600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 38g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent DRA1-CMX60D10 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom DR48D12, Solid State Relay, 4-32VDC control, 12 Amp 600V AC Output, Slimline, LED status Indicator Features Ratings from 6A to 12 Amp @ 48 - 600VAC DIN Rail Mount SCR output for reliable AC switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DR48D12 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 4-32VDC Load Current 12 Amp (rms) Surge Capability (10ms) 715 Amp (peak) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 48 - 600VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 38g Factory Pack Qty 20 Datasheet Product Datasheet Equivalent DRA1-CMX60D10 App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less
