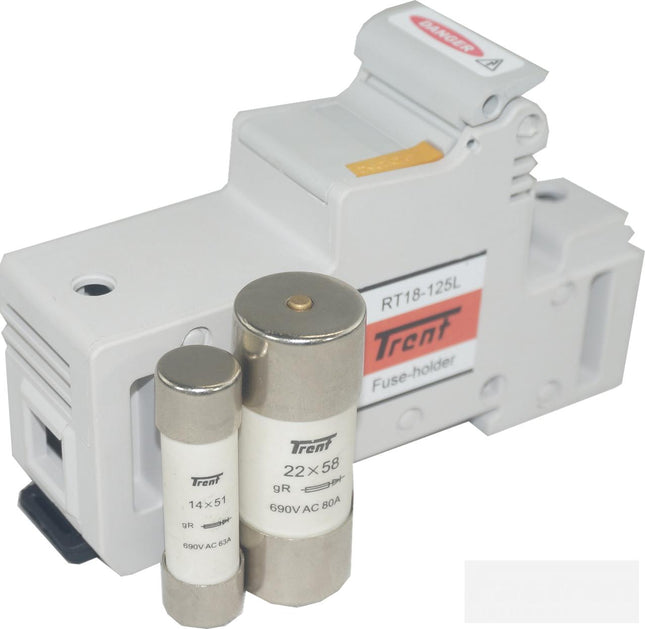

Trent NBR-CH14/UQ/63A/690V + RT18-63L Series 63 Amp 690V Semiconductor I²t gR Fuse & Din Rail Fuse Holder Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/63A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 2800 A²/s Nominal Current (RMS + DC) 63 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet RT18-63L

Read more less

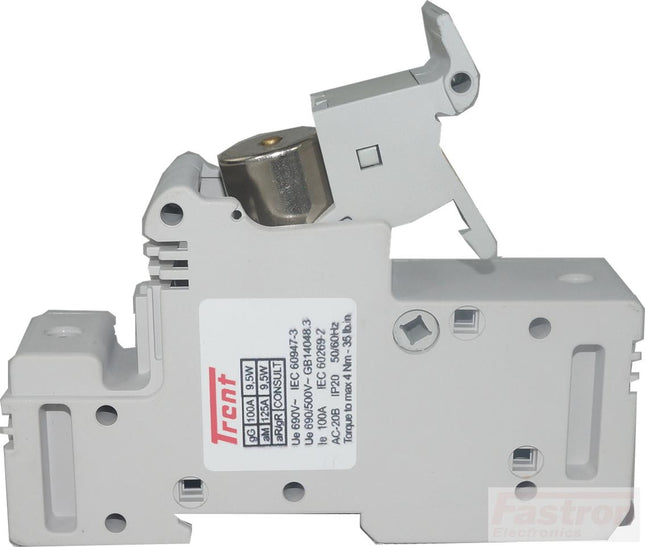

Trent NBR-CH14/UQ/40A/690V + RT18-63L 40 Amp 690V Semiconductor I²t gR Fuse Cartridge Style 51 x 14mm with DIN Rail Fuse Holder Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/40A/690V + RT18-63L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 750 A²/s Nominal Current (RMS + DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 108mm x 77mm x 22mm Fuse Holder RT18-63L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-63L Datasheet

Read more less

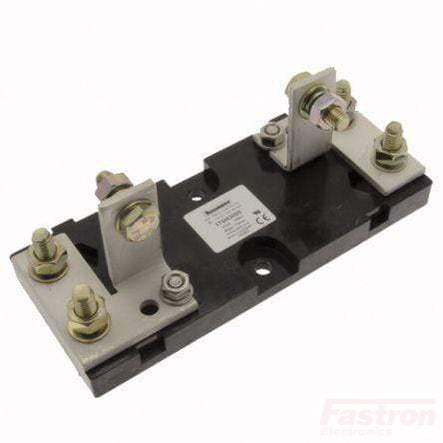

Fuse Holder 170H3006 for Blade Style 110mm Hole Centers, 1400V, 1250Amp Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 1250 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6016 Features Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M6016 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 1950000A^2/s Nominal Current (RMS DC) 1250 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 140W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 1000 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6014 Features Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor Protection Battery Fuse Specification Trent Part Number F170M6014 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 945000A^2/s Nominal Current (RMS DC) 1000 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 125W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 800 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6012  Features Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M6012 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 465000A^2/s Nominal Current (RMS DC) 800 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 115W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 700 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6011 Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M6011 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 300000A^2/s Nominal Current (RMS DC) 700 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 110W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

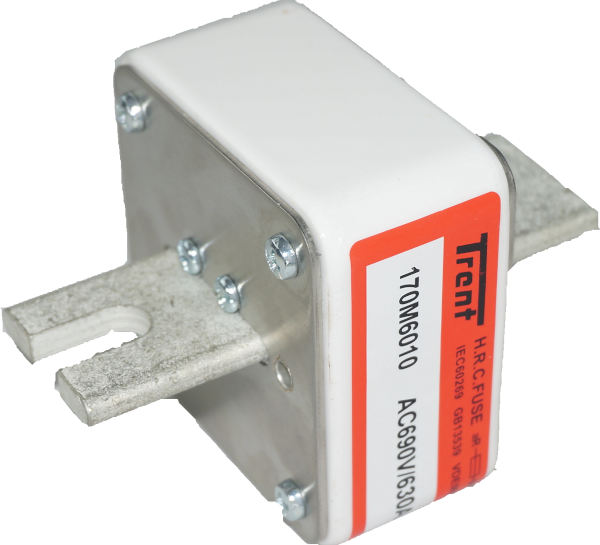

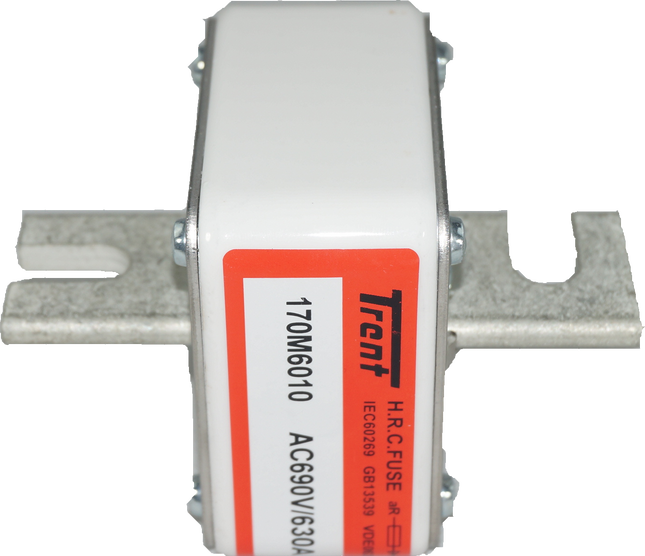

Trent I^2t (aR) Blade Style Semiconductor Fuse, 630 Amp, 690VAC, Square Body, Size 3, DIN 43 653, 200kA (78mm Hole Centers) F170M6010 Features Square Body, Size 3, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M6010 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I??t Rating (660V) 210000A^2/s Nominal Current (RMS DC) 630 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 76 x 104 x 76mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 105W Termination Style M10 Unit Weight 700g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 550 Amp, 690VAC, Square Body, Size 2, DIN 43 653, 200kA (78mm Hole Centers) F170M5011 Features Square Body, Size 2, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M5011 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 190000A^2/s Nominal Current (RMS DC) 550 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 61 x 104 x 61mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 80W Termination Style M10 Unit Weight 510g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 500 Amp, 690VAC, Square Body, Size 2, DIN 43 653, 200kA (78mm Hole Centers) F170M5010 Features Square Body, Size 2, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M5010 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 145000A^2/s Nominal Current (RMS DC) 500 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 61 x 104 x 61mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 75W Termination Style M10 Unit Weight 510g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

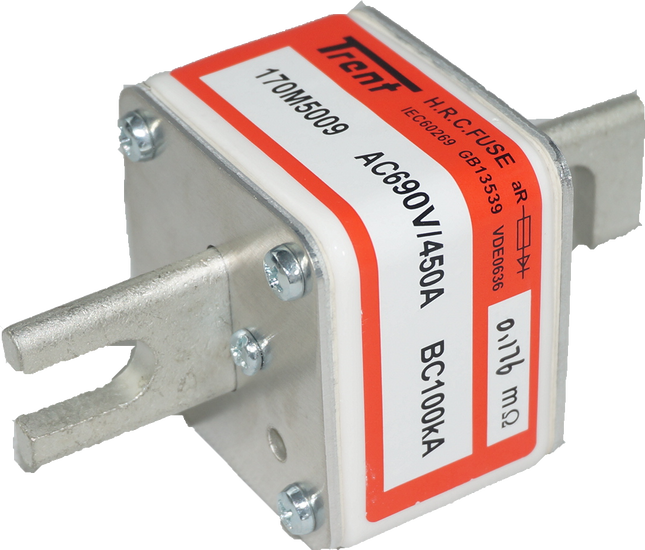

Trent F170M5009 Series 690V Semiconductor I^2t Fuse Square Body, Size 2, DIN 43 653 Features Square Body, Size 2, DIN 43 653 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M5009 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 105000A^2/s Nominal Current (RMS DC) 450 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 61 x 104 x 61mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 70W Termination Style M10 Unit Weight 510g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

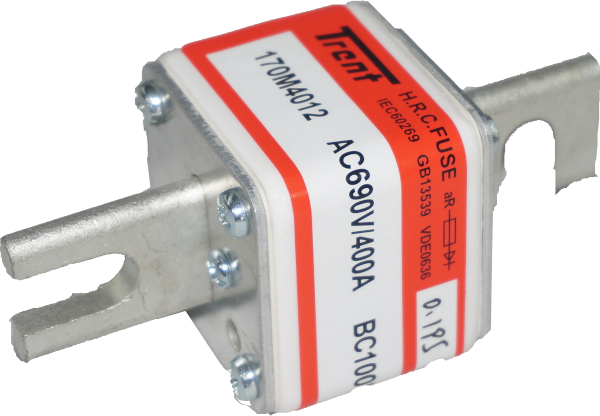

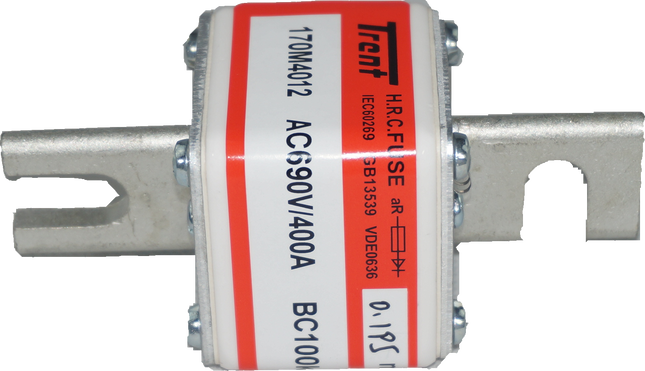

Trent I^2t (aR) Blade Style Semiconductor Fuse, 400 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) F170M4012 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4012 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 91500A^2/s Nominal Current (RMS DC) 400 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 53 x 104 x 53mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watts Dissipation 65W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less
