Trent NBR-FR22GR69V80T + RT18-125L Series 80 Amp 690V Semiconductor I²t gR Fuse & DIN Rail Fuse Holder Cartridge Style 22 x 58mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V80T + RT18-125L Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre Arcing) 6600 A²/s Nominal Current (RMS + DC) 80 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 123 x 76 x 37.5mm Fuse Holder RT18-125L Mounting Style Din Rail Mount Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet RT18-125L Datasheet

Read more less

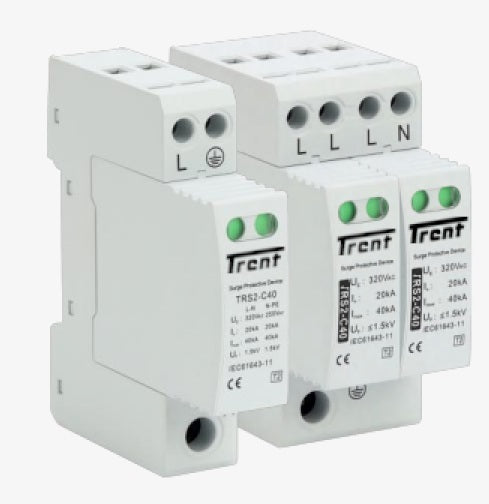

FRS2-C40/320/R 2+0, 2 Pole (L/N,PE) Un = 230VAC Type 2 (Class II) Surge Protection Device, 20/40kA, Pluggable, With Remote C/O Contacts. Uc = 320VAC   Specifications Trent part number FRS2-C40/320/R 2+0 Nominal Voltage (Un) 230VAC Maximum Voltage (Uc) 320VAC Voltage Protection Level (Up) <1.5kV No of Poles 2 Category IEC / EN / VDE Type 2 (Class II) Location of use Sub Distribution Board or Machinery Protection modes L/N,PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 400g Standards IEC614643-31:2018 (TUV, CE Approved)   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

LEM LF 2005-S/SP6, C/L Hall Effect Current Sensor, 2000 Amp Input, 400mA Output, +/-15/24VDC Power Supply Features Bipolar and insulated current measurement up tp 3000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LF 2005-S/SP6 Technology Closed Loop Hall Effect Aperture ø60.5mm ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 2000 Amp Measurement Range +/- 3000 Amp Output 400 mA Isolation 6 kV Bandwidth DC-100 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.3% Termination Style Custom Connector (details provided on request) Unit Weight 1.5kg Factory Pack Quantity 9   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

Fastron FPC1-32-40C-230VAC/DC, 4 Pole 4 x SPST NO, Modular Contactor 440VAC 32 Amp 50/60Hz, 230VAC/220VDC Coil Voltage, Hum Free Features 32 Amp (rms) @ 400VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FPC1-32-40C-230VAC/DC Switching Type 2 x SPST NO Approvals CE Coil Voltage 230VAC/220VDC 50/60Hz  Load Rating 32 Amp Special Feature Hum Free Mounting Style DIN Rail Mount Load Voltage Range 440VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet Auxiliary Contacts Selection Guide

Read more less

FPT-135 2000/5A 5P20 15VA Protection Class CT, 2000/5A, Class 5P20 15VA, 135 x 81mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring Specification Fastron Electronics Part Number FPT-135 2000/5A 5P20 15VA Technology Protection Class Current Transformer Ratio 2000/5 Aperture Size 81 x 135mm VA Rating 15VA Accuracy Class Class 5P20 Output 5 Amp AC (?%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10??C / 50??C Continuous Current (max) 2000Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 7kg Factory Pack Qty 1 Datasheet Product Installation Guide and Datasheet Datasheet FPT-35 2000/5 5P20 15VA

Read more less

Crydom LND2425, Solid State Relay, Single Phase 3-32VDC Control, 75A, 24-280VAC Load, Low Noise, Low EMC/RFI Features • Ratings from 25A to 75 Amp @ 24-280 VAC • SCR output for heavy industrial loads • Zero voltage or instantaneous turn-on outputs • UL/CSA/VDE Approved, CE Compliant to EN60950-1 • Improved SEMS screw and washer • Redesigned housing with anti-rotation barriers • AC & DC control types • Direct bond copper substrate • EMC compliant to Level 3 • Direct power lead frame • Epoxy free design Spec Crydom Part Number LND2425 Switching Type Zero Crossing ROHS Yes (Details) Control Voltage 3-32VDC Load Current 25 Amp (rms) Surge Capability 297 Amp (peak) Special Feature None Mounting Style Panel Mount Load Voltage Range 24-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 75g Factory Pack Qty 20   Datasheet Product Datasheet Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom PMP2490WP, Phase/Burst control, 240VAC, 90 Amp, Selectable 0-5V,0-10V,4-20mA input, w/Overvoltage Protection Features Selectable Proportional Phase or Burst Control Input Ratings from 25A to 90 Amp @ 170-600 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number PMP2490WP Switching Type Phase Angle or Burst (Selectable) ROHS/CE/UL Yes Control Voltage 0 - 10V/0 - 5V/4 - 20mA Proportional Input (Selectable) Note Requires DC Power Supply for 0-5V/0-10V input modes Load Current 90 Amp (rms) Surge Capability 1290Amp (peak) Special Feature Proportional Controller + SSR Mounting Style Panel Mount Load Voltage Range 170-280VAC Dielectric Strength 4kV Termination Style Terminal Plug Unit Weight 160g Factory Pack Qty 20   Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent FTY220D80P Contact Us for Possible Replacement PMP24 Installation/Wiring Guide Heatsink SSR and Heatsink Assemblies App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement

Read more less

Vishay Estamat MH-12N Automatic Reactive Power Controller 12 Step, 3 Phase Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.85 to 0.95 CAP Auto CT Secondary Selection Programmable Primary CT Ratio Luminous Display Various Program Combinations IP40 Up to 12 steps Measurement System - Automatic/Manual 230VAC Aux Supply Overvoltage and Under/Overcompensation Alarm   Specification Vishay Part Number Estamat MH-12N Function Reactive Power Correction Nominal Voltage (Un) 415V Line to Line (4 Wire) Supply Voltage 230VAC (L-N), 12VA 45-65Hz Relay Rating 250VAC/3Amp Switch Delay Time 1s - 1200s User Adjustable Alarm 1 x Relay as above Temperature Alarm N/A Re-connection Delay Time 1s - 1200s User Adjustable Desired Power Factor 0.85 IND - 1.00 CAP Number of Output Relays 13 Smallest Capacitor Current 50mA CT Input Range 0.05 - 5.5 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms N/A Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP40 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet Product Datasheet User Manual Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

RODN303015, Steel Enclosure, 300mmH x300mmW x 150mmD, IP66, RAL 7035 Gray 1.5mm Galvanised Steel Features Injected Polyurethane Sealing gasket 3 x M20 cable glands 4pcs Wall Mounts and dynabolts included Lockable Door via Key RAL7035 GREY AS3000/AS3100 Compliant IP66   Specification Fastron Part Number RODN303015 Function Steel Water Proof Enclosure Configuration Enclosure with Hinged Door, Key Lock, 4 Mounting Clips, DYnabolts, and Cable Glands Termination Style Screw Mount to gear tray Dimensions H:300 x W:300 x D:150mm Weight 7kg Certification AS 3000 AS 3100 Factory Pack Qty 1 Material of housing 1.5mm Galvanised Steel Painted RAL 7035 Enclosure protection IP66 Operating Temperature -20...55 °C Datasheet Datasheet

Read more less

Electronicon 275.268-609600/221K02 25kvar 525V 50Hz, Power Factor Correction Capacitor, 3 Phase, 95 x 245(+33 +/-2)mm Gas Filled, 3 x 96uF, Can Replace MKP525-D-25.0, LKT 25-525-DP [Single Sided Terminals], Internal Discharge Reistors Characteristics and utility 25kVar @ 525V @ 50 Hz 10.0kvar 10kvar Three phase capacitor DUAL WINDING internally delta connected Discharge resistors Incorporated Reactive power factor correction Gas Filled Lightweight Construction Connector type - single sided terminal Indoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Self Healing Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ Aluminium case with bottom fixing M12x16 Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number 275.268-609600 / 221K02 25kvar 525V 50Hz Replaces these models 275.186-809600/221702 Technology Gas Filled, Low Loss, Self Healing Dimensions 95 x 245(+33 +/-2)mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 525V @ 50Hz Kvar 25 Kvar Capacitance 3 x 96.2uF Tolerance On Capacitance -5% + 10% (others on request) Current (In) 3 x 45 Amp Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Mounting M12 x 16mm (Indoor) Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 120,000 Hours Termination Style Filter Type Terminal Approvals UL 810, CSA C22.2 No.90 Unit Weight 2.3kg Factory Pack Quantity 25 Datasheet Product Datasheet Can Replace Epcos MKP525-D-25.0 Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Fastron 16F-SD-NC-AL, AC Current Switch, Multirange 1-10A, 10-50A, 50-200Amp, Self Powered, 10% Accuracy, 0.5 +/-0.2 Minimum ThreshholdAverage RMS Current Sensing, Normally Open Contacts, 0.3Amp @ 135VAC/DC Adjustable Trip Compact and versatile current switches for detection of AC Currents, Multirange 1-10Amp, 10-50Amp, 50-200Amp via jumper Features Multirange selector Panel mounting Eliminates insertion loss Isolated plastic case recognised according to UL94-V0 Advantages Highly accurate low current measurement down to 1Amp High isolation between primary and secondary circuits Easy installation Applications Fault Detection Motor or Fan Protection Application Domain Energy and Automation Specification Fastron Part Number 16F-SD-NC-AL Technology Solid Core AC Current Transformer Alarm Type NC Relay 0.3Amp @ 135VAC/DC Supply Voltage Self Powered Load Current (RMS) Multirange 1-10A, 10-50A, 50-200Amp Trip Point Adjustable Isolation 2kV (AC, 50Hz, 1 min) Bandwidth 50/60Hz Mounting Style Panel Mount Operating Temperature Range -25°C / 70°C Accuracy 10% (Minimum Threshold 0.5 +/-0.2 Amp) Termination Style Screw Terminals Unit Weight 200g Certifications UL E320368, CE, Rohs compliant Datasheet Product Datasheet

Read more less

Hobut CT105F-250/5-2.5/1 Class 1, 2.5VA 250 Amp, 5 Amp Output, 3 Phase Current Transformer, With Feet Mount Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Hobut Part Number CT105F-250/5-2.5/1 Technology AC Current Transformer Ratio 250/5 Aperture Size 21 x 25mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Over Current (max) 250 Amp x 1.2 Termination Style Screw Unit Weight 450g Factory Pack Qty 9 Datasheet Product Datasheet
