Recommended products

Fastron FDV-100-V05-12, DC Voltage Transducer, Din Rail Mount, 0-100VDC, 0-5V output, 12VDC Supply Voltage, 150mS Response 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 5V DC output (for voltage output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FDV-100-V05-12 Analogue Output 0-5V Input 0 - 50VDC Measurement Range 120% Overload 150% Continuous Operating Temperature -30 - 70°C Operating Voltage 12VDC +/-15% Voltage Isolation (1 min) 2.5kV Accuracy 1% Response Time 150mS Termination Style Screw Mounting Style DIN Rail Mount Safety CE, UL94V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron FDV-300-V05-12, DC Voltage Transducer, Din Rail Mount, 0-300VDC, 0-5V output, 12VDC Supply Voltage, 150mS Response 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 5V DC output (for voltage output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FDV-300-V05-12 Analogue Output 0-5V Input 0 - 300VDC Measurement Range 120% Overload 150% Continuous Operating Temperature -30 - 70°C Operating Voltage 12VDC +/-15% Voltage Isolation (1 min) 2.5kV Accuracy 1% Response Time 150mS Termination Style Screw Mounting Style DIN Rail Mount Safety CE, UL94V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron FDV-50-V05-12, DC Voltage Transducer, Din Rail Mount, 0-50VDC, 0-5V output, 12VDC Supply Voltage, 150mS Response 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 5V DC output (for voltage output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FDV-50-V05-12 Analogue Output 0-5V Input 0 - 50VDC Measurement Range 120% Overload 150% Continuous Operating Temperature -30 - 70°C Operating Voltage 12VDC +/-15% Voltage Isolation (1 min) 2.5kV Accuracy 1% Response Time 150mS Termination Style Screw Mounting Style DIN Rail Mount Safety CE, UL94V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Crydom DR24A06, Solid State Relay, 208-265VAC control, 6 Amp 24-280VAC Output, Slimline, Din Rail Mount, LED status Indicator Features Ratings from 3 Amp, 6 Amp, 12 Amp 1-100VDC, 1-60VDC, 24-280VAC, 48-600VAC DIN Rail Mount SCR output for reliable AC switching, or Mosfet for DC Switching Ultra slim package UL/CSA/VDE Approved, CE Compliant to EN60950-1 EMC compliant to Level 3 Epoxy free design Spec Crydom Part Number DR24A06 Switching Type AC ROHS Yes (Details) Control Voltage 208-265VAC Load Current 6 Amp (rms) Surge Capability (10ms) 285 Amp (peak) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 24-280VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 50g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent Similar part ks32-60-24z2-f41f-1z-c2-4  App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

4400.0047 T11-211-2 Thermal Circuit Breaker (CBE) for Electrical Appliance, 240VAC/48VDC, 2 Amp, 2kA, Threaded neck type, Reset Type, Quick Connect Terminals Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Threaded neck type Thermal circuit breaker 1-pole - Power tools Reset type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 2kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 500 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4400.0047 T11-211-2 Functions 1 Pole Thermal Circuit Breaker, Reset Type Nominal Voltage 240VAC @ 50Hz or 48VDC Nominal Current Range 2 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -5 to 60 Deg C Insulation Resistance 500VDC Dielectric Strength 1.5kV (50Hz) Short Circuit Current 2kA Approvals UL, CSA Standards IEC 6094 Weight 10g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Schurter 4301.5005, IEC Inlet/Power Entry Connector Receptacle with EMC Filter, 10 Amp, Male Blades - Module IEC 320-C14 Panel Mount, Flange Features Panel Mount : Screw-on mounting from front side 3 Functions : Appliance Inlet Protection class I, Line Switch 2-pole, EMC Filter 1 Stage Line filter in standard and medical version Quick connect terminals 6.3 x 0.8 mm Characteristics Compact design with optimal shielding All single elements are already wired Plug removal necessary for fuse-link replacement 2-stage line filter with increased attenuation With EMC-shield Suitable for use in equipment according to IEC/UL 60950 Suitable for use in medical equipment according to IEC/UL 60601-1 Medical Version M80 Specification Schurter Part Number 4301.5005 (KFA Series) Rated Voltage 250V Rated Current 10A Filter Stages 1 Stage Standard Attenuation Operating Temperature -25°C to 85°C Filter Type Differential and Common Mode Fuse Holder N/A Line Switch 2 Pole Mounting Panel Mount - Case 50 Material Nickel Plated Steel Termination Style C14 Male to Quick Connects Weight 66g Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 1.7kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

Infineon ND171N12K Single Diode Module Features Pressure Contact Technology Electrically insulated base plate International standard package 3000V Isolation 34mm Base Width Applications Power Supplies Deep Power Cycling Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Infineon Part Number ND171N12K Vrrm 1200V Diode Configuration Single Diode Module IF(av) @ 100 Deg C 171 Amp Package Size W:34mm L:94mm D:30mm Itsm 6.6 kA VF(to) 0.75V Tj(max) 150°C rF 0.8mΩ Terminals M6 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.26°C/W R th(c-h) 0.06°C/W Weight 310g Mounting Torque 6 Nm (6 Nm Terminals) Factory Pack Qty 8 Certification UL Listed IXYS Headquarters United States Datasheet Product Datasheet Alternatives See MDD172-16N1 or Contact Us for Possible Replacement for urgent replacement

Read more less

NX2-10, Temp Controller, 48x96mm, 100-240VAC, Multirange Input, SV2,SV3, Multirange Relay/SSR/4-20mA Heating and Cooling Outputs, Setup for Relay Heating, SSR Cooling, 2 Alarms Multirange Dual Output Multirange Output (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number NX2-10 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4), or 4-20mA, or SSR (12VDC, 30mA 600 Ohm) Control Output 2 (Cool) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4), or 4-20mA, or SSR (12VDC, 30mA 600 Ohm) Input Multirange (refer to datasheet) Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 SV2, SV3 Setpoints Mounting Style 48 x 96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet NX Series Brochure NX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

Northern Design XD-V5-2, AC Current Transducer, Average RMS, Ipn = Selectable 15,30,45,60,75,100 Amp, 0-5V Average RMS output, Self Powered Features Ipn = Selectable 15,30,45,60,75,100 Amp Average RMS Output 0-5V Output Din Rail Mounting Self Powered Isolated plastic case recognised according to UL94-V0 Advantages Large aperture for cable up to ⌀ 16mm High isolation between primary and secondary circuits Easy installation Applications Current Measurement Energy Management Earth Leakage Measurement Motor Control Actuators Lamp Failure Specification Northern Design Part Number XD-V5-2 Technology AC Current Transformer Protection Class IP50 Supply Voltage Self Powered Load Current (RMS) Selectable 15,30,45,60,75,100 Amp Output 0-5V Average RMS Isolation 4kV (AC, 50Hz, 1 min) Bandwidth 55 - 65Hz Mounting Style Din Rail Mount Operating Temperature Range -10°C / 65°C Accuracy Class 1 Termination Style Screw Unit Weight 180g Factory Pack Qty 6   Datasheet Product Brochure Product Manual

Read more less

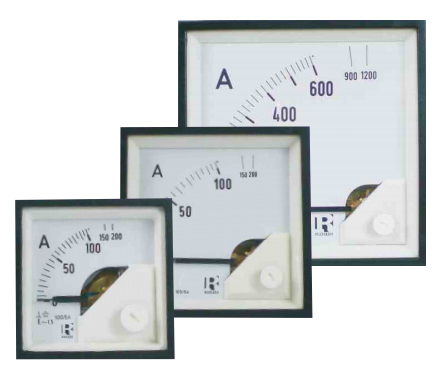

Rishabh DS96/30A/4-20mA, Moving Coil Ammeter 30Amp AC/DC for 30A/4-20mADC Analogue Input Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/30A/4-20mA Nominal Measurement Range 0 - 30 Amp AC/DC Shunt Input 4-20mA Unipolar Nominal Measurement Range 36 Amp AC/DC Over Range Ipn x 2 Operating Temperature 0 - 30??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Rishabh DS72/50A/75mV, Moving Coil Ammeter 50Amp for 50A/75mVDC Shunt Connect Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 72 x 72mm Panel Space 65mm Depth Specification Rishabh Part Number DS72/50A/75mV Nominal Measurement Range 0 - 50 Amp DC Shunt Input 0-75mV Unipolar Maximum Measurement Range 100 Amp DC Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals with back cover Termination Style Screw Mounting Style 72 x 72mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Rishabh DS96/500A/4-20mADC, Moving Coil Ammeter 500Amp AC/DC Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/500A/4-20mA Nominal Measurement Range 0 - 500 Amp AC/DC Shunt Input 4-20mA Unipolar Maximum Measurement Range 500 Amp Over Range Ipn x 2 Operating Temperature 0 - 50??C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less
