Current Transducer, AT-AA8-A-4, AC Current Transducer, Average RMS, 5 Amps, 22-60VAC/DC Aux, 0-10V output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA8-A-4 Control Output 0-10V Average RMS Input 0-5 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

P-3L-12WAY-80A, Pin Type Busbar For Generic MCB or Modular Contactors. Three Phase, 3 Pole, 12 Way, 80 Amp 8mm

Read more less

Fastron FRI 8-06/B, Current Monitoring Relay & Timer AC/DC 2-20 Amp, Adjustable Measurement and Timing Range, 8mm Aperture, Universal 24-240VAC 24VDC, 2 x SPDT 8 Amp CO Relays FRI8-05/B Series serves to monitor AC and/or DC currents 2,4,6,8,10,12,14,16,18,20 Amp Setpoints up to 20 Amp, and provides 2Relay alarm output with Over/Undercurrent selection by jumper. Can replace Crouzet 84871122 Features : ?? Current transducer is a part of the product. Inside this transformer there is a wire which senses the volume of fl owing current Non Invasive measurement Galvanically separates monitored circuit Universal supply AC 24 - 240 V and DC 24 V Supply is galvanically separated from measuring current Current withstand up to 100 A Output contact: 2 x changeover/SPDT 8 A Clamp terminals 1-phase, 1-MODULE, DIN rail mounting Applications : Heating bars in sliding rails Heating cables Indication of current flow Controlling of 1-phase motor consumption Specification Fastron Part Number FRI8-06/B Cabel Aperture?? 8mm Voltage Range AC 24 - 240 V, DC 24 V (AC 50 - 60 Hz) Operating Range -15 %; ? % Current Range 1 - 20 A (AC/DC 50 Hz) Current Trip Adjustment 2,4,6,8,10,12,14,16,18,20 Amp Setpoints Settign Accuracy 5 % Burden max. 1.5 VA Repeatability 1 % Temperature Drift 0.1%/??C Peak Overload (10s) 100 Amp Time delay T1 max. 500 ms Time delay T2 N/A Output 2 x CO Relay 8 Amp Number of contacts 2 x changeover/ SPDT (AgNi / Silver Alloy) Rating 8 A / AC1 Breaking capacity 2500 VA / AC1, 240 W / DC Inrush current 10 A Switching voltage 250 V AC1 / 24 V DC Min. breaking capacity DC 500 mW Indication of state red LED Mechanical life 1 x 107 Electrical life (AC1) 1 x 105 Other information ?? Operating temperature -20 ... 60C Storage temperature -30 ... 60C Electrical strength 4 kV (supply - output) Operating position any Mounting DIN rail EN 60715 Protection degree IP 40 from front panel / IP 10 terminals Overvoltage category III. Pollution degree 2 Max. cable size (mm )2 solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5 Dimensions 90 x 17,6 x 64 mm Weight 69 g Standards EN 60255-6, EN 61010-1, RoHS, CE Datasheet Product Datasheet Application Notes Monitoring relay FRI8-06/B serves to monitor current level in single phase AC/DC circuits. Due to its fluent adjustment of release current, it is predestined for applications with necessity of current flow indication, and can be used as precedence relay. Output relay is off in normal state. In case the set current level is exceeded, it switches. Multivoltage supply is an advantage.

Read more less

A1A-260-12X, Stud Rectifier Diode 260Amp, 1200V, M16, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification AEGIS Part Number A1A-260-12X Vrrm 1200V Diode Configuration Anode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 260 Amp Itsm 5.046 kA VF(to) 0.82V Tj(max) 180°C rF 0.45mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) M16 Tail Length to Stud 170mm R th(j-c) 0.120°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China AEGIS Headquarters Brazil   Datasheet     Product Datasheet

Read more less

Current Transducer, AT-AA8-A-1, AC Current Transducer, Average RMS, 5 Amps, 100-240VAC/DC Aux, 4-20mA output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA8-A-1 Control Output 4-20mA Average RMS Input 0-5 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

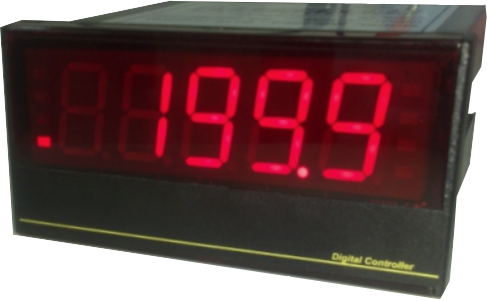

Fastron Electronics AMB-A-V7-A-N, AC Voltage Panel Meter, 0-600VAC Input, 110-240VAC Supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-A-V7-A-N Transmission Output N/A Input 0-600VAC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 100 - 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics AMB-2A6-A-N, DC Ammeter DC Voltmeter, 2 wire, 4-20mA Loop Supplied Sensor Input, 110-240VAC Supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-2A6-A-N Conditioner Output N/A Input 2 Wire loop supplied 4 - 20mA Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110 - 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

BH-15-1-24, Split Core Hall Effect DC Current Transducer, +/-15 Amp DC, +/-10V Bipolar output, 31mm aperture, 24VDC supply Compact and versatile Split Core DC current sensor, +/-15 Amp DC, +/-10VDC Bipolar or 0-10V Bipolar Analogue Output Features ⌀31mm Aperture Split Core DC Bipolar or Bipolar Measurement +/-10V analogue output Busbar, or DIN Rail Mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number BH-15-1-24 Technology DC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage 24VDC Nominal Current (DC) +/-15 Amp DC Response Time < 200mS Output Bipolar 0-10V, or Bipolar +/-10VDC Analogue Isolation 2.5kV (AC, 25Hz, 1 min) Bandwidth DC Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

BH-10-1-24, Split Core Hall Effect DC Current Transducer, +/-10 Amp DC, +/-10V Bipolar output, 31mm aperture, 24VDC supply Compact and versatile Split Core DC current sensor, +/-10 Amp DC, +/-10VDC Bipolar or 0-10V Bipolar Analogue Output Features ⌀31mm Aperture Split Core DC Bipolar or Bipolar Measurement +/-10V analogue output Busbar, or DIN Rail Mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number BH-10-1-24 Technology DC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage 24VDC Nominal Current (DC) +/-10 Amp DC Response Time < 200mS Output Bipolar 0-10V, or Bipolar +/-10VDC Analogue Isolation 2.5kV (AC, 10Hz, 1 min) Bandwidth DC Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 2% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

BH-25-1-24, Split Core Hall Effect DC Current Transducer, +/-25 Amp DC, +/-10V Bipolar output, 31mm aperture, 24VDC supply Compact and versatile Split Core DC current sensor, +/-25 Amp DC, +/-10VDC Bipolar or 0-10V Bipolar Analogue Output Features ⌀31mm Aperture Split Core DC Bipolar or Bipolar Measurement +/-10V analogue output Busbar, or DIN Rail Mounting Isolated plastic case recognised according to UL94-V0 Advantages High isolation between primary and secondary circuits Easy installation DIN Rail Mount Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will not drain data logger batteries -Panel Meters Simple connection displays power consumption Specification Fastron Part Number BH-25-1-24 Technology DC Hall Effect Current Transducer with Process Output ROHS Yes Supply Voltage 24VDC Nominal Current (DC) +/-25 Amp DC Response Time < 200mS Output Bipolar 0-10V, or Bipolar +/-10VDC Analogue Isolation 2.5kV (AC, 25Hz, 1 min) Bandwidth DC Mounting Style DIN Rail Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Elevator Screw Unit Weight 120g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

VX9-USNA-A2D2, Temp Controller, 96x96mm, 100-240VAC, Multirange Input, SSR Output, 2 Alarms, 2 x SV Multirange Input (Programmable) 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP65 (front panel only) UL/CE Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number VX9-USNA-A2D2 Control Output 1 (Heat) Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Control Output 2 (Cool) N/A Input Multirange Type K/J/E/T/R/B/S/L/N/U/W/PLII/PT100/JPT100/4-20mA/0-20mA/1-5V/0-5V/0-10V/0-50mV/0-100mV. Note for Direct Current Input please use 250 Ohm Resistor in Parallel to the input terminals. Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 1 2nd Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option 2 2 x SV (2 Setpoints/Event Input) Mounting Style 96x96mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 450g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet VX Series Brochure VX Series Instruction Manual Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

Fastron FDV-150-V05-12, DC Voltage Transducer, Din Rail Mount, 0-150VDC, 0-5V output, 12VDC Supply Voltage, 150mS Response 150mS Response Time PC 94 UL V0 Input signals can be converted to insulated 5V DC output (for voltage output type) Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space Specification Fastron Part Number FDV-50-V05-12 Analogue Output 0-5V Input 0 - 50VDC Measurement Range 120% Overload 150% Continuous Operating Temperature -30 - 70°C Operating Voltage 12VDC +/-15% Voltage Isolation (1 min) 2.5kV Accuracy 1% Response Time 150mS Termination Style Screw Mounting Style DIN Rail Mount Safety CE, UL94V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet
