Recommended products

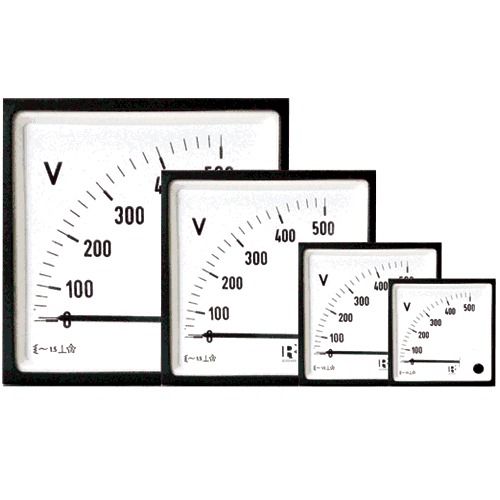

Rishabh DS96/100VDC, 96x96mm, 0-100VDC Input Voltmeter, 120VDC Range Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm DSpth Specification Rishabh Part Number DS96/100VDC Nominal Measurement Range 0 - 100VDC Maximum Measurement Range 120VDC Over Range x 1.2 Operating Temperature 0 - 50 Deg C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Rishabh DS96/300VDC, 96x96mm, 0-300VDC Input Voltmeter, 360VDC Range Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm DSpth Specification Rishabh Part Number DS96/300VDC Nominal Measurement Range 0 - 300VDC Maximum Measurement Range 360VDC Over Range x 1.2 Operating Temperature 0 - 50 Deg C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Rishabh DS96/200VDC, 96x96mm, 0-200VDC Input Voltmeter, 240VDC Range Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm DSpth Specification Rishabh Part Number DS96/200VDC Nominal Measurement Range 0 - 200VDC Maximum Measurement Range 240VDC Over Range x 1.2 Operating Temperature 0 - 50 Deg C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1 ?? Datasheet Product Datasheet

Read more less

Fastron FCP-L-R-1-G-2, PID Pattern Controller, 96x96mm, 100-240VAC, Relay output 1 Alarm, 8 steps (segments), 4 patterns (programs), Interlinkable  4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 4 x 8-step patterns  is a standard feature CE Approved Each unit needs just 60 mm depth panel space EC Compliant (Details) Specification Fastron Part Number FCP-L-R-1-G-2 Control Output Relay, 4 Program 8 steps, Interlinkable. Input Multirange (refer to datasheet) Option 1 1 Alarm Option 2 N/A Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet FC-P Datasheet

Read more less

Xmer CT Split 93/30SC 100/5 Class 1 1.5VA, 23 x 33mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Xmer CT Split 93/30SC 100/5 Class 1 1.5VA Technology Split Core AC Current Transformer Ratio 100/5 Aperture Size 23 x 33mm VA Rating 1.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 100Amp x 1.2 Termination Style Screw Unit Weight 600g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Fastron FRI 8-03/1, Under/Over Current Monitoring Relay AC 0.1 - 1 A, Adjustable delay 0.5 - 10 s, 1 x CO 10 Amp, Universal 24-240VAC 24VDC Aux Supply FRI 8 Series serves to monitor AC currents up to 16 Amp, and provides Relay alarm output with adjustable delay time 0.5 - 10s. Features : Suitable for Current Transformer Monitoring Flexible adjustment by potentiometer, choise of 6 Models: 0.05 - 0.5 A; 0.1 - 1 A; 0.2 - 2 A; 0.5 - 5 A; 0.8 - 8 A; 1.6 - 16 A Adjustable delay 0.5 - 10 s to eliminate short current peaks Possible to use current scanning from current transformer - up to 600 A Universal supply AC 24 - 240 V and DC 24 V Supply is galvanically separated from measured current Output contact: 1 x changeover 8 A 1-phase, 1-MODULE, DIN rail mounting Applications : Heating bars in sliding rails Heating cables Indication of current flow Controlling of 1-phase motor consumption Specification Fastron Part Number FRI 8-03/1 Voltage Range AC 24 - 240 V, DC 24 V (AC 50 - 60 Hz) Operating Range -15 %; ? % Current Range 0.1 - 1 A (AC 50 Hz) Current Trip Adjustment Potentiometer Setting Accuracy 5 % Burden max. 1.5 VA Repeatability 1 % Temperature Drift 0.1%/??C Peak Overload (10s) 1.1 x Ipn Time delay T1 max. 500 ms Time delay T2 adjustable 0.1-10 s Output ?? Number of contacts 1x changeover/ SPDT (AgNi / Silver Alloy) Rating 10 A / AC1 Breaking capacity 2500 VA / AC1, 240 W / DC Inrush current 10 A Switching voltage 250 V AC1 / 24 V DC Min. breaking capacity DC 500 mW Indication of state red LED Mechanical life 1 x 107 Electrical life (AC1) 1 x 105 Other information ?? Operating temperature -20 ... ? ??C Storage temperature -30 ... ? ??C Electrical strength 4 kV (supply - output) Operating position any Mounting DIN rail EN 60715 Protection degree IP 40 from front panel / IP 10 terminals Overvoltage cathegory III. Pollution degree 2 Max. cable size (mm )2 solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5 Dimensions 90 x 17,6 x 64 mm Weight 69 g Standards EN 60255-6, EN 61010-1, RoHS, CE Datasheet Product Datasheet Application Notes Monitoring relay FRI serves to monitor current level in single phase AC circuits. Due to its fluent adjustment of release current, it is predestined for applications with necessity of current flow indication, and can be used as precedence relay. Output relay is off in normal state. In case the set current level is exceeded, it switches. Multivoltage supply is an advantage.

Read more less

SIOV-B60K1000, Varistor, 1100VAC, 1465VDC, B60 Package, 3000W, Equivalent to V1000E60 Features High Energy Absorption Rating Industry Standard Package Wide Operating Range 35 - 1100VAC High Peak Current Capability (70kA) UL/CSA/ROHS/ISO9001:2015 Approved Panel Mount Screw Terminals APPLICATION AREAS: 1. Railways and trams: For the protection of electrical equipment, power electronics (IGBT, thyristors...) in systems with alternating, direct or combined AC + DC power supply, especially in power supply of AC/DC, DC/AC, DC/DC converters. They may be used in systems with main and auxiliary power supply for example: automatic control and regulation systems, cooling systems, warming systems, ventilation systems, and combination systems (electromechanical, electropneumatic and other systems). 2. Wind powerplants For protection of automatic control and regulation in power electronics (IGTB, thyristors...), as well as the protection of sensitive electronic systems (e. g. AC/DC, DC/AC, DC/DC converters, drive systems) from direct or indirect lightning strikes. 3. Photovoltaic systems For protection of photo panels, automatic control electronics with sensitive electronic components, and DC/AC converters (inverters) from direct or indirect lightning strikes. Depending on the application, both serial and parallel connections are possible. With serial connection the required voltage is achieved. With parallel connection higher current absorption is achieved in the modules. Specification Siemens Part Number SIOV-B60K1000 Operating Voltage AC (50-60Hz) 1100VAC Operating Voltage DC 1465VDC Average Power Dissipation 1.6W Permissable Peak Current 70kA Energy Absorption(2ms) 3000W(max) Tolerance(Vn) +/- 10% Termination Style Screw Weight 260g Factory Pack Qty 1 ROHS Yes UL Yes CSA Yes   Datasheet Product Datasheet Application Notes Technical Blog MOV Article GDT/MOV/TVS Tester SPD Tester

Read more less

Trent 100AF Series 690V, 100 Amp aR Semiconductor I²t Fuse BS88 Style Features Equivalent to Bussmann 100FE, ETI BS17UQ/63/100A/690V British Standard Fuse Links Package Wide Range of I²t Ratings up to 1000 Amp Busbar or Standoff Mounting IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 100AF Fuse Type I²t AR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (IP < 30IN) 4800 A²/s I²t Rating (IP > 30IN) 6200 A²/s Nominal Current (RMS + DC) 100 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 17 x 49mm Hole Centers 60.9 - 65.6mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40°C / 125°C Watt Loss 25W Termination Style M6 Unit Weight 61g Factory Pack Qty 10 Datasheet Product Datasheet Cross Reference Chart

Read more less

Current Transducer, AT-AA8-A-4, AC Current Transducer, Average RMS, 5 Amps, 22-60VAC/DC Aux, 0-10V output Adjustable Zero and Span Setting 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) or 0-10V/0-5V (For Direct Voltage Type) Each unit needs just 50mm x 120mm depth DIN Rail cabinet space Specification Fastron Electronics Part Number AT-AA8-A-4 Control Output 0-10V Average RMS Input 0-5 Amp Rms Over Range x 1.2 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style DIN Rail Mount Case Material PC - UL 94 V0 Weight 170g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

P-3L-12WAY-80A, Pin Type Busbar For Generic MCB or Modular Contactors. Three Phase, 3 Pole, 12 Way, 80 Amp 8mm

Read more less

Fastron FRI 8-06/B, Current Monitoring Relay & Timer AC/DC 2-20 Amp, Adjustable Measurement and Timing Range, 8mm Aperture, Universal 24-240VAC 24VDC, 2 x SPDT 8 Amp CO Relays FRI8-05/B Series serves to monitor AC and/or DC currents 2,4,6,8,10,12,14,16,18,20 Amp Setpoints up to 20 Amp, and provides 2Relay alarm output with Over/Undercurrent selection by jumper. Can replace Crouzet 84871122 Features : ?? Current transducer is a part of the product. Inside this transformer there is a wire which senses the volume of fl owing current Non Invasive measurement Galvanically separates monitored circuit Universal supply AC 24 - 240 V and DC 24 V Supply is galvanically separated from measuring current Current withstand up to 100 A Output contact: 2 x changeover/SPDT 8 A Clamp terminals 1-phase, 1-MODULE, DIN rail mounting Applications : Heating bars in sliding rails Heating cables Indication of current flow Controlling of 1-phase motor consumption Specification Fastron Part Number FRI8-06/B Cabel Aperture?? 8mm Voltage Range AC 24 - 240 V, DC 24 V (AC 50 - 60 Hz) Operating Range -15 %; ? % Current Range 1 - 20 A (AC/DC 50 Hz) Current Trip Adjustment 2,4,6,8,10,12,14,16,18,20 Amp Setpoints Settign Accuracy 5 % Burden max. 1.5 VA Repeatability 1 % Temperature Drift 0.1%/??C Peak Overload (10s) 100 Amp Time delay T1 max. 500 ms Time delay T2 N/A Output 2 x CO Relay 8 Amp Number of contacts 2 x changeover/ SPDT (AgNi / Silver Alloy) Rating 8 A / AC1 Breaking capacity 2500 VA / AC1, 240 W / DC Inrush current 10 A Switching voltage 250 V AC1 / 24 V DC Min. breaking capacity DC 500 mW Indication of state red LED Mechanical life 1 x 107 Electrical life (AC1) 1 x 105 Other information ?? Operating temperature -20 ... 60C Storage temperature -30 ... 60C Electrical strength 4 kV (supply - output) Operating position any Mounting DIN rail EN 60715 Protection degree IP 40 from front panel / IP 10 terminals Overvoltage category III. Pollution degree 2 Max. cable size (mm )2 solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5 Dimensions 90 x 17,6 x 64 mm Weight 69 g Standards EN 60255-6, EN 61010-1, RoHS, CE Datasheet Product Datasheet Application Notes Monitoring relay FRI8-06/B serves to monitor current level in single phase AC/DC circuits. Due to its fluent adjustment of release current, it is predestined for applications with necessity of current flow indication, and can be used as precedence relay. Output relay is off in normal state. In case the set current level is exceeded, it switches. Multivoltage supply is an advantage.

Read more less

A1A-260-12X, Stud Rectifier Diode 260Amp, 1200V, M16, Anode stud Features Full blocking capability over wide temperature range Hermetic metal case with glass insulator Threaded stud Applications Power Supplies Uncontrolled Rectifiers Oil Cooled Circuits Battery Chargers Specification AEGIS Part Number A1A-260-12X Vrrm 1200V Diode Configuration Anode Stud IF(av) @ 100 Deg C 320 Amp IF(av) @ 125 Deg C 260 Amp Itsm 5.046 kA VF(to) 0.82V Tj(max) 180°C rF 0.45mΩ Termination Style (Tail) 8.3mm Round Lug Termination Style (Stud) M16 Tail Length to Stud 170mm R th(j-c) 0.120°C/W R th(c-h) 0.03°C/W Weight 250g Mounting Torque 26 Nm Factory Pack Qty 8 Country Of Origin China AEGIS Headquarters Brazil   Datasheet     Product Datasheet

Read more less
