Recommended products

Trent NBR-20 001 13-32A-500V-120kA-NH00, Semiconductor Type gG/gL Fuse, 32 Amp, 120kA, 500VAC, NH00, 78 x 46 x 29.5mm Features Square Body Size NH00 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 001 13-32A-500V-120kA-NH00 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 32 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 78 x 46 x 29.5mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent NBR-20 001 13-25A-500V-120kA-NH00, Semiconductor Type gG/gL Fuse, 25 Amp, 120kA, 500VAC, NH00, 78 x 46 x 29.5mm Features Square Body Size NH00 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 001 13-25A-500V-120kA-NH00 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 25 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 78 x 46 x 29.5mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Fan Ring for mounting 120mm fans to H31, or P6Y114 Heatsink Fan ring is required for optimum air flow 4-5m/s Generall kept in stock. Otherwise 3-5 days delivery

Read more less

Trent I^2t (aR) Blade Style Semiconductor Fuse, 250 Amp, 690VAC, Square Body, Size 1, 200kA (78mm Hole Centers) F170M4009 Features Square Body, Size 1 Wide Range of I^2t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 ApplI^2tions Protection of High Powered Semiconductors according to I^2t Short Circuit Protection DC or AC Motor I^2t Protection Battery Fuse Specification Trent Part Number F170M4009 Fuse Type I^2t AR Class Nominal Voltage 690VAC @ 50Hz I^2t Rating (660V) 21000A^2/s Nominal Current (RMS DC) 250 Amp Tested Breaking Capacity 200kA (78mm Hole Centers) @ 690VAC Dimensions 53 x 104 x 53mm Hole Centers 78mm Mounting Style Busbar or Panel Mount with Standoff Operating Temperature Range -40DegC / 125DegC Watt Loss 55W Termination Style M10 Unit Weight 350g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

A2B-140-04E, Rectifier Diode 140 Amp, 400V, stud removed and re-plated, Anode to base, Flat base

Read more less

Rishabh DS96/150A/50mV, Moving Coil Ammeter 150Amp DC for 150A/50mV Shunt Connect Features Adjustable Display Scaling PC 94 UL V0 For robust Measurement Each unit needs just 96 x 96mm Panel Space 65mm Depth Specification Rishabh Part Number DS96/150A/50mV Nominal Measurement Range 0 - 150 Amp AC Shunt Input 0-50mV Unipolar Maximum Measurement Range 150 Amp Over Range Ipn x 2 Operating Temperature 0 - 50°C Frequency 15...100Hz Safety Rating IP52 case, IP20 terminals wiht back cover Termination Style Screw Mounting Style 96 x 96mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron F157FT 1PL 12A 110VAC + F157F-1Z-C3, Relay, 1 x SPDT 12 Amp Form C, 250VAC/30VDC Load, 110VAC Coil Features 1 x 12 Amp @ 250VAC or 30VDC DIN Rail Mount Changeover Contact Slim package Compatible with Omron G2R-1-S Series UL Approved CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT 1PL 12A 110VAC + F157F-1Z-C3 Switching Type 1 x SPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 110VAC Load Current 1 x 12 Amp (rms) Special Feature LED Status Indicator Mounting Style DIN Rail Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 60g Factory Pack Qty 20   Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC

Read more less

BLR-Q(U)12R DM (3ACM12R-BEL-O-DM), Power Factor Regulator & Power Quality Analyser, 12 Step, 1 Phase Measurement, Power Quality Alarms, WITH BATTERY BACKUP, 3 Phase Control, 50-530V 50/60HZ Single CT Sensing 32nd Harmonic Measurement Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.9 to 0.9 CAP Auto CT Secondary Selection Backlit LCD Display Various Program Combinations IP41 Up to 12 steps Measurement System - Automatic/Manual 50-530VAC Measurement 100-132V / 207-253VAC (L-N) Aux Supply Configurable Alarms Dual Password Protection Programmable Fan Control Programmable 1A/5A CT Ratio   Specification Beluk Part Number BLR-Q(U)12R DM / 3ACM12R-BEL-O-DM Function Reactive Power Correction & Power Quality Analyser Nominal Voltage (Un) 50-530VAC Line to Line Supply Voltage 100-132V / 207-253VAC (L-N), 45-65Hz, max fuse 6A Relay Rating 250VAC/5Amp Static Output Rating (T Models) 8-48VDC / 100mA Internal 2MB Logger  Optional Battery Backup YES 3 x CT Measurement  Optional Switch Delay Time 1s - 1200s User Adjustable Alarm 1 x Relay as above Temperature/Fan/THD Alarm 1 x Relay as above Re-connection Delay Time 50 - 1200s User Adjustable Desired Power Factor 0.90 IND - 0.90 CAP Number of Output Relays 12 Smallest Capacitor Current 10mA CT Input Range 15mA - 6 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms Optional Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP50 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet User Manual Modbus user Manual Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog)

Read more less

BLR-Q(U)06R DM (3ACM06R-BEL-O-DM), Power Factor Regulator & Power Quality Analyser, 6 Step, 1 Phase Measurement, Power Quality Alarms, WITH BATTERY BACKUP, 3 Phase Control, 50-530V 50/60HZ Single CT Sensing 32nd Harmonic Measurement Isolated Switching of Power Factor Correction Contactors Cos ϕ Setting 0.9 to 0.9 CAP Auto CT Secondary Selection Backlit LCD Display Various Program Combinations IP41 Up to 6 steps Measurement System - Automatic/Manual 50-530VAC Measurement 100-132V / 207-253VAC (L-N) Aux Supply Configurable Alarms Dual Password Protection Programmable Fan Control Programmable 1A/5A CT Ratio   Specification Beluk Part Number BLR-Q(U)06R DM / 3ACM06R-BEL-O-DM Function Reactive Power Correction & Power Quality Analyser with battery backup Nominal Voltage (Un) 50-530VAC Line to Line Supply Voltage 100-132V / 207-253VAC (L-N), 45-65Hz, max fuse 6A Relay Rating 250VAC/5Amp Static Output Rating (T Models) 8-48VDC / 100mA Internal 2MB Logger  Optional Battery Backup YES 3 x CT Measurement  Optional Switch Delay Time 1s - 1200s User Adjustable Alarm 1 x Relay as above Temperature/Fan/THD Alarm 1 x Relay as above Re-connection Delay Time 50 - 1200s User Adjustable Desired Power Factor 0.90 IND - 0.90 CAP Number of Output Relays 6 Smallest Capacitor Current 10mA CT Input Range 15mA - 6 Amp LCD Display Accuracy Voltage +/-0.5%, Frequency +/-0.1%, Power +/-1% Energy Class 1 Phase Angle Error +/- 1% at I > 3% of range Comms Optional Termination Style Screw Weight 700g Certification IEC 654-1 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP50 for case, IP20 for terminals Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...60 °C Datasheet User Manual Modbus user Manual Application Notes Discharge Resistor Usage Power Factor Correction Blog Quick Start Guide(Blog)

Read more less

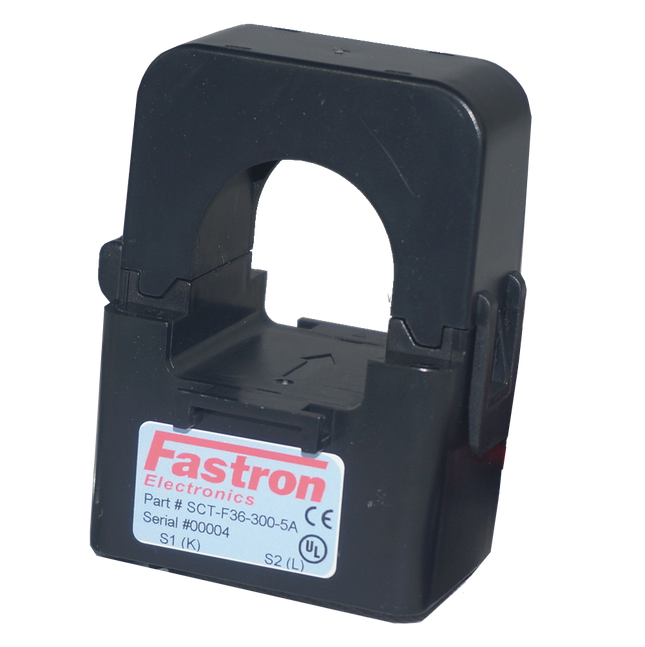

Fastron Electronics FAT300D420T, AC Current Transducer, 300Amp Measurement, 36mm Split Core, 4-20mA Average RMS Output, Accuracy = 1%, Terminal Version Features Quick Release 36mm Split Core System Cale Mount 4-20mA Output 24VDc Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications Control Systems Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FAT300D420T Technology 36mm Split Core AC Current Transformer Ratio 300/4-20mA Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 4-20mA (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 300Amp x 1.2 Termination Style Screw Terminals Unit Weight 250g Factory Pack Qty 9   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

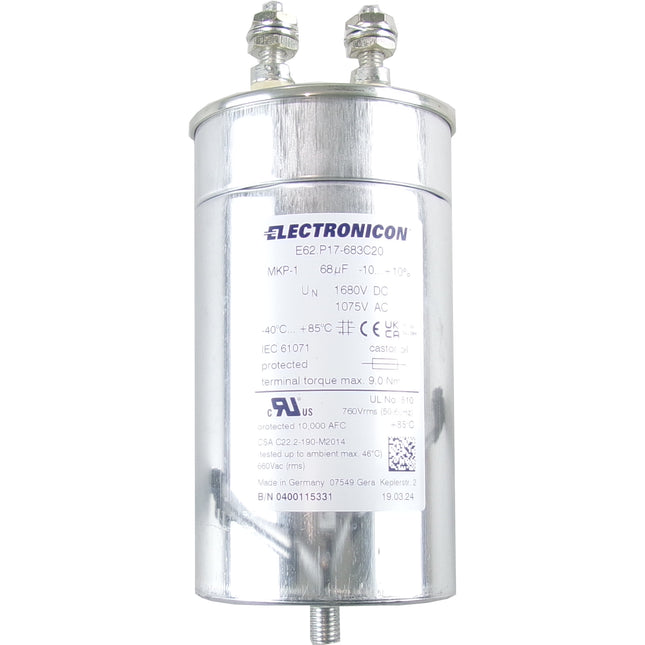

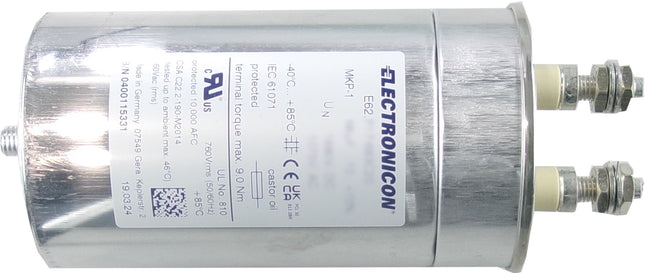

E62.P17-683C20, 68uF, Heavy Duty AC Film Capacitor ø95 x 176mm, M10x12 terminals with Bushing. C2 Design, 1075VAC/1680VDC ABB code: 3ABD00052090 Characteristics and utility 68uF 1075VAC/1680VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Railway and Marine Certified Applications Heavy Duty AC FIlters Power Generators Marine Vessels M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.P17-683C20 ABB code: 3ABD00052090 Technology Metalized Polypropylene Film Capacitor Dimensions ø95 x 176mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 1075VAC/1680VDC Operating Temperature Range -40 to 85 °C Capacitance 68uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M10 x 12 studs Unit Weight 1.3kg Factory Pack Quantity 21 (MOQ = 105)   Datasheet Product Datasheet

Read more less

RODN604025, Steel Enclosure, 600mmH x400mmW x 250mmD, IP66, RAL 7035 Gray 1.5mm Galvanised Steel Features Injected Polyurethane Sealing gasket 3 x M20 cable glands 4pcs Wall Mounts and dynabolts included Lockable Door via Key RAL7035 GREY AS3000/AS3100 Compliant IP66   Specification Fastron Part Number RODN604025 Function Steel Water Proof Enclosure Configuration Enclosure with Hinged Door, Key Lock, 4 Mounting Clips, DYnabolts, and Cable Glands Termination Style Screw Dimensions H:600 x W:400 x D:250mm Weight 15.6kg Certification AS 3000 AS 3100 Factory Pack Qty 1 Material of housing 1.5mm Galvanised Steel Painted RAL 7035 Enclosure protection IP66 Operating Temperature -20...55 °C Datasheet Datasheet

Read more less
