Recommended products

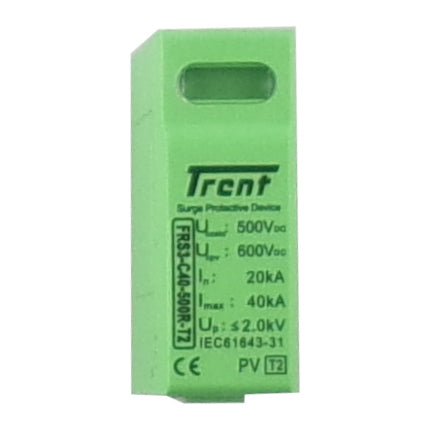

M-FRS3-C40-500R-T2, MODULE ONLY 500VDC Module for Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA   Specifications Trent part number M-FRS3-C40-500R-T2 MODULE ONLY Nominal Voltage 500VDC No of Poles N/A Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter, Sub Board Only Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

Iskra Doo MS32-4, Motor Protection Switch, 3 Phase, 690VAC, 2.5 - 4 Amp Setting Range, Thermal & Magnetic Release Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and short circuit. Used in industry, small machines, agricultural machines, compressors etc. Features : Thermal & Magnetic release < 50mS Trip Delay Time 3 Pole Disconnect Short Circuit Breaking Capacity up to 4kA Voltage resettable version available Customised versions available Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 AS/NZ 61009-1 Specification Iskra Doo Part Number MST-25-4 Functions 3 Phase Motor Protection Switch Nominal Voltage 230/400VAC @ 50/60Hz Nominal Current Range 2.5 - 4 Amp RMS Trip Delay Time < 50ms Rated Frequency 50/60 Hz Operating Temperature -25 to 60 Deg C Rated Operations 100,000 Ops Insulation Voltage 690V Overload Protection Thermal Release Only Breaking Capacity 230V(6kA) 415V(4kA) 500V(2.5kA) 690V(2kA) Approvals CSA, EAC Standards IEC/EN 60947-2/4-1/5-1, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1 Weight 230g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Alternatives Trent FGV2 Series

Read more less

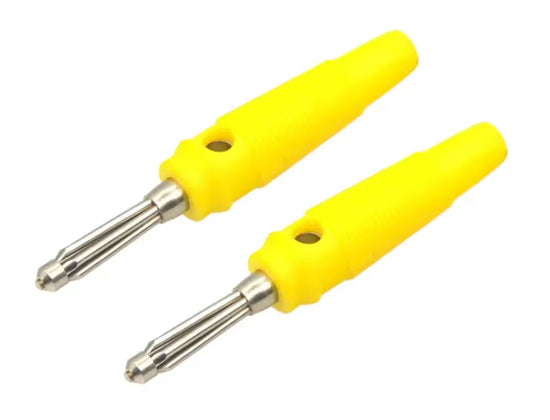

Banana Plugs YELLOW 4mm (2pcs), For Test Equipment/Leads Test Instrument Type Nickel Plated 4mm With Jumper Connection Suitable for M1/M2 or other 4mm Current Clamps

Read more less

Banana Plugs Black/Red 4mm (2pcs), For Test Equipment/Leads (Current Clamps) Test Instrument Type Nickel Plated 4mm With Jumper Connection Suitable for M1/M2 or other 4mm Current Clamps

Read more less

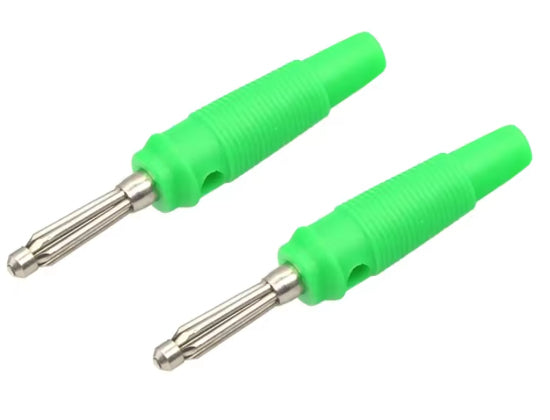

Banana Plugs GREEN 4mm (2pcs), For Test Equipment/Leads Test Instrument Type Nickel Plated 4mm With Jumper Connection Suitable for M1/M2 or other 4mm Current Clamps

Read more less

Fastron FEFN101-25-T, 1 Stage 3 Phase + N EMC (RFI) Line Filter for Inverter Input, 36 Amp, 520VAC, Very High Attenuation Features Line filter suitable for 3 Phase + N systems Wide Temperature Range Characteristics Designed for demanding applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Suitable for use in equipment according to UL 1238, CSA22.2N).8, IEC/EN 60939 Line filter suitable for low current Inverter such as PV or battery storage systems   Specification Schurter Part Number FEFN101-25-T Rated Voltage 520V 3 Phase Rated Current 25Amp @ 40 Deg C Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Symmetrical and Asymmetrical Attenuation Leakage Current 0.5mA Mounting Panel Mount Material Metal Termination Style Screw Weight 1.3kg Factory Pack Qty 4 Protection Class Suitable for equipment according to IEC/UL 60950 Isolation 1.3 - 2.75kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

Fastron Electronics FEFC301-30-T, 3 Stage EMI (RFI) Input Line Filter for 3-phase 3 wire inverter systems, 30 Amp, 440VAC Suitable alternative to Schaffner FN3258(Input) or FN5020(Output) Series 3 phase Output Sine wave filter with high attenuation 400VAC +10% Applications Input of VSD Drives or Controlled Rectifiers Diesel Generator Output CNC Machinese Elevators Power Supplies For Industrial Applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Fastron Part Number FEFC301-30-T Rated Voltage 400V Rated Current 30A Filter Stages 3 Stage (3 Phase 3 wire) Operating Temperature -25°C to 85°C Filter Type Excellent Attenuation for Inverter LIne Input Leakage Current N/A Mounting Panel Mount Material Metal Termination Style Stud Weight 3.5kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV CE Yes   Datasheet Product Datasheet

Read more less

Fastron FEFN201-25-T, 2 Stage 3 Phase + N EMC (RFI) Line Filter for Inverter input, 25 Amp, 520VAC, Excellent Attenuation Features Line filter suitable for 3 Phase + N systems with inverters or other noisy equipment Wide Temperature Range Characteristics Designed for demanding applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Suitable for use in equipment according to UL 1238, CSA22.2N).8, IEC/EN 60939 Line filter suitable for low current Inverter such as PV or battery storage systems   Specification Schurter Part Number FEFN201-25-T Rated Voltage 520V 3 Phase Rated Current 25Amp @ 40 Deg C Filter Stages 2 Stage Operating Temperature -40°C to 100°C Filter Type Very High Symmetrical and Asymmetrical Attenuation Leakage Current 0.5mA Mounting Panel Mount  Material Metal Termination Style Screw Weight 1.3kg Factory Pack Qty 4 Protection Class Suitable for equipment according to IEC/UL 60950 Isolation 1.3 - 2.75kV VDE/UL/CSA/ROHS Yes   Datasheet Product Datasheet

Read more less

RCT-1800-Coil, Single Phase, 6 Inch Rogowski Coil. Requires Integrator or suitable Rogowski Coil mete The RCS-1800 Single Phase flexible rope CT from Magnelab converts AC input current to mV/kA output.   Included is an 18 inch circumference rope CT with Integrator, and 8 feet of twisted pair (600V) output leads. Note 6 Inch Diameter when not flexed Magnelab Coils come with 10 year warranty   Specification Magnelab Part Number RCT-1800-Coil Function AC Current Measurement Nominal Measurement Current (Ipn) N/A  Measurement Range 10% - 130% if Ipn Frequency Measuring Range 50-1500Hz (15th Harmonic) Operating Voltage N/A Accuracy 0.5% Phase Angle < 0.5 Degrees Coil Diameter (⌀) 6 Inch Coil Circumference 18 Inch Integrator to Coil Cable 8 Feet Shielded Maximum Voltage 600V (on bare conductor) Operating Temperature -15°C to 65°C Storage Temperature -45°C to 80°C Power Consumption < 2VA Overload 20,000 Amp (continuous) Termination Style Screw Weight 500g Certification CE Factory Pack Qty 1 Certifications UL Recognized E96927 to IEEE C57.13, CAN/CSA 60044-1 Meets UL STD 61010-1, CAN/CSA C22.2 No. 61010 CE ROHS Datasheet Product Datasheet Application Notes RCS/RCT Series Installation Guide

Read more less

Eastron Europe CRJ-31, Converter for 3 x HY-2.0 to 3 Phase RJ12 kWh Meter Connection Features Quick Release Split Core System Cable Mount 100mAmp or 100mV input and Output Applications Eastron Modular Metering Equipment Accessories RJ12cable-1SW   Specification Fastron Part Number CRJ-31 Technology Splitter for HY2.0 Split Core AC Current Transformers  Rating 100mV/100mA Bandwidth 50-60Hz Operating Temperature Range -15°C / 45°C Termination Style 1M Flying leads with RJ12 Connector Unit Weight 50g Factory Pack Qty 10   Application Notes Installation Guide CRJ-31 Connector User Guide

Read more less

Rish Xmer Split Core 2500/5 Amp 195/80 Class 0.5, 25VA Series Current Transformer, 85 x 172mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number Rish Xmer Split Core 2500/5 195/80 Technology Split Core AC Current Transformer Ratio 2500/5 Aperture Size 172 x 85mm VA Rating 25VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 2kg Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

TGD-22SM-R-24, 22mm RED LED Flasher/Indicator and Audible Alarm Buzzer, RED 240VAC/DC, Plastic LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user. Features : 24VAC/DC Supply LED Illumination Ø 22.5mm Cutout Long Life LED Replacement Beads Available RED, GREEN, AMBER, BLUE, or Clear\White Colour Standards : IP40 IEC60947-5-1 CE Specification TRENT Part Number TGD-22SM-R-24 Functions LED Indicator and Audible Alarm Nominal Voltage 24VAC/DC @ 50/60Hz Impulse Voltage Wear Resistance 6kV Illumination Type RED LED Short Circuit Protection (Fuse) Recommend 10A gG Fuse Mechanical Compression Force at Closing 20N Mechanical Compression Force at Closing 8N Humidity 35-85% Approvals CE Standards IP65, IEC60947-5-1 Weight Enclosure Material UL94V0 Factory Pack Qty 1 TRENT(Fastron) Head Office Australia   Datasheet Product Datasheet

Read more less
