Recommended products

Iskra Doo SQ0214 L230V RC S6SS Synchroscope (Synchronoscope) Measurement of phase difference between bus bar and generator Five instruments in one (SQ 0x14) Circular display of ∆ phase difference Magnifield display of phase difference ∆ = ±20 Microprocessor processing Simple synchronization conditions setting Output relay for synchronisation (pulse or continuous) ''Dead busbar or generator'' functionality Power supply from bus bar or generator Standard 96x96 mm or 144x144 mm din housing LCD with backlight for voltage, frequency and/or ∆ monitoring (SQ 0x14 only) High immunity to EMC disturbances Special functions set with three jumpers inside the instruments Status output Green led for indication of both voltages Ship version (Bureau veritas certificate - SQ 02x4)   Specification Iskra Doo Part Number SQ0214 L 230V RC S2SS Function Phase Difference (∆ϕ) Measurement Nominal Voltage (Un) 230VAC ± 20 % Line to Line (UL-N = 400 VMAX) @ 40-70Hz Digital Output Relay 250 V, 1 A, 50 Hz, 250 VA Status Output Open-Collector 24 Vdc + 20% @30mA Switch On Delay Time Range 0,1 ... 1 s +/-10% Phase Difference Setting Range 2 ... 20 °el ± 3 °el Voltage Difference Setting Range 1 ... 10 % +/-2.5% Dead Busbar Noise Rejection Range DB 20% Un Power Consumption < 4VA Short Term Overload 2 x Un for 3 seconds LCD Display Accuracy Voltage 1.5%, Frequency 0.5%, Phase Difference +/-3 °el Synchronisation Accuracy +/- 10% Termination Style Screw Weight 530g Certification CE Factory Pack Qty 1 Enclosure Version Ship Version Material of housing PC/ABS Unflammable, according to UL 94 V-0 Enclosure protection IP52 for case, IP20 for terminals with protective cover Safety According to EN 61 010-1 400 V, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet Product Datasheet User Manual Application Notes & Software Downloads The following parameters can be set via internal jumper see User Manual for more details. Dead Busbar Generator Function Over and Under Frequency Synchronising Adjustable Lenght of a Sync Pulse The following parameters Can be set via MIPack Comms Module & SQset Setting Software Relay - 300mS/Continuous/Programmable Dead Busbar - Active DB/Active DB + DG & % Threshold MIPack User Manual Download SQSet Settign Software

Read more less

EE62.K15-163D30, 3x16uF, 60x151mm 3 Phase, Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, Oil FIlled, 750VAC Characteristics and utility 3 x 16.0uF 750VAC Metalized Polypropylene Film , Oil filled Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.K15-163D30 Technology Metalized Polypropylene Film Capacitor Dimensions ø60x151mm Mounting M8 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 750VAC Operating Temperature Range -40 to 85 °C Capacitance 3 x 16.0uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style Faston Unit Weight 0.05kg Factory Pack Quantity 21 (MOQ = 105)   Datasheet Product Datasheet

Read more less

Xmer CT Split 93/30SC 300/5 Class 1 2.5VA, 23 x 33mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Xmer CT Split 93/30SC 300/5 Class 0.5 2.5VA Technology Split Core AC Current Transformer Ratio 300/5 Aperture Size 23 x 33mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 600g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

FPT-80 1000/1A 5P20 2.5VA, Protection Class CT, 1000/5A, Class 5P20 2.5VA, 83 x 56mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring Specification Fastron Electronics Part Number FPT-80 1000/1A 5P20 2.5VA Technology Protection Class Current Transformer Ratio 1000/5 Aperture Size 83 x 56mm VA Rating 2.5VA Accuracy Class Class 5P20 Output 1 Amp AC Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10 Deg C / 50 Deg C Continuous Current (max) 1000Amp x 20 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 1.2 kg Factory Pack Qty 1 Datasheet Product Installation Guide and Datasheet

Read more less

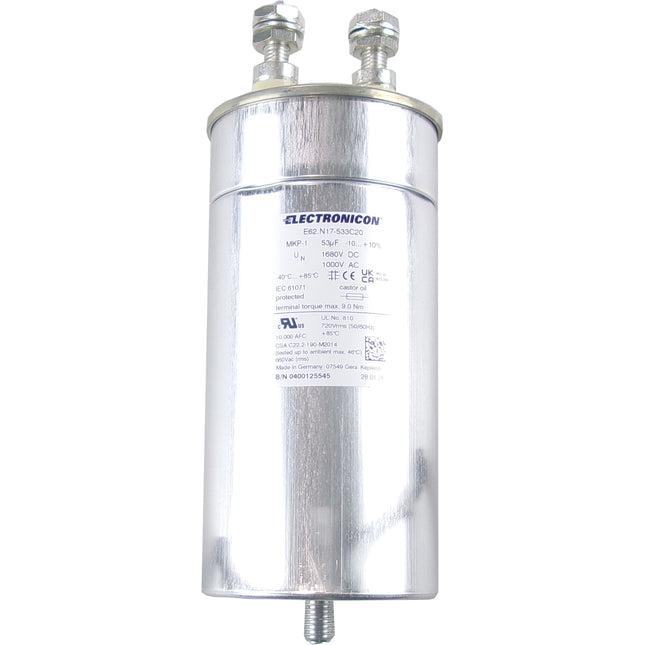

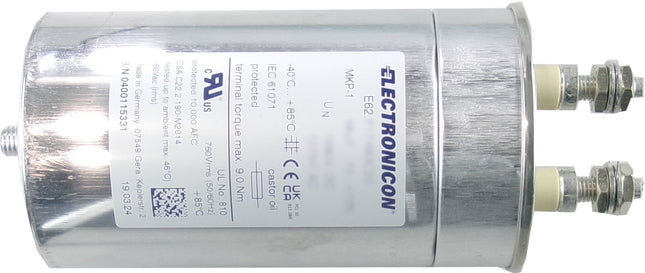

E62.N17-533C20, 53uF, Heavy Duty AC Film Capacitor ø85 x 176mm, M10x12 terminals with Bushing. C2 Design, 1000VAC/1680VDC Characteristics and utility 43uF 1000VAC/1680VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Railway and Marine Certified Applications Heavy Duty AC FIlters Power Generators Marine Vessels M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.N17-533C20 Technology Metalized Polypropylene Film Capacitor Dimensions ø85 x 176mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 1075VAC/1680VDC Operating Temperature Range -40 to 85 °C Capacitance 43uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M10 x 12 studs Unit Weight 1.3kg Factory Pack Quantity 3 (MOQ = 30)   Datasheet Product Datasheet

Read more less

Fastron Electronics SCT-F36-400-1A, 1 Amp, 400Amp Measurement, Class 1 Split Core CT's Features Quick Release Split Core System Cable Mount 1 Amp Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number SCT-F36-400-1A Technology Split Core AC Current Transformer Ratio 400/1 Amp Aperture Size ø 35 mm VA Rating N/A Accuracy Class Class 1 Output 1 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 400Amp x 1.2 Termination Style 0.9M Flying leads Unit Weight 400g Factory Pack Qty 9   Datasheet Product Datasheet Stocked Split Core CT's Listing Application Notes Installation Guide Types of Current Transformers - Blog Cable Losses and CT's High Accuracy or High Burden Requirements for CT's

Read more less

Fastron Electronics SCT-F50-500-40mA, 40mAmp, 500Amp Measurement Split Core CT's Features Quick Release Split Core System Cable Mount 40mA Output Self Powered Rated System Voltage 0.60/3kV 0.9M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number SCT-F50-500-40mA Technology Split Core AC Current Transformer Ratio 500/40mAmp Aperture Size ø 50 mm VA Rating N/A Accuracy Class Class 1 Output 40mA Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 800Amp x 1.2 Termination Style 0.9M Flying leads Unit Weight 1000g Factory Pack Qty 9   Datasheet Product Datasheet Stocked Split Core CT's Listing Application Notes Installation Guide Types of Current Transformers - Blog Cable Losses and CT's High Accuracy or High Burden Requirements for CT's

Read more less

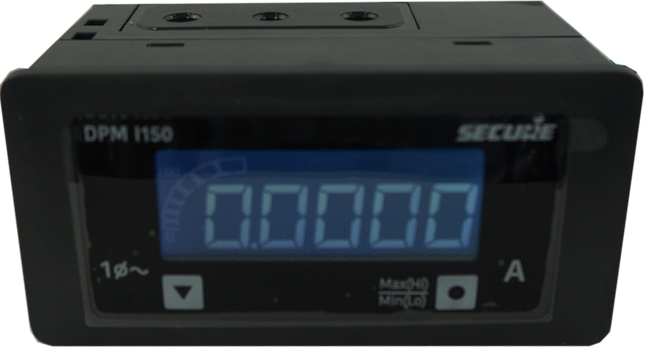

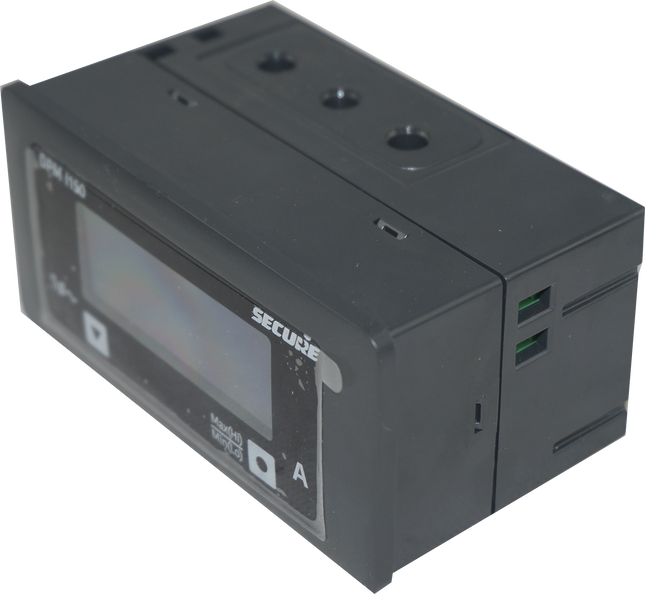

Secure Meters DPM48W150-2, 48mm x 96mm LCD Digital Active Power Meter 0-6 Amp Input, 57.5 to 250VAC Input, 0.5% Accuracy, 40 to 300VAC/DC Supply, IP54 (Optional IP65)   Features LCD Dual Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 52mm Depth CE Approved ROHS and REACH Specification Secure Part Number DPM48W150-2 Frequency Range 45-65 Hz Accuracy 0.5% Input 0-6 Amp  / 57 - 250VAC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 40-300VAC/DC Termination Style Screw Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Standards IEC / EN 61010-1; IEC / EN 61010-2-030 Protection Degree IP54 (IP65 Optional) Weight 280g Factory Pack Qty 1   Datasheet Product Datasheet Manual DPM Series User Manual Application Notes Panel Meters Blog Articles

Read more less

MT800-16-432F2, Single Thyristor Module, 800 Amp, 1600V, 70mm Package Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 70mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TZ800N16KOF Vrrm 1600V Diode Configuration Single Thyristor Module IF(av) @ 85 Deg C 819 Amp Package Size W:70mm L:176mm D:90mm Itsm 35 kA VF(to) 0.82V Tj(max) 125°C rF 0.17mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.042°C/W R th(c-h) 0.015°C/W Weight 1950g Mounting Torque 6 Nm (18 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative suggestion

Read more less

SSPA-GREEN-4mm (2pcs), GREEN 4mm Fully Sheathed Piggy Back Safety/Banana Plugs, 32 Amp, 1000V Rated. For Test Equipment/Leads 32 Amp / 1000V AC (rms) or DC Maximum Rating Fully Sheathed 4mm Piggy Back Plug Type Suitable For Laboratory Test Equipment

Read more less

Westcode-IXYS-Littlefuse MEA95-06DA, Fast Recovery Epitaxial Diode Dual Module Common Anode, 95 Amp, 600V Features Direct copper bonded Al2 O3 -ceramic base plate Electrically insulated base plate Planar passivated chips International standard package 3600V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MEA95-06DA Vrrm 600V Diode Configuration FAST Dual Diode Module, Common Anode IF(av) @ 100 Deg C 95 Amp Package Size W:21mm L:92mm D:30mm Itsm 1.2 kA VF(to) 1.01V Tj(max) 150°C rF 2.85mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.45°C/W R th(c-h) 0.1°C/W Weight 76g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 20 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet

Read more less

Westcode-IXYS-Littlefuse MEK95-06DA, Fast Recovery Epitaxial Diode Dual Module Common Cathode, 95 Amp, 600V Features Direct copper bonded Al2 O3 -ceramic base plate Electrically insulated base plate Planar passivated chips International standard package 3600V Isolation 34mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers DC supply for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MEK95-06DA Vrrm 600V Diode Configuration FAST Dual Diode Module, Common Cathode IF(av) @ 100 Deg C 95 Amp Package Size W:21mm L:92mm D:30mm Itsm 1.2 kA VF(to) 1.01V Tj(max) 150°C rF 2.85mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.45°C/W R th(c-h) 0.1°C/W Weight 76g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 20 Certification UL Listed IXYS Headquarters United States   Datasheet Product Datasheet
