Recommended products

ESCT-RC150-3000A, Rogowski Coil, 150mm Diameter, 85mV/kA Rated for 3000 Amp Recommended, 3 Meter Cable length Flexible clip-around Rogowski coil for the electronic measurement of AC current with galvanic separation between the primary circuit (power) and the secondary circuit (measurement).  Features Rated insulation voltage 1000 V Cat III PD2 Accuracy Class 0.5 (IEC 61869-2) Protection degree IP67 3 m output cable (other lengths available see page 8) Ambient temperature 40 °C … +80 °C Very flexible and thin coil: 6.1 mm Slot for attaching the loop on the primary with a cable tie An innovative patented clasp drastically reduces the positioning error near the closing Internal shield for enhanced measurement accuracy at low primary currents. Advantages Thin, flexible, and light weight solution Very low positioning error Quick, non-intrusive and easy setup A single sensor for a large current range without overload Less influenced by external fields Adaptable for a large range of cable diameters Applications MV/LV substations on LV side: Transformer Condition Monitoring Power metering: current measurement for active power calculation Building sub-metering: energy efficiency monitoring, consumption analysis and cost allocation Power quality monitoring: electrical loads and distribution system equipment Fault Detection, Isolation and Repair (FDIR): isolate the site of the fault Remote Terminal Units (RTU) Phasor Measurement Units (PMU) Standards IEC 61010-1: 2010; IEC 61010-2-32 ed.3: 2012 1) IEC 61869-1 ed1.0: 2007; IEC 61869-2: ed1.0: 2012 1) IEC 61869-6: draft 2016; IEC 61869-10: draft 2016 Specification LEM Part Number ESCT-RC150-3000A Function AC Current Measurement Measuring Range 0 - 5,000 Amp RMS (Contact Us for Possible Replacement for wider range) Secondary Voltage (Sensitivity) 85mV Frequency Measuring Range 50-300kHz Operating Voltage Self Powered Accuracy 0.5% from 25 to 5000 Amp Phase Angle < 0.004 Coil Diameter  15cm Coil Circumference Integrator to Coil Cable 3M Twisted Pair Maximum Voltage 1000V Reinforced insulation according to EN 61010-1 Operating Temperature -15°C to 65°C Storage Temperature -45°C to 80°C Isolation (50Hz, 1 min) 7.4kV Overload 300,000 Amp Termination Style 2 Stripped Wires Weight 130g Factory Pack Qty 1 Certifications   UL, ROHS Datasheet Product Datasheet Application Notes 1) The Rogowski coil can measure any primary current as there is no saturation effect. 2) Not tested given that in the worst case (load = 0 Ohm i.e. short circuit on the output) the peak dissipated power remains low (< 2 Watts) 3) Frequency bandwidth and phase shift modeling schematic can be provided on request. 4) Referring to the main phase offset of 90 ° (a Rogowski coil is a derivative current transducer) 5) Considering a primary conductor of at least ? 15 mm, perpendicular and in contact with the Rogowski coil. 6) Considering an external conductor of at least ? 15 mm the same current level than internal conductor, perpendicular and in contact with the Rogowski coil.

Read more less

CP 62/40 600/1 5 VA Class 1, 600/1Amp, 31mm Aperture, or 11 x 41mm Busbar  Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number CP 62/40 600/1 5 VA Class 1 Technology AC Current Transformer Ratio 600/1 Aperture Size 41x11mm (30mm) VA Rating 5VA Accuracy Class Class 0.2S Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Crydom D53TP50DH + KS300, SSR 3 Phase 4-32VDC Control, 50A, 48-530VAC Load, LED Status Indicator, Cover + HSP-3 Thermal pad. Features Ratings from 25A to 50 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Approved IP20 Cover Available AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number D53TP50DH + KS300 Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 4-32VDC Load Current 50 Amp (rms) per Phase Surge Capability 597 Amp (peak) Special Feature LED Status Indicator + IP20 Cover + Thermal Pad Mounting Style Panel Mount Load Voltage Range 48-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 315g Factory Pack Qty 10 Datasheet Product Datasheet Equivalent Contact Us for Possible Replacement App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

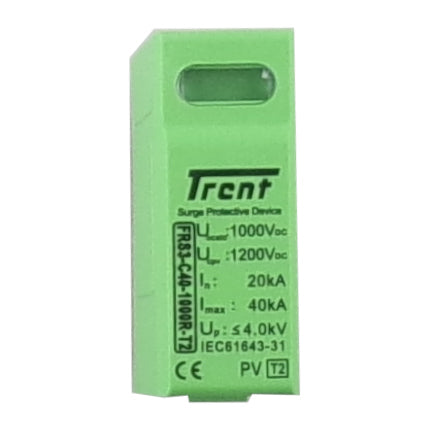

M-FRS3-C40-1000R-T2, MODULE ONLY 1000VDC Module for Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA   Specifications Trent part number M-RS3-C40-1000R-T2 MODULE ONLY Nominal Voltage Un 1000VDC No of Poles N/A Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter, Sub Board Only Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

ISKRA LETRIKA (MAHLE) AZJ3490 11.139.184 Starter Motor, 24V 6.2kW z11 (IS9143, MS463)   Specification ISKRA (MAHLE) Part Number 11.139.184 AZJ3490 ISKRA/LETRIKA/MAHLE (IS9143, MS463) Voltage 24VDC Power 6.2kW No of Pinon Teeth 11 Special Feature Module Unit Weight 17kg Factory Pack Qty 1   Spare Parts MAHLE Letrika Website

Read more less

ISKRA LETRIKA 11.125.351 MGX1005 MAHLE (Letrika, Iskra) regulator

Read more less

ISKRA LETRIKA AAK4135 11.201.301, MAHLE (Letrika) Alternator, 14V 55Amp   Spare Parts Spare Parts List

Read more less

ISKRA LETRIKA 11.204.395 AAK4830 Alternator, 14V 75Amp   Spare Parts Spare Parts List

Read more less

ISKRA LETRIKA 11.201.705 AAK1367 MAHLE Letrika(Iskra) Alternator, 28V 55Amp   Spare Parts Spare Parts List

Read more less

ISKRA LETRIKA (MAHLE) 16.902.152 MSX248, Gear with Clutch for starter motor Specification MAHLE Website

Read more less

Fastron Electronics FEFC301-30-M, 3 Stage EMI (RFI) Input Line Filter for 3-phase 3 wire inverter systems, 30 Amp, 440VAC Suitable alternative to Schaffner FN3258(Input) or FN5020(Output) Series 3 phase Output Sine wave filter with high attenuation 400VAC +10% Applications Input of VSD Drives or Controlled Rectifiers Diesel Generator Output CNC Machinese Elevators Power Supplies For Industrial Applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Fastron Part Number FEFC301-30-M Rated Voltage 400V Rated Current 30A Filter Stages 3 Stage (3 Phase 3 wire) Operating Temperature -25°C to 85°C Filter Type Excellent Attenuation for Sine Wave Output, Moderate Attenuation for input Line Filtering Leakage Current N/A Mounting Panel Mount Material Metal Termination Style Stud Weight 2.5kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV CE Yes   Datasheet Product Datasheet

Read more less

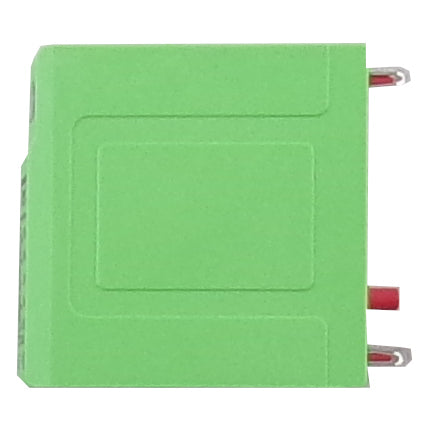

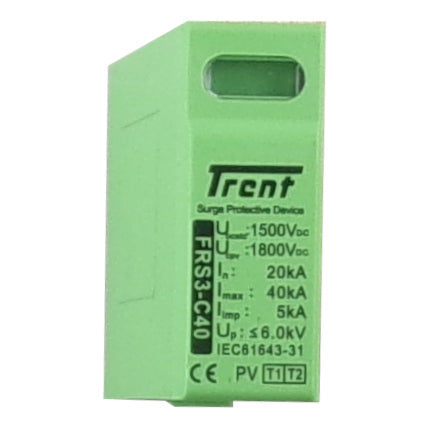

M-FRS3-C40-1500R-T2, MODULE ONLY 1500VDC Module for Surge Protection Device for Photovoltaic Systems, Type 2 (Class II) 40kA   Specifications Trent part number M-FRS3-C40-1500R-T2 MODULE ONLY Nominal Voltage Un 1500VDC No of Poles N/A Category IEC / EN / VDE Type 2 (Class II) Location of use String Box, Inverter, Sub Board Only Protection modes (+)-PE,(-)-PE,(+)-(-) PE Additional Remote Contacts YES NO/NC/COM Protective element MOV No Fault/Fault Indication Green Flag / Not Green Flag Surge discharge rating Per pole 40kA (8/20uS)9KA) Max, 20kA (8/20uS)9KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 420g Standards IEC614643-31:2018 (TUV, CE Approved)   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less
