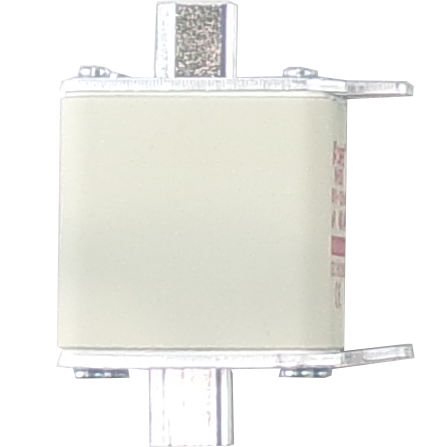

Chifeng aR Fuse NH00 500V 160A, Semiconductor Type aR Fuse, 160 Amp, 120kA, 500VAC, NH00, 78 x 46 x 29.5mm Square Body Size NH00 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Chifeng Part Number NBR-20 001 13-160A-500V-120kA-NH00 Fuse Type I²t aR Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 160 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 78 x 46 x 29.5mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

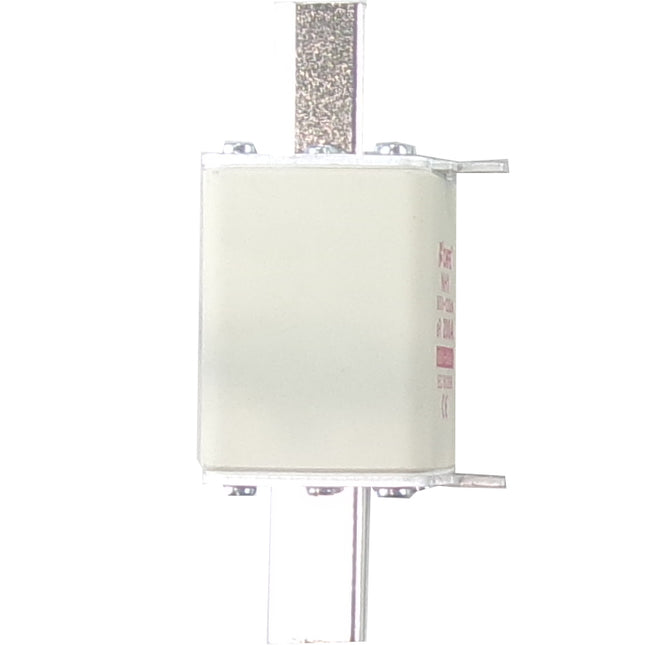

Chifeng aR Fuse NH1 500V 180A, Semiconductor Type aR Fuse, 180 Amp, 120kA, 500VAC, NH1, 150 x 46 x 29.5mm Features Square Body Size NH1 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Chifeng Part Number aR Fuse NH1 500V 180A Fuse Type I²t aR Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 180 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 150 x 75 x 65mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Chifeng aR Fuse NH3 500V 500A, Semiconductor Type aR Fuse, 500 Amp, 120kA, 500VAC, NH3, 150 x 85 x 68mm Features Square Body Size NH3 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Chifeng Part Number aR Fuse NH3 500V 500A Fuse Type I²t aR Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC)315 500 Amp Tested Breaking Capacity 120kA @ 500VAC Dimensions 150 x 85 x 68mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 1.2kg Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

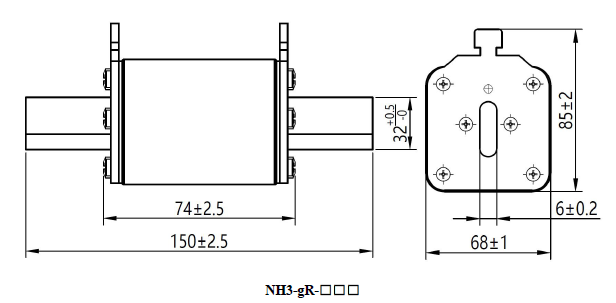

Chifeng aR Fuse NH3 500V 500A, Semiconductor Type aR Fuse, 630 Amp, 120kA, 500VAC, NH3, 150 x 85 x 68mm Features Square Body Size NH3 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Chifeng Part Number aR Fuse NH3 500V 630A Fuse Type I²t aR Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC)315 630 Amp Tested Breaking Capacity 120kA @ 500VAC Dimensions 150 x 85 x 68mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 1.2kg Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

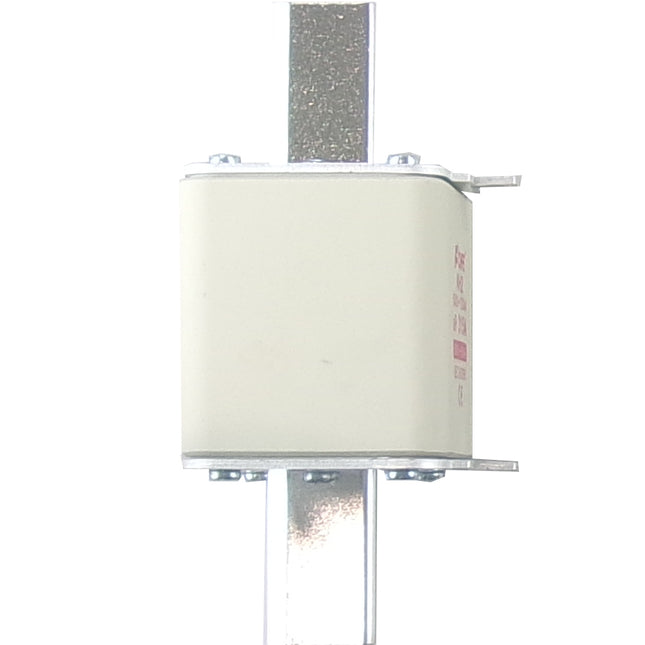

Chifeng aR Fuse NH2 500V 400A, Semiconductor Type aR Fuse, 400 Amp, 120kA, 500VAC, NH2, 150 x 46 x 29.5mm Features Square Body Size NH2 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Chifeng Part Number aR Fuse NH2 500V 400A Fuse Type I²t aR Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC)315 400 Amp Tested Breaking Capacity 120kA @ 500VAC Dimensions 150 x 75 x 60mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Chifeng aR Fuse NH1 500V 225A, Semiconductor Type aR Fuse, 225 Amp, 120kA, 500VAC, NH1, 150 x 46 x 29.5mm Features Square Body Size NH1 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Chifeng Part Number aR Fuse NH1 500V 225A Fuse Type I²t aR Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 225 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 150 x 75 x 65mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

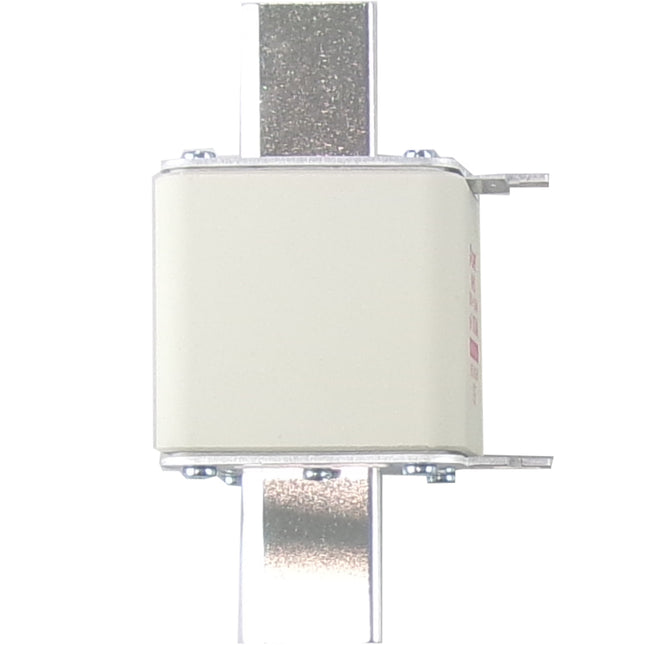

Chifeng aR Fuse NH3 500V 450A, Semiconductor Type aR Fuse, 450 Amp, 120kA, 500VAC, NH3, 150 x 85 x 68mm Features Square Body Size NH3 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Chifeng Part Number aR Fuse NH3 500V 450A Fuse Type I²t aR Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC)315 450 Amp Tested Breaking Capacity 120kA @ 500VAC Dimensions 150 x 85 x 68mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

FPT-100 1200/5A 5P10 15VA, Protection Class CT, 1200/5A, Class 5P10 5VA, 103 x 64mm Aperture Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Applications Protection Relays Safety Equipment Fault Monitoring ?? Specification Fastron Electronics Part Number FPT-100 1200/5A 5P10 5VA Technology Protection Class Current Transformer Ratio 1200/5 Aperture Size 64 x 103mm VA Rating 5VA Accuracy Class Class 5P10 Output 5 Amp AC  (x10) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10DegC / 50DegC Continuous Current (max) 1200Amp x 1.3 Termination Style Screw Stanbards VDE0414-44-1, GB1208-2006, EN 60044-1 and IEC 61869-2 Unit Weight 3kg Factory Pack Qty 1 ?? Datasheet Product Installation Guide and Datasheet ??

Read more less

4400.0001 T11-211-4, 1 Pole Thermal Circuit Breaker, 240VAC/48VDC, 4 Amp, 2kA, Threaded neck, Reset Type, Fastron Terminals Thermal Circuit Breakers are used for over-current (overload and short-circuit) protection of electrical appliances, and as a disconnector in case of equipment failure/malfunction Description Threaded neck type Thermal circuit breaker 1-pole - Power tools Reset type Quick connect terminals 6.3 x 0.8 mm Features : < 3mS Trip Delay Time 1 Pole Disconnect 2kA Short Circuit Rating Suitable for 500VDC Isolation Applications: Power Tools Household Equipment Power Supplies and Chargers Industrial Appliances Standards : IEC 60934 2 x Ir: 500 Cycles 500VDC Insulation Resistance 1.5kV (50Hz) Dielectric Strength Overload @ 6 x Ir Cos φ 0.6 IEC: min 40 trip @ 1.5 x Ir, cos φ 0.75 Allowable UL / CSA: min. 50 trips Specification Schurter Part Number 4400.0003 T11-211-10 Functions 1 Pole Thermal Circuit Breaker, Reset Type Nominal Voltage 240VAC @ 50Hz or 48VDC Nominal Current Range 4 Amp RMS Trip Delay Time < 3ms Rated Frequency 50/60 Hz Operating Temperature -5 to 60 Deg C Insulation Resistance 500VDC Dielectric Strength 1.5kV (50Hz) Short Circuit Current 2kA Approvals UL, CSA Standards IEC 6094 Weight 10g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Infineon TT104N16KOF Dual Thyristor Module Features Pressure Contact Technology Optimised for Deep Cycling Electrically insulated base plate Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Infineon Part Number TT104N16KOF Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 104 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 2.05 kA VF(to) 0.85V Tj(max) 125°C rF 2.15mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 120mA R th(j-c) 0.37°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MCC95-16io1B for IXYS replacement. See TT92N16KOF for Infineon Pressure Contact Alternative

Read more less

FBS LCD 12/4M, 12VDC Pluggable Surge Protection Device for IT Systems, LPZ 0A-2 of higher, 10kA, for Balanced and Unbalanced systems   Specifications Telebahn part number FBS LCD 12/4M Nominal Voltage 12VDC No of Poles 4 Category IEC / EN / VDE Type 2 Location of use Communication/Signal Lines Protection modes L1+/L1-, L2+/L2- , for  Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 10kA (8/20uS)10KA) Max, 20kA (8/20uS)2.5KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 120g Standards IEC 61643-21; EN 61643.21; GB 18802.21   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less

FBS LCD 24/4M, 24VDC Surge Protection Device for IT Systems, LPZ 0A-2 of higher, 10kA   Specifications Telebahn part number FBS LCD 24/4M Nominal Voltage 24VDC No of Poles 4 Category IEC / EN / VDE Type 2 Location of use Communication/Signal Lines Protection modes L1+/L1-, L2+/L2- , for  Additional Remote Contacts NO Protective element MOV No Fault/Fault Indication N/A Surge discharge rating Per pole 10kA (8/20uS)10KA) Max, 20kA (8/20uS)2.5KA) Nominal Internal protection and safety Thermal disconnector in each MOV Weight 120g Standards IEC 61643-21; EN 61643.21; GB 18802.21   Datasheet Product Datasheet GDT/MOV/TVS Tester SPD Tester

Read more less
