LEM Price Group #14

27 products

Filter

  • LT 505-S, C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, +/-15...24VDC, X = 0.6%

    LT 505-S, C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, +/-15...24VDC, X = 0.6%

    23 pcs in stock

    LEM LT 505-S, C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, +/-15...24VDC, X = 0.6% Features Bipolar and insulated current measurement up tp 1200 Amp Current output Bandwidth DC to 150kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 505-S Technology Closed Loop Hall Effect Aperture ø40.5mm ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 500 Amp Measurement Range +/- 1200 Amp Output 100 mA Isolation 6 kV Bandwidth DC-150 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.6% Termination Style faston 6.3 x 0.8mm Unit Weight 400g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    23 pcs in stock

    $605.00
    $713.90 inclGST

  • LT 2005-S, C/L Current Transducer, Ipn = 2000A, +/-15/24VDC, 400mA Output, X = 0.3%

    LT 2005-S, C/L Current Transducer, Ipn = 2000A, +/-15/24VDC, 400mA Output, X = 0.3%

    13 pcs in stock

    LEM LT 2005-S, C/L Current Transducer, Ipn = 2000A, +/-15/24VDC, 400mA Output, X = 0.3% Features Bipolar and insulated current measurement up tp 3000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 2005-S Technology Closed Loop Hall Effect Aperture ø60.5mm ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 2000 Amp Measurement Range +/- 3000 Amp Output 400 mA Isolation 6 kV Bandwidth DC-100 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.3% Termination Style M5 theaded studs Unit Weight 0.55kg Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    13 pcs in stock

    $1,029.00
    $1,214.22 inclGST

  • View options

    93.32.13.004.0, Busbar Mounting KIT for LT 505-S and LT 1005-S for 12 x 40mm busbar

    Out of stock

    93.32.13.004.0, Busbar Mounting KIT for LT 505-S and LT 1005-S  for 12 x 40mm busbar Product Datasheet

    Read more

    Out of stock

    $47.00
    $55.46 inclGST

    View options

  • LT 10000-S, C/L Hall Effect current transducer, Ipn = 10000 Amp, Isn = 1000mA, +/-48..60VDC Supply

    View options

    LT 10000-S, C/L Hall Effect current transducer, Ipn = 10000 Amp, Isn = 1000mA, +/-48..60VDC Supply

    Out of stock

    LEM LT 10000-S, C/L Hall Effect current transducer, Ipn = 10000 Amp, Isn = 1000mA, +/-48..60VDC Supply Features Bipolar and insulated current measurement up tp 6000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 10000-S Technology Closed Loop Hall Effect Aperture 200mm ROHS Yes Supply Voltage +/- 48 VDC to +/- 60 VDC Bipolar, Isolated Load Current (RMS + DC) 10000 Amp Measurement Range +/- 15000 Amp (with +/-60VDC Supply) Output 1000 mA Isolation 10 kV Bandwidth DC-100 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.5% Termination Style M5 threaded studs Unit Weight 17kg Factory Pack Quantity 1   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    Out of stock

    $12,689.00
    $14,973.02 inclGST

    View options

  • LT 1005-S/SP29, C/L Current Transducer,Ipn = 1000A, +/-15/24VDC, 200mA output, X = 0.4%

    View options

    LT 1005-S/SP29, C/L Current Transducer,Ipn = 1000A, +/-15/24VDC, 200mA output, X = 0.4%

    Out of stock

    LEM LT 1005-S/SP29, C/L Current Transducer,Ipn = 1000A, +/-15/24VDC, 200mA output, X = 0.4% Features Bipolar and insulated current measurement up tp 2000 Amp Current output Bandwidth DC to 150kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 SP19 = Ip = +/-2400A, Vc = +/-15..24V, Vd = 12kV, Ta = -40 Deg C(-50 Deg C)..+85 Deg C Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 1005-S/SP29 Technology Closed Loop Hall Effect Aperture ø40.5mm ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 1000 Amp Measurement Range +/- 2400 Amp Output 200 mA Isolation 6 kV Bandwidth DC-150 kHz Mounting Style Panel Mount Operating Temperature Range -10°C / 85°C Accuracy 0.4% Termination Style M4 theaded studs Unit Weight 850g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    Out of stock

    $1,130.00
    $1,333.40 inclGST

    View options

  • LEM International SA AC/DC Current Hall Effect Sensor LT 4000-T C/L Hall Effect Current Sensor, Ipn = 4000 Amp, Isn = 800mA, +/-24VDC Supply, Busbar, X = 0.5%, panel mount FE-LT 4000-T

    View options

    LT 4000-T/SP42, C/L Hall Effect Current Sensor, Ipn = 4400 Amp (+/-12000 Amp Measurement Range), Isn = 880mA, +/-60VDC Supply, 60mm Busbar, X = 0.2%, Busbar/Panel Mount

    Out of stock

    LEM LT 4000-T/SP42, C/L Hall Effect Current Sensor, Ipn = 4400 Amp (+/-12000 Amp Measurement Range), Isn = 880mA, +/-60VDC Supply, 60mm Busbar, X = 0.2%, Busbar/Panel Mount Features Bipolar and insulated current measurement up tp 6000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 4000-T/SP42 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/- 60 VDC Bipolar, Isolated Load Current (RMS + DC) 4400 Amp Measurement Range +/- 12000 Amp Output 880 mA Isolation 12 kV Bandwidth DC-100 kHz Mounting Style Busbar Mount Operating Temperature Range -10°C / 85°C Accuracy 0.2% Termination Style M5 threaded studs Unit Weight 12.1kg Factory Pack Quantity 1   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    Out of stock

    $5,528.60
    $6,523.75 inclGST

    View options

  • LT 505-T/SP22, C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, w/ busbar, +/-15..24VDC, X = 0.6%, SP22 = -40 to 85 Deg, M4 stud Secondary Connections

    View options

    LT 505-T/SP22, C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, w/ busbar, +/-15..24VDC, X = 0.6%, SP22 = -40 to 85 Deg, M4 stud Secondary Connections

    Out of stock

    LEM LT 505-T C/L Hall Effect Current Sensor, 500 Amp, 100mA Output, w/ busbar, +/-15..24VDC, X = 0.6%, Can replace LT 505-T/SP3 Features Bipolar and Insuated current measurement up tp 1200 Amp Current output Bandwidth DC to 150kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offest drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 505-T Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 500 Amp Measurement Range +/- 1200 Amp Output 100 mA Isolation 6 kV Bandwidth DC-150 kHz Mounting Style Busbar Mount Operating Temperature Range -10°C / 85°C Accuracy 0.6% Termination Style Faston 6.3 x 0.8mm Unit Weight 850g Factory Pack Quantity 4   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    Out of stock

    $654.20
    $771.96 inclGST

    View options

  • LAC 300-S/SP1, C/L Hall Effect Current Sensor, 300 Amp, 150mA Output, 30 x 13mm Aperture, +/-15V Supply, Panel Mount, X = 0.9%

    View options

    LAC 300-S/SP1, C/L Hall Effect Current Sensor, 300 Amp, 150mA Output, 30 x 13mm Aperture, +/-15V Supply, Panel Mount, X = 0.9%

    Out of stock

    LEM LAC 300-S/SP1, C/L Hall Effect Current Sensor, 300 Amp, 150mA Output, 30 x 13mm Aperture, +/-15V Supply, Panel Mount, X = 0.9% Features Bandwidth DC to 50kHz Closed loop transducer using Hall effect Compact and versatile PCB Mounted with Strain Relief Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Water Treatment Electronics Specification LEM Part Number LAC 300-S/SP1 Technology Closed Loop Hall Effect Aperture 13 x 11mm ROHS Yes Supply Voltage +/-15 VDC Bipolar, Isolated Load Current (RMS + DC) 300 Amp Measurement Range +/-700 Amp Output 150mA Isolation 5.5 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -10°C / 85°C Accuracy 0.9% Termination Style Molex series 70543-0003 Unit Weight 137g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    Out of stock

    $158.70
    $187.27 inclGST

    View options

  • LEM International SA AC/DC Current Hall Effect Sensor LT 4000-T C/L Hall Effect Current Sensor, Ipn = 4000 Amp, Isn = 800mA, +/-24VDC Supply, Busbar, X = 0.5%, panel mount FE-LT 4000-T

    View options

    LT 4000-T/SP35, C/L Hall Effect Current Sensor, +/-24VDC Supply, Isn = 800mA, 100m Busbar Mount, X = 0.5%, Secondary Connection by AMP CPC 13/9

    Out of stock

    LEM LT 4000-T/SP35, C/L Hall Effect Current Sensor, +/-24VDC Supply, Isn = 800mA, 100m Busbar Mount, X = 0.5%, Secondary Connection by AMP CPC 13/9 Features Bipolar and insulated current measurement up tp 6000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 4000-T/SP35 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 4000 Amp Measurement Range +/- 6000 Amp Output 800 mA Isolation 6 kV Bandwidth DC-100 kHz Mounting Style Busbar Mount Operating Temperature Range -10°C / 85°C Accuracy 0.5% Termination Style AMP CPC 13/9 Unit Weight 12.1kg Factory Pack Quantity 1   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    Out of stock

    $7,365.80
    $8,691.64 inclGST

    View options

  • LEM International SA AC/DC Current Hall Effect Sensor LT 4000-T C/L Hall Effect Current Sensor, Ipn = 4000 Amp, Isn = 800mA, +/-24VDC Supply, Busbar, X = 0.5%, panel mount FE-LT 4000-T

    View options

    LT 4000-T/SP11, C/L Hall Effect Current Sensor, +/-24VDC Supply, Isn = 800mA, 100mm Busbar Mount, X = 0.5%, Secondary Connection by LEMOEGJ.1B.305.CYC

    Out of stock

    LEM LT 4000-T/SP11, C/L Hall Effect Current Sensor, +/-24VDC Supply, Isn = 800mA, 100mm Busbar Mount, X = 0.5%, Secondary Connection by LEMOEGJ.1B.305.CYC Features Bipolar and insulated current measurement up tp 6000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 4000-T/SP11 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 4000 Amp Measurement Range +/- 6000 Amp Output 800 mA Isolation 6 kV Bandwidth DC-100 kHz Mounting Style Busbar Mount Operating Temperature Range -10°C / 85°C Accuracy 0.5% Termination Style LEMOEGJ.1B.305.CYC Unit Weight 12.1kg Factory Pack Quantity 1   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    Out of stock

    $7,365.80
    $8,691.64 inclGST

    View options

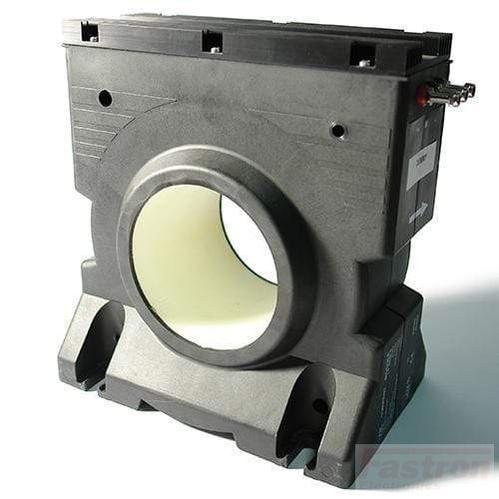

  • LT 4000-S/SP24 C/L Hall Effect Current Sensor, Ipn = 3300 Amp, Isn = 660mA, +/-24VDC Supply, Busbar, X = 0.5%, panel mount

    View options

    LT 4000-S/SP24 C/L Hall Effect Current Sensor, Ipn = 3300 Amp, Isn = 660mA, +/-24VDC Supply, Busbar, X = 0.5%, panel mount

    Out of stock

    LEM LT 4000-S/SP24 C/L Hall Effect Current Sensor, Ipn = 3300 Amp, Isn = 660mA, +/-24VDC Supply, Busbar, X = 0.5%, panel mount Features Bipolar and insulated current measurement up tp 6000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LT 4000-S/SP24 Technology Closed Loop Hall Effect Aperture No Aperture ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 3300 Amp Measurement Range +/- 6000 Amp Output 660 mA Isolation 6 kV Bandwidth DC-100 kHz Mounting Style Busbar Mount Operating Temperature Range -10°C / 85°C Accuracy 0.5% Termination Style M5 threaded studs Unit Weight 12.1kg Factory Pack Quantity 1 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    Out of stock

    $4,976.10
    $5,871.80 inclGST

    View options

  • LTC 1000-SF/SP14 C/L Hall Effect Current Sensor, 1000 Amp, 250mA Output, +/-15..24V, Panel Mount, w/ feet to match LT 1000-S/SP71, X = 0.4%

    LTC 1000-SF/SP14 C/L Hall Effect Current Sensor, 1000 Amp, 250mA Output, +/-15..24V, Panel Mount, w/ feet to match LT 1000-S/SP71, X = 0.4%

    100 pcs in stock

    LEM LTC 1000-SF/SP14 Series Open Loop AC/DC Hall Effect Sensor Features Drop in replacement for LT 1000-SI/SP71 with 4 pin connection (Ground) Bipolar and insulated current measurement up tp 3000 Amp Current output Bandwidth DC to 100kHz Closed loop (compensated) current transducer Panel mounting Insulated plastic case recognized according to UL 94-V0 Advantages Very good linearity High accuracy Low offset drift over temperature Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications Railway Equipment Windmill Inverters Test and Measurement Substations AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Application Domain Industrial Standards EN 50178:1997 IEC61010-1:2010 UL 508:2010 Specification LEM Part Number LTC 1000-SF/SP14 Technology Closed Loop Hall Effect Aperture ø42mm ROHS Yes Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated Load Current (RMS + DC) 1000 Amp Measurement Range +/- 3000 Amp Output 250 mA Isolation 13.4 kV Bandwidth DC-100 kHz Mounting Style Panel Mount (with Feet to match LT 1000-S/SP71) Operating Temperature Range -10°C / 85°C Accuracy 0.4% Termination Style Faston 6.3 x 0.8mm Unit Weight 900g Factory Pack Quantity 6   Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

    Read more

    100 pcs in stock

    $749.50
    $884.41 inclGST
