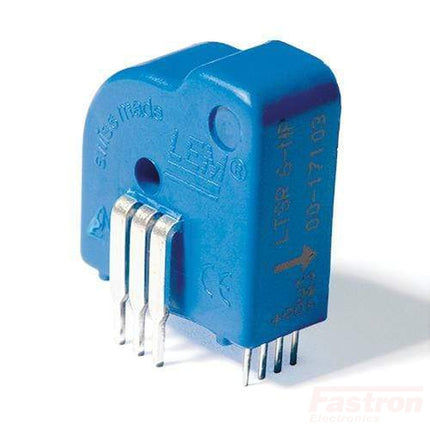

LEM Part Number	LTSP 25-NP
Technology	Closed Loop Multirange Hall Effect
Aperture	ø3.2mm
ROHS	Yes
Supply Voltage	5 VDC
Load Current (RMS + DC)	25 Amp
Measurement Range	+/-80 Amp
Output	2.5 Vref
Isolation	3 kV
Bandwidth	DC-300 kHz
Mounting Style	PCB Mount
Operating Temperature Range	-40°C / 85°C
Accuracy	0.2%
Termination Style	PCB
Unit Weight	9g
Factory Packaging	3

• Product Datasheet

• LEM Applications Manual 3rd Edition

• LXSR 25-NPS
• LTSR 25-NP
