HLSR 50-SM/SP33, O/L Hall Effect Current Sensor, 50 Amp, 0-3.3V Out, PCB Mount
LEM HLSR 50-SM/SP33 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 3.3 V Galvanic isolation between primary and secondary Low power consumption Compact design for Surface mount PCB mounting Factory calibrated. High bandwidth, very low loss magnetic core Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2010 IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 50-SM/SP33 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-125 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style Surface Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Packaging 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$27.60
$32.57 inclGST -
HLSR 50-PW-080, O/L Hall Effect Current Sensor, 50 Amp, 0-5V Out, PCB Mount
LEM HLSR 50-PW-080 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 50-PW-080 Technology Open Loop Multi Range Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-125 Amp Output 2W CMOS CLK In Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$36.00
$42.48 inclGST -
HLSR 50-PW-030, O/L Hall Effect Current Sensor, 50 Amp, 0-5V Out, PCB Mount
LEM HLSR 50-PW-030 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 50-PW-030 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-125 Amp Output 2W LVDS Manchester Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$36.00
$42.48 inclGST -
HLSR 50-PW-010, O/L Hall Effect Current Sensor, 50 Amp, 0-5V Out, PCB Mount
LEM HLSR 50-PW-010 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 50-PW-010 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-125 Amp Output 2W RS422 Manchester Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$36.00
$42.48 inclGST -

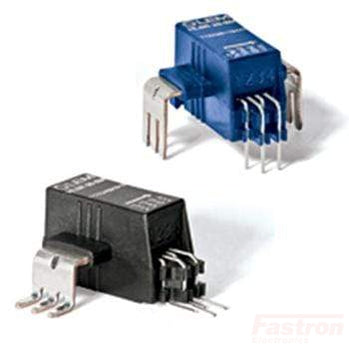

HLSR 50-PW-000, O/L Hall Effect Current Sensor, 50 Amp, 0-5V Out, PCB Mount
LEM HLSR 50-PW-000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 50-PW-000 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 50 Amp Measurement Range +/-125 Amp Output 2W CMOS CLK Out Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$36.00
$42.48 inclGST -
HLSR 40-SM/SP33, O/L Hall Effect Current Sensor, 40 Amp, 0-3.3V Out, PCB Mount
LEM HLSR 40-SM/SP33 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 3.3 V Galvanic isolation between primary and secondary Low power consumption Compact design for Surface mount PCB mounting Factory calibrated. High bandwidth, very low loss magnetic core Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2010 IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 40-SM/SP33 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 40 Amp Measurement Range +/-100 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style Surface Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Packaging 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$27.60
$32.57 inclGST -

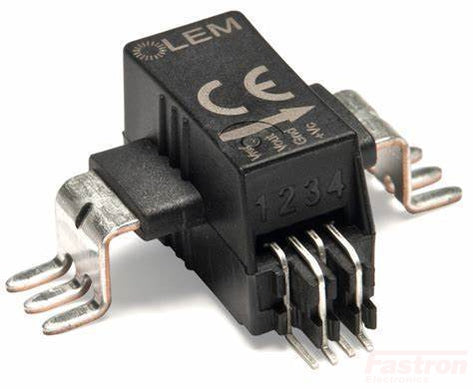

HLSR 40-P/SP33, O/L Hall Effect Current Sensor, 40 Amp, 0-3.3V Out, PCB Mount
LEM HLSR 40-P/SP33 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 3.3 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 40-P Technology Open Loop Multi Range Hall Effect Aperture None ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 40 Amp Measurement Range +/-100 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$27.60
$32.57 inclGST -
HLSR 40-PW-080, O/L Hall Effect Current Sensor, 40 Amp, 0-5V Out, PCB Mount
LEM HLSR 40-PW-080 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 40-PW-080 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 40 Amp Measurement Range +/-100 Amp Output 2W CMOS CLK In Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$36.00
$42.48 inclGST -
HLSR 40-PW-030, O/L Hall Effect Current Sensor, 40 Amp, 0-5V Out, PCB Mount
LEM HLSR 40-PW-030 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 40-PW-030 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 40 Amp Measurement Range +/-100 Amp Output 2W LVDS Manchester Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$36.00
$42.48 inclGST -
HLSR 40-PW-010, O/L Hall Effect Current Sensor, 40 Amp, 0-5V Out, PCB Mount
LEM HLSR 40-PW-010 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 40-PW-010 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 40 Amp Measurement Range +/-100 Amp Output 2W RS422 Manchester Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$36.00
$42.48 inclGST -
HLSR 40-PW-000, O/L Hall Effect Current Sensor, 40 Amp, 0-5V Out, PCB Mount
LEM HLSR 40-PW-000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 40-PW-000 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 40 Amp Measurement Range +/-100 Amp Output 2W CMOS CLK Out Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$36.00
$42.48 inclGST -
HLSR 40-P, O/L Hall Effect Current Sensor, 40 Amp, 5VDC Supply, PCB Mount
LEM HLSR 40-P Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 40-P Technology Open Loop Multi Range Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 40 Amp Measurement Range +/-100 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$27.60
$32.57 inclGST
