LEM HLSR 32-SM/SP33, Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 3.3 V Galvanic isolation between primary and secondary Low power consumption Compact design for Surface mount PCB mounting Factory calibrated. High bandwidth, very low loss magnetic core Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2010 IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 32-SM/SP33 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 32 Amp Measurement Range +/-80 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style Surface Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Packaging 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HLSR 32-P/SP33 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 3.3 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 32-P Technology Open Loop Multi Range Hall Effect Aperture None ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 32 Amp Measurement Range +/-80 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HLSR 32-PW-080 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 32-PW-080 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 32 Amp Measurement Range +/-80 Amp Output 2W CMOS CLK In Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HLSR 32-PW-030 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 32-PW-030 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 32 Amp Measurement Range +/-80 Amp Output 2W LVDS Manchester Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HLSR 32-PW-010 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 32-PW-010 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 32 Amp Measurement Range +/-80 Amp Output 2W RS422 Manchester Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HLSR 32-PW-000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 32-PW-000 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 32 Amp Measurement Range +/-80 Amp Output 2W CMOS CLK Out Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

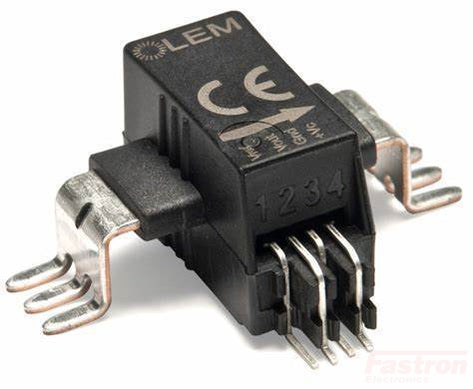

LEM HLSR 32-P Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Voltage output 4.3kV Isolation Frequency bandwidth 240kHz Single supply + 5 V Galvanic isolation between primary and secondary Low power consumption Compact design for THT PCB mounting Factory calibrated. Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2004 - UR marking pending IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 32-P Technology Open Loop Multi Range Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 32 Amp Measurement Range +/-80 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

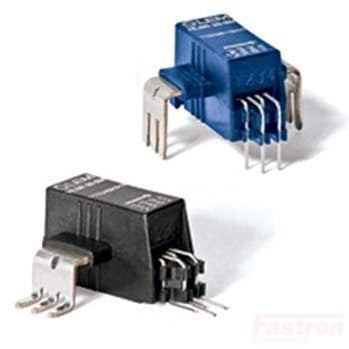

LEM HLSR 20-SM/SP33 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output 4.3kV Isolation Frequency bandwidth 400kHz Single supply + 3.3 V Galvanic isolation between primary and secondary Low power consumption Compact design for Surface mount PCB mounting Factory calibrated. High bandwidth, very low loss magnetic core Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards EN 50178: 1997 UL 508: 2010 IEC 61326-1: 2012 IEC 61010-1: 2010 (safety) Application Domain Industrial Specification LEM Part Number HLSR 20-SM/SP33 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 20 Amp Measurement Range +/-50 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-450 kHz Mounting Style Surface Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Packaging 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HLSR 16-PW-080 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 16-PW-080 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 16 Amp Measurement Range +/-40 Amp Output 2W CMOS CLK In Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HLSR 16-PW-030 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 16-PW-030 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 16 Amp Measurement Range +/-40 Amp Output 2W LVDS Manchester Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HLSR 16-PW-010 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 16-PW-010 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 16 Amp Measurement Range +/-40 Amp Output 2W RS422 Manchester Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HLSR 16-PW-000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Bitstream output from 2nd order Sigma-Delta modulator, (PDM) Pulse Density Modulation Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption Compact design for through-hole PCB mounting Factory calibrated High bandwidth, very low loss magnetic core Dedicated parameter settings available on request Advantages Extremely low profile: h = 12mm Low foot-print Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box MPPT Standards IEC 61800-3: 2017 IEC 61800-5-1: 2007 IEC 61800-2: 2015 IEC 62109-1: 2010 UL 508: 2013 IEC 61326-1: 2012 Application Domain Industrial Specification LEM Part Number HLSR 16-PW-000 Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 16 Amp Measurement Range +/-40 Amp Output 2W CMOS CLK Out Isolation 4.3 kV Bandwidth DC-400 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
