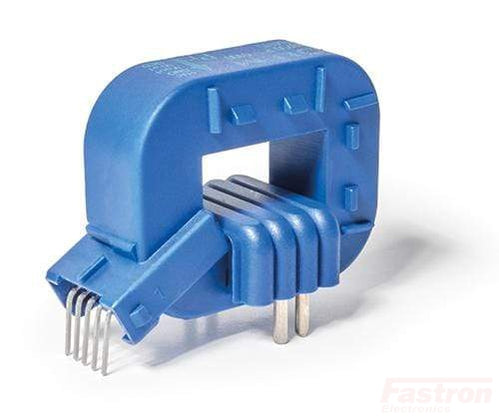

LEM HO 180-P-0100 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 180-P-0100 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 180 Amp Measurement Range +/-450 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB/Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Mount Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HO 150-PW-0000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) EEPROM Control Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 150-PW-0000 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 150 Amp Measurement Range +/-375 Amp Output Sigma Delta Bitstream Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB/Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Through Hole Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HO 15-NP/SP33-1000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Multirange through PCB routing Voltage output Single power supply +3.3 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Factory calibrated Compact design for PCB mounting Factory calibrated Repositionable mounting foot Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 15-NP/SP33-1000 Technology Open Loop Hall Effect Aperture N/A ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 15 Amp Measurement Range +/-37.5 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-250 kHz Mounting Style PCB Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Through Hole Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

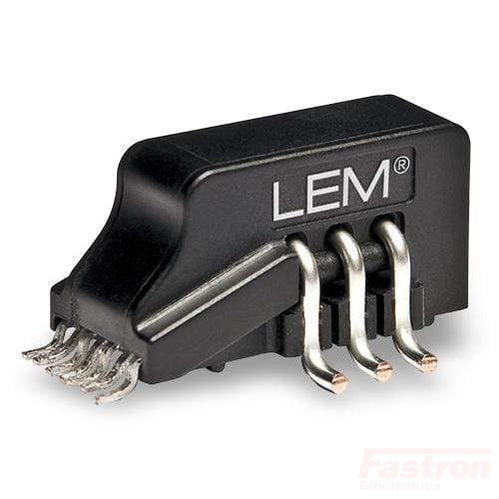

LEM HO 15-NP-0000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Multi range through pcb routing Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Factory calibrated Compact design for PCB mounting Factory calibrated Repositionable mounting foot Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 15-NP-0000 KIt 5pcs Technology Open Loop Hall Effect Aperture N/A ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 15 Amp Measurement Range +/-37.5 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-250 kHz Mounting Style PCB Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Through Hole Unit Weight 5g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HO 120-P-0100 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 120-P-0100 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 120 Amp Measurement Range +/-300 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB/Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Mount Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HO 100-PW-0000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 100-PW-0000 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 100 Amp Measurement Range +/-250 Amp Output Sigma Delta Bitstream Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB/Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Through Hole Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

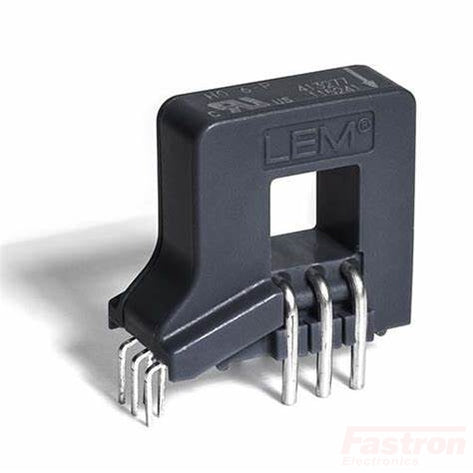

LEM HO 10-P/SP33 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Fixed offset & sensitivity Voltage output Single supply +3.3 V Overcurrent detect 2.63 × IPN (peak value) Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting 8x8mm Aperture Advantages Small size and space saving Same package for wide primary current range Creepage / clearance > 8 mm High immunity to external interference Fast response High insulation capability Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards EN 50178: 1997 IEC 61010-1: 2010 IEC 61326-1: 2012 UL 508: 2010 Application Domain Industrial. Specification LEM Part Number HO 10-P/SP33 Technology Open Loop Hall Effect Aperture 8 x 8mm ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 10 Amp Measurement Range +/-25 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-250 kHz Mounting Style Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.35% Termination Style PCB Through Hole Unit Weight 10g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HMS 20-P Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption SMT PCB mounting Factory calibrated Advantages Small Size and space saving Singe paclage for wide current ranges 5 -> 20 Amp High Immunity to external interference Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards IEC 61010-1 EN50178 Application Domain Industrial Specification LEM Part Number HMS 20-P Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 20 Amp Measurement Range +/-60 Amp Output 2W RS422 Manchester Isolation 4.3 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style PCB Unit Weight 6g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HMS 15-P Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption SMT PCB mounting Factory calibrated Advantages Small Size and space saving Singe paclage for wide current ranges 5 -> 20 Amp High Immunity to external interference Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards IEC 61010-1 EN50178 Application Domain Industrial Specification LEM Part Number HMS 15-P Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 15 Amp Measurement Range +/-45 Amp Output 2W RS422 Manchester Isolation 4.3 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style PCB Unit Weight 6g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition

Read more less

LEM HMS 05-P Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Single supply +5 V Galvanic separation between primary and secondary circuit Low power consumption SMT PCB mounting Factory calibrated Advantages Small Size and space saving Singe paclage for wide current ranges 5 -> 20 Amp High Immunity to external interference Low offset drift Over-drivable VREF Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Standards IEC 61010-1 EN50178 Application Domain Industrial Specification LEM Part Number HMS 05-P Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 5 Amp Measurement Range +/-15 Amp Output 2W RS422 Manchester Isolation 4.3 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style PCB Unit Weight 6g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
