LEM Hall Effect Current Sensors PCB Mount
-
HO 60-P-0100, O/L Hall Effect Current Sensor, 60 Amp, 15 x 8mm Aperture, Digital Bitsream Output, Vref = 2.5V, PCB Mount
LEM HO 60-P-0100 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 60-P-0100 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 60 Amp Measurement Range +/-150 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB/Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Mount Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$40.63
$47.94 inclGST -

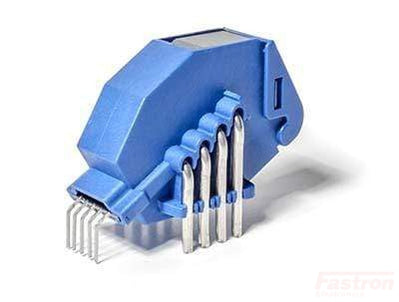

HO 60-NP-1100, O/L Multi Range Hall Effect Current Sensor, 60 Amp, No Aperture, Vref = 1.65V, PCB Mount
LEM HO 60-NP-1100 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Multirange through PCB routing Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Factory calibrated Compact design for PCB mounting Factory calibrated Repositionable mounting foot Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 60-NP-1100 Technology Open Loop Hall Effect Aperture N/A ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 60 Amp Measurement Range +/-150 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-350 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 105°C Accuracy 1.5% Termination Style PCB Through Hole Unit Weight 32g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$46.00
$54.28 inclGST -
HO 60-NP-0100, O/L Multi Range Hall Effect Current Sensor, 60 Amp, No Aperture, Digital Bitsream Output, Vref = 2.5V, PCB Mount
LEM HO 60-NP-0100 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Muti range through PCB routing Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Factory calibrated Compact design for PCB mounting Factory calibrated Repositionable mounting foot Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 60-NP-0100 Technology Open Loop Hall Effect Aperture N/A ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 60 Amp Measurement Range +/-150 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-350 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 105°C Accuracy 1.5% Termination Style PCB Through Hole Unit Weight 32g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$46.00
$54.28 inclGST -

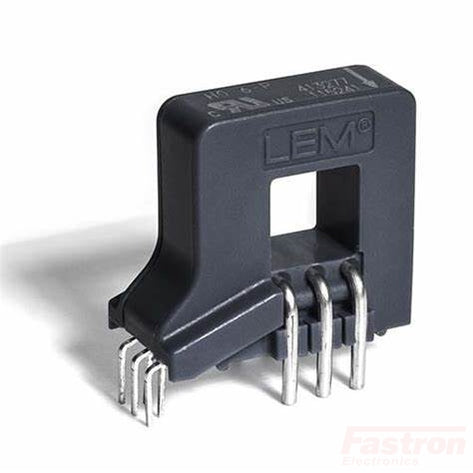

HO 6-P/SP33, O/L Hall Effect Current Sensor, 6 Amp, 8 x 8mm Aperture, 0-3.3V Out, Vref = 1.65V, PCB Mount
LEM HO 6-P/SP33 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Fixed offset & sensitivity Voltage output Single supply +3.3 V Overcurrent detect 2.63 × IPN (peak value) Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting 8x8mm Aperture Advantages Small size and space saving Same package for wide primary current range Creepage / clearance > 8 mm High immunity to external interference Fast response High insulation capability Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards EN 50178: 1997 IEC 61010-1: 2010 IEC 61326-1: 2012 UL 508: 2010 Application Domain Industrial. Specification LEM Part Number HO 6-P/SP33 Technology Open Loop Hall Effect Aperture 8 x 8mm ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 6 Amp Measurement Range +/-20 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-250 kHz Mounting Style Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.35% Termination Style PCB Through Hole Unit Weight 10g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$34.00
$40.12 inclGST -
HO 6-P, O/L Hall Effect Current Sensor, 6 Amp, 8 x 8mm Aperture, 5VDC Supply, PCB Mount
LEM HO 6-P Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Fixed offset & sensitivity Voltage output Single supply +5 V Overcurrent detect 2.63 × IPN (peak value) Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting 8x8mm Aperture Advantages Small size and space saving Same package for wide primary current range Creepage / clearance > 8 mm High immunity to external interference Fast response High insulation capability Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards EN 50178: 1997 IEC 61010-1: 2010 IEC 61326-1: 2012 UL 508: 2010 Application Domain Industrial. Specification LEM Part Number HO 6-P Technology Open Loop Hall Effect Aperture 8 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 6 Amp Measurement Range +/-20 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-250 kHz Mounting Style Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.35% Termination Style PCB Through Hole Unit Weight 10g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$12.55
$14.81 inclGST -
HO 40-NP-0100, O/L Multi Range Hall Effect Current Sensor, 40 Amp, No Aperture, Vref = 2.5V, PCB Mount
LEM HO 40-NP-0100 Series Opwn Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Muti range through PCB routing Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Factory calibrated Compact design for PCB mounting Factory calibrated Repositionable mounting foot Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 40-NP-0100 Technology Open Loop Hall Effect Aperture N/A ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 40 Amp Measurement Range +/-100 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-350 kHz Mounting Style Panel Mount Operating Temperature Range -40°C / 105°C Accuracy 1.5% Termination Style PCB Through Hole Unit Weight 32g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$46.00
$54.28 inclGST -
HO 250-PW-0000, O/L Hall Effect Current Sensor, 250 Amp, 15 x 8mm Aperture, EEPROM Control, Sigma Delta Output, Vref = 2.5V, THT PCB Mount
LEM HO 250-PW-0000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) EEPROM Control Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 250-PW-0000 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 250 Amp Measurement Range +/-625 Amp Output Sigma Delta Bitstream Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB/Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Through Hole Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$43.00
$50.74 inclGST -
HO 250-P-0100, O/L Hall Effect Current Sensor, 250 Amp, 15 x 8mm Aperture, Vref = 2.5V, PCB Mount
LEM HO 250-P-0100 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 250-P-0100 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 250 Amp Measurement Range +/-625 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB/Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Mount Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$43.00
$50.74 inclGST -
HO 25-P/SP33, O/L Hall Effect Current Sensor, 25 Amp, 8 x 8mm Aperture, 0-3.3V Out, Vref = 1.65V, PCB Mount
LEM HO 25-P/SP33 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Fixed offset & sensitivity Voltage output Single supply +3.3 V Overcurrent detect 2.63 × IPN (peak value) Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting Aperture: 8 × 8 mm Advantages Small size and space saving Same package for wide primary current range Creepage / clearance > 8 mm High immunity to external interference Fast response High insulation capability Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards EN 50178: 1997 IEC 61010-1: 2010 IEC 61326-1: 2012 UL 508: 2010 Application Domain Industrial. Specification LEM Part Number HO 25-P/SP33 Technology Open Loop Hall Effect Aperture 8 x 8mm ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 25 Amp Measurement Range +/-62.5 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-250 kHz Mounting Style Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.35% Termination Style PCB Through Hole Unit Weight 10g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$36.00
$42.48 inclGST -
HO 25-P, O/L Hall Effect Current Sensor, 25 Amp, 8 x 8mm Aperture, 5VDC Supply, PCB Mount
LEM HO 25-P Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Fixed offset & sensitivity Voltage output Single supply +5 V Overcurrent detect 2.63 × IPN (peak value) Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting 8x8mm Aperture Advantages Small size and space saving Same package for wide primary current range Creepage / clearance > 8 mm High immunity to external interference Fast response High insulation capability Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards EN 50178: 1997 IEC 61010-1: 2010 IEC 61326-1: 2012 UL 508: 2010 Application Domain Industrial. Specification LEM Part Number HO 25-P Technology Open Loop Hall Effect Aperture 8 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 25 Amp Measurement Range +/-62.5 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-250 kHz Mounting Style Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.35% Termination Style PCB Through Hole Unit Weight 10g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$24.20
$28.56 inclGST -
HO 240-P-0100, O/L Hall Effect Current Sensor, 240 Amp, 15 x 8mm Aperture, PCB Mount
LEM HO 240-P-0100 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 240-P-0100 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 240 Amp Measurement Range +/-600 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB/Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Mount Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$44.20
$52.16 inclGST -

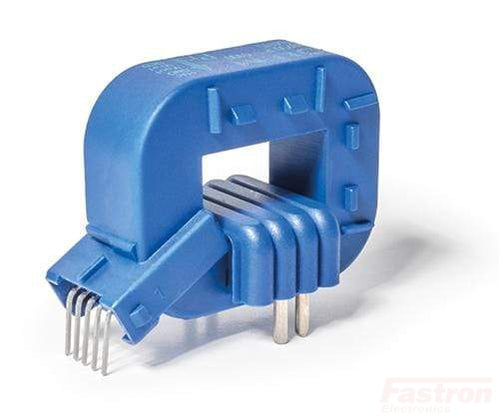

HO 200-PW-0000, O/L Hall Effect Current Sensor, 200 Amp, 15 x 8mm Aperture, EEPROM Control, Sigma Delta Output, THT PCB Mount
LEM HO 200-PW-0000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) EEPROM Control Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 250-PW-0000 Technology Open Loop Hall Effect Aperture 15 x 8mm ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 200 Amp Measurement Range +/-500 Amp Output Sigma Delta Bitstream Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB/Busbar Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Through Hole Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$51.00
$60.18 inclGST
