LEM Hall Effect Current Sensors PCB Mount
-
HX 03-P Hall Effect Current Sensor, 3 Amp, +/-4V output, no aperture, +/-15V Supply, PCB Mount, X = 1%
LEM HXN 03-P Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single supply +5 V Galvanic separation between primary and secondary circuit For PCB mounting No Aperture Advantages Small size and space saving Same package for wide primary current range High immunity to external interference Fast response High insulation capability Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards EN 50178: 1997 IEC 61010-1: 2010 IEC 61326-1: 2012 UL 508: 2010 Application Domain Industrial. Specification LEM Part Number HX 03-P Technology Open Loop Hall Effect Aperture None ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 3 Amp Measurement Range +/-6 Amp Output 2.5 Vref Isolation 3 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1.35% Termination Style PCB Through Hole Unit Weight 8g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$27.80
$32.80 inclGST -

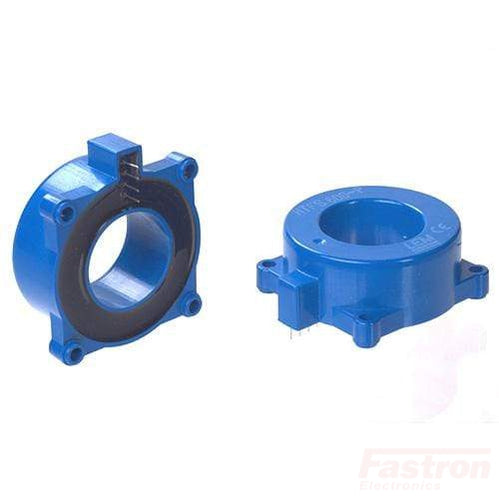

HTFS 400-P, O/L Hall Effect Current Sensor, 400 Amp, 5VDC Supply, PCB Mount, X = 1%
LEM HTFS 400-P, Open Loop Hall Effect Current Sensor, 200 Amp, 5VDC Supply, PCB Mount, X = 1% Features Bandwidth DC to 240kHz Open loop transducer using Hall effect Compact and versatile Uinique PCB Mounting Insulated plastic case recognized according to UL 94-V0 Advantages Fixed offset Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification LEM Part Number HTFS 400-P Technology Open Loop Hall Effect Aperture ø 22mm ROHS Yes Supply Voltage 5 VDC Bipolar, Isolated Load Current (RMS + DC) 400 Amp Measurement Range +/-600 Amp Output 1.65Vref Isolation 2.5 kV Bandwidth DC-240 kHz Mounting Style PCB Mount (fixation with 4 pins 1mm) Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 60g Factory Pack Quantity 10 Datasheet Product Datasheet
$26.08
$30.77 inclGST -
HTFS 200-P, O/L Hall Effect Current Sensor, 200 Amp, 5VDC Supply, PCB Mount, X = 1%
LEM HTFS 200-P, Open Loop Hall Effect Current Sensor, 200 Amp, 5VDC Supply, PCB Mount, X = 1% Features Bandwidth DC to 240kHz Open loop transducer using Hall effect Compact and versatile Uinique PCB Mounting Insulated plastic case recognized according to UL 94-V0 Advantages Fixed offset Very good linearity Very good accuracy Low temperature drift Wide frequency bandwidth Very low insertion losses High immunity to external interference Current overload capability Low power consumption Applications AC variable speed drives and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications. Specification LEM Part Number HTFS 200-P Technology Open Loop Hall Effect Aperture ø 22mm ROHS Yes Supply Voltage 5 VDC Bipolar, Isolated Load Current (RMS + DC) 200 Amp Measurement Range +/-300 Amp Output 1.65Vref Isolation 2.5 kV Bandwidth DC-240 kHz Mounting Style PCB Mount (fixation with 4 pins 1mm) Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Unit Weight 60g Factory Pack Quantity 10 Datasheet Product Datasheet
$46.60
$54.99 inclGST -
HTB 50-TP, Hall Effect Current Sensor, 50 Amp, +/-4V Output, +/-12..15V Supply, 16mm Aperture, PCB Mount, X = 1%
LEM HTB 50-TP Series Closed Loop AC/DC Hall Effect Sensor Features Open loop hall effect current transducer Voltage output Single supply +/- 12..15VDC Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting Aperture: Ø16mm Factory calibrated Advantages Low offset drift Large Aperture Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-3: 2004 Application Domain Industrial. Specification LEM Part Number HTB 50-TP Technology Open Loop Hall Effect Aperture Ø 16mm ROHS Yes Supply Voltage +/-12..15V VDC Load Current (RMS + DC) 50 Amp Measurement Range +/- 150 Amp Output +/- 4V Isolation 5.4 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -20°C / 80°C Accuracy 1% Termination Style PCB Unit Weight 36g Factory Pack Quantity 10 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$53.50
$63.13 inclGST -
HTB 50-P, Hall Effect Current Sensor, 50 Amp, +/-4V Output, +/-12..15V Supply, 16mm Aperture, PCB Mount, X = 1%
LEM HTB 50-P Series Closed Loop AC/DC Hall Effect Sensor Features Open loop hall effect current transducer Voltage output Single supply +/- 12..15VDC Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting Aperture: Ø16mm Factory calibrated Advantages Low offset drift Large Aperture Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-3: 2004 Application Domain Industrial. Specification LEM Part Number HTB 50-P Technology Open Loop Hall Effect Aperture Ø 16mm ROHS Yes Supply Voltage +/-12..15V VDC Load Current (RMS + DC) 50 Amp Measurement Range +/- 150 Amp Output +/- 4V Isolation 5.4 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -20°C / 80°C Accuracy 1% Termination Style PCB Unit Weight 36g Factory Pack Quantity 10 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$53.50
$63.13 inclGST -
HTB 300-P, Hall Effect Current Sensor, 300 Amp, +/-4V Output, +/-12..15V Supply, PCB Mount, 16mm Aperture, X = 1%
LEM HTB 300-P Series Closed Loop AC/DC Hall Effect Sensor Features Open loop hall effect current transducer Voltage output Single supply +/- 12..15VDC Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting Aperture: Ø16mm Factory calibrated Advantages Low offset drift Large Aperture Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-3: 2004 Application Domain Industrial. Specification LEM Part Number HTB 300-P Technology Open Loop Hall Effect Aperture Ø 16mm ROHS Yes Supply Voltage +/-12..15V VDC Load Current (RMS + DC) 300 Amp Measurement Range +/- 600 Amp Output +/- 4V Isolation 5.4 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -20°C / 80°C Accuracy 1% Termination Style PCB Unit Weight 36g Factory Pack Quantity 10 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$53.50
$63.13 inclGST -
HTB 200-P, Hall Effect Current Sensor, 200 Amp, +/-4V Output, +/-12..15V Supply, PCB Mount, 16mm Aperture, X = 1%
LEM HTB 200-P Series Closed Loop AC/DC Hall Effect Sensor Features Open loop hall effect current transducer Voltage output Single supply +/- 12..15VDC Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting Aperture: Ø16mm Factory calibrated Advantages Low offset drift Large Aperture Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-3: 2004 Application Domain Industrial. Specification LEM Part Number HTB 200-P Technology Open Loop Hall Effect Aperture Ø 16mm ROHS Yes Supply Voltage +/-12..15V VDC Load Current (RMS + DC) 200 Amp Measurement Range +/-500 Amp Output +/- 4V Isolation 5.4 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -20°C / 80°C Accuracy 1% Termination Style PCB Unit Weight 36g Factory Pack Quantity 10 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$56.43
$66.59 inclGST -
HTB 150-P, Hall Effect Current Sensor, 150 Amp, +/-4V Output, +/-12..15V Supply, 16mm Aperture, PCB Mount, X = 1%
LEM HTB 150-P Series Closed Loop AC/DC Hall Effect Sensor Features Open loop hall effect current transducer Voltage output Single supply +/- 12..15VDC Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting Aperture: Ø16mm Factory calibrated Advantages Low offset drift Large Aperture Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-3: 2004 Application Domain Industrial. Specification LEM Part Number HTB 150-P Technology Open Loop Hall Effect Aperture Ø 16mm ROHS Yes Supply Voltage +/-12..15V VDC Load Current (RMS + DC) 150 Amp Measurement Range +/- 425 Amp Output +/- 4V Isolation 5.4 kV Bandwidth DC-50 kHz Mounting Style PCB Mount Operating Temperature Range -20°C / 80°C Accuracy 1% Termination Style PCB Unit Weight 36g Factory Pack Quantity 10 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$53.50
$63.13 inclGST -

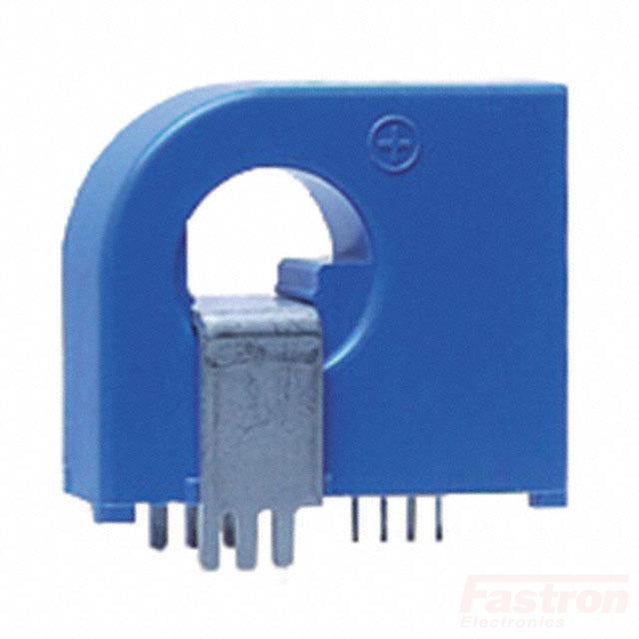

HTB 100-TP, Hall Effect Current Sensor, 100 Amp, +/-4V Output, +/-12..15V Supply, 16mm Aperture, PCB Mount, X = 1%
LEM HTB 100-TP Series Open Loop AC/DC Hall Effect Sensor Features Open loop hall effect current transducer Voltage output Single supply +/- 12..15VDC Galvanic separation between primary and secondary circuit Low power consumption For PCB mounting Aperture: Ø16mm Factory calibrated Advantages Low offset drift Large Aperture Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 ● IEC 62109-1: 2010 ● UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HTB 100-TP Technology Closed Loop Hall Effect Aperture Ø 16mm ROHS Yes Supply Voltage +/-12..15V VDC Load Current (RMS + DC) 100 Amp Measurement Range +/- 150 Amp Output +/- 4V Isolation 5.4 kV Bandwidth DC-50 kHz Mounting Style Busbar Mount Operating Temperature Range -20°C / 80°C Accuracy 1% Termination Style PCB Unit Weight 36g Factory Pack Quantity 10 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$53.50
$63.13 inclGST -

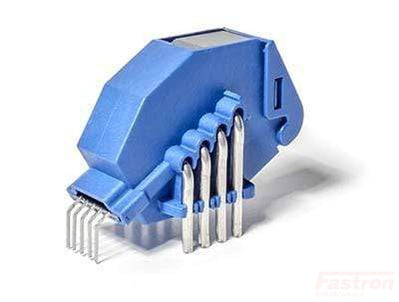

HO 80-PW-0000, O/L Hall Effect Current Sensor, 80 Amp, No Aperture, EEPROM Control, Sigma Delta Output, THT PCB Mount
LEM HO 80-PW-0000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop current transducer Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) EEPROM Control Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Aperture: 15 × 8 mm Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 250-PW-0000 Technology Open Loop Hall Effect Aperture N/A ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 80 Amp Measurement Range +/-400 Amp Output Sigma Delta Bitstream Isolation 4.3 kV Bandwidth DC-100 kHz Mounting Style PCB Mount Operating Temperature Range -40°C / 105°C Accuracy 1.25% Termination Style PCB Through Hole Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$31.00
$36.58 inclGST -
HO 8-NP/SP33-100, O/L Multirange Hall Effect Current Sensor, 8 Amp, No Aperture, 0-3.3V Out, Vref = 1.65V, PCB Mount
LEM HO 8-NP/SP33-100 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Multirange through PCB routing Voltage output Single power supply +3.3 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 8-NP/SP33-100 Technology Open Loop Hall Effect Aperture N/A ROHS Yes Supply Voltage 3.3 VDC Load Current (RMS + DC) 8 Amp Measurement Range +/-20 Amp Output 1.65 Vref Isolation 4.3 kV Bandwidth DC-250 kHz Mounting Style Surface Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Surface Mount Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$31.00
$36.58 inclGST -

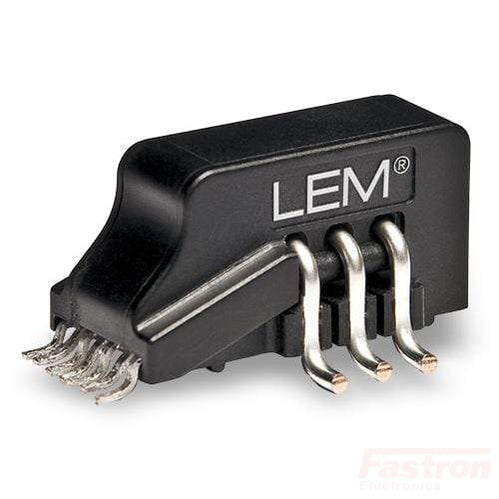

HO 8-NP-0000, O/L Multirange Hall Effect Current Sensor, 8 Amp, No Aperture, 0-5V Out, Vref = 2.5V, PCB Mount
LEM HO 8-NP-0000 Series Open Loop AC/DC Hall Effect Sensor Features Open loop multi-range current transducer Multirange through PCB routing Voltage output Single power supply +5 V Overcurrent detect 2.93 × IP N (peak value) Galvanic separation between primary and secondary circuit Low power consumption Compact design for THT PCB mounting Factory calibrated Dedicated parameter settings available on request Advantages Low offset drift Over-drivable Vref Creepage / clearance > 8 mm Fast response Applications AC variable speed and servo motor drives Static converters for DC motor drives Battery supplied applications Uninterruptible Power Supplies (UPS) Switched Mode Power Supplies (SMPS) Power supplies for welding applications Combiner box Solar inverter on DC side of the inverter (MPPT). Standards IEC 61800-1: 1997 IEC 61800-2: 2015 IEC 61800-3: 2004 IEC 61800-5-1: 2007 IEC 62109-1: 2010 UL 508: 2013. Application Domain Industrial. Specification LEM Part Number HO 8-NP-0000 Technology Open Loop Hall Effect Aperture N/A ROHS Yes Supply Voltage 5 VDC Load Current (RMS + DC) 8 Amp Measurement Range +/-20 Amp Output 2.5 Vref Isolation 4.3 kV Bandwidth DC-250 kHz Mounting Style Surface Mount Operating Temperature Range -40°C / 105°C Accuracy 1% Termination Style PCB Surface Mount Unit Weight 34g Factory Pack Quantity 25 Datasheet Product Datasheet Application Notes LEM Applications Manual 3rd Edition
$31.00
$36.58 inclGST
