Westcode-IXYS-Littlefuse MCC95-18io1B, Dual Thyristor (SCR) Module, 95 Amp, 1800V Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MCC95-18io1B Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 116 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 2.25 kA VF(to) 0.8V Tj(max) 125°C rF 2.4mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.22°C/W R th(c-h) 0.42°C/W Weight 85g Mounting Torque 3.25 Nm (3.25 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See DD100N16S for IXYS replacement. See DD104N14KOF for Infineon Pressure Contact Alternative

Read more less

Semikron SKKT42/16E, Dual Thyristor Module, 42 Amp, 1600V, With Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT42/16E Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 42 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See VSKT105/16 TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less

Semikron SKKT105/18E, Dual Thyristor Module, 105 Amp, 1800V, without Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT105/18E Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 105 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm (without Aux Cathode Connection) Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See VSKT105/16 TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less

Semikron SKKD91/16E, Dual Diode Module, 91 Amp, 1600V Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikron Part Number SKKD91/16E Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 112 Deg C 100 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Tj(max) 150°C I(gt) @ 25 Deg C N/A Terminals M5 Screw Hole Centres 80mm (M6) Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India   Datasheet Product Datasheet Alternatives See VSKD91/16 DD89N14K or DD104N14K for Infineon Alternative

Read more less

Vishay VSKL91/16, Dual Thyristor Module, Common Cathode 91 Amp, 1600V Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Vishay Part Number VSKL91/16 Vrrm 1600V Diode Configuration Dual Thyristor Module, Common cathode IF(av) @ 85 Deg C 95 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Itsm 2.0 kA VF(to) 1.1V Tj(max) 125°C rF 2.38mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm R th(j-c) 0.22°C/W R th(c-h) 0.1°C/W Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India Datasheet OLD Product Datasheet 2018 Product Datasheet Alternatives See TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less

Infineon DD104N16K, Dual Diode Module 104 Amp, 1600V Features Pressure Contact Technology Electrically insulated base plate Industrial standard package 2900V Isolation 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Deep Cycle Operation Rectifiers for UPS Battery Chargers Specification Infineon Part Number DD104N16K Vrrm 1600V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 104 Amp Package Size W:20mm L:93mm D:30mm Itsm 2.9 kA VF(to) 0.7V Tj(max) 150°C rF 2.1mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals N/A R th(j-c) 0.195°C/W R th(c-h) 0.10°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 15 Certification UL Listed Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See MDD95-16 for IXYS or See DD100N16S for Infineon Solder Contact Alternative

Read more less

Infineon DD600N12K, Dual Diode Module, 600 Amp, 1200V, 60mm Base Features Pressure Contact Technology Electrically insulated base plate Very low forward voltage drop Very low leakage current Planar passivated chips International standard package 3600V Isolation 60mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Filed Supply for DC Motors DC supply for PWM inverter Specification Infineon Part Number DD600N12K Vrrm 1200V Diode Configuration Dual Diode Module IF(av) @ 100 Deg C 600 Amp Package Size W:60mm L:101mm D:52mm Itsm 22 kA VF(to) 0.75V Tj(max) 150°C rF 0.215mΩ Terminals M10 Bolt Hole Centres 80mm x 38mm (M6) Gate Terminals N/A R th(j-c) 0.078°C/W R th(c-h) 0.02°C/W Weight 900g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS IXYS Headquarters United States Datasheet Product Datasheet Alternatives MDC600-416F3

Read more less

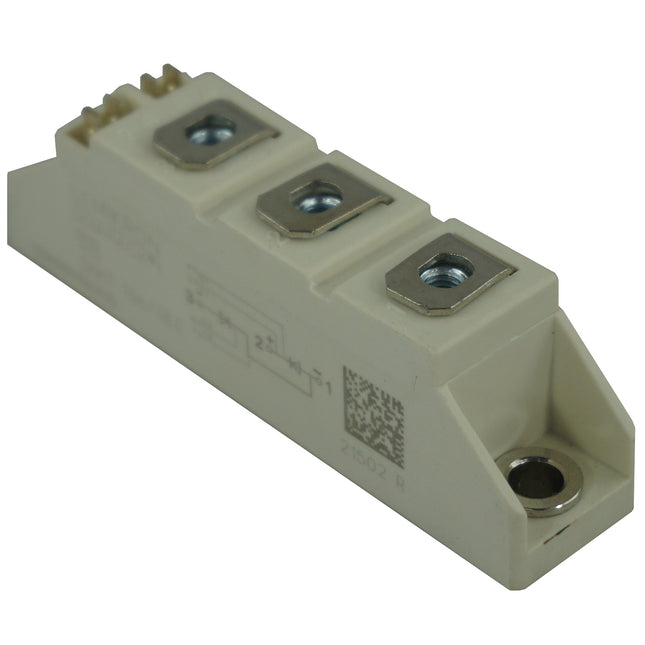

Semikron SKKT56/14E, Dual Thyristor Module, 56 Amp, 1400V, Without Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikron Part Number SKKT56/14E Vrrm 1400V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 60 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Itsm 1.2 kA VF(to) 1.02V Tj(max) 125°C rF 3.77mΩ I(gt) @ 25 Deg C 150mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm R th(j-c) 0.35°C/W R th(c-h) 0.1°C/W Weight 75g Mounting Torque 4 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin India   Datasheet Product Datasheet Alternatives See TT61N12KOF, TT92N16K or TT104N14K for Infineon Pressure Contact, or MTC110-16-223F3 Techsem Pressure Contact  Alternative, or MCC95-16 for IXYS solder bonded Alternative and TT60N16SOF for Infineon Solder Bonded Alternative

Read more less

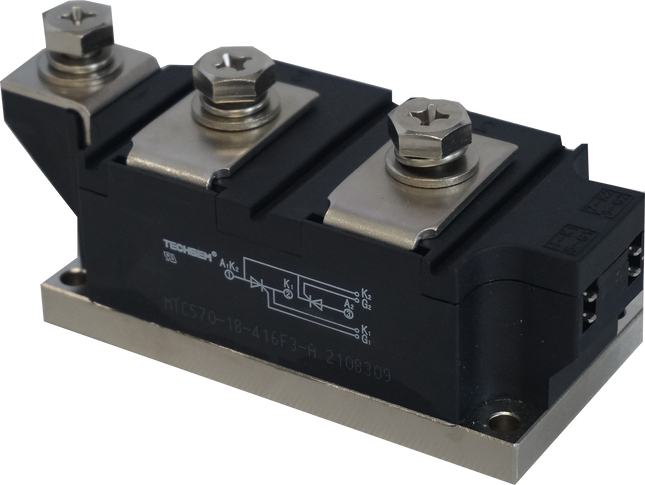

Techsem MTC570-16-416F3, Dual Thyristor Module, 570 Amp, 1600V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MTC570-16-416F3 Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 500 Amp Package Size W:60mm L:144mm D:52mm Itsm 17 kA VF(to) 0.9V Tj(max) 125°C rF 0.27mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.065°C/W R th(c-h) 0.02°C/W Weight 1500g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See MCC552-16io1 See TT570N16KOF
