Techsem MTC182-18-216F3B, 162 Amp, 1800V, Dual Thyristor Module Features Pressure Contact Technology Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Techsem Part Number MTC182-18-216F3B Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 181 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 7 kA VF(to) 0.80V Tj(max) 125°C rF 1.26mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.16°C/W R th(c-h) 0.08°C/W Weight 320g Mounting Torque 2.5 Nm (5 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See TT162N16KOF for Techsem Pressure Contact Alternative or MCC162-18 for IXYS Solder Bonded Alternative

Read more less

Techsem MTC2000-18-436F3-R, Dual Thyristor Module, 2000 Amp, 1800V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 2500V Isolation 77mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MTC2000-18-436F3-R Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 2000 Amp Package Size W:100mm L:230mm D:92mm Itsm 54.7 kA (VR=0, t=10ms half sine) VF(to) 0.8V Tj(max) 125°C rF 0.14mΩ I(gt) @ 25 Deg C 200mA Terminals M12 Screw Hole Centres 132mm x 58mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.025°C/W R th(c-h) 0.018°C/W Weight 3500g Mounting Torque 8 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet

Read more less

Techsem MTC570-18-416F3, Dual Thyristor Module, 570 Amp, 1800V Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Techsem Part Number MTC570-18-416F3 Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 500 Amp Package Size W:60mm L:144mm D:52mm Itsm 17 kA VF(to) 0.9V Tj(max) 125°C rF 0.27mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.065°C/W R th(c-h) 0.02°C/W Weight 1500g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Techsem Headquarters China   Datasheet Product Datasheet Alternatives See MCC552-16io1 See TT570N16KOF

Read more less

Sanrex DBA200UA60, 100A, 600V Dual Diode Module, Soft Recovery Features Package with DCB ceramic base plate Isolation voltage 2500 V∼ Planar glass passivated chips Applications Heat and temperature control for industrial furnaces and chemical processes Lighting control DC Power Supply Power converter Advantages Easy to mount with two screws Space and weight savings Improved temperature and power cycling capability High power density Specification Sanrex Part Number DBA200UA60 Vrrm voltage 600533V Device Configuration Dual Diode Module, Soft Recovery DC Output @ 102 Deg C 100 Amp Package Size W:38mm L:25mm D:12mm Itsm 700 A VFM 1.2V Tj(max) 150°C rF Not Published Reverse Recovery Time 150nS Terminals M4 (1.5Nm) Hole Centres 30mm (M4) Gate Terminals N/A R th(j-c) 0.45°C/W R th(c-h) Not Published Weight 30g Isolation 2.5kV Factory Pack Qty 5 Certification N/A Sanrex Headquarters Japan   Datasheet Product Datasheet

Read more less

Westcode-IXYS-Littlefuse MCC26-16Io1B, Dual Thyristor Module, 26 Amp, 1600V, With Aux Cathode Connection Features Thyristor for line frequency Direct Copper Bonded Al2O3-ceramic Planar passivated chip Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 20mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Westcode-IXYS-Littlefuse Part Number MCC26-16Io1B Vrrm 1600V Diode Configuration Thyristor Diode Module IF(av) @ 85 Deg C 27 Amp Package Size W:20mm L:93mm D:30mm TO-240AA Itsm 0.52 kA VF(to) 0.85V Tj(max) 125°C rF 11mΩ I(gt) @ 25 Deg C 100mA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) (without Aux Cathode Connections) R th(j-c) 0.88°C/W R th(c-h) 0.20°C/W Weight 81g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 12 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet

Read more less

Westcode-IXYS-Littlefuse MCC95-18io1B, Dual Thyristor (SCR) Module, 95 Amp, 1800V Features Package with DCB ceramic Electrically insulated base plate Improved temperature and power cycling Planar passivated chips Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers For single and three phase bridge configurations Field supply for DC motors Input rectifiers for PWM inverter Specification Westcode-IXYS-Littlefuse Part Number MCC95-18io1B Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 116 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 2.25 kA VF(to) 0.8V Tj(max) 125°C rF 2.4mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current N/A R th(j-c) 0.22°C/W R th(c-h) 0.42°C/W Weight 85g Mounting Torque 3.25 Nm (3.25 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS IXYS Headquarters United States   Datasheet Product Datasheet Alternatives See DD100N16S for IXYS replacement. See DD104N14KOF for Infineon Pressure Contact Alternative

Read more less

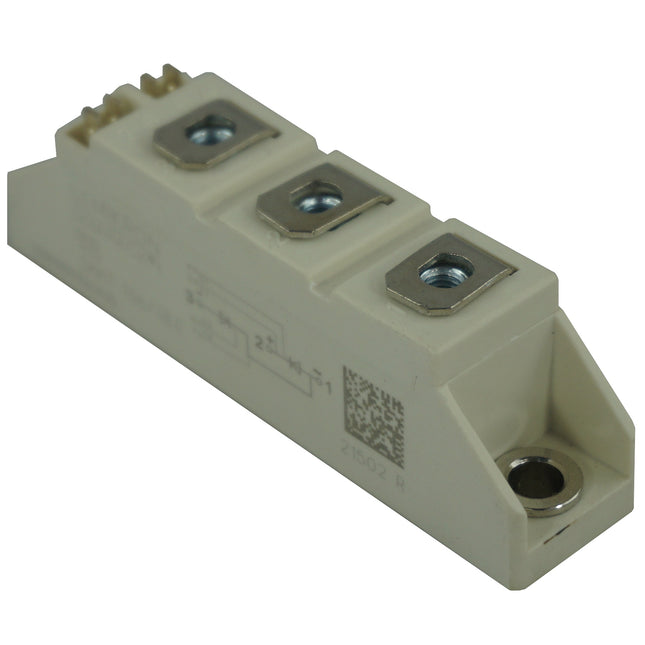

Semikron SKKT42/16E, Dual Thyristor Module, 42 Amp, 1600V, With Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT42/16E Vrrm 1600V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 42 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See VSKT105/16 TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16

Read more less

Semikron SKKT105/18E, Dual Thyristor Module, 105 Amp, 1800V, without Aux Cathode Connection Features Thyristor for line frequency Solder - Solder Bonded Electrically insulated base plate Industrial standard package 3600V Isolation 22mm Base Width Applications Power Converter Line rectifying 50/60 Hz Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Semikorn Part Number SKKT105/18E Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 105 Amp Package Size W:22mm L:93mm D:30mm TO-240AA Terminals M5 Screw Hole Centres 80mm (M6) Gate Terminals Faston A2.8 x 0.8mm (without Aux Cathode Connection) Weight 110g Mounting Torque 5 Nm (3 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Country of Origin Hungary   Datasheet Datasheet Alternatives See VSKT105/16 TT92N16K or TT104N14K for Infineon Pressure Contact Alternative, or for IXYS solder bonded Alternative MCC95-16
